SIEMENS C98043-A7004-L2 Retrofit-Ready Field Excitation for SIMOREG 6RA70

SIEMENS C98043-A7004-L2 Retrofit-Ready Field Excitation for SIMOREG 6RA70 Control Systems

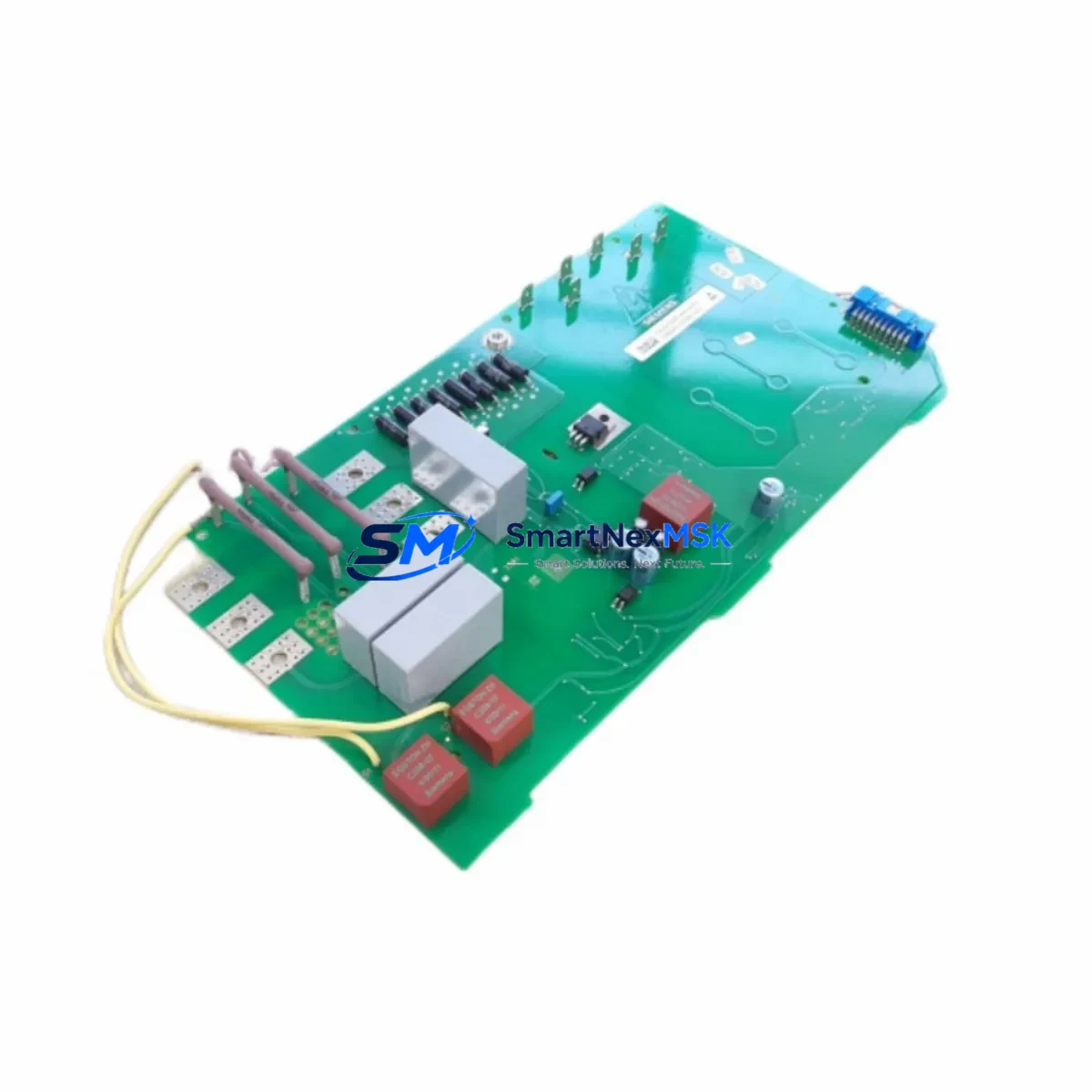

The SIEMENS C98043-A7004-L2 is a field excitation printed circuit board (PCB) engineered for the SIMOREG 6RA70 series DC drive platform. As legacy SIMOREG 6RA70 systems approach end-of-support milestones, plant engineers and maintenance teams increasingly rely on verified replacement boards like the C98043-A7004-L2 to extend operational life, avoid costly drive replacements, and maintain production continuity. SMARTNEXMSK maintains ready stock of this board with full functional testing and a 12-month warranty, supporting customers across retrofit projects, emergency breakdowns, and planned system upgrades.

The C98043-A7004-L2 governs field current regulation within the SIMOREG 6RA70 converter, interfacing directly with the armature control board and the firing pulse board to maintain precise DC motor field excitation. When this board fails, the drive typically faults on field loss (F005) or field overcurrent conditions, halting the motor entirely. A verified replacement board restores normal operation without requiring firmware changes or drive parameter re-initialization in most standard configurations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the C98043-A7004-L2 in an operational plant environment requires careful coordination across multiple system components. The SIMOREG 6RA70 drive is rarely a standalone device — it typically operates as part of a coordinated drive system involving a SIMOREG CUD1 control board (the central parameter and logic processor), a firing pulse board C98043-A7003, and an armature feedback board. Before initiating a board swap, maintenance engineers should confirm that the field circuit fusing on the drive’s power section is intact and that the field transformer secondary voltage is within specification.

In systems where the 6RA70 communicates via PROFIBUS-DP using a CBP2 communication board, the network address and baud rate settings are stored on the CUD1 and are unaffected by a field excitation board replacement. However, if the plant uses a SIMATIC S7-300 or S7-400 PLC as the master controller, the integrator should verify that the drive’s GSD file and hardware configuration in STEP 7 or TIA Portal remain consistent after the repair. In older installations using USS protocol over RS-485, the communication parameters (P700–P704) should be documented before any board removal.

For plants upgrading from earlier SIMOREG DC Master variants or from the older SIMOREG 6RA24 / 6RA26 series, the C98043-A7004-L2 is part of a broader migration path. These older drives used separate field controllers and analog tachometer feedback, whereas the 6RA70 platform integrates field regulation on-board. During such migrations, engineers often simultaneously upgrade the motor encoder interface board SBP or SBR2 and replace aging SITOP PSU100S power supply modules feeding the control electronics. Terminal wiring for the field circuit (terminals X4 on the 6RA70 power section) must be verified against the original drive documentation to avoid polarity errors during recommissioning.

In multi-drive cabinet installations, it is common to find the 6RA70 paired with a SINAMICS G120 or S120 series inverter on the same control bus, sharing a common SIMATIC HMI panel TP700 or OP177B for operator interface. After replacing the C98043-A7004-L2, the HMI drive status screens should be verified to confirm that field current actual value (r0027) is displayed correctly and that no persistent fault codes remain. If the plant uses SIMATIC WinCC for supervisory control, the drive’s OPC DA tags should be checked for correct value mapping post-repair.

For I/O-intensive applications where the 6RA70 receives speed references and torque limits from a distributed I/O rack — such as a SIMATIC ET 200M or ET 200S remote I/O station — the analog output scaling (P100–P102) should be re-verified after the field board replacement to ensure the motor’s no-load speed and rated field current are correctly calibrated. A programming cable such as a PC Adapter USB or MPI/PROFIBUS adapter connected to the CUD1’s X300 port is required for parameter access via STARTER or DriveMonitor software during commissioning.

Downtime Control During System Migration

Minimizing production downtime during a C98043-A7004-L2 replacement begins with pre-shipment preparation. Before the replacement board arrives, the maintenance team should use DriveMonitor or STARTER software to upload and save a complete parameter backup from the CUD1 control board via the X300 serial interface. This backup preserves all motor data, speed controller gains, field weakening curves, and communication settings — ensuring that if any parameter is inadvertently altered during the repair, the original configuration can be restored within minutes.

The physical board swap on a 6RA70 drive is straightforward: the drive must be powered down and locked out (LOTO procedure), the field excitation board is accessed by removing the front cover of the electronics compartment, and the board is extracted from its backplane connector. The replacement C98043-A7004-L2 is inserted into the same slot — no jumper changes or DIP switch settings are required for standard field excitation configurations. After power restoration, the drive should be allowed to complete its self-test sequence before enabling the run command.

To protect original program logic in the upstream PLC — whether a SIMATIC S7-300 with a CP 342-5 PROFIBUS module or an older S5-115U with a SINEC L2 interface — the drive should be placed in local control mode (P100 = 0) during the repair window. This prevents the PLC from issuing run commands to the drive while the board is being replaced and avoids nuisance fault propagation to the supervisory system. Once the replacement board is confirmed operational and field current is stable at the rated value (verified via r0027 and r0028 in the parameter list), the drive can be returned to remote/automatic control mode and the production sequence resumed.

SMARTNEXMSK ships the C98043-A7004-L2 with a functional test report and ESD-safe packaging. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, supporting urgent breakdown scenarios where every hour of downtime carries significant production cost.

Retrofit Support FAQ

Q1: Is the C98043-A7004-L2 a direct drop-in replacement for the C98043-A7004-L1?
Yes. The L2 revision supersedes the L1 and is fully backward compatible within the SIMOREG 6RA70 platform. No parameter changes or mechanical modifications are required when upgrading from L1 to L2.

Q2: Will replacing the field excitation board erase the drive’s parameters?
No. All drive parameters are stored on the CUD1 control board, not on the field excitation board. Replacing the C98043-A7004-L2 does not affect stored parameters. However, SMARTNEXMSK recommends performing a parameter backup before any board replacement as a precautionary measure.

Q3: What commissioning steps are required after installation?
After installing the replacement board and restoring power, perform a field optimization run by setting P051 = 25 and enabling the drive. This allows the 6RA70 to re-measure the motor’s field time constant and optimize the field current controller. Verify field current actual value via r0027 and confirm no active faults before returning the drive to automatic operation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each C98043-A7004-L2 unit shipped by SMARTNEXMSK is functionally tested prior to dispatch. In the event of a warranty claim, SMARTNEXMSK provides a replacement unit or full refund. Contact [email protected] with your order number and fault description to initiate a warranty claim.
