Siemens QLSAMBAN Retrofit-Ready Safety Module for QUADLOG

Siemens QLSAMBAN Retrofit-Ready Safety Module for QUADLOG Control Systems

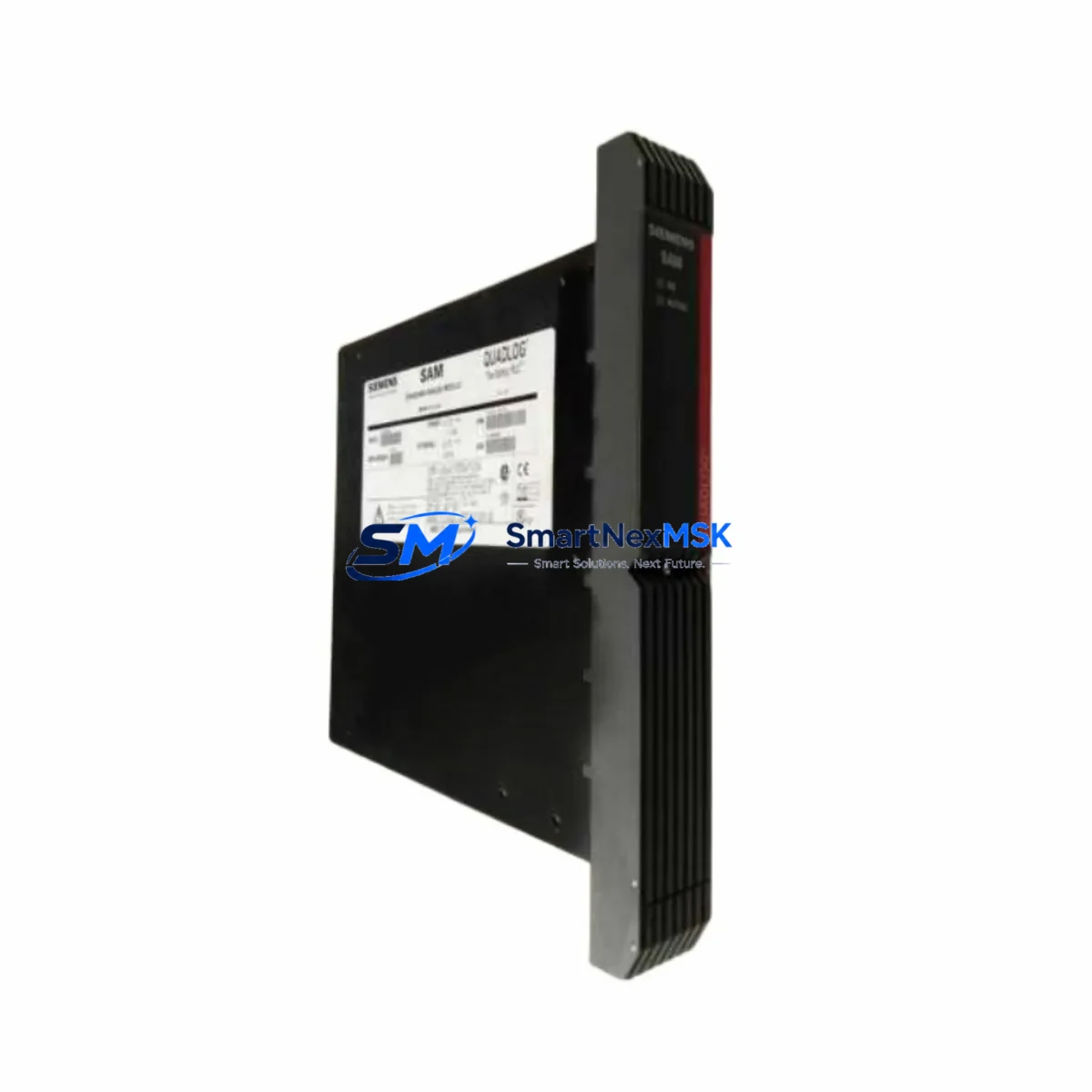

The Siemens QLSAMBAN is a Safety Application Module designed for the QUADLOG safety-rated control platform, certified to SIL2 and SIL3 integrity levels under IEC 61508. As legacy QUADLOG installations reach end-of-life and original spare parts become increasingly scarce, the QLSAMBAN has emerged as a critical retrofit component for engineers tasked with sustaining or modernizing safety-instrumented systems (SIS) in process plants, chemical facilities, oil and gas terminals, and power generation sites.

SMARTNEXMSK maintains verified stock of the QLSAMBAN and ships globally with full functional testing, documentation, and a 12-month warranty. Every unit undergoes pre-shipment inspection to confirm module addressing, backplane interface integrity, and communication link status before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful QLSAMBAN retrofit begins well before the module arrives on site. Engineers should first audit the existing QUADLOG rack configuration, identifying the chassis type (typically a QLRACK or compatible backplane assembly) and confirming available slot positions. The QLSAMBAN occupies a dedicated application module slot and must not be confused with I/O expansion modules such as the QLDIO digital I/O module or the QLAI analog input module, which serve different functional roles within the same rack.

Power budget verification is essential. The QUADLOG system relies on a dedicated QLPSU power supply module to distribute regulated DC power across the backplane. Before inserting a replacement QLSAMBAN, confirm that the power supply’s total load capacity accommodates the module’s draw alongside existing processor, communication, and I/O modules. Overloading the PSU is a common cause of intermittent faults during post-retrofit commissioning.

Communication architecture must also be reviewed. In many QUADLOG installations, the safety application module interfaces with a QLCPU or QLCPUA central processor unit via the internal safety bus. If the site also uses a QLCOM communication module for Modbus, PROFIBUS, or Ethernet connectivity to a DCS or SCADA layer, ensure that the replacement QLSAMBAN’s firmware version is compatible with the communication module’s protocol stack. Mismatched firmware revisions can cause the safety bus to enter a fault state, triggering a system-wide safe shutdown.

For sites migrating from older QUADLOG generations to a hybrid architecture, the QLSAMBAN often serves as a bridge component — retaining the existing safety application logic while newer I/O modules such as the QLSAI (safety analog input) or QLSDO (safety digital output) are introduced to replace worn field-side hardware. This phased approach minimizes the scope of safety validation required at each stage, reducing both engineering cost and plant downtime.

HMI integration is another area requiring careful attention. Many QUADLOG installations feed safety status data to a Siemens WinCC or third-party HMI via OPC or serial link. After replacing the QLSAMBAN, verify that all safety function status tags, alarm setpoints, and interlock bypass indicators are correctly mapped and displaying expected values before returning the system to automatic mode.

Programming cable access may be required during commissioning. The QLPGM programming interface or equivalent serial/USB adapter is used to connect a laptop running the QUADLOG engineering workstation software for online diagnostics, module status verification, and — if required — application program download. Ensure the programming tool version matches the installed firmware to avoid compatibility errors during the connection handshake.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any safety system retrofit. The QLSAMBAN replacement procedure should be planned during a scheduled maintenance window, with a full backup of the existing safety application program exported from the QLCPU before any hardware is disturbed. This backup preserves all function block configurations, interlock logic, module address assignments, and safety parameter settings, providing a recovery baseline if the new module requires re-commissioning.

Where the process cannot tolerate a full safety system shutdown, a partial bypass strategy may be employed: individual safety loops can be placed in manual or bypass mode under a formal Management of Change (MOC) procedure, allowing the QLSAMBAN to be replaced while other loops remain in automatic protection. This approach requires coordination between the control room, field technicians, and the site safety officer, and must be documented in the plant’s permit-to-work system.

After physical installation, the module should be powered up with the rack in a controlled state. Monitor the QLCPU’s diagnostic display or engineering workstation for module recognition, address confirmation, and safety bus synchronization status. Once the QLSAMBAN reports healthy status and all safety function outputs are verified against the original proof test records, the bypassed loops can be returned to automatic mode sequentially, with each loop’s safety function confirmed before the next is re-enabled. This staged re-energization approach protects against cascading faults and keeps the overall system in a known safe state throughout the migration.

Retrofit Support FAQ

Q1: Is the QLSAMBAN a direct drop-in replacement for my existing unit?
In most cases, yes. The QLSAMBAN is a direct physical and functional replacement for units of the same part number. However, you should verify the firmware revision of the replacement unit against your QLCPU version. If the firmware levels differ, a firmware update may be required before the module will synchronize on the safety bus. Contact our technical team with your existing module’s label information and we will confirm compatibility before shipment.

Q2: What wiring changes are needed during replacement?
No field wiring changes are required for a like-for-like QLSAMBAN replacement. The module connects to the system exclusively through the QUADLOG backplane interface. Terminal blocks and field cables connected to associated I/O modules remain undisturbed. If you are simultaneously upgrading adjacent I/O modules such as the QLDIO or QLAI, those modules’ terminal assignments should be verified against the original wiring diagrams before re-energization.

Q3: How do you verify the module before shipment?
Every QLSAMBAN unit shipped by SMARTNEXMSK undergoes a pre-shipment functional test that includes power-on self-test verification, backplane interface continuity check, and communication bus response confirmation. Units are shipped with a test report and are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Expedited shipping options are available for urgent breakdown situations.

Q4: Can the QLSAMBAN be used in a mixed-generation QUADLOG rack?
Yes, with caveats. QUADLOG racks that contain a mix of original-generation and later-revision modules can operate correctly provided all modules share a compatible firmware baseline. The QLCPU acts as the version authority on the safety bus; modules with incompatible firmware will be flagged in the diagnostic log and excluded from the safety application until updated. We recommend providing your QLCPU firmware version when ordering so we can supply a QLSAMBAN unit with a pre-matched firmware revision where possible.
