Siemens RD63F200 Safety-Enhanced MCCB Frame: Reliable Control for Harsh Industrial Sites

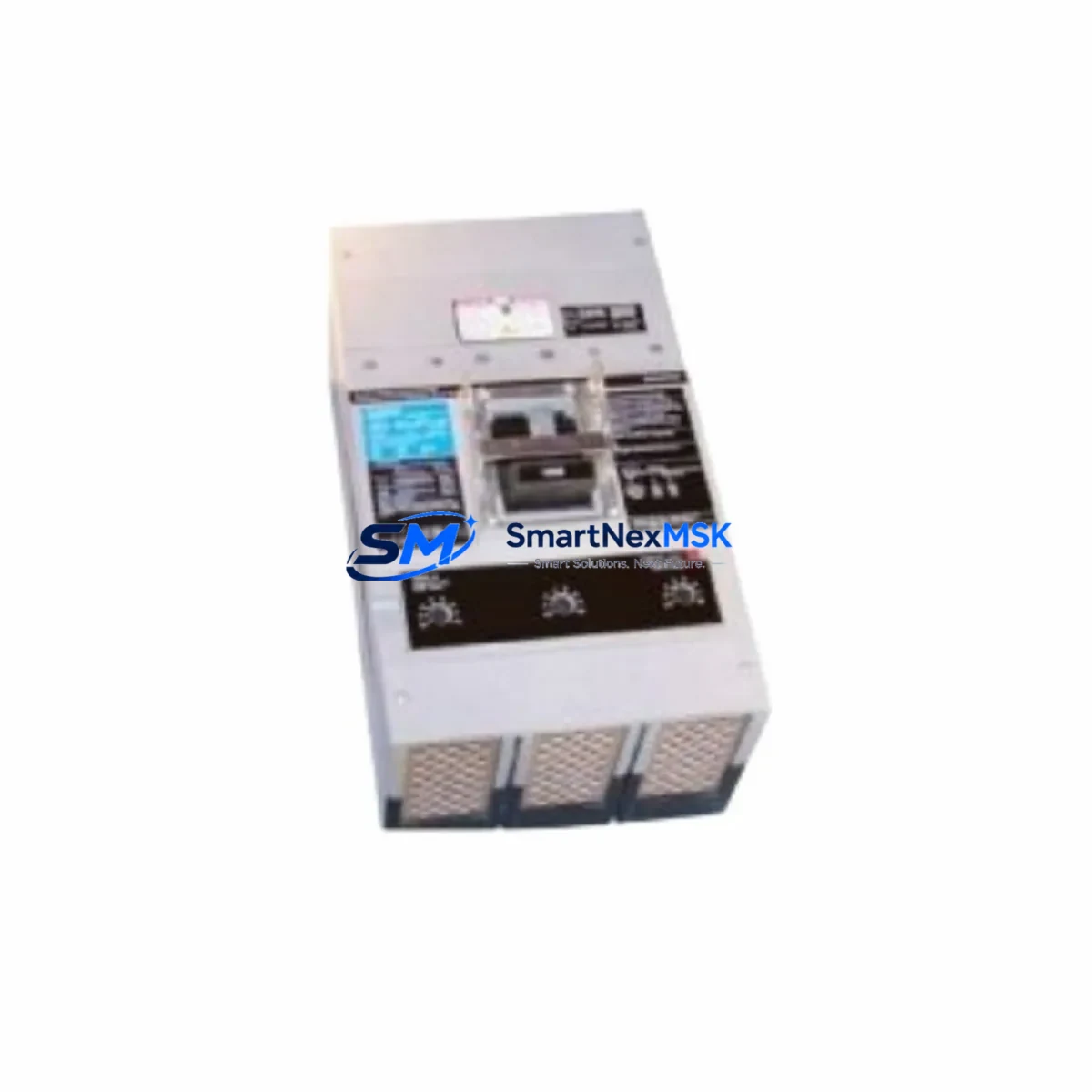

The Siemens RD63F200 is a heavy-duty Molded Case Circuit Breaker (MCCB) frame from the RD6 Series, engineered for 3-pole, 600V, 2000A applications in the most demanding industrial environments. Designed to serve as the structural and electrical backbone of high-current protection circuits, the RD63F200 delivers consistent, safety-critical performance in control cabinets, motor control centers (MCCs), and critical interlock loops where unplanned downtime is not an option.

In high-load, high-interference industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical smelters, and continuous-process manufacturing lines — the integrity of the overcurrent protection system is paramount. The RD63F200 frame provides the mechanical and dielectric robustness required to maintain circuit protection under surge conditions, thermal stress, and sustained fault currents, reducing the risk of control interruption, arc flash events, and cascading equipment failures.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the Siemens RD63F200 MCCB frame serves as the primary overcurrent and short-circuit protection device at the incomer or feeder level. Its 2000A frame rating makes it suitable for protecting large motor feeders, transformer secondaries, and bus sections in medium-to-large switchgear assemblies.

For a complete and safety-compliant control cabinet architecture, the RD63F200 is typically deployed alongside a range of complementary Siemens components. The Siemens RD6 Series trip unit — whether electronic (ETU) or thermal-magnetic — is installed within the frame to provide adjustable overload, short-circuit, and ground-fault protection, enabling precise coordination with downstream devices. Upstream, a Siemens 3WL Air Circuit Breaker or 3VA Molded Case Circuit Breaker may serve as the main incomer, establishing a coordinated protection cascade.

Signal integrity and communication reliability are maintained through Siemens PROFIBUS DP or PROFINET IO communication modules integrated into the switchgear, ensuring that trip events and status signals are transmitted without delay to the PLC or DCS control layer. In safety-instrumented systems (SIS), the RD63F200 may be part of a critical interlock loop monitored by a Siemens SIMATIC S7-300 or S7-400 PLC, where any nuisance trip or failure-to-trip event could trigger a process safety shutdown.

Power quality at the cabinet level is further protected by Siemens SIPROTEC surge protection devices and Siemens 3NP fuse switch disconnectors, which guard against voltage transients and provide safe isolation during maintenance. For motor-driven loads, Siemens SIRIUS 3RV motor protection circuit breakers downstream of the RD63F200 provide coordinated overload protection, reducing the risk of motor burnout and unplanned production stops. Auxiliary contacts and shunt trip coils available for the RD6 frame enable remote tripping from a Siemens SIMATIC HMI or distributed control system, supporting both manual and automated safety responses.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous-area control rooms and motor control centers serving pump drives, compressor motors, and process heaters, the RD63F200 provides reliable fault isolation to prevent electrical faults from escalating into fire or explosion risks. Its high interrupting capacity ensures safe clearance of fault currents in high-energy distribution systems.

Power Generation & Substation Switchgear: At power plants and grid substations, the RD63F200 is used in generator protection panels and auxiliary power distribution boards. Its robust frame construction withstands the mechanical stresses of close-in fault clearing, protecting both equipment and personnel.

Mining & Mineral Processing: Underground and surface mining operations subject electrical equipment to extreme vibration, dust ingress, and voltage fluctuations. The RD63F200’s rugged frame and high-current rating make it a preferred choice for protecting dragline motors, conveyor drives, and crusher feeders in these harsh conditions.

Water & Wastewater Treatment: Continuous-duty pump stations and aeration blower systems require overcurrent protection that does not nuisance-trip under normal motor starting transients. The RD63F200, configured with an appropriate electronic trip unit, provides the selectivity needed to maintain uninterrupted water treatment operations.

Metallurgy & Steel Mills: In arc furnace power circuits, rolling mill drives, and ladle crane control panels, the RD63F200 handles the high cyclic loads and fault currents characteristic of heavy metallurgical processes, ensuring that protection operates reliably without compromising production throughput.

Port & Bulk Material Handling: Ship-to-shore cranes, stacker-reclaimers, and conveyor systems at port terminals demand overcurrent protection that can withstand salt-laden air, high humidity, and frequent load cycling. The RD63F200 provides the durability and reliability required for continuous port operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Siemens RD63F200?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails to perform to its rated specifications due to a production defect, we will arrange replacement or repair at no additional cost. Warranty claims are supported by our technical team with documented inspection reports.

Q2: What pre-shipment testing and inspection is performed on the RD63F200?
Every RD63F200 unit undergoes a multi-point outgoing quality inspection prior to dispatch, including visual inspection for mechanical integrity, verification of nameplate data against the order, and functional checks where applicable. Units sourced from authorized Siemens distribution channels are accompanied by original manufacturer documentation confirming authenticity and traceability.

Q3: Is the RD63F200 compatible with existing Siemens RD6 Series accessories and trip units?
Yes. The RD63F200 is fully compatible with the Siemens RD6 Series platform, including all standard electronic and thermal-magnetic trip units, auxiliary contacts, shunt trips, undervoltage releases, and communication modules designed for the RD6 frame size. Always verify the specific accessory part number against the Siemens RD6 compatibility matrix before ordering.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the RD63F200 and key RD6 Series accessories to support ongoing maintenance, planned shutdowns, and emergency spare requirements. For critical infrastructure projects requiring guaranteed supply over a multi-year period, we offer blanket order arrangements and reserved stock programs. Contact our sales team to discuss your long-term supply strategy.
