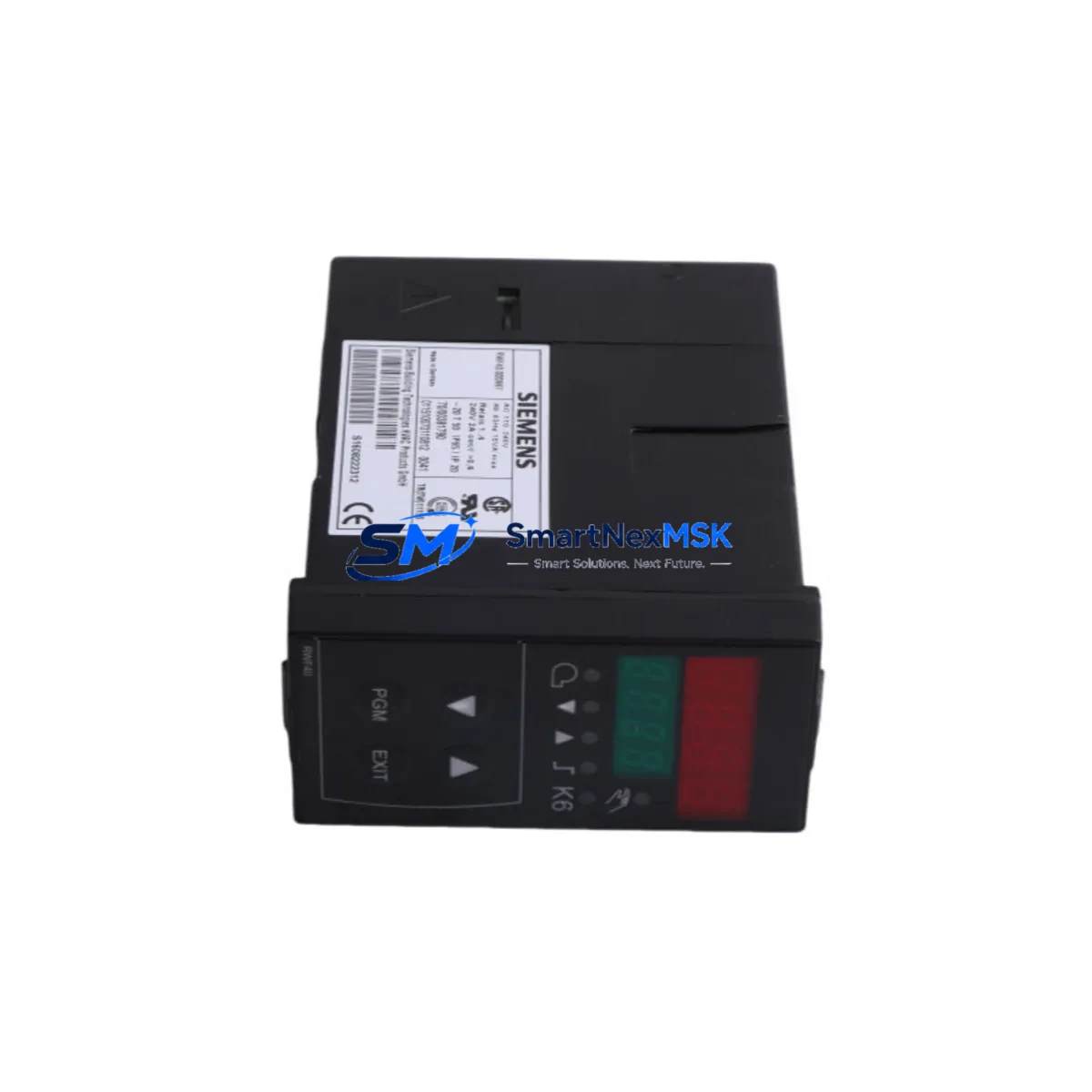

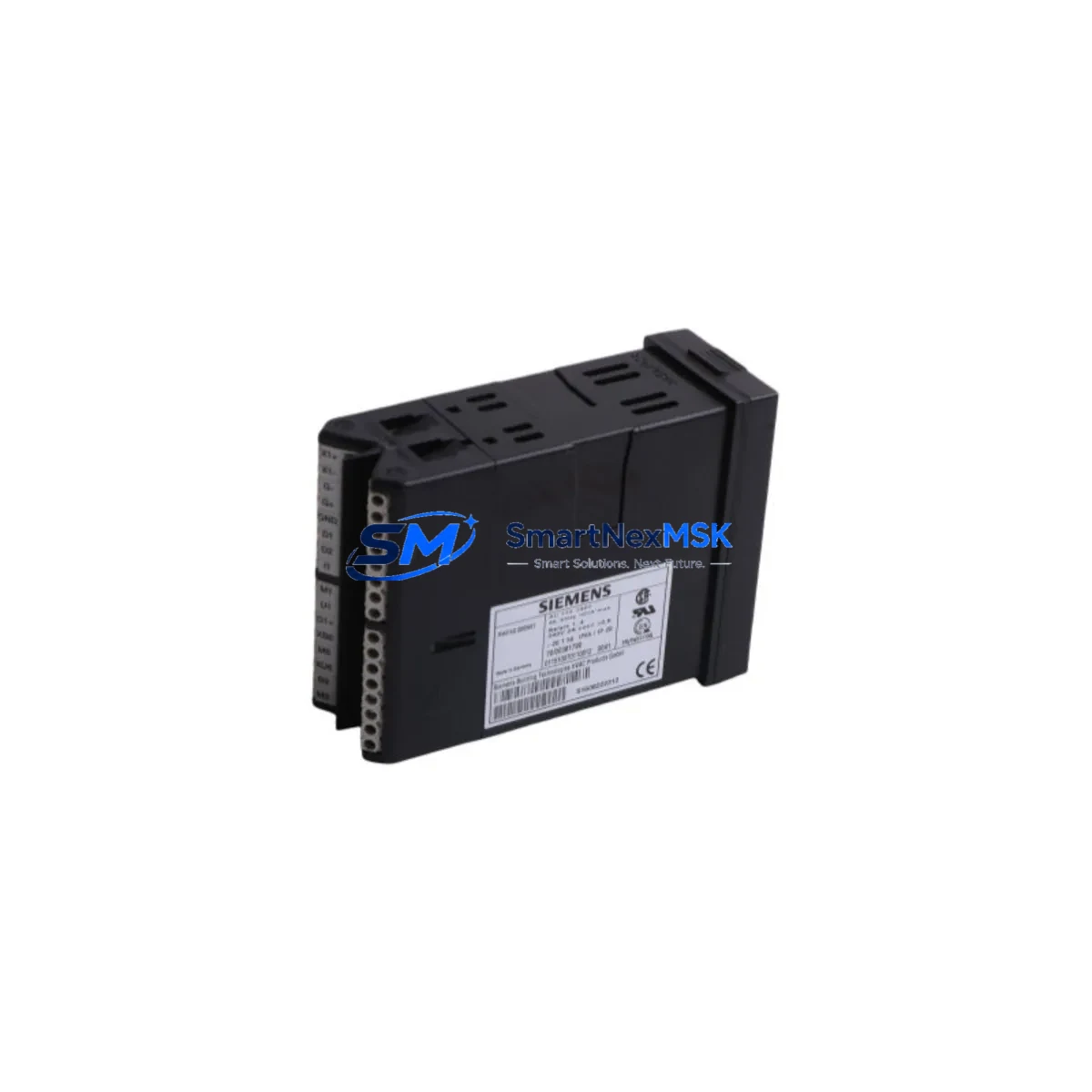

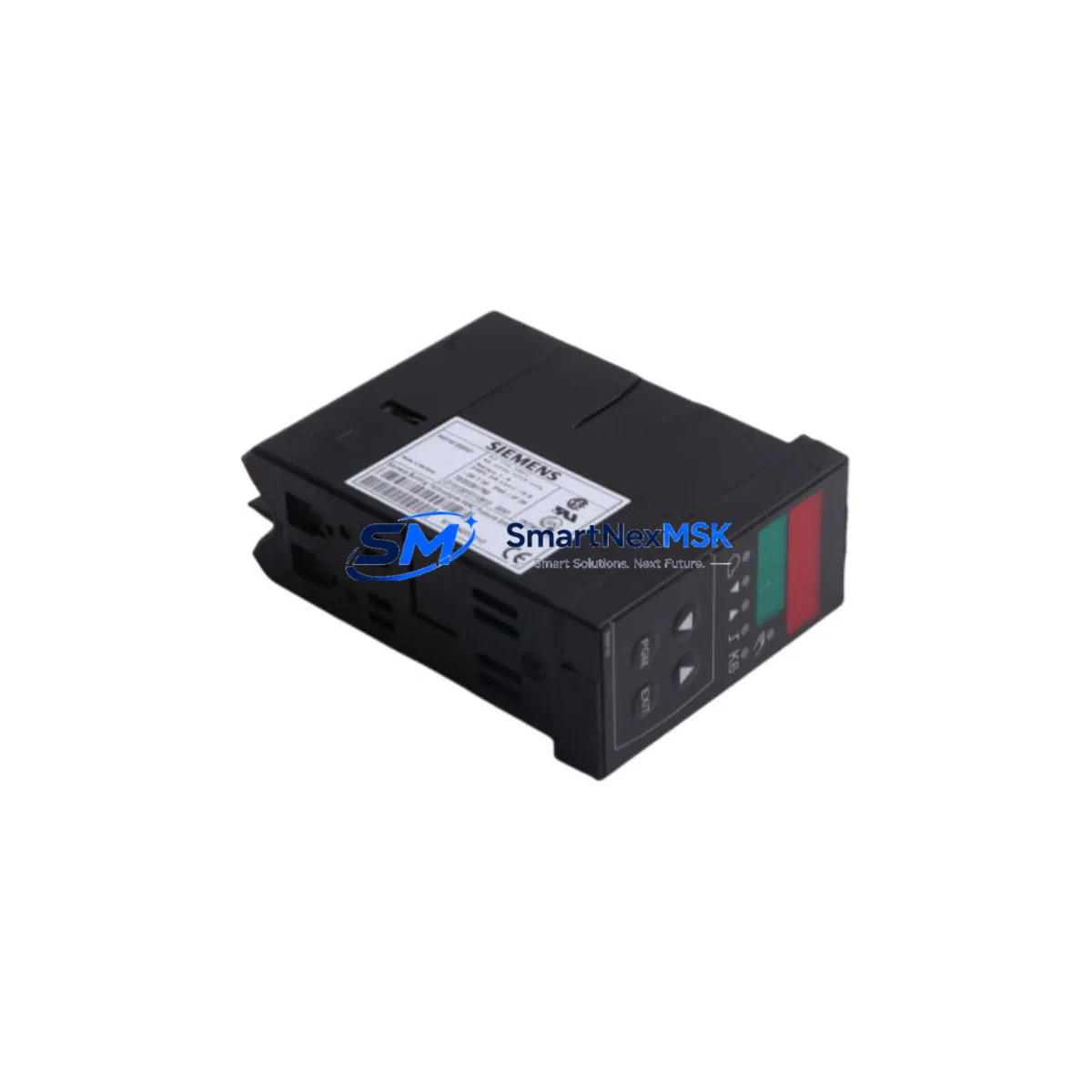

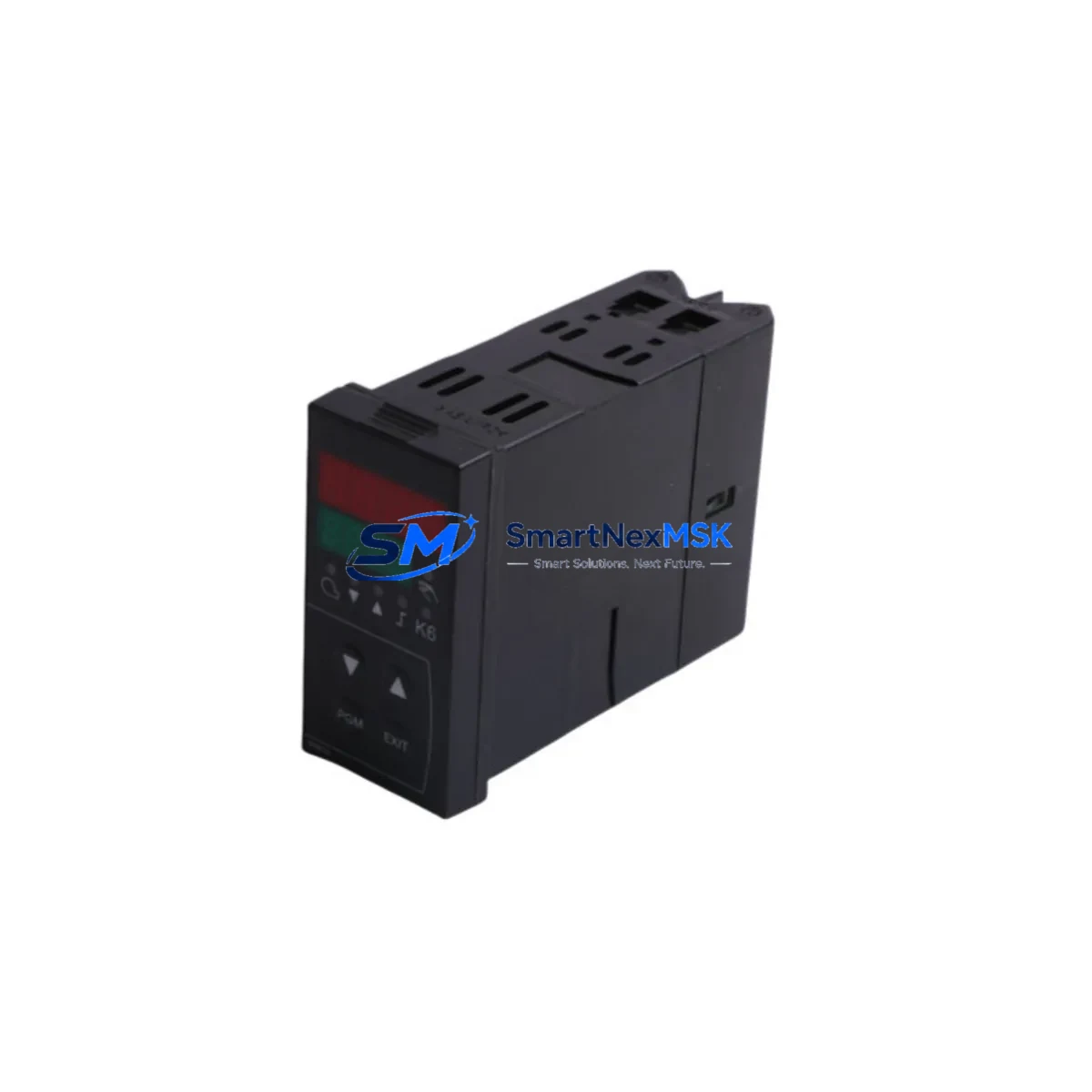

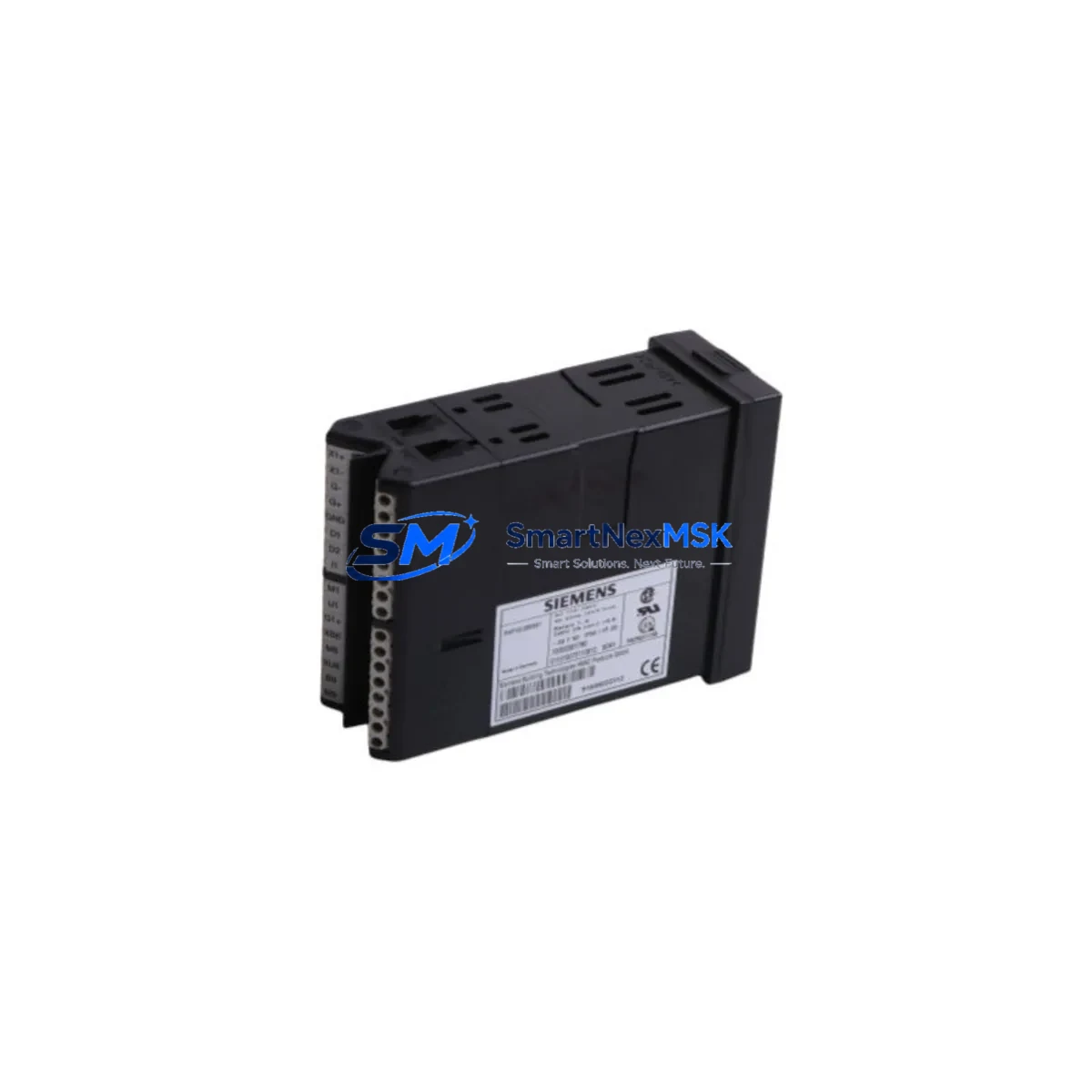

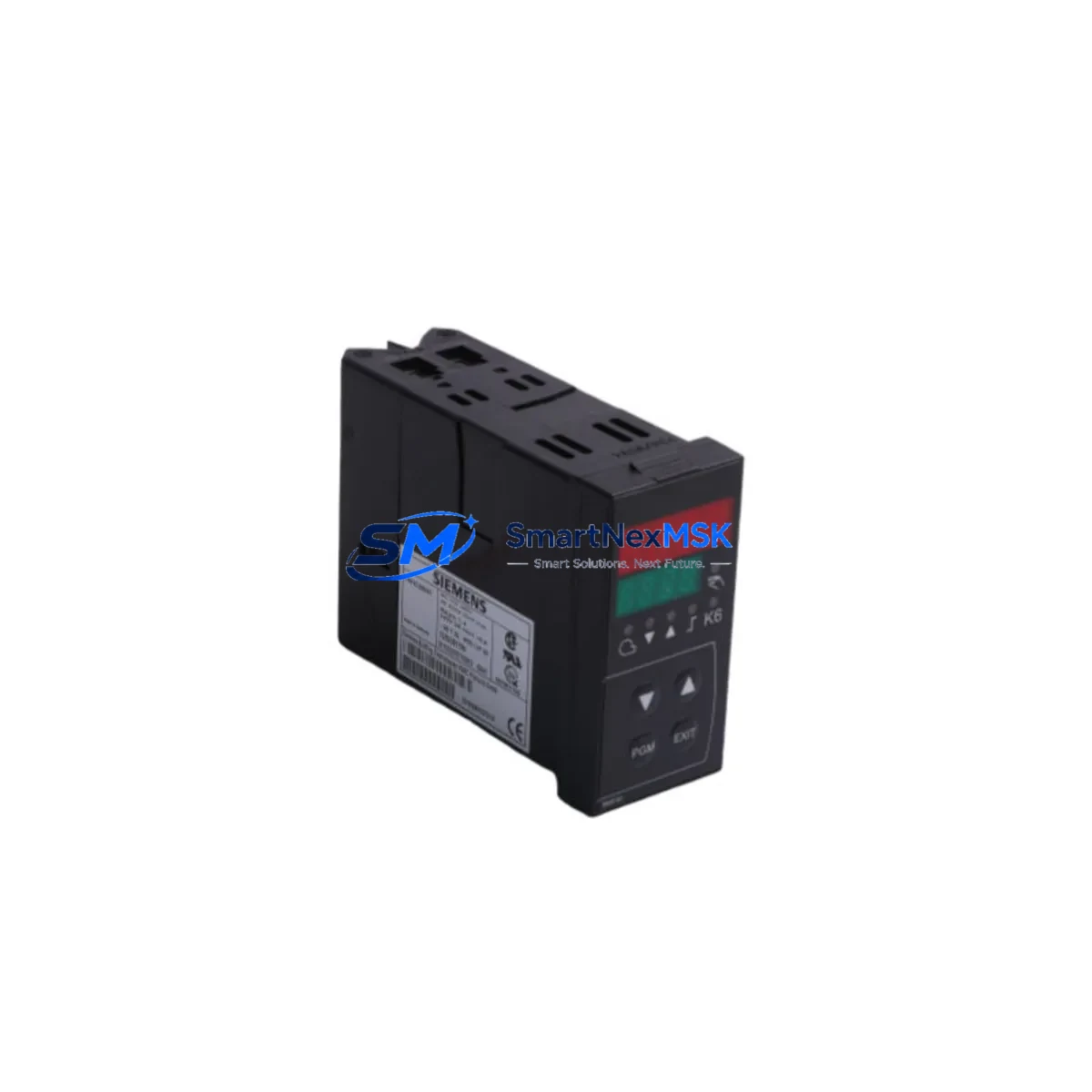

Siemens RWF40.000A97 Safety-Enhanced Burner Load Controller: Reliable Control for Harsh Industrial Sites
The Siemens RWF40.000A97 is a ruggedized burner load controller engineered for continuous, safety-critical combustion control in the most demanding industrial environments. As part of Siemens’ proven RWF40 series, this PID regulator delivers precise, stable load management for burner systems operating under high thermal stress, strong electromagnetic interference, and fluctuating power supply conditions — exactly the scenarios where control interruptions carry the highest operational and safety risk.
In petrochemical plants, power generation facilities, metallurgical furnaces, and continuous manufacturing lines, burner control is not merely a process function — it is a safety-critical loop. The RWF40.000A97 is designed to maintain setpoint accuracy and loop integrity even when subjected to voltage transients, ground noise, and ambient temperature extremes. Its compact DIN-rail form factor integrates cleanly into industrial control cabinets alongside components such as the Siemens LME73 burner management system, QRA55 UV flame detectors, and VGG10 gas valve trains, forming a coherent, interoperable combustion safety architecture.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | RWF40.000A97 |
| Brand / Series | Siemens / RWF40 |
| Product Type | Burner Load Controller (PID Regulator) |
| Control Mode | PID continuous modulating control |
| Input Signal | Universal analog input (Pt100, Pt1000, NTC, 0–10 V, 4–20 mA) |
| Output Signal | 3-point stepping / continuous 0–10 V / 4–20 mA |
| Supply Voltage | AC 100–240 V, 50/60 Hz |
| Power Consumption | ≤ 5 VA |
| Ambient Temperature | 0 °C to +50 °C (operating); -20 °C to +70 °C (storage) |
| Protection Rating | IP40 (front panel); IP20 (terminals) |
| EMC Compliance | EN 55022 / EN 61000 (CE marked) |
| Mounting | DIN rail (35 mm) / panel flush-mount |
| Display | 4-digit LED, dual-line readout |
| Communication | LPB bus compatible (Siemens local process bus) |
| Origin | Germany |
| Warranty | 12-Month Warranty — tested before shipment |
Control Cabinet Protection Strategy
Effective combustion safety in heavy industry depends on a coordinated protection strategy across the entire control cabinet. The RWF40.000A97 serves as the load-side PID brain, but its reliability is amplified when paired with complementary protection components. Upstream power quality is typically managed by a Siemens SITOP PSU100S 24 V DC power supply, which provides regulated, surge-protected DC power to the controller’s signal circuits, preventing voltage dips from propagating into the control loop.
On the signal side, field sensors such as Siemens QAE2120 immersion temperature sensors and QAD2012 duct sensors feed clean, calibrated process values into the RWF40’s universal analog input, minimizing signal drift that could cause erroneous load adjustments. For installations in areas with high electromagnetic interference — common in arc furnace bays, motor drive rooms, and high-voltage switchgear zones — shielded signal cables terminated through Phoenix Contact TRABTECH surge protection modules are recommended to guard the 4–20 mA and 0–10 V lines against transient spikes.
The RWF40.000A97 communicates over the Siemens LPB local process bus, enabling integration with RVS43 or RVS61 system controllers for cascade and master-slave burner sequencing in multi-burner boiler plants. Safety interlock signals are typically routed through Siemens 3SK1 safety relays or SIRIUS 3RQ3 coupling relays, ensuring that any detected fault condition — flame loss, over-temperature, or communication timeout — triggers a controlled, safe burner shutdown without nuisance tripping. Auxiliary I/O expansion via Siemens OCI55 communication modules further extends supervisory visibility to SCADA and BMS platforms.
Critical Industrial Safety Applications
The Siemens RWF40.000A97 is deployed across a wide spectrum of safety-critical combustion and thermal process applications:
Petrochemical & Refinery Heaters: In fired heaters and process furnaces, the RWF40.000A97 maintains precise outlet temperature control, preventing thermal runaway and coking events that can escalate into safety incidents. Its fast PID response compensates for feed rate disturbances and fuel gas pressure fluctuations common in refinery operations.
Power Generation Boilers: In coal-fired and gas-fired utility boilers, the controller manages burner load modulation across wide turndown ratios, supporting stable combustion during load-following cycles and startup/shutdown sequences where control accuracy is most critical.
Metallurgical Furnaces & Reheat Lines: Steel reheating furnaces and aluminum melting operations subject burner controllers to extreme radiant heat, vibration, and electrical noise. The RWF40’s robust analog front-end and EMC-compliant design maintain reliable setpoint tracking even in these harsh conditions.
Water Treatment & District Heating Plants: In hot water boiler plants and district heating substations, the RWF40.000A97 provides modulating control for condensing and non-condensing burners, optimizing fuel efficiency while maintaining safe operating pressures and temperatures.
Mining & Mineral Processing: Dryers, kilns, and thermal oxidizers in mining operations demand continuous, unattended burner control. The RWF40’s watchdog logic and fail-safe output behavior ensure that any controller anomaly results in a defined safe state rather than an uncontrolled burner condition.
Safety and Quality FAQ
Q1: What warranty does the RWF40.000A97 carry?
Every unit is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each RWF40.000A97 undergoes functional verification including power-on testing, input/output signal calibration checks, and communication bus response confirmation. Units that do not meet Siemens OEM performance specifications are not shipped.
Q2: Is the RWF40.000A97 compatible with existing Siemens RWF40 series installations?
Yes. The RWF40.000A97 is a direct form-fit-function replacement for other RWF40 series variants in the same housing format. It retains the same DIN-rail footprint, terminal layout, and LPB bus protocol, allowing drop-in replacement without panel modifications or software reconfiguration in most installations.
Q3: Can this controller be used in hazardous area (Ex-zone) control cabinets?
The RWF40.000A97 itself is rated for standard industrial environments (IP40 front panel). For hazardous area installations, it should be housed in a certified Ex e or Ex p enclosure with appropriate cable glands and intrinsic safety barriers on field signal lines. Consult your site safety engineer for zone classification and enclosure selection.
Q4: What is the long-term supply availability for the RWF40.000A97?
We maintain dedicated stock of the RWF40.000A97 to support both planned maintenance schedules and emergency replacement needs. Our inventory is sourced from authorized distribution channels and subject to incoming inspection. For critical plant spares programs, we can discuss reserved stock arrangements and lead-time commitments to ensure your site is never exposed to extended downtime due to parts unavailability.
