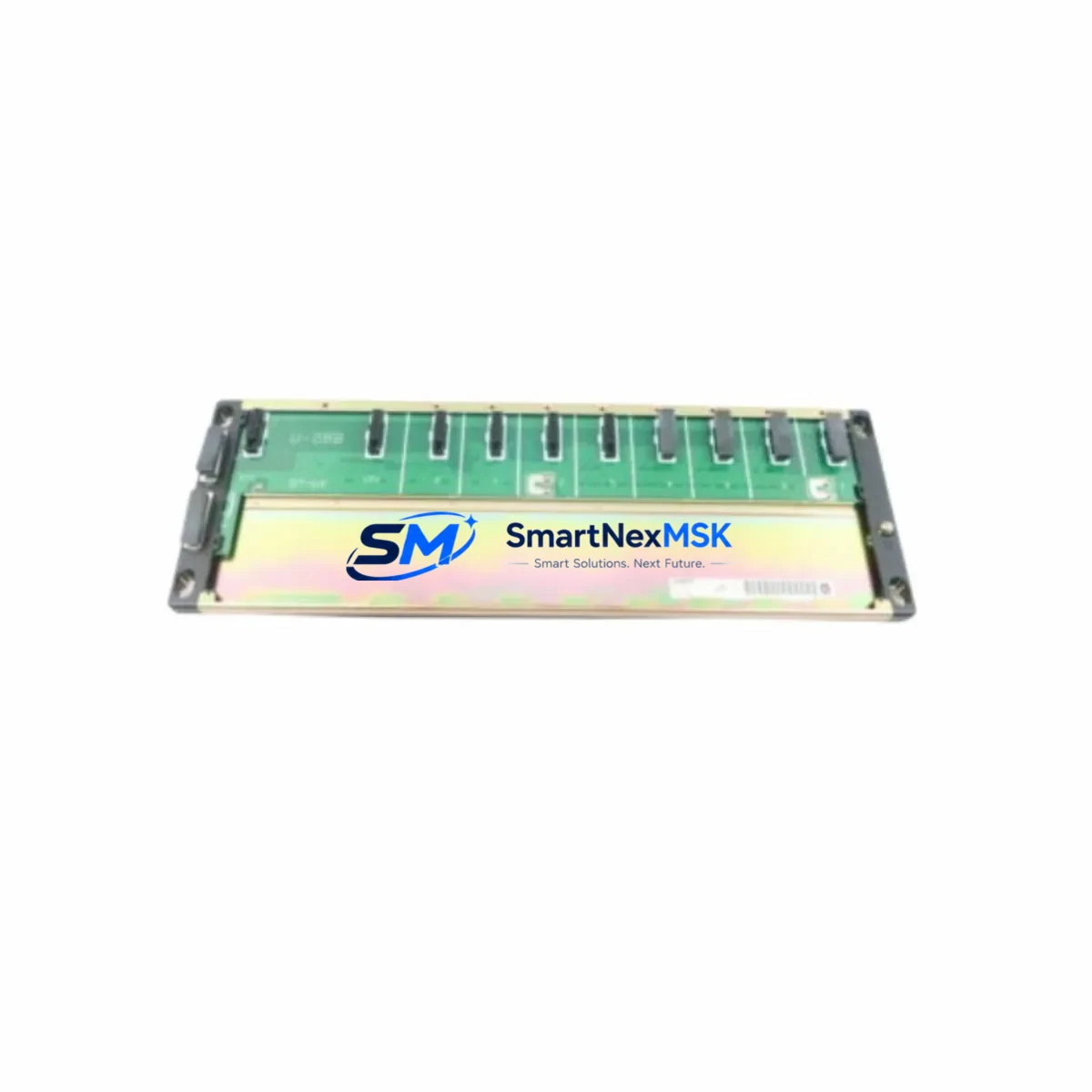

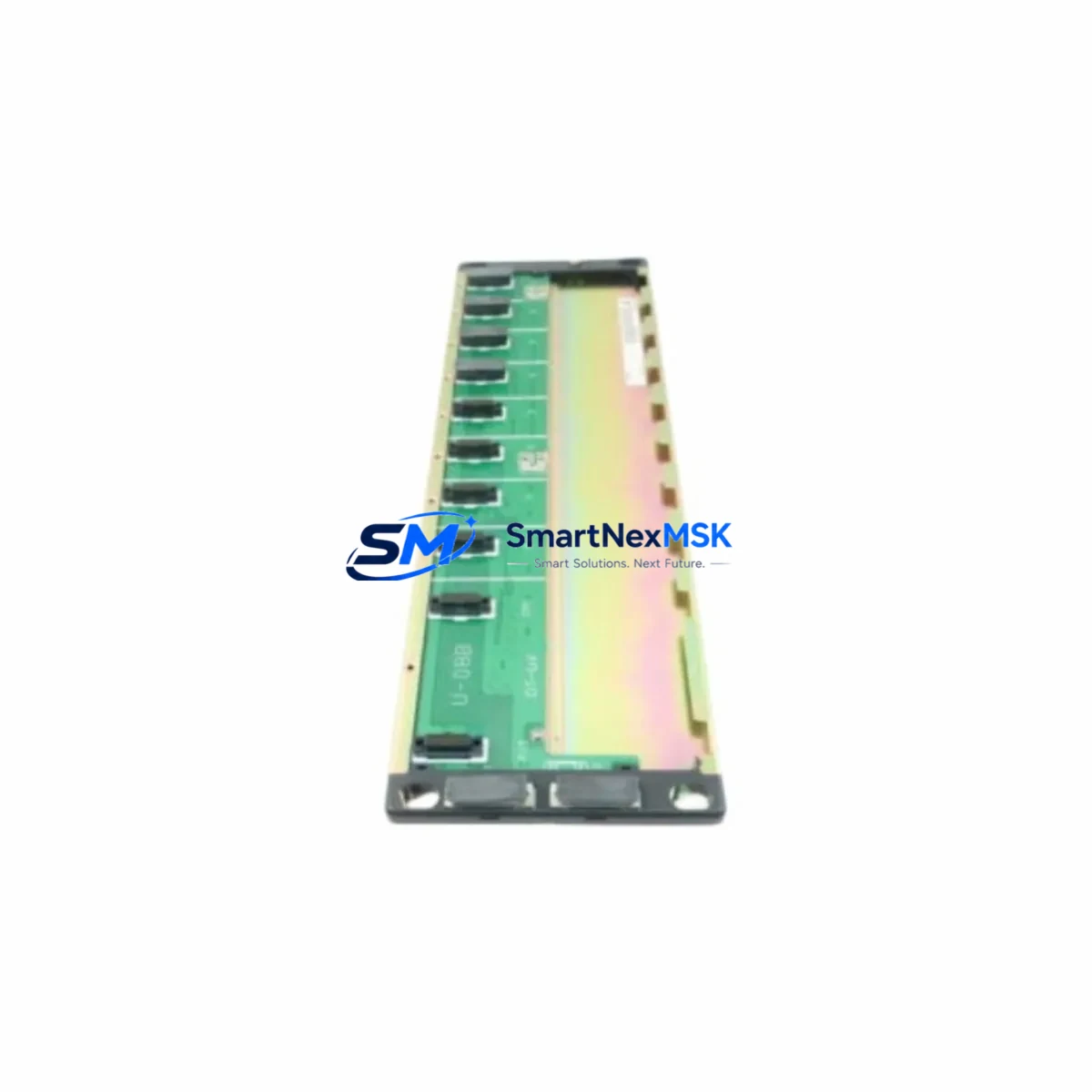

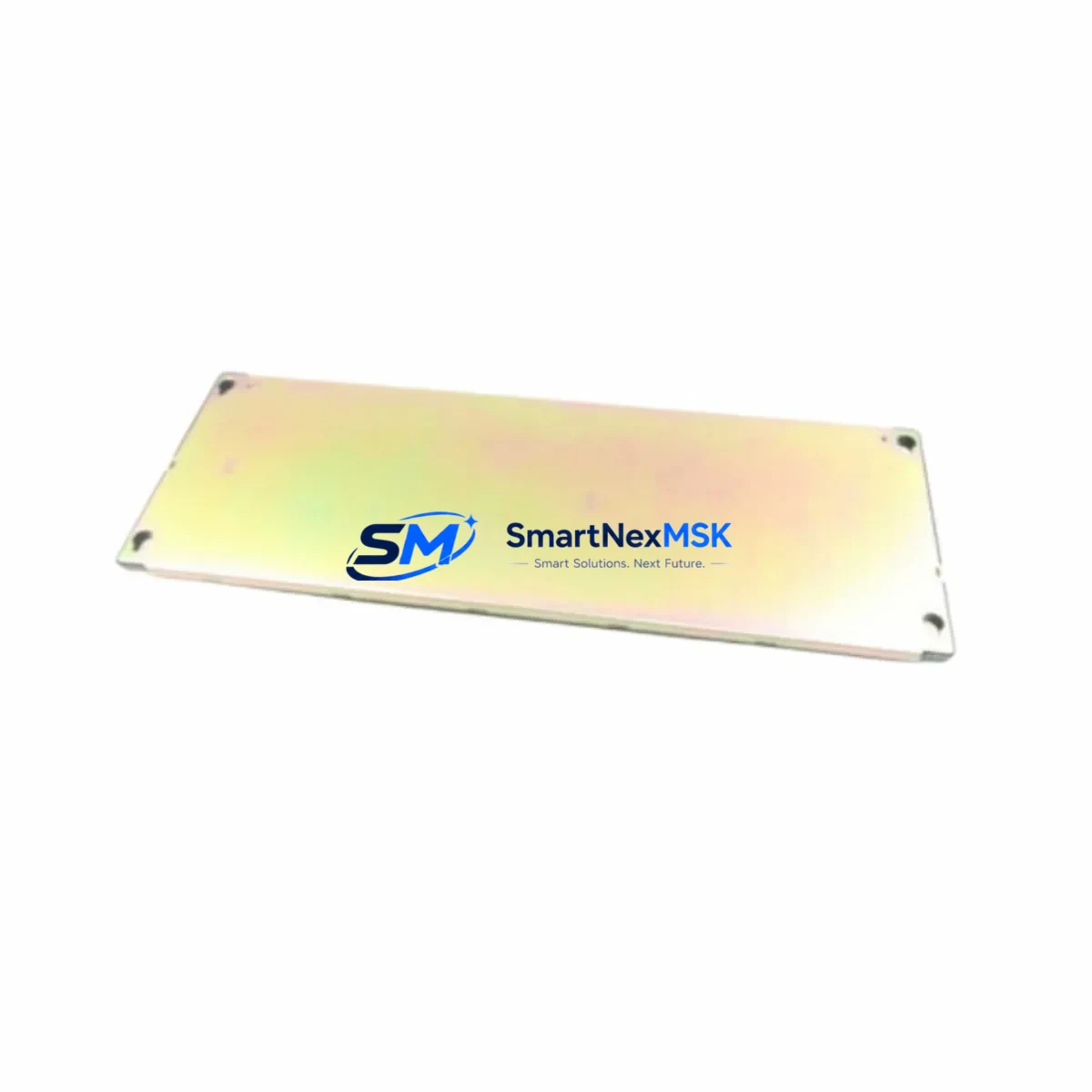

SIEMENS U-08B Maintenance-Ready Spare for SIMATIC S5 Automation
The SIEMENS U-08B is an 8-slot expansion base rack designed for the SIMATIC S5 series of programmable logic controllers, including the S5-115U, S5-135U, and S5-155U platforms. As legacy SIMATIC S5 systems continue to operate in process plants, manufacturing lines, and utility infrastructure worldwide, the U-08B remains a critical structural and electrical backbone component. When a base rack fails or shows signs of connector wear, backplane damage, or slot degradation, the entire PLC chassis becomes inoperable — resulting in unplanned downtime that can cost thousands of dollars per hour in production loss.
Sourcing a verified, original SIEMENS U-08B spare is the fastest path to restoring system operation. Each unit supplied by SMARTNEXMSK is sourced from controlled inventory, individually inspected, and tested prior to shipment. A 12-month warranty is included with every unit, giving maintenance engineers and procurement teams confidence in long-term reliability and post-sale support.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | U-08B |
| Brand | SIEMENS |
| Series | SIMATIC S5 |
| Type | PLC Expansion Base Rack (8-Slot) |
| Compatible Systems | S5-115U, S5-135U, S5-155U |
| Slot Count | 8 Module Slots |
| Backplane Bus | SIMATIC S5 Parallel Backplane Bus |
| Power Supply Interface | Compatible with S5 PS series power supply modules |
| Installation | DIN rail or panel mount, standard S5 rack footprint |
| Operating Temperature | 0°C to +60°C |
| Origin | Germany (Original SIEMENS) |
| Condition | Original Spare — Inspected & Tested |
| Warranty | 12 Months |
| Shipping | Global Express — Tested Before Dispatch |
Maintenance Planning for Continuous Operation
When replacing the U-08B expansion base rack in a SIMATIC S5 system, a thorough site inspection of the surrounding components is essential to prevent repeat failures and ensure a clean restoration. Maintenance engineers should treat a base rack replacement as an opportunity to audit the full control cabinet.
Begin with the S5 power supply module (such as the PS951 or PS955) — verify output voltage stability and check for capacitor aging, which is common in systems over 15 years old. Inspect all S5 digital input/output modules (e.g., DI321, DO321, DI322) seated in the rack for bent connector pins, oxidation on edge connectors, and proper seating depth. Any module with intermittent contact history should be replaced alongside the rack.
Check the S5 CPU module (such as the CPU944, CPU945, or CPU948) for battery status and EPROM integrity. A rack replacement is the ideal time to refresh the CPU backup battery and verify program retention. If the system uses a CP communications processor (e.g., CP523, CP525, or CP544) for PROFIBUS or serial communication, inspect the module’s terminal connections and cable shielding — vibration over time can loosen these connections.
Examine all signal cables and I/O terminal assemblies connected to the rack’s front connectors. Hardwired terminal blocks and sub-D connectors should be checked for corrosion, loose screws, and insulation degradation. If the cabinet includes signal isolators or analog input modules (such as the IM308 interface module for distributed I/O), verify that the inter-rack communication links are intact and that termination resistors are correctly installed.
For systems using SIMATIC S5 expansion racks connected via IM360/IM361 interface modules, confirm that the inter-rack bus cables are undamaged and that the rack addressing switches are correctly set after installation of the U-08B. Also inspect any relay output modules or solid-state output modules in the adjacent slots — these components are often overlooked during rack-level maintenance but are common failure points in aging S5 systems.
Finally, review the cabinet’s 24VDC auxiliary power distribution, including fuse blocks, miniature circuit breakers, and power distribution terminals. A failing rack can sometimes be symptomatic of upstream power quality issues rather than a mechanical rack defect alone.
Site Replacement Workflow
Replacing the U-08B in a live SIMATIC S5 installation requires careful preparation to minimize downtime and avoid configuration loss. Before beginning, document the current slot assignments of all installed modules using the STEP 5 programming software or a manual rack diagram. Photograph the front connector wiring and label all cables before disconnection.
Power down the rack in the correct sequence: first disable field outputs, then shut down the CPU, and finally remove power from the PS module. Remove all modules from the old rack in order, placing them on an anti-static mat. Install the new U-08B rack, verify that the rack address switches match the original configuration, and re-seat all modules in their original slot positions. Reconnect all front connectors and verify cable routing before restoring power.
After power-up, perform a full I/O diagnostic scan from the CPU and verify communication with any remote expansion racks via the IM interface modules. Confirm that all analog and digital signals are reading correctly before returning the system to automatic operation. This structured workflow reduces the risk of configuration errors and ensures that the replacement U-08B is fully validated before production resumes.
Spare Parts Support FAQ
Q1: Is the U-08B compatible with all SIMATIC S5 CPU variants?
The U-08B is designed for the SIMATIC S5 platform and is compatible with S5-115U, S5-135U, and S5-155U systems. It supports the standard S5 parallel backplane bus and accepts all standard S5 I/O, CPU, CP, and IM modules. Compatibility with specific CPU variants should be verified against the original system rack configuration.
Q2: What is included in the 12-month warranty?
Every U-08B unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to dispatch to verify backplane bus integrity and connector condition. Warranty claims are handled directly by SMARTNEXMSK with priority replacement support.
Q3: How quickly can the U-08B be shipped for emergency maintenance?
SMARTNEXMSK maintains stock of critical SIMATIC S5 spare parts including the U-08B for rapid dispatch. Emergency orders are prioritized for same-day or next-business-day shipment via international express courier. Tracking information is provided upon dispatch, and our team can coordinate with your site logistics for time-critical deliveries.
Q4: Can SMARTNEXMSK support long-term spare parts planning for legacy S5 systems?
Yes. We specialize in long-term supply support for discontinued and legacy SIEMENS SIMATIC S5 components. Maintenance teams and procurement engineers can contact us to establish a standing spare parts agreement, reserve stock for critical components, and receive advance notification of inventory changes. This service is designed to support plants committed to extending the operational life of their S5-based control systems.
