WOODWARD 5460-667 Retrofit-Ready DC/DC Power Supply for 5000 Series

WOODWARD 5460-667 Retrofit-Ready DC/DC Power Supply for 5000 Series Control Systems

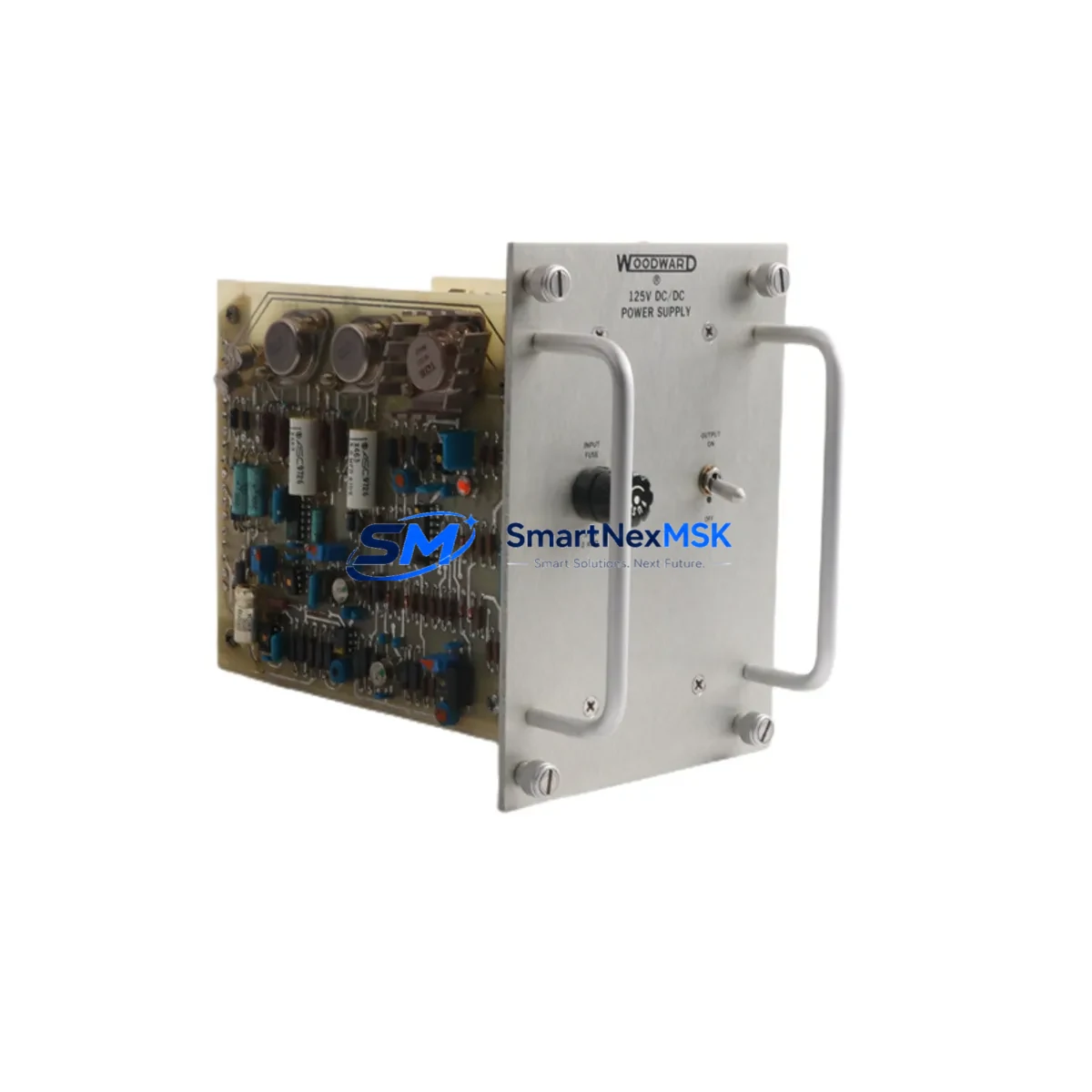

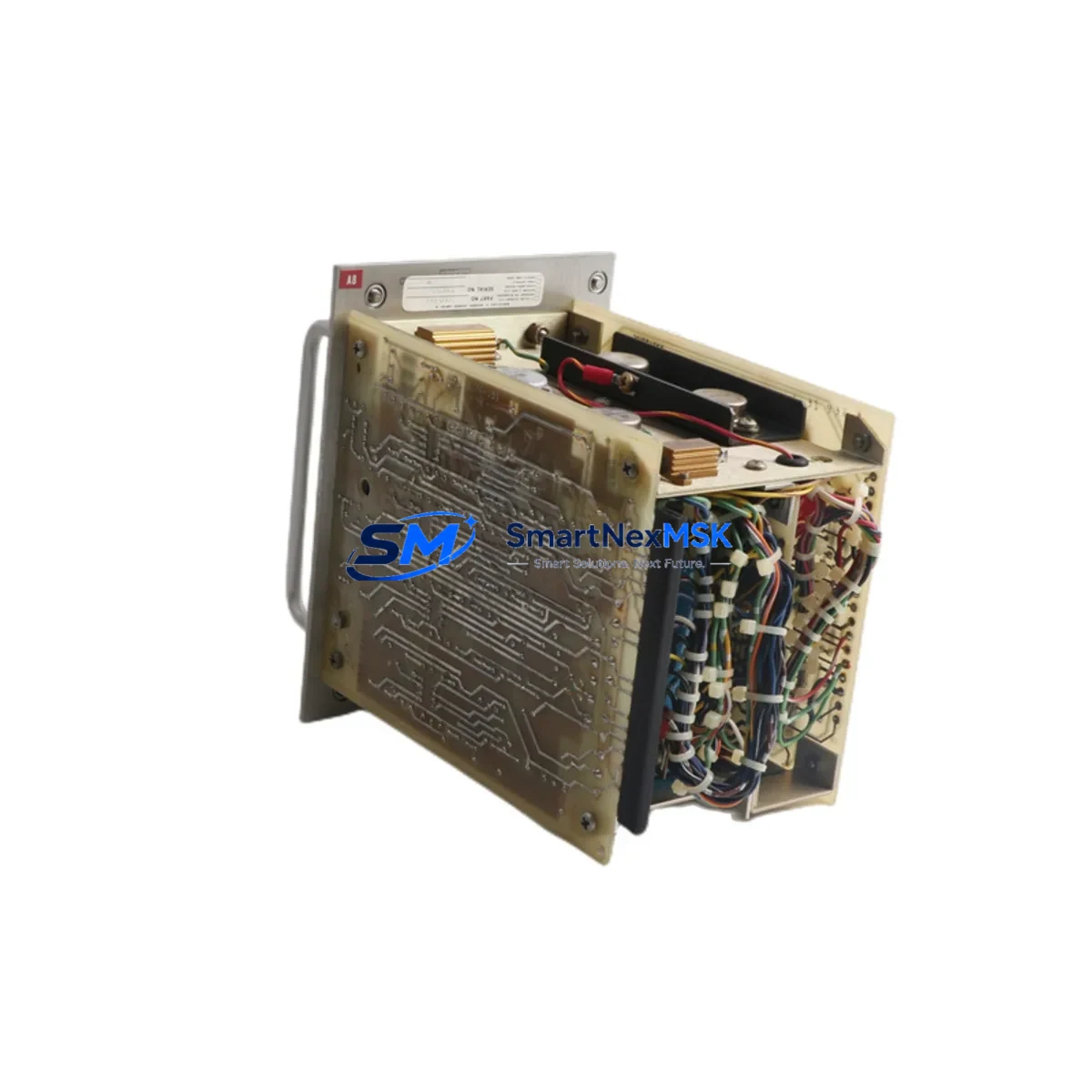

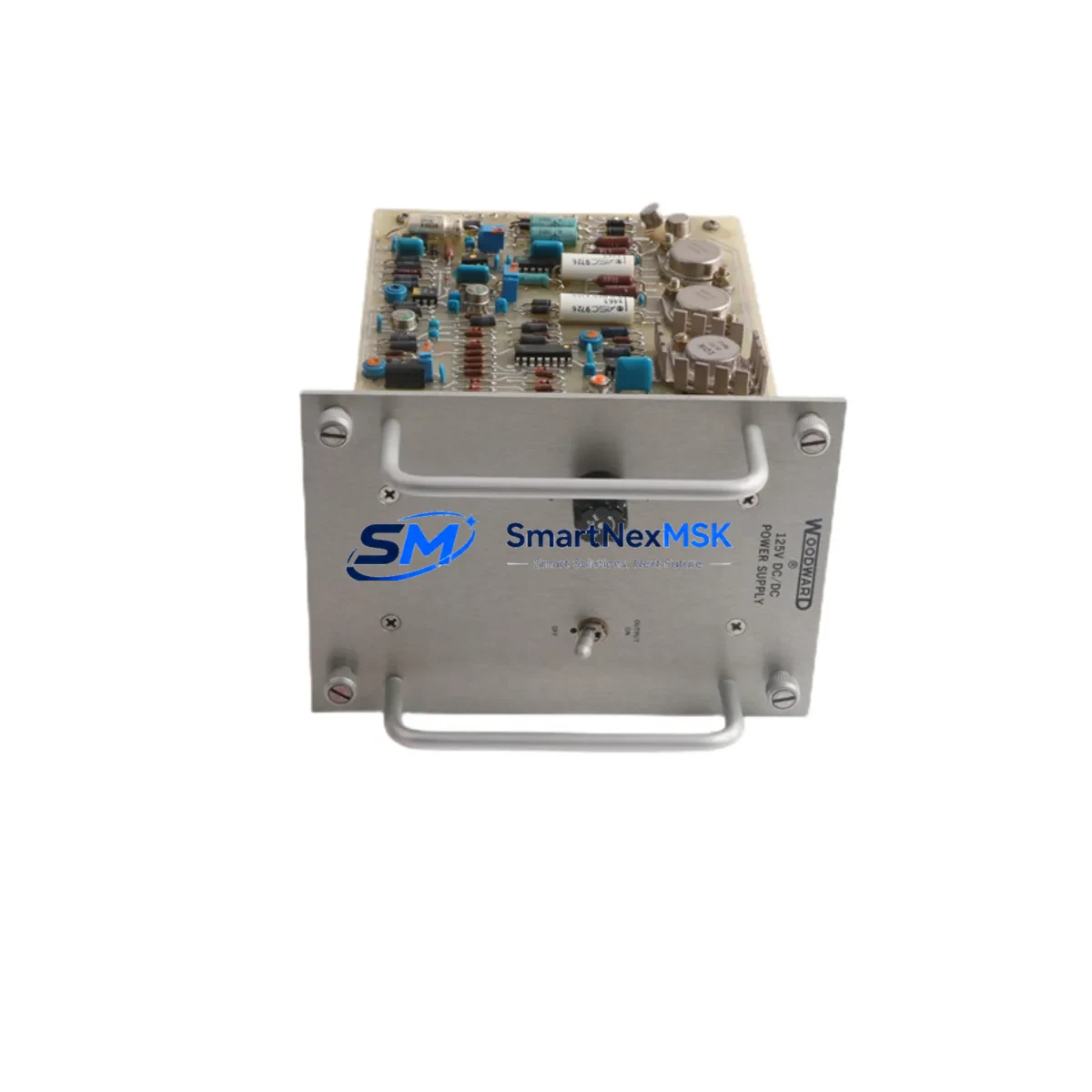

The WOODWARD 5460-667 is a 125V DC/DC Power Supply Module engineered for seamless integration into WOODWARD 5000 Series control systems. As legacy turbine and generator control platforms approach end-of-life, the 5460-667 serves as a proven retrofit-ready replacement that preserves existing control architecture while delivering the power stability required for continuous industrial operation. Whether you are upgrading an aging control cabinet, replacing a failed power supply in a critical turbine governor system, or migrating from a discontinued spare parts program, the 5460-667 provides a direct-fit solution with minimal re-engineering.

This module is specifically designed for applications where power supply failure would result in unplanned downtime in gas turbine, steam turbine, or generator excitation control environments. Its compatibility with the WOODWARD 5000 Series backplane and rack architecture means that field engineers can complete a swap-out without modifying existing terminal wiring, I/O assignments, or control program logic — a critical advantage when downtime windows are measured in hours, not days.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the WOODWARD 5460-667 into an existing 5000 Series control cabinet begins with a thorough pre-outage assessment. Engineers should document the current power supply rail voltages, verify the rack slot position, and confirm that the replacement module’s output specifications match the load requirements of all co-installed modules in the same chassis. In a typical 5000 Series installation, the power supply module shares a rack with processor cards, I/O expansion modules, and communication interface cards — all of which depend on stable DC bus voltage for reliable operation.

Before removing the failed unit, technicians should capture a full backup of the WOODWARD control application using the appropriate programming software, ensuring that turbine governor parameters, speed reference setpoints, and protection relay thresholds are preserved. The 5000 Series processor module retains its configuration in non-volatile memory, but a verified backup eliminates risk during the swap procedure.

During the physical replacement, attention must be paid to the backplane connector alignment. The 5460-667 uses the standard WOODWARD 5000 Series edge connector format, and improper seating can result in intermittent power faults that are difficult to diagnose under load. After installation, the DC output rails should be measured at the backplane test points before the system is powered up with the full module complement installed.

In control cabinets where the 5460-667 powers both the main processor and a WOODWARD 5009 Digital Control or a WOODWARD MicroNet Plus controller, the power sequencing must be verified to ensure the processor completes its boot cycle before I/O modules begin scanning. Systems that also include a WOODWARD 2301D Load Sharing and Speed Control module or a WOODWARD 505 Digital Governor should have their communication links — typically RS-232 or RS-485 serial connections — verified after power restoration to confirm that the governor-to-HMI communication path is intact.

For sites running SCADA integration through a WOODWARD NetCon 5000 communication module or a third-party Modbus RTU gateway, the communication node address and baud rate settings should be confirmed post-replacement, as some installations store these parameters in the power supply module’s associated configuration memory. Similarly, if the control cabinet includes a WOODWARD 723 Digital Speed Control or legacy analog I/O termination panels, the signal ground reference should be checked to ensure the new power supply does not introduce ground loop interference on 4–20 mA analog circuits.

Sites with redundant power supply configurations — where a secondary 5460-667 operates in hot-standby — should test the automatic switchover function after replacement to confirm that the redundancy logic transfers load correctly without causing a process trip. This is particularly important in combined-cycle power plant applications where a false trip carries significant revenue impact.

Downtime Control During System Migration

Minimizing downtime during a WOODWARD 5460-667 replacement requires advance preparation, a staged execution plan, and a clear rollback procedure. The recommended approach is to pre-stage the replacement module on-site at least 24 hours before the planned outage window, perform a visual and dimensional inspection against the installed unit, and confirm that the firmware or hardware revision of the replacement is compatible with the existing rack assembly.

During the outage, the sequence should follow a controlled shutdown of the turbine or generator unit, isolation of the DC supply to the control cabinet, removal of the failed power supply module, installation of the 5460-667 replacement, and a staged power-up with voltage verification at each step before restoring the full module complement. This approach protects the WOODWARD processor module, I/O cards, and any co-installed communication modules from exposure to out-of-tolerance supply voltages during the transition.

Once the system is powered and the processor has completed its initialization sequence, the operator should verify that all HMI screens — whether running on a local WOODWARD operator panel or a remote SCADA workstation — are displaying live process values correctly. Speed feedback, temperature inputs, and valve position signals should all be confirmed before the unit is returned to automatic control mode. A post-replacement functional test, including a simulated load change and an overspeed trip test where applicable, is strongly recommended before releasing the unit to normal operation.

All replacement modules supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify output voltage stability, load regulation, and thermal performance within specification. Detailed test records are available upon request for quality assurance documentation purposes.

Retrofit Support FAQ

Q1: Is the WOODWARD 5460-667 a direct drop-in replacement for the original installed unit?
Yes. The 5460-667 is designed as a direct replacement for the same part number installed in WOODWARD 5000 Series racks. No terminal rewiring or backplane modification is required. Verify the rack slot position and confirm output rail voltage after installation before returning the system to service.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, measure DC output rail voltages at the backplane test points, confirm all co-installed modules have powered up correctly, verify communication links to any connected HMI or SCADA system, and perform a functional test of the control application including setpoint verification and protection relay checks.

Q3: Can the 5460-667 be used in a redundant power supply configuration?
Yes, where the 5000 Series rack supports redundant power supply slots. After replacement, the automatic load transfer function should be tested to confirm that the standby module assumes load correctly without causing a process trip or communication interruption.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All WOODWARD 5460-667 modules supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit is tested for output voltage accuracy, load regulation, and thermal stability prior to shipment. Test documentation is available upon request. For warranty claims or technical support, contact sales@smartnexmsk.com.
