Woodward 9907-162 Spare for EG3P Governor Automation

Woodward 9907-162 Spare for EG3P Governor Automation

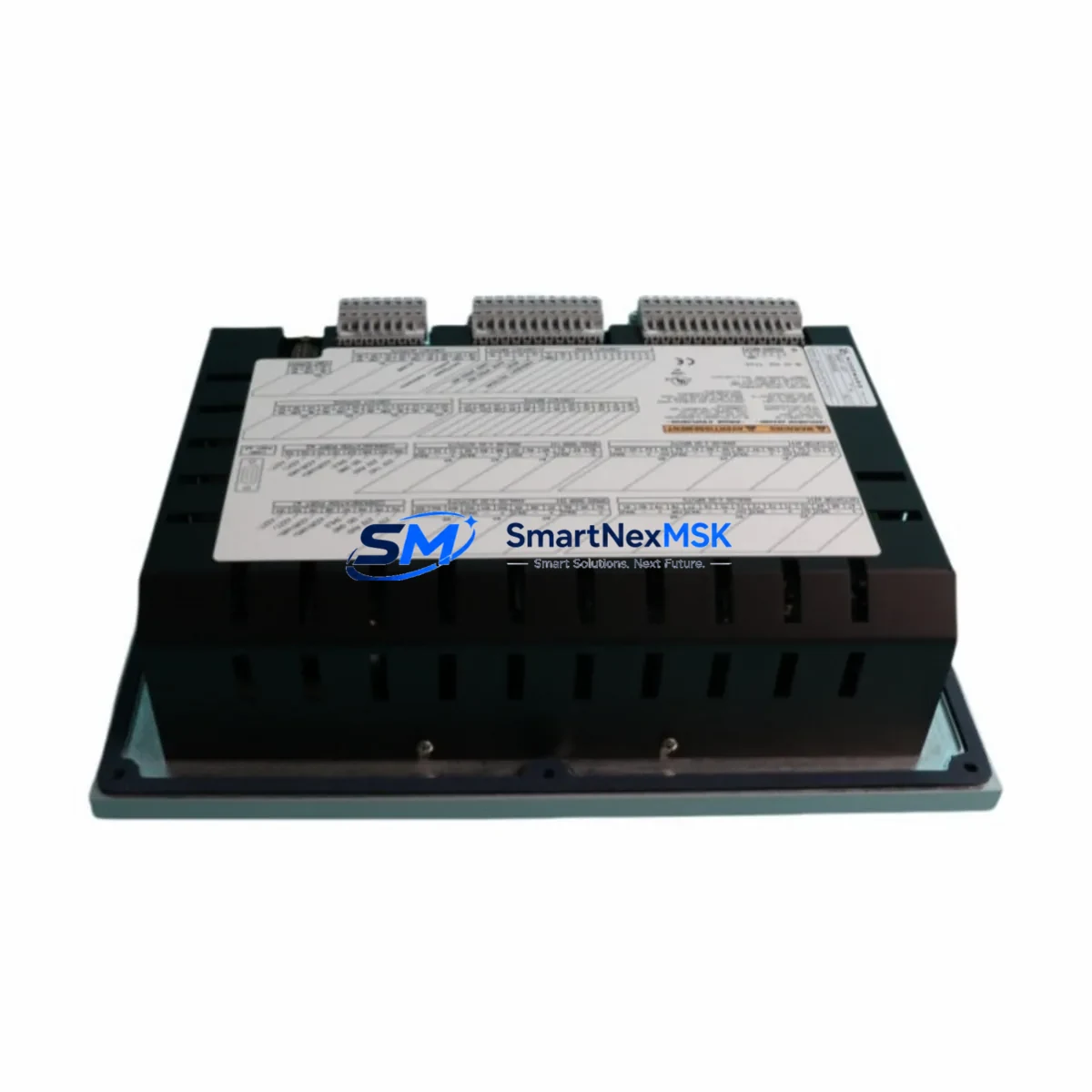

In continuous industrial operations — whether in power generation, oil & gas compression, marine propulsion, or heavy process manufacturing — the reliability of engine speed control is non-negotiable. The Woodward 9907-162 is a precision Digital Speed Governor designed for the EG3P actuator series, providing accurate, responsive speed regulation that keeps prime movers running within safe operating bands. For maintenance engineers managing aging engine control systems, having a verified, tested spare of the 9907-162 on hand is one of the most effective strategies to eliminate unplanned downtime and protect production continuity.

The 9907-162 governor module interfaces directly with the Woodward EG3P electric actuator, translating speed error signals into precise actuator positioning commands. Its analog control architecture is robust against electrical noise and transient disturbances common in generator rooms, compressor stations, and turbine halls. When a governor fails in the field — whether due to component aging, surge damage, or moisture ingress — the ability to swap in a pre-tested replacement within minutes rather than waiting weeks for a repair cycle is the difference between a controlled maintenance event and a costly production shutdown.

During routine inspection and planned overhaul cycles, maintenance teams replacing the 9907-162 should simultaneously evaluate the condition of the Woodward EG3P actuator itself, as governor and actuator wear rates are closely correlated. The actuator’s internal feedback potentiometer and drive linkage should be inspected for wear and calibrated after any governor replacement. Equally important is the condition of the magnetic pickup sensor (MPU) — typically a Woodward 8923-032 or equivalent — which feeds the speed signal into the governor. A degraded MPU will cause erratic speed sensing regardless of governor condition, so both components should be verified together.

The power supply feeding the 9907-162 deserves careful attention during any maintenance intervention. The governor operates on a regulated DC supply, and voltage ripple or transient spikes from poorly filtered 24VDC panel power supplies can accelerate internal component stress. Maintenance engineers should verify supply voltage stability using a calibrated meter and consider installing a dedicated DC surge protection device on the governor supply rail if the control cabinet is located near variable frequency drives or large motor starters. Terminal block connections on the governor wiring harness — including speed reference input, actuator output, and power terminals — should be inspected for corrosion and re-torqued to specification.

In engine control cabinets where the 9907-162 operates alongside other Woodward components, a comprehensive spare parts strategy should also include the Woodward 2301A Load Sharing and Speed Control module for multi-generator paralleling applications, as well as Woodward 505 Digital Control units used in steam turbine governor systems. For sites running older EG3P-based systems, maintaining a small buffer stock of Woodward actuator repair kits and governor test harnesses enables in-house bench testing before field installation, reducing the risk of installing a faulty spare under pressure. Signal isolation modules between the governor output and the actuator drive circuit are also recommended in high-interference environments to prevent ground loop interference from corrupting the control signal.

For facilities operating diesel generator sets or gas engine-driven compressors, the 9907-162 is often part of a broader engine management architecture that includes engine protection relays, overspeed trip solenoids, and fuel rack position sensors. When performing a governor replacement, the overspeed trip circuit should be tested and reset in accordance with the engine OEM’s commissioning procedure. Failure to verify the overspeed protection system after a governor change is a common maintenance oversight that can result in dangerous runaway conditions during startup.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A well-structured spare parts plan for EG3P governor systems should extend beyond the 9907-162 module itself. Maintenance planners should ensure the following components are stocked or readily sourceable to support rapid recovery from any governor-related fault:

The Woodward EG3P actuator assembly is the primary mechanical interface for the governor output and should be inspected for shaft seal integrity and internal spring preload during any planned shutdown. The magnetic pickup unit (MPU) — a passive speed sensing device threaded into the engine flywheel housing — is a consumable item with a finite service life and should be replaced proactively every 3–5 years in high-vibration environments. Shielded signal cables connecting the MPU to the governor input terminal are susceptible to insulation breakdown in high-temperature engine rooms and should be inspected for chafing and continuity.

On the electrical supply side, a 24VDC regulated power supply module with adequate current capacity and built-in short-circuit protection is essential for governor stability. Pairing this with a DC UPS buffer module ensures the governor remains powered through brief mains interruptions, preventing nuisance trips during grid disturbances. Terminal blocks and DIN rail connectors in the governor wiring circuit should be of industrial grade, rated for the operating temperature range of the control cabinet.

For sites with multiple engine-generator sets, the Woodward 2301A Load Sharing Controller coordinates speed and load between paralleled units and should be included in the site’s critical spare inventory. In turbine applications, the Woodward 505 Digital Control provides advanced PID speed governing with communication interfaces and should be maintained with a tested hot spare. Overspeed trip solenoids and fuel shutoff valves in the engine protection circuit must be tested for correct operation after any governor replacement to confirm the safety interlock chain is intact.

Site Replacement Workflow

Replacing the Woodward 9907-162 in the field follows a structured procedure that minimizes downtime and ensures system compatibility. Before removing the faulty governor, the maintenance engineer should document all potentiometer settings, gain adjustments, and droop settings using the existing panel labels or the site’s maintenance logbook. These settings must be replicated on the replacement unit before installation.

With the engine shut down and the fuel supply isolated, the governor wiring harness should be disconnected and labeled. The replacement 9907-162 should be bench-tested using a governor test kit or a portable MPU signal simulator to verify correct output response before installation. Once installed, the speed reference potentiometer should be set to the nominal engine speed setpoint, and the engine should be started at no-load to verify stable speed control before applying load.

The droop setting — which determines how much the engine speed drops as load increases — should be verified against the site’s load sharing requirements. For isolated generator operation, a droop of 3–5% is typical; for parallel operation with the grid or other generators, isochronous or low-droop settings are used in conjunction with the load sharing controller. After commissioning, the overspeed trip should be tested by gradually increasing speed reference until the trip activates, confirming the protection system is functional.

Maintaining a documented replacement history for each governor installation — including the date, technician, settings applied, and post-installation test results — supports long-term reliability analysis and helps identify recurring failure patterns that may indicate upstream electrical or mechanical issues requiring correction.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Woodward 9907-162?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment, and a test report is available upon request. Warranty claims are supported with direct technical assistance and replacement dispatch.

Q2: How do I verify compatibility before installation?
The 9907-162 is designed for use with the Woodward EG3P electric actuator series. Compatibility should be confirmed by cross-referencing the existing governor part number on the nameplate and verifying the actuator model number. If you are replacing a different Woodward governor model, contact our technical team with your actuator model and engine application details for a compatibility assessment before ordering.

Q3: Can SMARTNEXMSK support long-term supply of the 9907-162?
Yes. We maintain ongoing inventory of the 9907-162 and related Woodward EG3P series components to support sites with long-term maintenance contracts and multi-unit fleets. Blanket purchase orders and scheduled delivery arrangements are available for facilities requiring regular spare parts replenishment. Contact our sales team to discuss volume pricing and supply agreements.

Q4: What should I check if the replacement governor does not stabilize engine speed?
If the engine hunts or fails to reach stable speed after installing the 9907-162, the most common causes are an incorrect droop setting, a worn or misaligned EG3P actuator linkage, a degraded magnetic pickup signal, or a noisy power supply. Verify the MPU air gap and signal voltage, check the actuator for mechanical binding, and confirm the governor supply voltage is within specification. If instability persists, our technical support team can assist with remote diagnostics.
