Woodward 9907-024 Retrofit-Ready Speed Control for Governor Series

Woodward 9907-024 Retrofit-Ready Speed Control for Governor Series: Compatible Modernization & Smooth Legacy System Upgrade

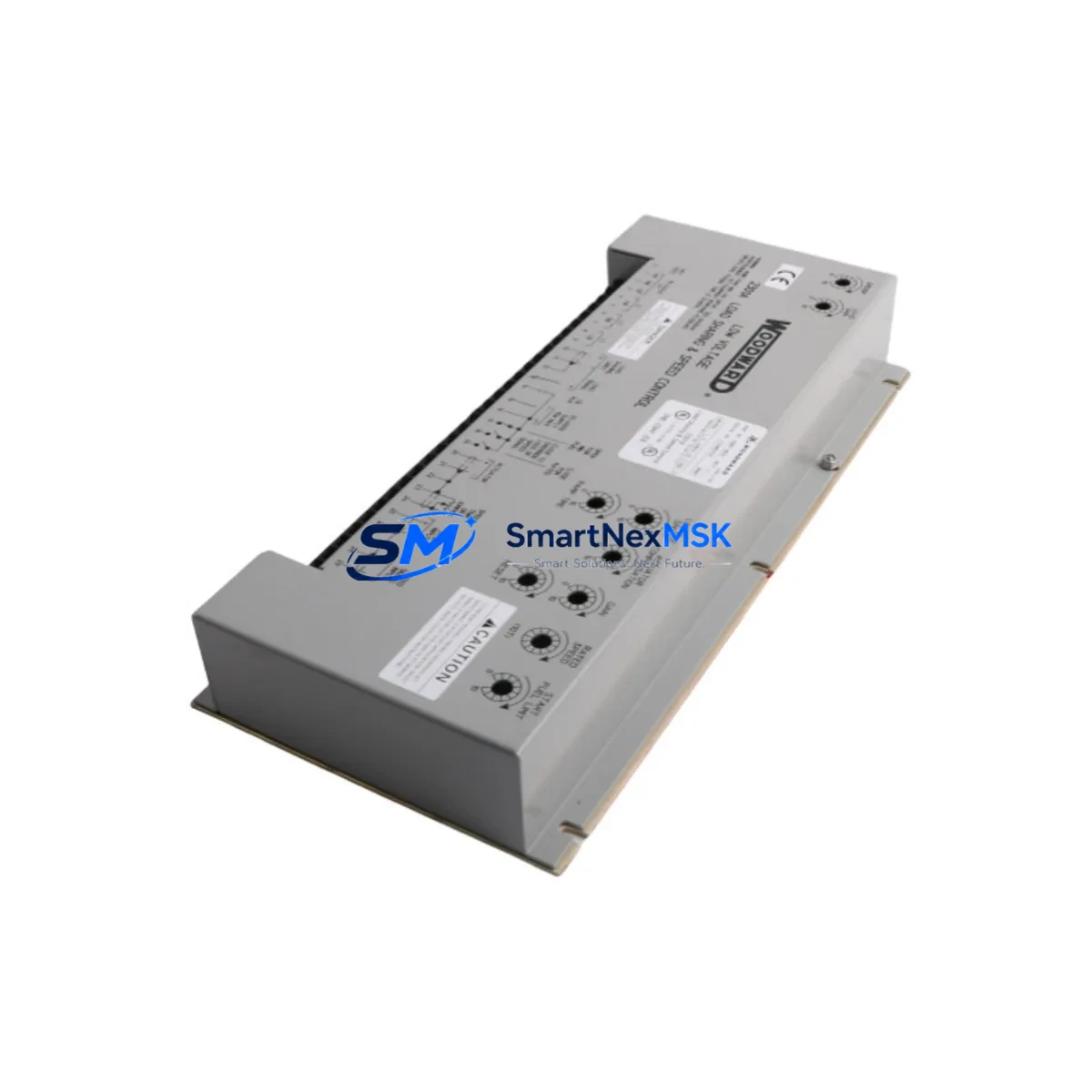

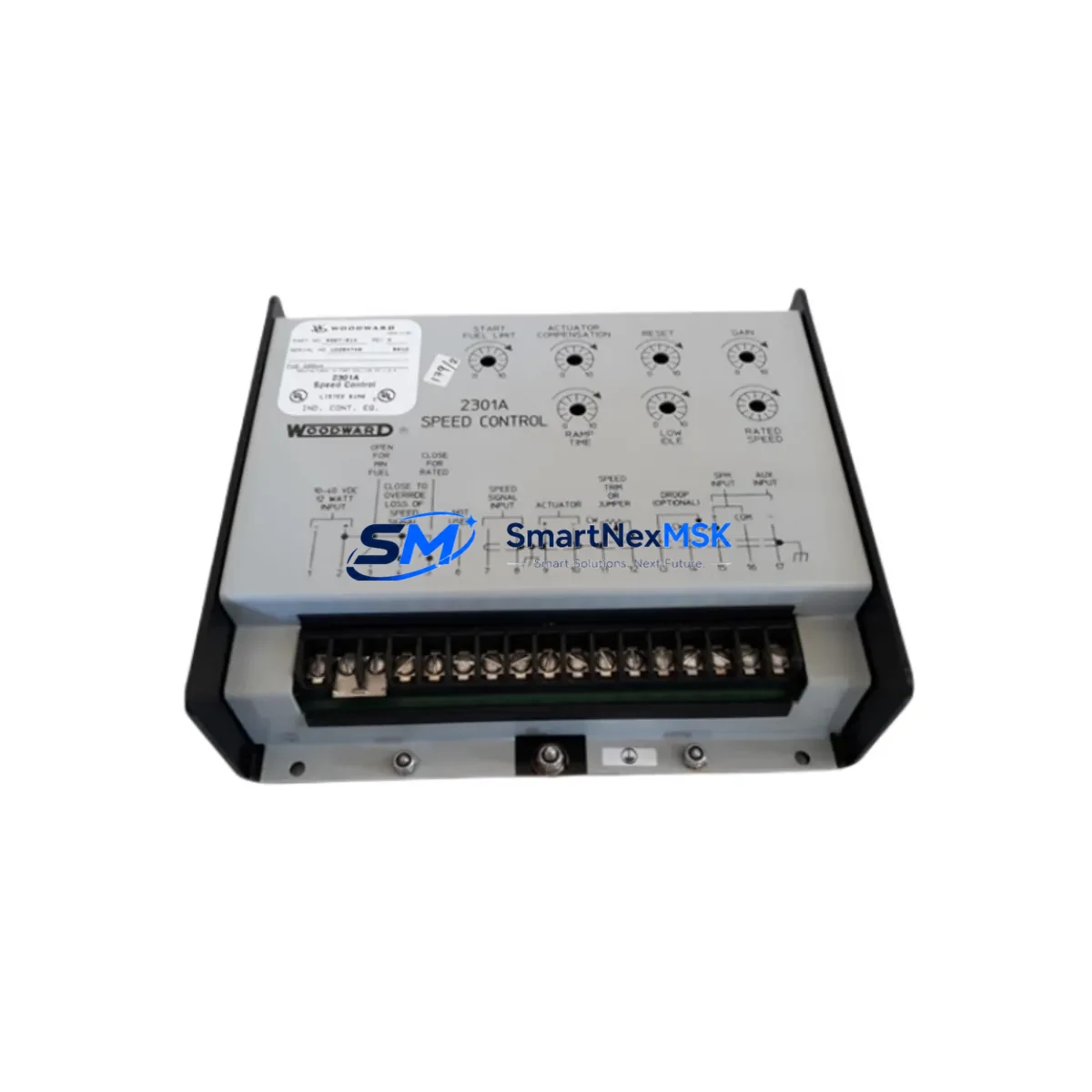

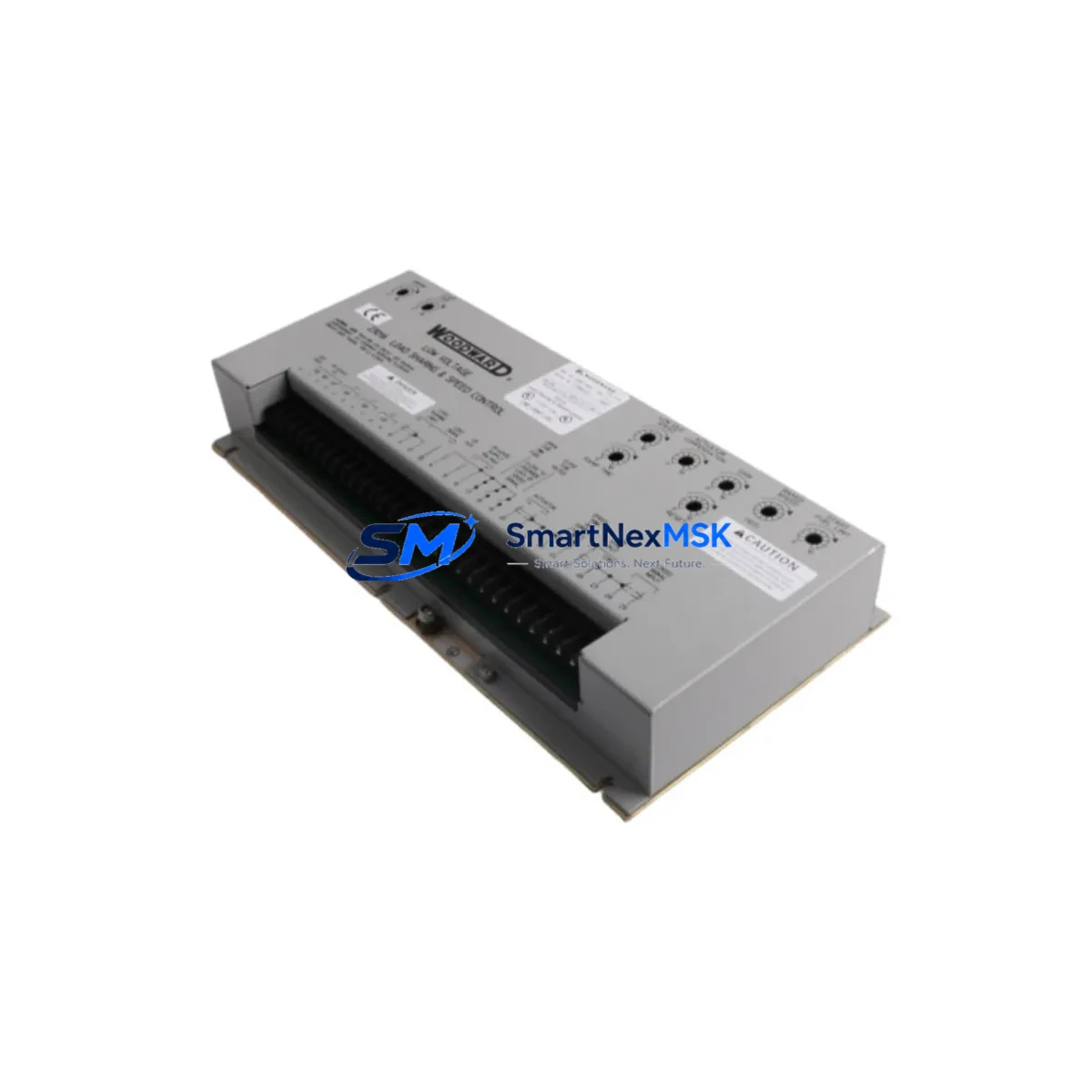

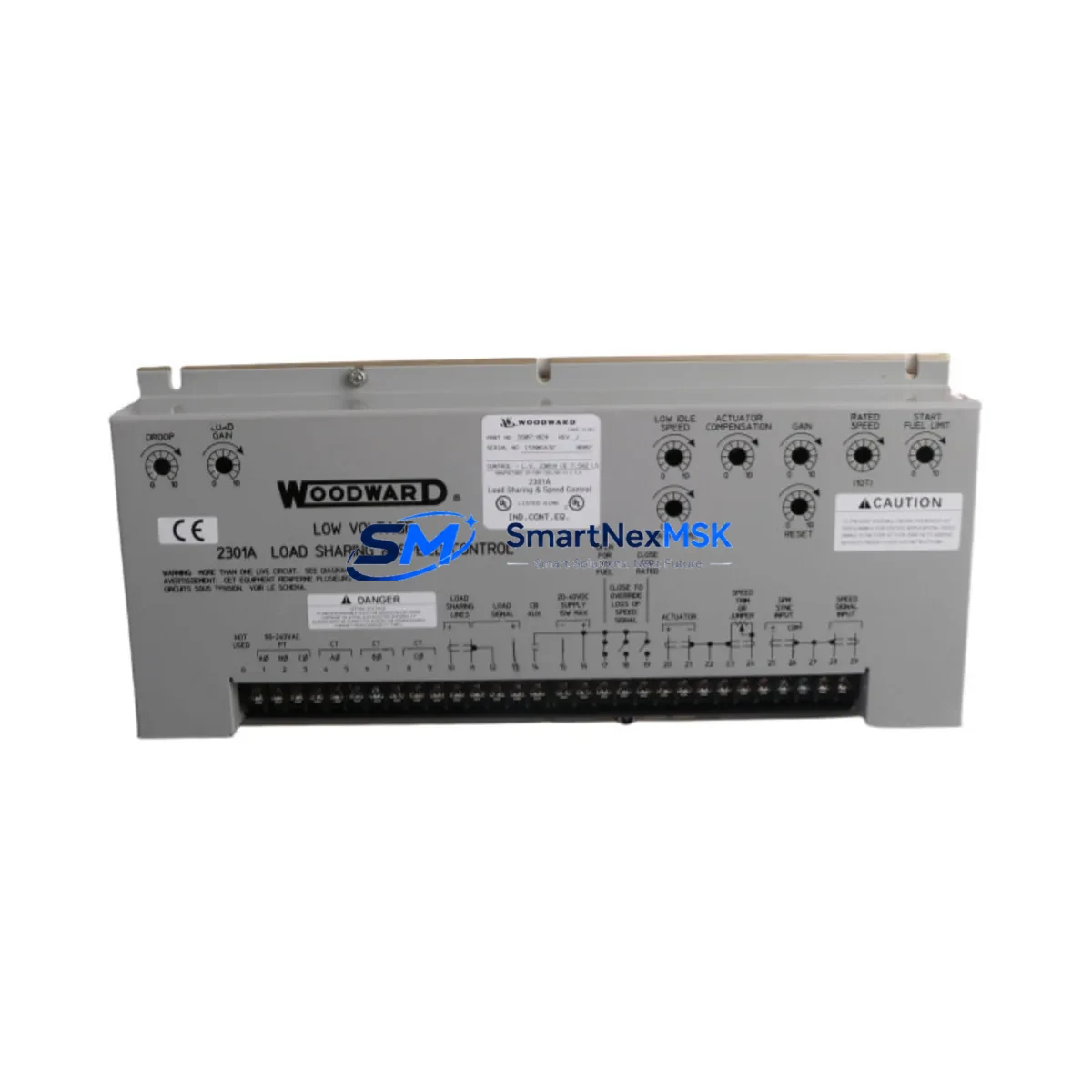

The Woodward 9907-024 is a precision-engineered speed control module designed for seamless integration into existing Governor Series control architectures. As legacy turbine and engine governor systems approach end-of-life or face discontinued spare part availability, the 9907-024 provides a verified retrofit-ready replacement path that preserves original control logic, minimizes rewiring effort, and restores full system functionality with minimal downtime. Whether you are replacing a failed unit, upgrading an aging control cabinet, or migrating from an obsolete governor platform, the 9907-024 delivers the compatibility and reliability that industrial operators demand.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Woodward 9907-024 begins well before the module arrives on site. Engineers must audit the existing control cabinet to confirm that the Woodward 723 Digital Speed Control or 724 Load Sharing and Speed Control backplane remains mechanically sound and that the existing power supply module — typically a 24 VDC unit rated at 5 A or above — can sustain the additional load introduced by the replacement module. In systems where the original Woodward 2301A Load Sharing and Speed Control has been in service for more than a decade, it is common to find degraded terminal blocks and corroded wiring that must be addressed before the new module is seated.

For sites running the Woodward 505 Digital Governor as the primary turbine controller, the 9907-024 typically serves as a speed reference input conditioner or auxiliary speed control loop. In these configurations, engineers should verify that the Woodward 8272-1007 Magnetic Pickup or equivalent MPU sensor is producing a clean frequency signal within the module’s input range, as a degraded pickup will cause erratic speed feedback even after the control module is replaced.

I/O mapping is a critical step. Before decommissioning the old module, document all analog input and output assignments, including speed setpoint references, actuator output signals, and any discrete alarm or shutdown relay wiring. In older installations, these signals may also interface with a Woodward 9905-466 Relay Output Module or a third-party safety relay panel. Confirm that the new 9907-024 terminal assignments match the existing field wiring or prepare a revised wiring schedule in advance.

Communication protocol migration is increasingly relevant as plants modernize their SCADA and DCS layers. If the existing governor system communicates via a proprietary serial link, a Modbus RTU to analog converter or a dedicated Woodward easYgen communication gateway may be required to bridge the legacy governor network to a modern Ethernet-based supervisory system. Confirm gateway compatibility before ordering ancillary communication hardware.

HMI screen updates are often overlooked during governor module replacements. If the plant HMI — whether a standalone Woodward InPower service tool panel or a third-party SCADA display — references specific register addresses or analog scaling factors tied to the old module, those parameters must be updated to reflect the 9907-024’s output characteristics. Failure to update HMI scaling can result in incorrect speed displays or spurious alarms during initial commissioning.

For sites that also need to expand I/O capacity during the retrofit, the Woodward 9907-838 Analog Input Expansion Module can be added to the same control rack to accommodate additional process variables without requiring a full controller replacement. Similarly, if the existing rack is nearing capacity, a Woodward expansion chassis or a supplementary DIN rail terminal block assembly should be planned as part of the cabinet upgrade scope.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a speed control module in a live production environment. The recommended approach is to pre-configure and bench-test the Woodward 9907-024 before the scheduled maintenance window. Using the Woodward InPower software, engineers can load the original parameter file — exported from the outgoing module prior to failure or during a planned pre-shutdown — directly into the replacement unit. This eliminates the need for on-site parameter entry and significantly reduces commissioning time.

During the physical swap, the original control program logic stored in the upstream PLC or DCS — whether a Siemens S7-300, Allen-Bradley ControlLogix, or a dedicated turbine management controller — remains untouched. The 9907-024 operates as a standalone speed control loop, so the host controller’s ladder logic or function block program does not require modification, provided that the analog I/O signal ranges are preserved. This is a key advantage for sites where the control program is locked or where re-validation of the PLC program would trigger a lengthy regulatory approval process.

To further protect control continuity, it is advisable to keep the existing module powered and in service until the replacement unit has been fully wired, configured, and verified on the bench. A controlled cutover — transferring the actuator output from the old module to the new one during a brief load reduction window — allows operators to confirm stable speed control before fully decommissioning the legacy hardware. All field instruments, including speed sensors, actuator feedback potentiometers, and process transmitters, should be verified for correct signal levels immediately after cutover to confirm that the new module is receiving valid inputs.

Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing to verify that the module powers up correctly, that all I/O channels respond within specification, and that communication interfaces are active. This factory-level verification reduces the risk of receiving a non-functional unit and supports a faster on-site commissioning cycle. The included 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing additional assurance for critical infrastructure applications.

Retrofit Support FAQ

Q1: Is the Woodward 9907-024 a direct drop-in replacement for the original module?
In most Governor Series applications, yes. The 9907-024 uses the same terminal block layout and signal ranges as the original unit. However, engineers should verify the exact wiring schedule against the site-specific as-built drawings, as some installations may have non-standard field modifications that require minor terminal re-mapping before the new module is commissioned.

Q2: What commissioning steps are required after installation?
After physical installation and wiring verification, the primary commissioning tasks are speed droop calibration, gain and stability tuning, and actuator stroke verification. If the original parameter file is available, it can be loaded via Woodward InPower to restore the previous tuning baseline. A no-load speed run followed by a loaded speed stability test is recommended before returning the unit to full production service.

Q3: Can the 9907-024 interface with modern Modbus or Ethernet-based SCADA systems?
The 9907-024 natively supports analog speed reference and feedback signals. Integration with Modbus RTU or Ethernet SCADA systems requires an external protocol converter or gateway. SMARTNEXMSK can advise on compatible gateway options based on your specific supervisory system architecture.

Q4: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. To initiate a warranty claim, contact SMARTNEXMSK with the order reference, a description of the fault, and photographic evidence of the installation. Replacement or repair will be arranged within the warranty period at no additional cost.
