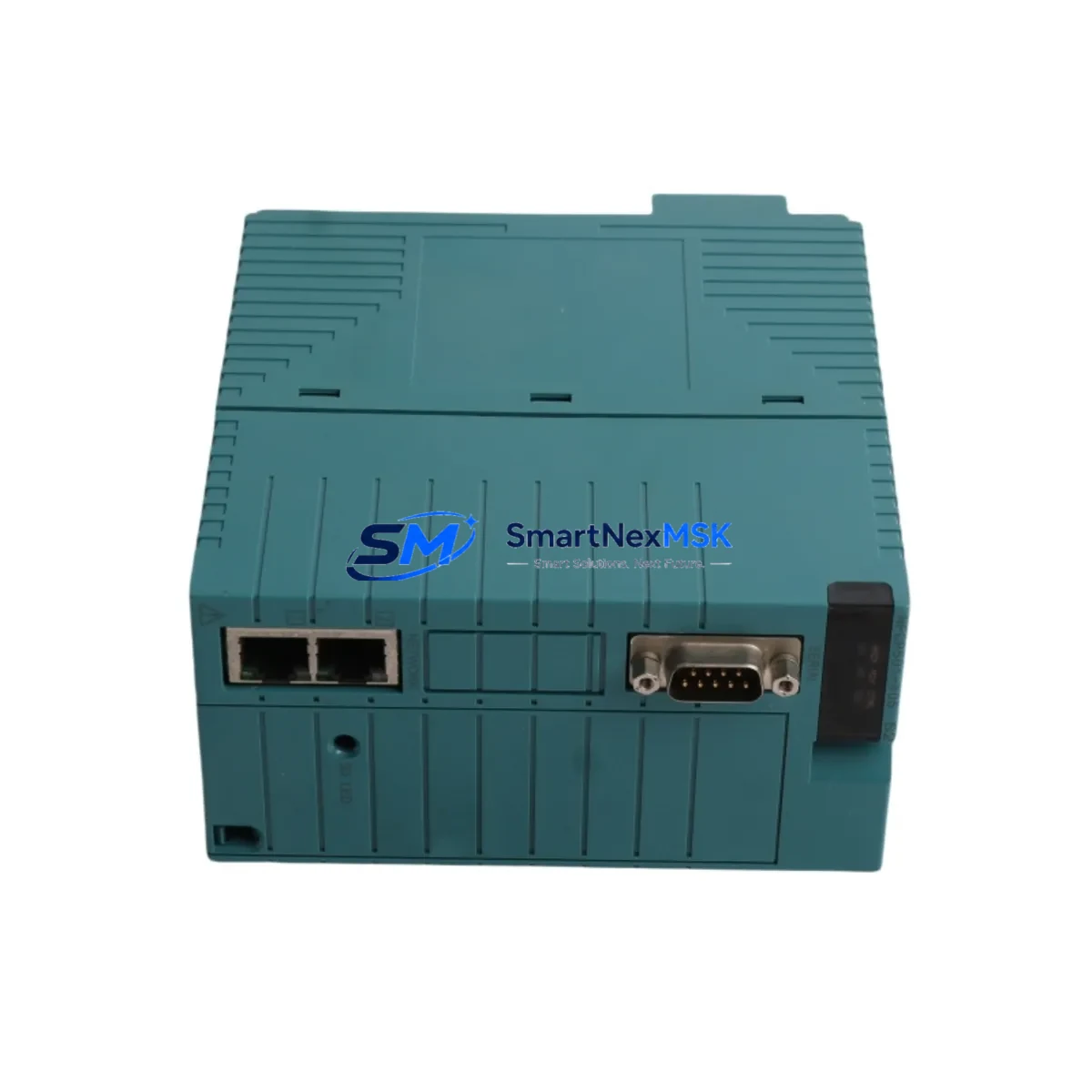

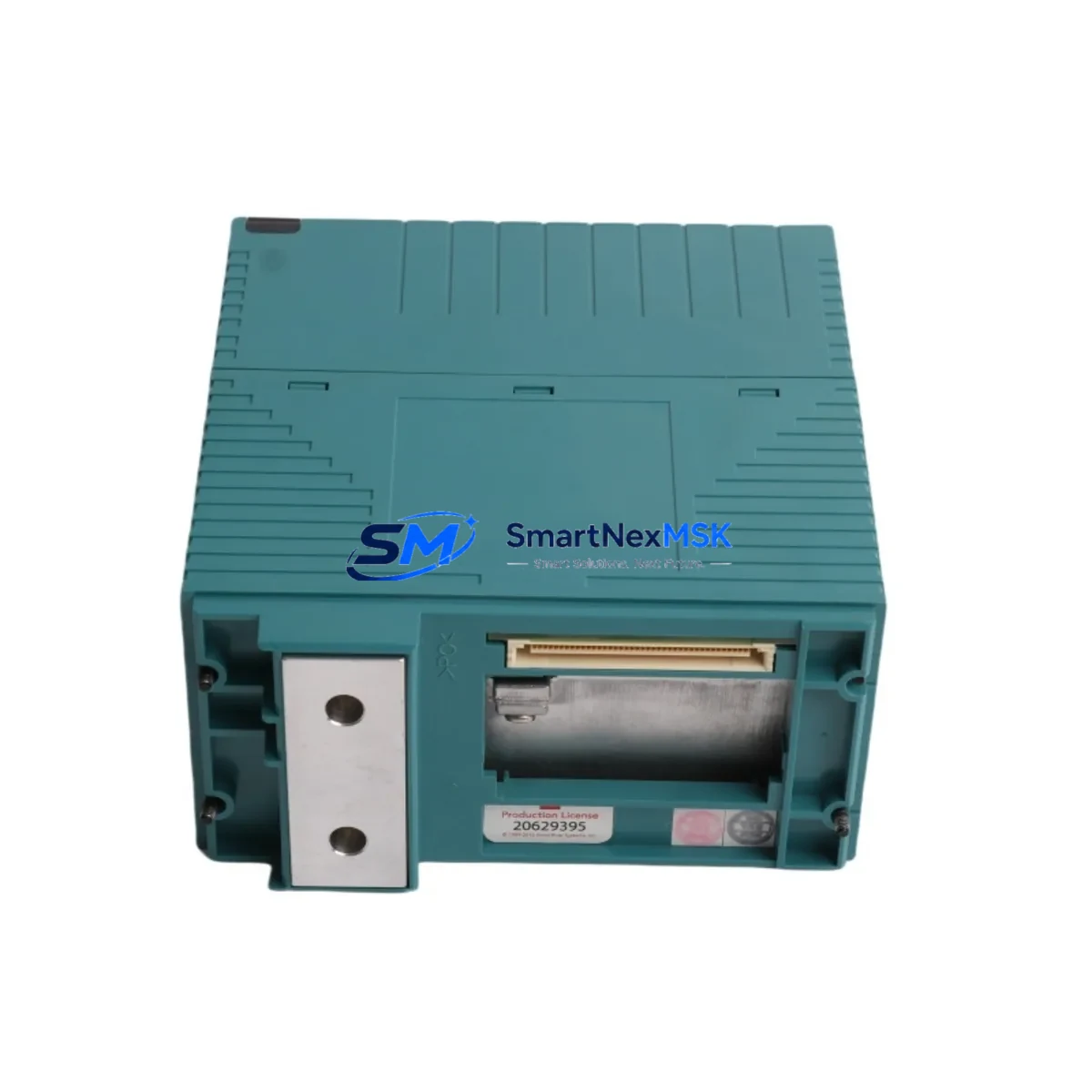

Yokogawa NFCP501-W16 S1 Safety-Enhanced DCS CPU Module

Yokogawa NFCP501-W16 S1 Safety-Enhanced DCS CPU Module: Precision Control for Harsh Industrial Sites

The Yokogawa NFCP501-W16 S1 is a ruggedized DCS CPU module engineered for the CENTUM VP distributed control system platform — one of the most trusted process automation architectures deployed across global heavy industry. Designed to operate reliably under continuous production loads, high electromagnetic interference, and extreme ambient conditions, this module serves as the computational core of safety-critical control loops where unplanned downtime is not an option.

In demanding industrial environments — including petrochemical complexes, power generation facilities, metallurgical plants, and offshore processing units — the CPU module is the single most consequential component in the control cabinet. Any instability in the CPU directly translates to control loop interruption, signal drift, or module misoperation. The NFCP501-W16 S1 addresses these risks through Yokogawa’s proven hardware architecture, which incorporates multi-layer surge protection, onboard diagnostics, and deterministic scan-cycle execution to maintain process integrity even under abnormal electrical conditions.

Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring that replacement parts meet the same operational standards as original factory equipment. Our inventory is maintained to support both planned maintenance cycles and emergency spare-part requirements, minimizing procurement lead times for critical assets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered CENTUM VP control cabinet, the NFCP501-W16 S1 CPU module does not operate in isolation — its reliability is directly dependent on the integrity of the surrounding hardware ecosystem. To maintain safe and uninterrupted operation, the CPU must be paired with a stable, well-filtered power supply. The Yokogawa PW481 and PW482 power supply modules are the recommended companions, providing regulated 24 VDC with built-in redundancy switching to prevent CPU brownout during grid fluctuations or power transfer events.

Signal integrity at the I/O layer is equally critical. Analog input modules such as the Yokogawa AAI141-S00 and digital output modules like the ADO141-P00 must maintain clean signal paths to prevent false process readings from propagating to the CPU’s control algorithms. In high-interference environments — such as those near variable frequency drives, large motor starters, or arc furnaces — proper shielding of the Yokogawa SB401 signal cables and use of isolated I/O barriers is essential to prevent signal drift that could trigger spurious shutdowns or mask genuine process alarms.

For installations requiring functional safety compliance, the NFCP501-W16 S1 is typically deployed alongside Yokogawa ProSafe-RS safety instrumented system components, where the DCS CPU handles regulatory control while the SIS layer manages emergency shutdown logic. This separation of control and safety functions is a fundamental principle of IEC 61511 process safety design, and the NFCP501-W16 S1’s deterministic scan cycle ensures that handshaking between the two systems remains time-consistent under all load conditions.

Communication reliability is maintained through the Vnet/IP control network, which connects field control stations to the Yokogawa HIS (Human Interface Station) and engineering workstations. In redundant network configurations, dual ESB Bus connections ensure that a single cable or switch failure does not interrupt supervisory visibility or setpoint transmission. For remote I/O expansion, Yokogawa RIO (Remote I/O) nodes connected via optical fiber further isolate the CPU from ground loop interference in large-footprint plants.

Surge and transient protection at the cabinet entry point — using DIN-rail mounted surge protective devices rated for the Vnet/IP and field signal circuits — completes the protection strategy, ensuring that lightning-induced transients or switching surges from large inductive loads do not reach the CPU backplane.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous catalytic cracking units, hydrocracker reactors, and distillation column control systems, the NFCP501-W16 S1 manages real-time PID control loops for temperature, pressure, and flow — parameters where a CPU fault could trigger a process upset with serious safety consequences. Its redundant configuration capability allows hot-standby failover in under 100 milliseconds, maintaining bumpless control transfer during module replacement or fault recovery.

Power Generation and Grid Substations: Thermal power plants and combined-cycle gas turbine facilities rely on CENTUM VP field control stations for boiler combustion management, turbine speed control, and auxiliary system interlocking. The NFCP501-W16 S1’s deterministic execution ensures that fuel/air ratio control and burner management sequences execute within defined timing windows, even under high-load computational conditions.

Mining and Mineral Processing: In SAG mill control, flotation circuit management, and tailings pump station automation, the CPU module must withstand high levels of conducted and radiated EMI generated by large variable-speed drives and high-current switchgear. The NFCP501-W16 S1’s EMC-hardened design maintains stable operation in these environments without requiring additional external filtering.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use CENTUM VP for chemical dosing control, filtration sequencing, and effluent quality monitoring. The CPU’s onboard diagnostics enable predictive maintenance alerts before a fault condition develops, reducing unplanned outages in facilities that operate 24/7 with minimal on-site staffing.

Metallurgy and Steel Production: Electric arc furnace control, continuous casting machine automation, and rolling mill tension control all impose severe electrical stress on control system hardware. The NFCP501-W16 S1’s surge-tolerant design and robust backplane connectors ensure reliable operation in these high-vibration, high-interference environments where lesser hardware frequently fails prematurely.

Port and Terminal Automation: Bulk material handling systems, ship loader controls, and conveyor network management in port environments require CPU modules that can handle both high I/O counts and network communication simultaneously without scan cycle degradation. The NFCP501-W16 S1’s processing architecture supports large-scale I/O configurations without compromising control loop timing.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The 12-month warranty covers functional failure under normal operating conditions, including CPU processing faults, communication interface failures, and power regulation defects. Each unit is pre-shipment tested by SMARTNEXMSK technicians using CENTUM VP-compatible test fixtures to verify boot integrity, communication handshake, and I/O bus response before dispatch. In the event of a warranty claim, we provide direct replacement support with documented test records for each returned unit.

Q2: Is the NFCP501-W16 S1 compatible with all CENTUM VP software revisions?
The NFCP501-W16 S1 is compatible with CENTUM VP R4.xx, R5.xx, and R6.xx field control station configurations. Compatibility with specific I/O module combinations and engineering software versions should be verified against the Yokogawa CENTUM VP hardware compatibility matrix for your installed revision. Our technical team can assist with compatibility verification prior to order confirmation.

Q3: How does SMARTNEXMSK ensure long-term supply availability for this module?
We maintain dedicated inventory of high-demand CENTUM VP components, including the NFCP501-W16 S1, to support both planned maintenance schedules and emergency spare-part requirements. Our sourcing network covers factory-new, factory-refurbished, and tested-used grades, allowing us to fulfill orders across different budget and urgency profiles. Long-term supply agreements are available for facilities with multi-year maintenance contracts.

Q4: Can this module be installed as a hot-standby replacement without process interruption?
Yes. In a dual-redundant CENTUM VP configuration, the NFCP501-W16 S1 supports bumpless switchover, allowing the standby CPU to assume control while the primary module is replaced. This procedure must be executed in accordance with Yokogawa’s field replacement procedure for redundant FCS configurations. SMARTNEXMSK recommends reviewing the applicable Yokogawa engineering bulletin and coordinating with your DCS system integrator before performing live module replacement in safety-critical applications.
