GE IS220PCLAH1A Spares: Check Mark VIe Fit

When a Mark VIe cabinet develops an intermittent control fault, the urgent request often becomes a single line: “Please quote IS220PCLAH1A.” That is understandable during an outage, but it is not enough evidence for a safe replacement. The result depends on the cabinet position, installed hardware revision, network arrangement, software archive, applicable Technical Information Letters, and the control system’s current lifecycle phase.

For maintenance and MRO teams, the useful question is not only whether an IS220PCLAH1A unit can be sourced. It is whether the offered part can be identified, checked against the as-running system, received with evidence, and tested without turning a component replacement into a longer controls outage.

Start with the cabinet record, not the quotation

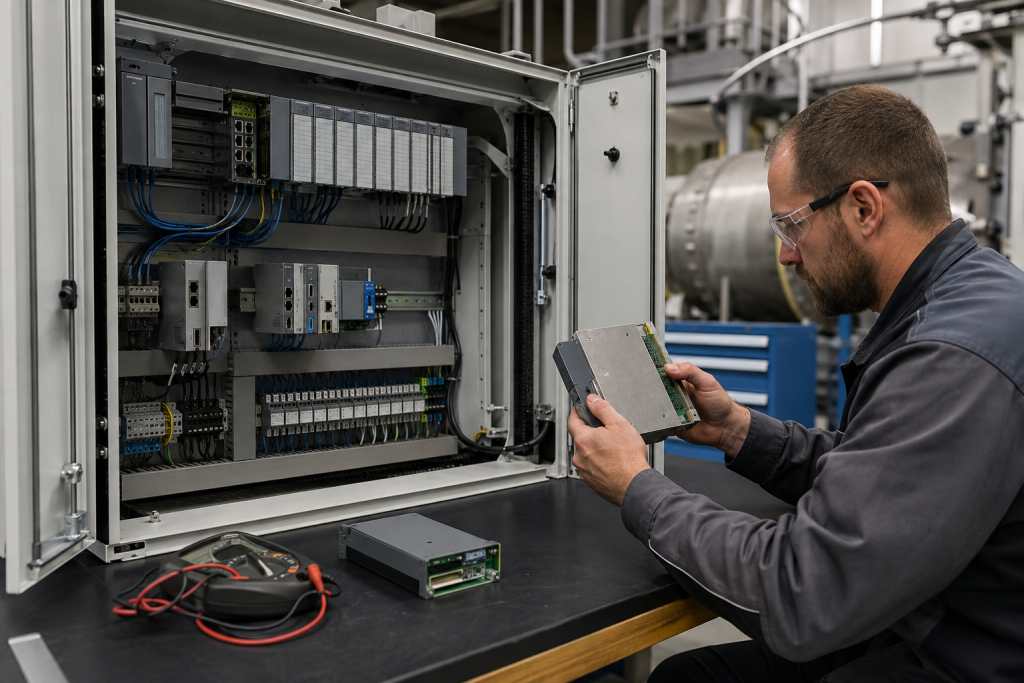

Before removing a suspected unit, record the complete marking, revision, serial or lot information, cabinet and panel identity, physical position, adjacent modules, connectors, power arrangement, network connection, and alarm or diagnostic context. Photograph the nameplate and the surrounding installation. A close-up confirms the part number; a wider cabinet image explains how the part is actually used.

Also capture the control-system generation, ControlST and Cimplicity versions where applicable, the as-running software archive, the current network topology drawing, and any recent change record. If the installed drawing and the cabinet no longer match, mark that discrepancy as a procurement risk rather than silently assuming the shipped configuration is still current.

The published GE IS220PCLAH1A Mark VIe spare page is a model-level sourcing reference. A related GE IS200TRLYH1BGF Mark VIe spare page can help organize the surrounding cabinet list, but neither page replaces the as-running drawing, software record, or site compatibility review.

Why Mark VIe spares are a system question

GE Vernova describes Mark VIe as a modular control platform with networked controllers and I/O, allowing component-level updates and lifecycle planning. That modularity is useful only when the replacement decision respects the complete control path. The cabinet may include controllers, I/O components, network equipment, power supplies, terminal boards, operator stations, and software dependencies that are not interchangeable merely because they share the Mark VIe name.

For an IS220PCLAH1A request, map the unit to its panel, control function, I/O path, network segment, and diagnostic evidence. Confirm whether the failure is repeatable, whether another component is creating the same symptom, and whether the archive can restore the intended configuration. A physically similar unit with an unclear revision or incomplete test record should not be treated as a confirmed drop-in replacement.

Check the current lifecycle phase

Active manufacturing

Active manufacturing is the strongest position for routine sourcing and new or upgrade work. It still requires an accurate asset record: approved part number, revision, installed quantity, criticality, and the minimum stock needed for the next outage.

Limited production

In Limited production, the component is no longer the preferred choice for new installations and may move toward end-of-life support. This is the point to confirm future demand, secure evidence-backed spares, review software dependencies, and compare a controlled inventory increase with a planned upgrade.

End-of-life support

GE Vernova states that end-of-life support is best-effort and does not guarantee manufacturing or repair availability. A verified refurbished or repaired part may still be useful for recovery, but it should be recorded as a controlled bridge with an inspection scope, test evidence, warranty terms, and a defined modernization trigger.

Do not infer a component’s exact phase from a general platform statement. Check the specific part, installed revision, and current vendor information. A lifecycle review should produce a usable action list, not just a label such as “old” or “supported.”

Build an RFQ that can be approved

An effective RFQ should include the full model marking, revision, cabinet and panel identity, installation position, quantity, destination country, required delivery window, failure symptoms, and whether the requirement is for a new, repaired, refurbished, or used unit. Attach clear nameplate photographs, cabinet context photographs, and the relevant inventory record.

Ask the supplier to state the identification basis, inspection scope, electrical or functional test performed, packaging condition, warranty, and any configuration responsibility. If the supplier cannot confirm the revision or test evidence, classify the offer as an unverified recovery option. That distinction matters when the part will be installed during a turbine or generator outage.

Protect the archive and maintenance evidence

Before a planned replacement, preserve the as-running software archive, network topology, hardware configuration, alarm history, diagnostic logs, and recent change records. Store them with the site, panel, and software-version identity. A spare without a recoverable archive may solve the hardware shortage while leaving the plant unable to restore the control function.

GE Vernova’s maintenance guidance highlights practical controls work such as panel cleaning, cooling-fan checks, temperature management, terminal tightening, air-filter cleaning, diagnostic-log review, corrective actions, and applicable TIL implementation. These checks matter because a repeated fault may be driven by cabinet condition, grounding, heat, power quality, or an unresolved technical notice rather than by the quoted unit alone.

When a spare should become an upgrade decision

Escalate from a single-part purchase to a lifecycle review when the component is in Limited production or end-of-life support, the archive is incomplete, the same fault repeats, the cabinet inventory is inconsistent, or the required quantity cannot be sourced with evidence. GE Vernova’s current lifecycle-review guidance asks for the as-running archive, network topology, software versions, panel nameplate photographs, and inventory information because those inputs expose risks that a part-number search cannot see.

A verified spare can restore production today. It does not prove that the full Mark VIe installation has a reliable maintenance path for the next outage cycle. Keep the immediate recovery decision and the longer-term upgrade decision separate, but make them from the same evidence set.

FAQ

Is every IS220PCLAH1A listing automatically interchangeable?

No. Confirm the complete marking, revision, cabinet position, network and control context, software environment, and evidence that the offered unit matches the installed requirement.

Does a Mark VIe lifecycle label apply to every cabinet component?

Not automatically. Hardware, software, network equipment, and third-party items can have different support conditions. Check each critical part and its dependencies.

Should I order one spare for every Mark VIe panel?

Not by default. Set quantities using installed population, criticality, failure history, repair yield, outage exposure, and the time needed to source or test a replacement.

Can a repaired or refurbished unit support an outage?

It can be considered when identity, revision, inspection scope, functional test evidence, packaging, warranty, and compatibility are documented. Treat it as controlled recovery stock, not unlimited future availability.

What should accompany an IS220PCLAH1A quote request?

Send the complete marking, revision, cabinet and panel details, clear photographs, software and archive status, quantity, symptoms, destination, and required delivery window.

Make the request actionable

For a GE Mark VIe IS220PCLAH1A spare review, send the complete model marking, cabinet and nameplate photographs, panel or controller context, archive status, quantity, destination country, and urgency. Contact [email protected] or WhatsApp/Phone +86 18259474341 for a model, evidence, and lifecycle review.

Reference material: GE Vernova Mark VIe Lifecycle Reviews; GE Vernova Controls Lifecare Services; Mark VIe Extended Lifecycle Policy. Accessed 2026-09-05.
