GE IS220PCLAH1A Maintenance-Ready Spare for Mark VIe

GE IS220PCLAH1A Maintenance-Ready Spare for Mark VIe: Spare Replacement and Industrial Downtime Risk Control

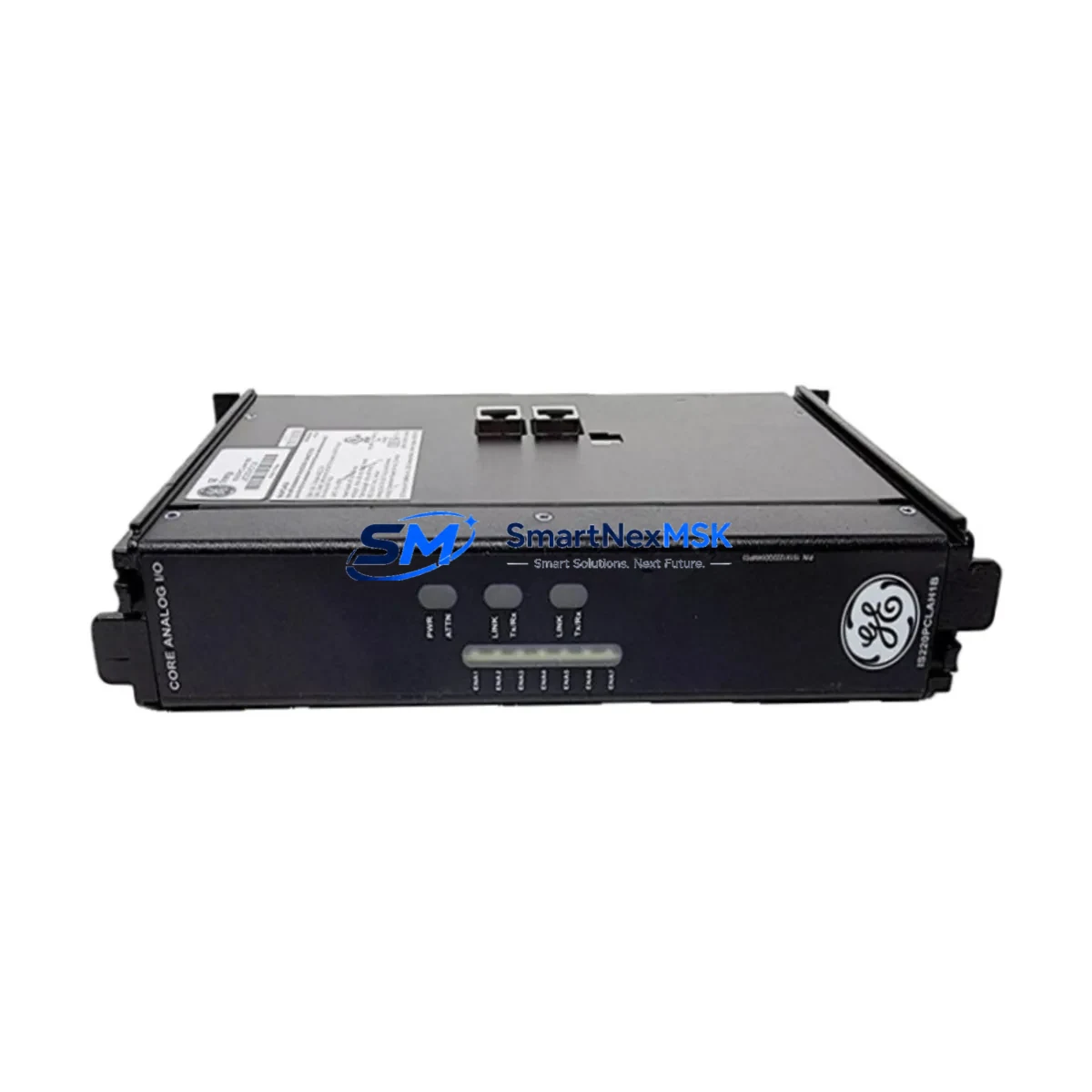

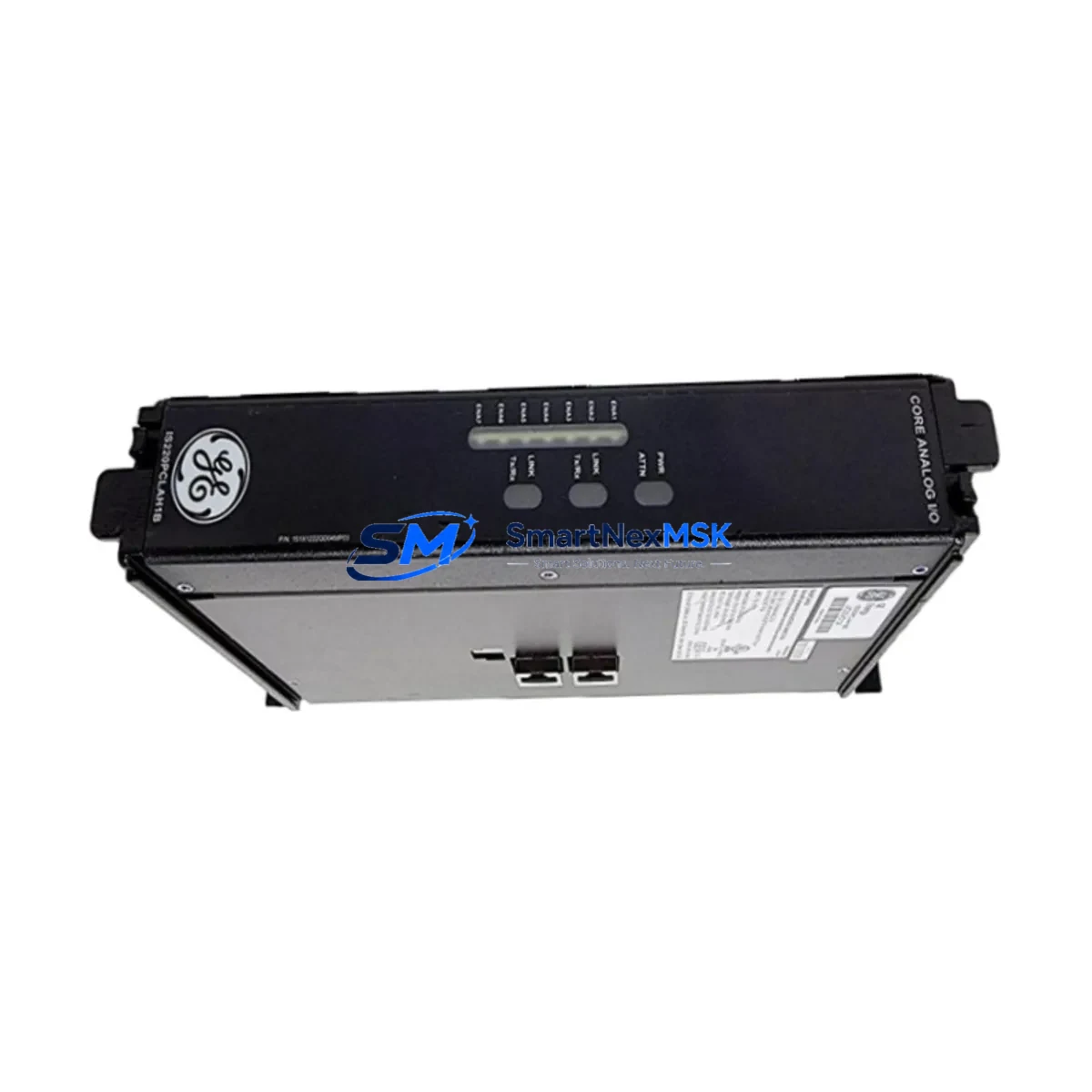

The GE IS220PCLAH1A is an original analog I/O module designed for the GE Mark VIe turbine control system — one of the most widely deployed DCS platforms in power generation, oil & gas, and heavy industrial facilities worldwide. For maintenance engineers and procurement teams responsible for keeping critical rotating equipment online, having a verified, tested IS220PCLAH1A spare in stock is not optional — it is a fundamental part of any credible downtime prevention strategy.

The IS220PCLAH1A handles analog input and output signal conditioning within the Mark VIe I/O pack architecture. It interfaces directly with field instruments including thermocouples, RTDs, 4–20 mA transmitters, and analog actuator feedback loops. When this module degrades or fails — whether due to age, thermal cycling, moisture ingress, or vibration — the turbine control system loses visibility into critical process variables. The result is forced shutdown, extended outage, and in some cases, unsafe operating conditions. Sourcing a pre-tested replacement unit before failure occurs is the most cost-effective maintenance decision a plant engineer can make.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Mark VIe-based control system goes well beyond replacing a single analog I/O module. When a maintenance engineer identifies a degraded IS220PCLAH1A, it is standard practice to conduct a broader inspection of the surrounding I/O pack assembly and control cabinet. The IS220PCLAH1A typically operates alongside companion modules such as the IS220PPDAH1A power distribution module, which supplies regulated DC power to the I/O pack rail — a failed or marginal power module can cause intermittent analog signal errors that are often misdiagnosed as I/O module faults.

The IS220PTCCH1A thermocouple input module and IS220PAICH1A analog input module are frequently installed in the same I/O pack enclosure and share the same backplane communication bus. During a planned outage, it is advisable to inspect these modules simultaneously, checking for signs of oxidation on connector pins, loose terminal block seating, and any indication of thermal stress on the PCB. The IS215VCMIH2A VME communication module, which manages data exchange between the I/O packs and the Mark VIe controller, should also be verified for firmware version compatibility whenever an I/O module is replaced.

On the field wiring side, maintenance teams should inspect the terminal boards — particularly the IS200TBCIH1A and IS200TBAIH1B — for corroded terminals, loose wire ferrules, and insulation degradation. These terminal boards are the physical interface between field instruments and the I/O modules, and their condition directly affects signal accuracy. Fuse blocks and surge protection devices installed on the 24 VDC supply rails feeding the I/O pack should be tested and replaced on a scheduled basis to prevent transient damage to analog input circuits.

For facilities running extended maintenance intervals, maintaining a minimum spare inventory of one IS220PCLAH1A per turbine train is a widely accepted practice in power generation and petrochemical operations. Procurement engineers should also consider stocking the IS200EACFG1A excitation and control module and relevant communication cables as part of a comprehensive Mark VIe spare parts kit, ensuring that any single-point failure in the control loop can be resolved within a single maintenance shift without waiting for emergency procurement.

Site Replacement Workflow

Replacing the IS220PCLAH1A on-site is a structured process that, when executed correctly, minimizes control system downtime to under two hours in most installations. The replacement workflow begins with a controlled shutdown of the affected I/O pack, followed by documentation of all field wiring connections at the associated terminal board. Maintenance engineers should photograph or record the terminal assignments before disconnecting any wiring, as incorrect reconnection is the leading cause of post-replacement signal errors.

Once the faulty module is removed, the replacement IS220PCLAH1A should be inspected for physical damage, connector pin integrity, and correct firmware labeling before installation. The module is seated into the I/O pack backplane and secured according to GE’s installation torque specifications. After reconnection of field wiring, the Mark VIe system should be powered up in diagnostic mode to verify that all analog channels are reading within expected ranges before returning the turbine to service.

For older Mark VI or Mark V installations being upgraded or extended in service life, the IS220PCLAH1A may serve as a direct replacement for legacy analog I/O cards where backplane adapters are available. This approach allows facilities to extend the operational life of existing control cabinets without a full DCS migration, reducing capital expenditure while maintaining system reliability. Our technical team can advise on compatibility between the IS220PCLAH1A and adjacent legacy hardware to ensure a seamless transition.

All units supplied by SMARTNEXMSK are subject to pre-shipment functional testing, including analog channel verification, power consumption measurement, and communication bus response testing. Each module is shipped in anti-static packaging with a test report and 12-month warranty documentation.

Spare Parts Support FAQ

Q1: What does the 12-month warranty cover for the IS220PCLAH1A?
The 12-month warranty covers functional failure of the module under normal operating conditions, including analog channel failure, communication bus faults, and power supply input failure. Physical damage caused by incorrect installation, overvoltage, or environmental conditions outside the specified range is not covered. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q2: How is the IS220PCLAH1A tested before shipment?
Every IS220PCLAH1A unit undergoes a full functional test prior to dispatch. Testing includes analog input channel accuracy verification across the full 4–20 mA range, thermocouple and RTD input response testing, backplane communication bus handshake verification, and power consumption measurement. A test report is included with each shipment.

Q3: Is the IS220PCLAH1A compatible with both Mark VIe and earlier Mark VI systems?
The IS220PCLAH1A is designed for the Mark VIe I/O pack architecture. Compatibility with earlier Mark VI systems depends on the specific backplane and controller firmware version in use. We recommend providing your system’s controller model and firmware revision when ordering to allow our technical team to confirm compatibility before shipment.

Q4: Can you support long-term supply of the IS220PCLAH1A for multi-year maintenance contracts?
Yes. SMARTNEXMSK maintains ongoing inventory of the IS220PCLAH1A and related Mark VIe I/O modules to support long-term maintenance agreements. We can provide scheduled delivery, reserved stock allocation, and priority dispatch for facilities operating under planned maintenance cycles. Contact our sales team to discuss volume pricing and supply continuity arrangements.
