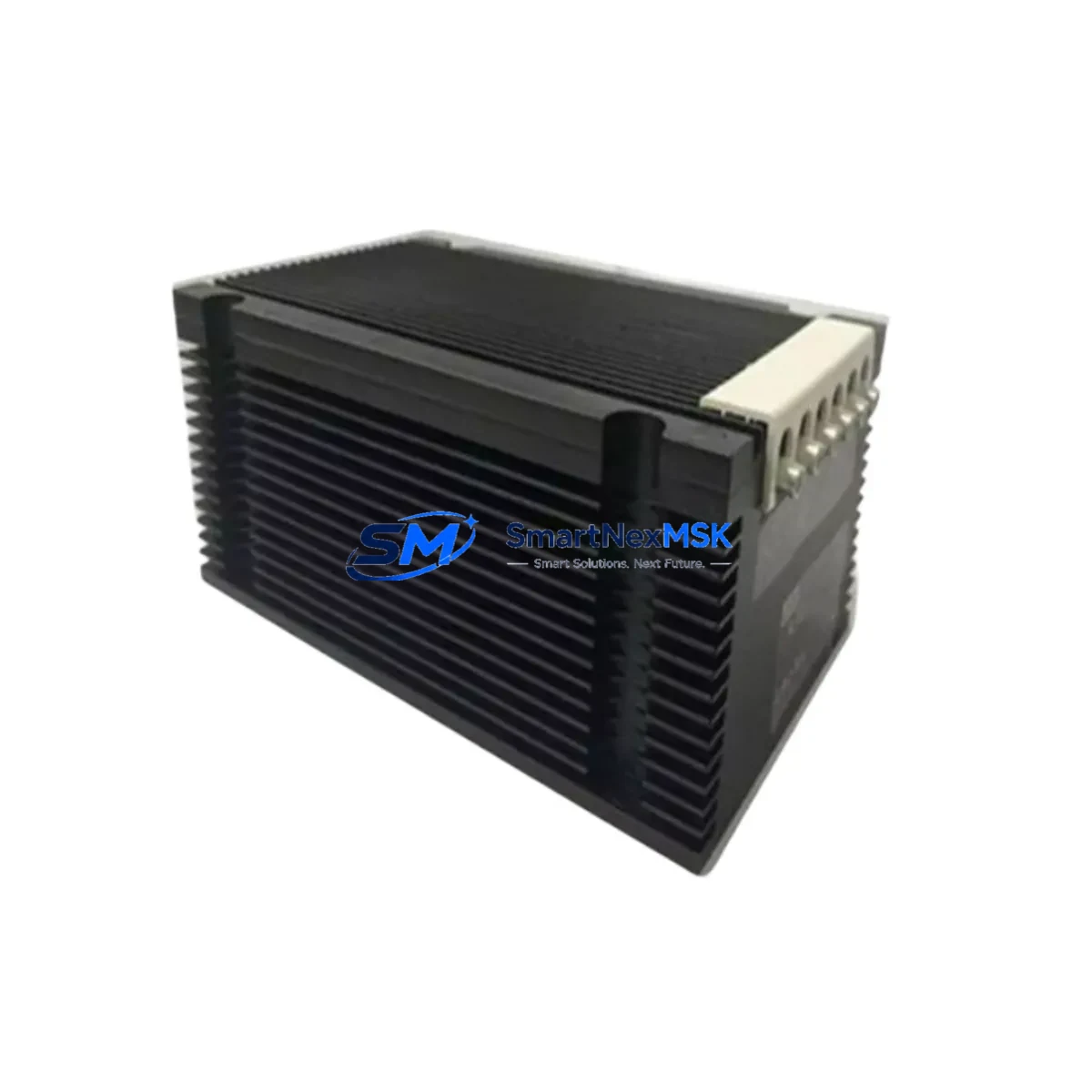

4nic-Casic 4NIC-DC325/G Safety-Enhanced DC/DC Converter

4nic-Casic 4NIC-DC325/G Safety-Enhanced DC/DC Converter for Harsh Industrial Sites

In high-load continuous production environments — from petrochemical control rooms and power plant DCS cabinets to mining automation panels and metallurgical process lines — power supply stability is not a convenience; it is a safety prerequisite. The 4nic-Casic 4NIC-DC325/G is a 325W ruggedized DC/DC converter module engineered specifically for these demanding conditions. It delivers clean, regulated DC output in environments where voltage fluctuation, electromagnetic interference, surge transients, and thermal stress routinely compromise lesser components. By maintaining stable power delivery across the full operating range, the 4NIC-DC325/G directly reduces the risk of control loop interruption, module misoperation, signal drift, and unplanned field shutdowns.

Industrial control cabinets serving critical interlock circuits, safety instrumented systems (SIS), and emergency shutdown (ESD) loops demand power modules that do not merely meet nominal specifications — they must sustain performance under worst-case field conditions. The 4NIC-DC325/G is built to that standard. Its wide input voltage tolerance absorbs upstream power fluctuations from variable-frequency drives, large motor starts, and grid switching events without propagating disturbances to downstream PLC I/O modules, DCS controllers, or field transmitters. This makes it a foundational component in any control cabinet where power quality directly governs process safety.

The module’s ruggedized construction addresses the mechanical and environmental stresses common to heavy industrial sites: vibration from rotating machinery, dust ingress in open-process areas, humidity cycling in coastal or chemical plants, and the thermal gradients present in densely packed control enclosures. Its compact form factor integrates cleanly into standard DIN-rail assemblies alongside surge protection devices, DC bus bars, terminal blocks, and other cabinet infrastructure, simplifying both initial installation and future spare-part replacement.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is a system, not a collection of individual components. The 4NIC-DC325/G performs its safety function most effectively when integrated within a coherent power and protection architecture. In a typical heavy-industry control enclosure, the DC/DC converter sits downstream of an AC/DC power supply unit — such as the 4nic-Casic 4NIC-Q325 series — which rectifies and conditions incoming mains power. The 4NIC-DC325/G then provides the isolated, regulated DC rail that feeds sensitive control loads: PLC CPU modules, analog I/O cards, communication gateways, and safety relay modules.

To protect the converter’s input from upstream surge events — particularly in plants where large inductive loads switch frequently — a DC surge protection device (SPD) installed on the DC bus ahead of the module is strongly recommended. Similarly, output-side filtering capacitors or DC line filters can further attenuate residual ripple before it reaches high-precision analog input modules or HART-enabled field transmitters. In cabinets housing Siemens S7-300/S7-400 PLC racks or Rockwell ControlLogix chassis, the 4NIC-DC325/G can serve as a dedicated isolated supply for the I/O backplane, preventing ground loops and common-mode noise from corrupting process signals.

For safety instrumented systems operating under IEC 61511, the power supply architecture must support redundancy. Pairing two 4NIC-DC325/G modules in a 1oo2 (one-out-of-two) redundant power configuration with a DC diode ORing module ensures that a single converter failure does not interrupt the safety function. This approach is widely used in ESD and fire-and-gas (F&G) system panels. Communication infrastructure within the same cabinet — including PROFIBUS DP repeaters, Modbus RTU isolators, and Industrial Ethernet switches — also benefits from being powered by a dedicated, isolated rail derived from the 4NIC-DC325/G, preventing communication anomalies caused by shared power bus noise.

In distributed control system (DCS) marshalling cabinets, where hundreds of field signal terminations converge, the 4NIC-DC325/G provides the stable 24VDC (or other regulated voltage) required by signal isolators, intrinsic safety barriers, and loop-powered transmitter supplies. Its over-current and short-circuit protection prevents a single wiring fault from cascading into a wider power failure — a critical safety feature in cabinets serving hazardous-area field instruments in Zone 1 or Zone 2 classified locations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process units — crude distillation, catalytic cracking, or gas compression — control system availability is directly linked to process safety. The 4NIC-DC325/G supplies isolated power to PLC and DCS I/O modules managing valve positioners, pressure transmitters, and flow controllers. Its surge suppression capability is essential in plants where large pump motors and compressors generate frequent voltage transients on the DC distribution bus.

Electric Power Generation & Transmission: Substation automation panels and turbine control systems require power modules that maintain output stability during grid disturbances. The 4NIC-DC325/G’s wide input tolerance and galvanic isolation make it suitable for supplying protection relay panels, RTU communication modules, and SCADA interface cards in 110kV and 220kV substation environments.

Mining & Mineral Processing: Underground and surface mining operations expose control equipment to extreme vibration, dust, and humidity. The ruggedized G-series construction of the 4NIC-DC325/G ensures reliable operation in conveyor control panels, crusher automation cabinets, and ventilation safety interlock systems where standard industrial power modules frequently fail prematurely.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with minimal tolerance for control system downtime. The 4NIC-DC325/G provides stable power to SCADA-connected PLC systems managing pump stations, chemical dosing controls, and UV disinfection interlocks, where power interruption can result in regulatory non-compliance or environmental incidents.

Metallurgy & Steel Production: Electric arc furnace (EAF) and rolling mill control systems are among the most electrically hostile environments in industry. High-frequency switching transients, strong magnetic fields, and heavy current surges are routine. The 4NIC-DC325/G’s EMI-hardened design and robust isolation barrier protect downstream control electronics from these disturbances, supporting continuous production without unplanned stops.

Port & Heavy Logistics Automation: Container crane PLC systems, automated stacking crane (ASC) drives, and port logistics control panels require power modules that tolerate the mechanical shock and vibration of heavy lifting operations. The 4NIC-DC325/G’s ruggedized construction and DIN-rail mounting make it a reliable choice for these mobile and semi-mobile control enclosures.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 4NIC-DC325/G?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to meet its rated output specifications within the warranty period, SMARTNEXMSK will arrange replacement or repair at no additional cost. Warranty claims are supported with documentation and technical review to ensure fast resolution and minimal impact on your production schedule.

Q2: How is the 4NIC-DC325/G tested before shipment?
Every unit undergoes a 100% functional output test prior to dispatch. This includes verification of output voltage regulation, load response, protection circuit activation (over-voltage, over-current, short-circuit), and isolation integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 4NIC-DC325/G compatible with existing 4nic-Casic power system installations?
Yes. The 4NIC-DC325/G is designed within the 4nic-Casic modular power architecture and is dimensionally and electrically compatible with other modules in the 4NIC-DC series. It can replace end-of-life or failed units in existing installations without requiring cabinet redesign, making it an efficient spare-part solution for maintenance teams.

Q4: Can long-term supply continuity be guaranteed for critical spare-part programs?
SMARTNEXMSK maintains dedicated stock of the 4NIC-DC325/G to support planned maintenance programs, emergency replacements, and multi-year spare-part agreements. For facilities with critical uptime requirements, we recommend establishing a consignment or blanket-order arrangement to ensure immediate availability. Contact our technical sales team to discuss supply continuity options tailored to your plant’s maintenance strategy.
