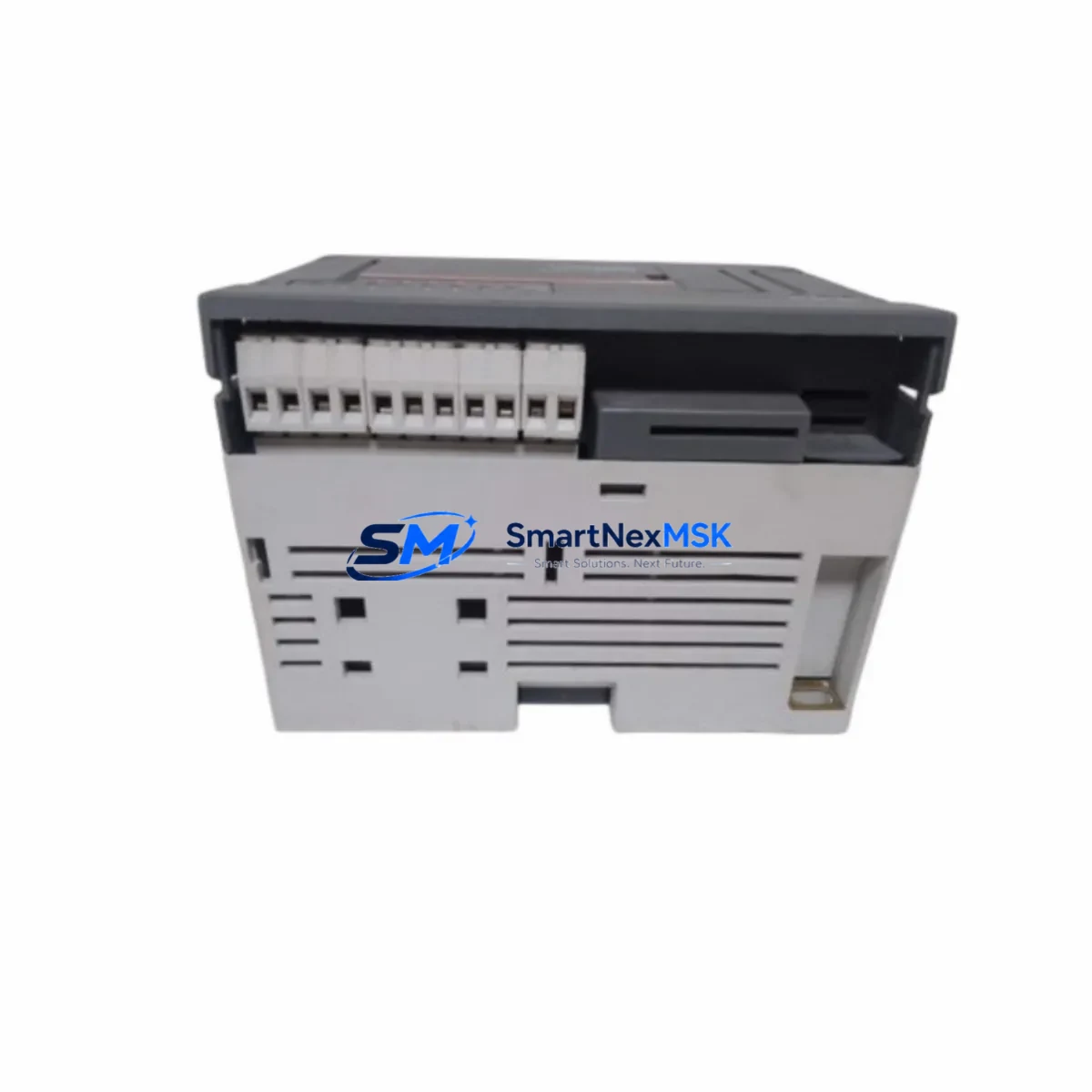

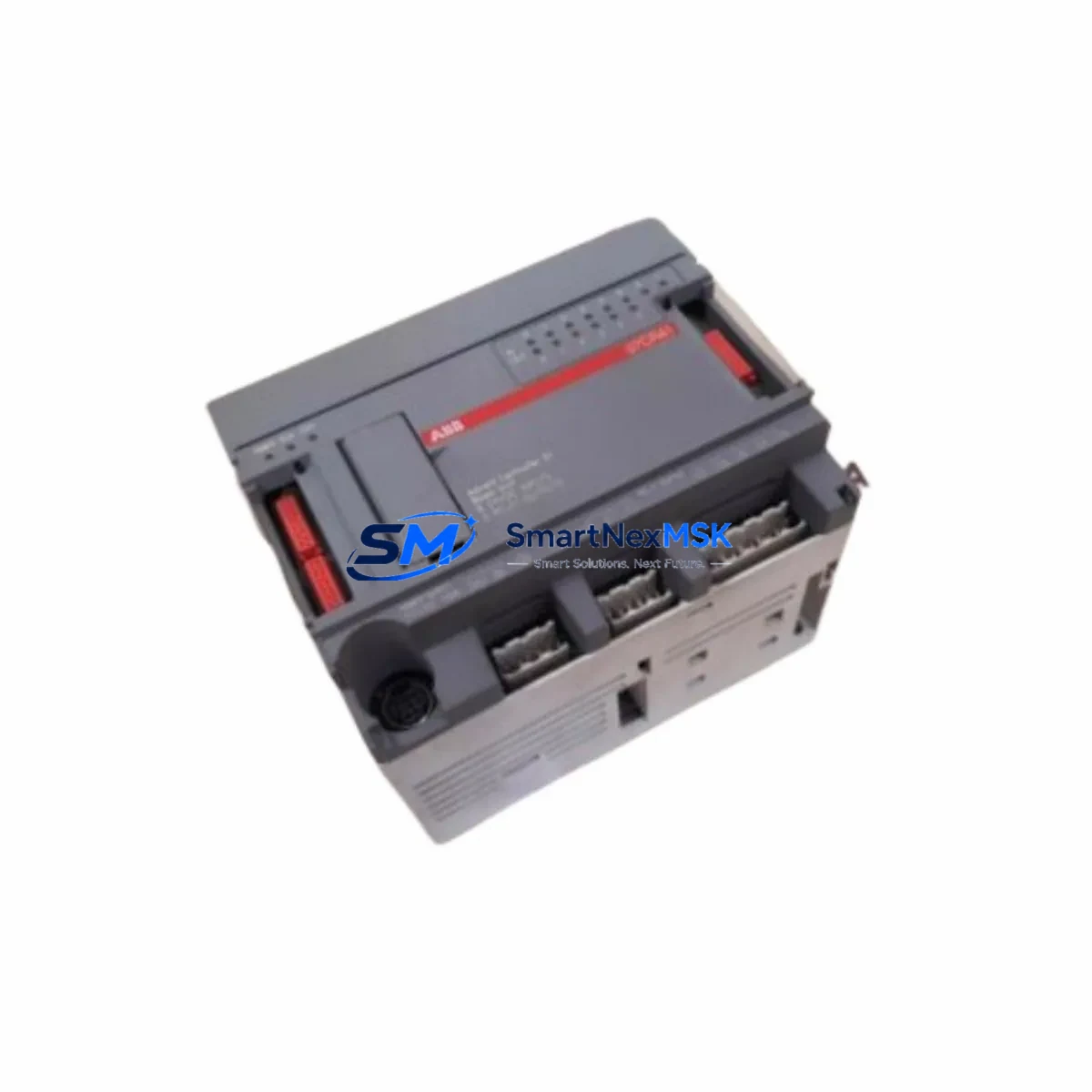

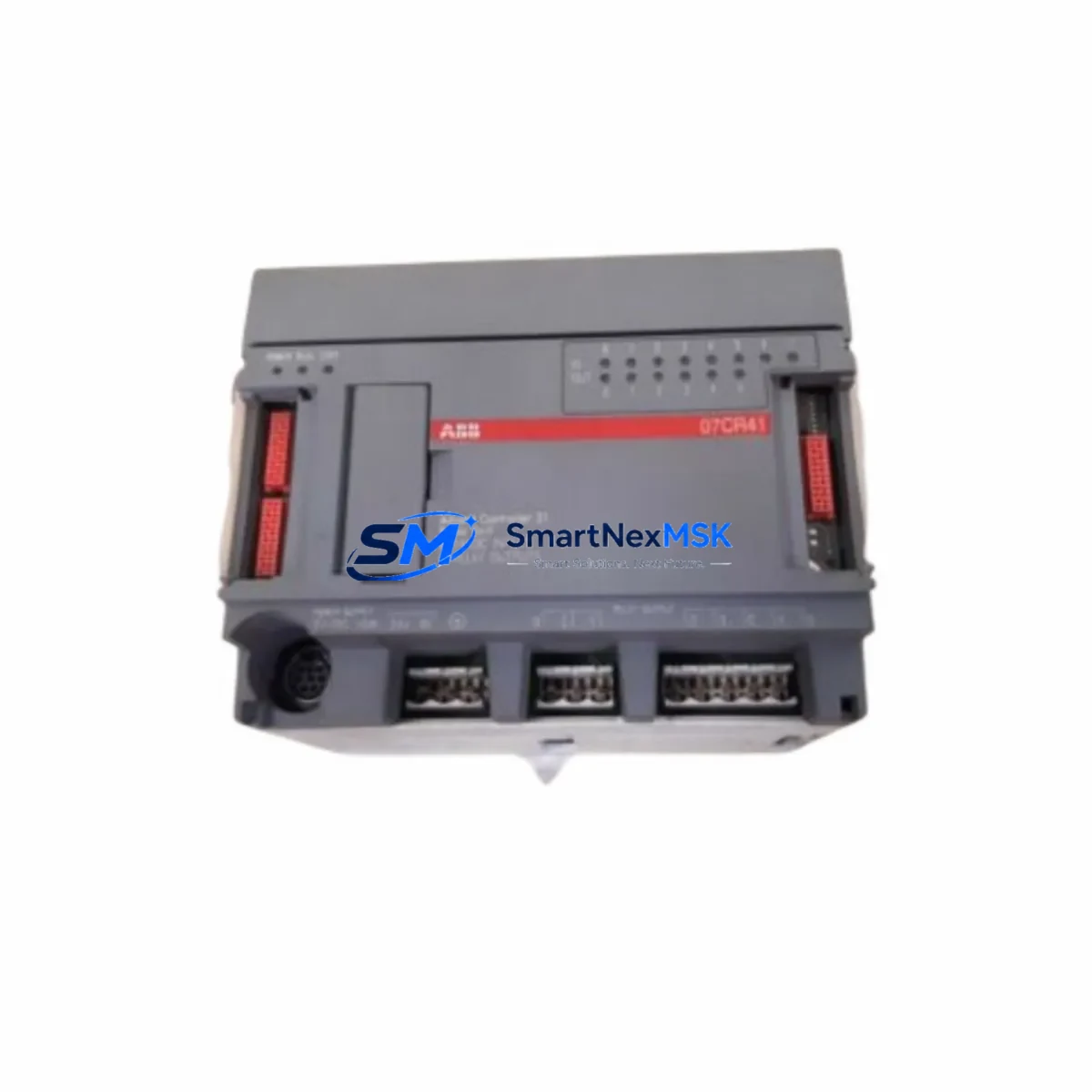

ABB 07CR41 1SBP260020R1001 Retrofit-Ready CPU Module

ABB 07CR41 1SBP260020R1001 Retrofit-Ready CPU Module: Compatible Modernization & Smooth Advant Controller Upgrade

The ABB 07CR41 (order reference 1SBP260020R1001) is a high-performance CPU module engineered for the ABB Advant Controller platform, specifically designed to serve as a direct retrofit replacement for aging or discontinued controller hardware in legacy industrial automation systems. Whether you are managing a planned system modernization or responding to an unplanned failure of an obsolete controller, the 07CR41 provides a reliable, specification-matched upgrade path that preserves your existing control architecture, minimizes engineering rework, and dramatically reduces plant downtime.

This module is fully compatible with the Advant Controller AC410 and AC450 rack-based control systems, operating within the MASTERBUS communication backbone that interconnects CPUs, I/O modules, and communication processors across the control cabinet. Its backplane interface conforms to the standard Advant rack slot specification, allowing direct installation into existing S100 I/O subrack assemblies without mechanical modification. Power consumption is within the standard 5 VDC backplane budget, making it compatible with existing PM510 and PM511 power supply modules already installed in the control cabinet.

When planning a retrofit using the 07CR41, engineers must verify several critical compatibility parameters before commissioning. First, confirm the backplane slot address configuration — the 07CR41 uses hardware DIP switch or jumper settings to define its node address on the MASTERBUS network, and these must match the address previously assigned to the outgoing CPU to avoid communication conflicts with connected CI522 or CI532 communication interface modules. Second, review the terminal wiring on the associated S100 I/O modules such as the AI810 analog input module and DI810 digital input module to ensure signal ranges and termination resistors remain appropriate for the replacement CPU’s scan cycle and input resolution. Third, validate that the application program stored in the outgoing CPU — typically developed in ABB’s Master programming environment — is exported and archived before removal, as the 07CR41 requires a clean program download via the MasterView 800 engineering workstation or compatible programming cable.

For sites running mixed Advant and MOD 300 distributed control architectures, the 07CR41 integrates cleanly into the MASTERBUS segment without disrupting the Harmony Bus or INFI-NET communication links used by adjacent MOD 300 controllers. This is particularly important in hybrid control rooms where the Advant Controller handles discrete logic while MOD 300 nodes manage continuous process loops — the 07CR41 retrofit does not require changes to the inter-system gateway configuration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 07CR41 retrofit begins well before the module arrives on site. The engineering team should conduct a full audit of the existing Advant Controller cabinet, documenting the installed S100 I/O subrack layout, the slot positions of all AI810 analog input modules, DI810 digital input modules, DO810 digital output modules, and AO810 analog output modules. Each module’s channel assignments, signal ranges, and scaling parameters should be recorded and cross-referenced against the application program to confirm that the 07CR41’s I/O scan configuration will replicate the outgoing CPU’s behavior exactly.

Communication module inventory is equally critical. If the control system uses CI522 MASTERBUS communication interface modules to link the CPU to remote I/O stations or to peer controllers, the node address table must be exported and preserved. Similarly, if CI532 modules are used for serial communication to third-party devices such as variable frequency drives or smart motor controllers, the baud rate, parity, and protocol settings must be documented for re-entry after the 07CR41 is commissioned. Any TP830 termination panel or TB820 bus terminator installed at the end of the MASTERBUS segment should remain in place and undisturbed during the CPU swap.

For sites where the Advant Controller interfaces with an ABB Panel 800 HMI or an older OP7 operator panel, the HMI tag database and screen graphics do not require modification — the 07CR41 presents the same data model to the HMI communication layer as the original CPU, provided the node address is correctly configured. However, it is good practice to perform a full HMI screen validation after commissioning to confirm that all analog displays, alarm setpoints, and trend histories are reading correctly from the new CPU.

Power budget verification is a non-negotiable step. Add up the current draw of all installed S100 I/O modules, the 07CR41 CPU itself, and any CI-series communication modules sharing the same subrack. Compare this total against the rated output of the installed PM510 or PM511 power supply. If the budget is marginal, consider replacing the power supply with a higher-capacity unit before the CPU retrofit to avoid nuisance trips during peak load conditions.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU retrofit requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the outgoing CPU’s application program should be uploaded and saved to at least two independent storage locations — typically the MasterView 800 engineering workstation hard drive and a removable USB or network share. A full I/O force table review should be completed to identify any forced outputs that must be manually managed during the transition period.

During the physical swap, the S100 subrack power should be de-energized at the PM510 or PM511 power supply input, not at the main cabinet breaker, to avoid disturbing adjacent control cabinets sharing the same bus. The 07CR41 module should be inserted into the correct backplane slot, DIP switches configured to match the documented node address, and the subrack re-energized. The MasterView 800 workstation should then be connected via the programming cable to perform the application program download, followed by a cold start sequence to initialize the CPU’s memory and I/O tables.

Once the program is running, a systematic I/O verification scan should be performed — checking each AI810 and DI810 channel against the field instrument reading to confirm correct signal mapping. Analog output channels on AO810 modules should be verified against the downstream actuator position before releasing the system to automatic control. The entire commissioning sequence, from power-down to verified automatic operation, typically requires two to four hours for a standard Advant Controller cabinet, making the 07CR41 one of the most time-efficient retrofit options available for this platform.

Throughout the migration, the original program logic is preserved intact — no recompilation or re-engineering is required, which protects the validated control strategy and eliminates the risk of introducing new logic errors during the upgrade.

Retrofit Support FAQ

Q: Is the ABB 07CR41 (1SBP260020R1001) a direct drop-in replacement for the original 07CR41 installed in my AC410 system?
A: Yes. The 07CR41 with order reference 1SBP260020R1001 is a specification-matched replacement for the original Advant Controller CPU. It uses the same backplane slot, the same MASTERBUS node address scheme, and accepts the same application program format. No hardware modification to the subrack or wiring is required, though node address DIP switch configuration must be verified before power-up.

Q: What programming tool is required to download the application to the 07CR41 after installation?
A: The 07CR41 is programmed using the ABB Master software environment, accessed via a MasterView 800 engineering workstation or a compatible PC with the appropriate programming cable. The application program should be uploaded from the outgoing CPU before removal and downloaded to the 07CR41 after installation and node address configuration.

Q: How do I verify wiring compatibility between the 07CR41 and my existing S100 I/O modules?
A: The 07CR41 communicates with S100 I/O modules — including AI810, DI810, DO810, and AO810 — via the backplane bus, not through direct terminal wiring. Field wiring connects to the I/O modules’ terminal blocks and does not change during a CPU retrofit. Verify that each I/O module’s channel configuration, signal range, and scaling parameters match the application program’s expectations after the new CPU is commissioned.

Q: What does the 12-month warranty cover, and what is the shipping lead time?
A: The 12-month warranty covers all functional defects in materials and workmanship from the date of shipment. Each unit undergoes pre-shipment functional testing to verify backplane communication, program memory integrity, and I/O bus initialization. Standard lead time is 3–7 business days for in-stock units, with expedited options available for urgent plant recovery situations. Contact our team for current stock status and delivery confirmation.
