ABB 086363-002 Maintenance-Ready Spare for ACS Drive

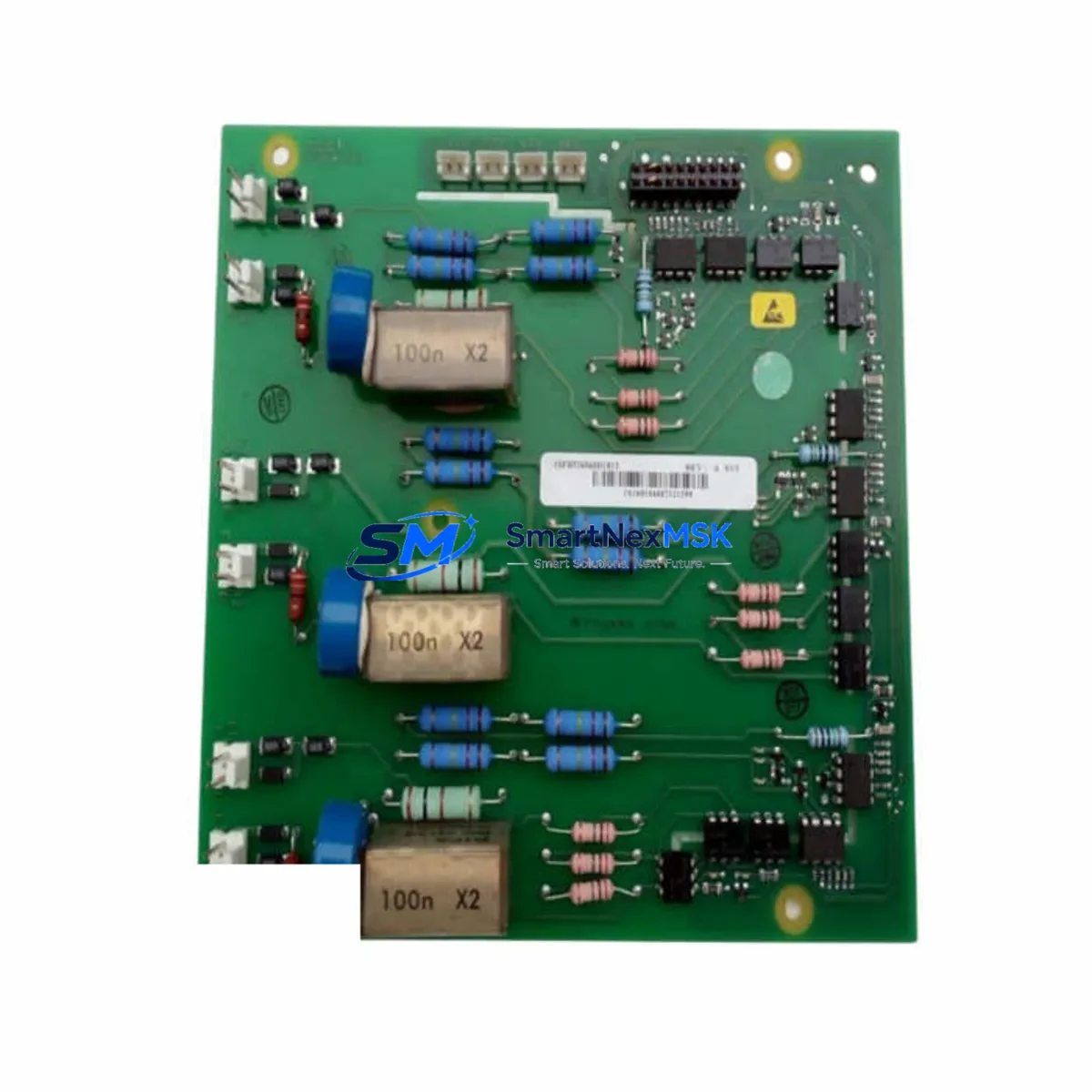

The ABB 086363-002 is an original drive control board designed for ABB ACS series AC variable frequency drives, widely deployed across industrial motor control centers, pump stations, compressor panels, and conveyor automation systems. For maintenance engineers managing aging drive infrastructure, securing a verified spare of the 086363-002 is a critical step in any downtime-prevention strategy. This board governs the core control logic of the ACS drive — including speed reference processing, fault detection, I/O signal management, and communication interface coordination — making it one of the highest-priority components on any ACS drive spare parts list.
When an ACS drive trips on a control board fault or fails to respond to start commands, the 086363-002 is frequently the root cause. Unlike power stage failures that may present with visible burn marks or blown fuses, control board faults often manifest as erratic parameter behavior, loss of fieldbus communication, or unexplained fault codes such as FF, 0001, or 0002 in the ACS fault log. Rapid identification and board-level replacement is the fastest path to drive restoration without full unit replacement.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 086363-002 |
| Brand | ABB |
| Compatible Series | ABB ACS Series AC Drives |
| Component Type | Drive Control Board (PCB) |
| Function | Drive control logic, I/O interface, fault management, fieldbus coordination |
| Origin | Germany (OEM) |
| Installation Type | Direct board replacement, plug-in connector interface |
| Application Environment | Industrial motor control, pump/fan/compressor automation, conveyor systems |
| Compatibility Verification | Match drive firmware version and hardware revision before installation |
| Pre-Shipment Testing | Function-tested and inspected before dispatch |
| Warranty | 12 Months |
| Condition | Original / Genuine OEM |
| Lead Time | Fast dispatch; contact for stock confirmation |
Maintenance Planning for Continuous Operation
Replacing the 086363-002 control board is rarely an isolated task. Experienced maintenance engineers treat a drive control board failure as a trigger for a broader cabinet inspection. Before returning the ACS drive to service, the following components should be checked or replaced as part of the same maintenance window:
Start with the ACS drive SMPS power supply board — a degraded internal power supply is a common upstream cause of control board failure, and replacing the 086363-002 without addressing a marginal SMPS will result in repeat failures. Next, inspect the IGBT gate driver board; if the drive tripped on an overcurrent or short-circuit fault before the control board failed, the gate driver may have sustained damage. Check the ACS I/O extension module (such as the RAIO or RDIO option boards) for any signs of signal corruption or connector damage, particularly if the fault was preceded by erratic analog input behavior.
The fieldbus adapter module — whether PROFIBUS (RPBA-01), Modbus (RMBA-01), or DeviceNet (RDNA-01) — should be reseated and its communication parameters verified after any control board swap, as firmware re-initialization may reset fieldbus node addresses. If the drive is integrated into a PLC-controlled system, coordinate with the control engineer to confirm that the PLC digital output module driving the drive start/stop and speed reference signals is functioning correctly and within specification.
During the cabinet inspection, also verify the condition of the drive input fuses and EMC filter. A blown input fuse or degraded filter capacitor can introduce voltage transients that stress the control board. Check the braking resistor and chopper module if the application involves frequent deceleration cycles. Finally, inspect all control wiring terminal blocks and shielded signal cables connecting the drive to external sensors, encoders, or HMI panels — loose terminations and damaged cable shields are a leading cause of intermittent control board faults in high-vibration environments.
For facilities running multiple ACS drives, maintaining at least one 086363-002 board in the on-site spare parts inventory is strongly recommended. The board’s compact form factor and standardized connector interface make it suitable for rapid field replacement without specialized tooling, enabling drive restoration within a single shift.
Site Replacement Workflow
Step 1 — Fault Confirmation: Record all active fault codes from the ACS drive keypad or connected HMI (such as the ACS-CP-C or CDP312R control panel). Document the drive’s current parameter set using the keypad backup function or a connected PC tool (DriveStudio or Drive Composer) before powering down.
Step 2 — Safe Isolation: Isolate the drive from the main supply using the upstream isolator or MCC breaker. Wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify zero voltage on the DC bus terminals before opening the drive enclosure.
Step 3 — Board Removal: Disconnect all ribbon cables and plug-in connectors from the 086363-002 board, noting connector positions and cable routing. Remove the board mounting screws and extract the board carefully to avoid damaging adjacent components.
Step 4 — Compatibility Check: Compare the hardware revision code on the replacement 086363-002 with the original. Verify that the drive firmware version is compatible with the replacement board revision. If a firmware update is required, perform it before reinstallation.
Step 5 — Installation and Recommissioning: Install the replacement board, reconnect all cables in the correct sequence, and restore power. Re-enter or restore the parameter set from backup. Run the drive through a no-load test cycle before reconnecting the motor load. Confirm fieldbus communication is re-established and all I/O signals are responding correctly.
Step 6 — Documentation: Update the maintenance log with the replacement date, board serial number, and post-replacement test results. Reorder a replacement spare to restore inventory levels.
Spare Parts Support FAQ
Q1: Is the 086363-002 compatible with all ACS series drive models?
The 086363-002 is designed for specific ACS series drive variants. Compatibility depends on the drive’s power rating, hardware revision, and firmware version. Always cross-reference the drive’s nameplate data and service manual before ordering. Our technical team can assist with compatibility verification based on your drive’s serial number.
Q2: What pre-shipment testing is performed on the 086363-002?
Each 086363-002 board is function-tested and visually inspected before dispatch. Testing covers power-on initialization, I/O signal integrity, and communication interface response. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the specified environmental parameters. Warranty claims are processed with full technical support from our team.
Q4: Can you support long-term or repeat supply of the 086363-002?
Yes. We maintain stock of the 086363-002 and can support scheduled procurement for facilities managing multiple ACS drives or planning preventive maintenance programs. Contact us to discuss volume pricing, lead times, and consignment stock arrangements.
