ABB 1MRK000508-BDr04 Spare for REX 521 Automation

ABB 1MRK000508-BDr04 Maintenance-Ready Spare for REX 521 Automation

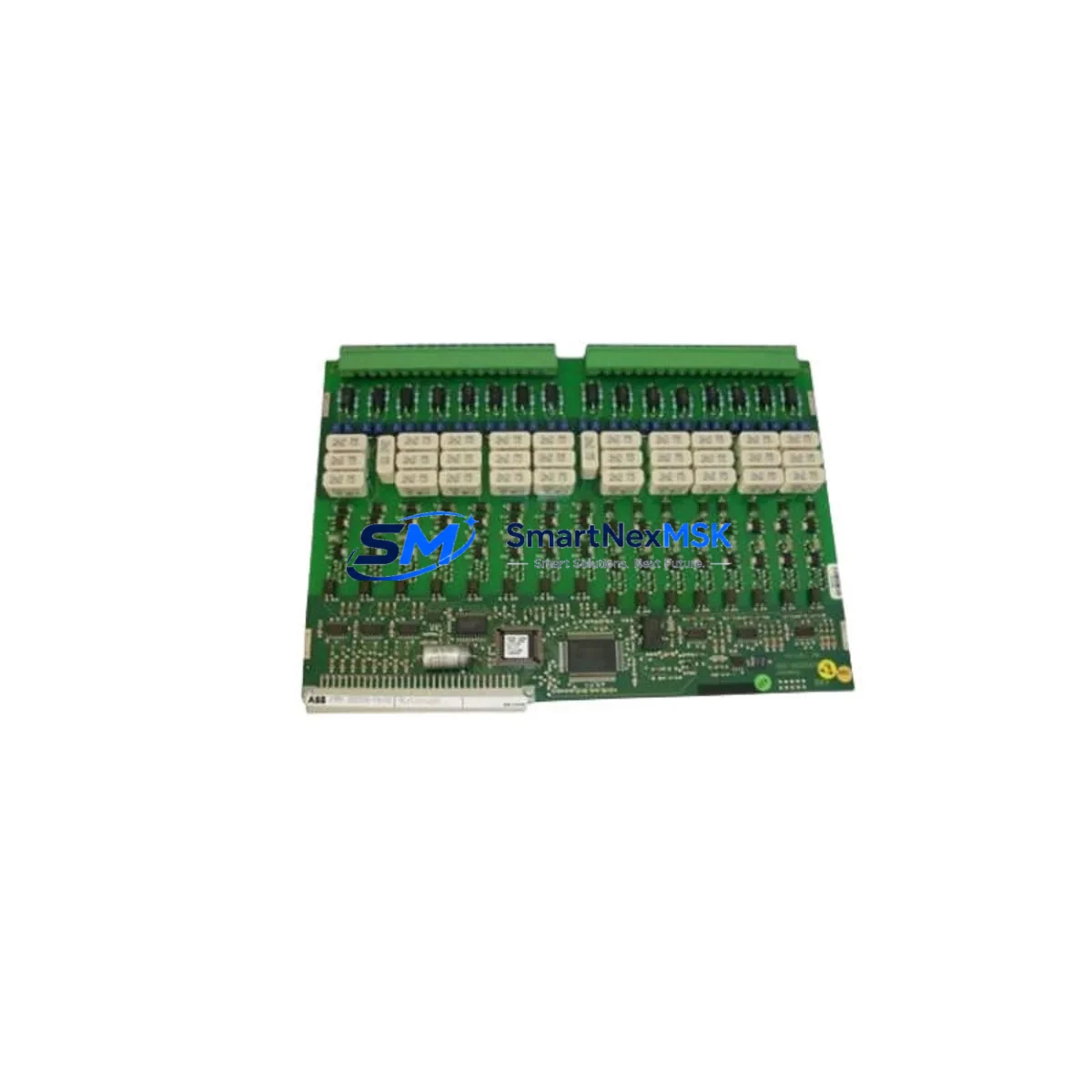

The ABB 1MRK000508-BDr04 is an original binary input module designed for the REX 521 feeder protection relay platform — one of ABB’s most widely deployed protection devices in medium-voltage switchgear, industrial distribution panels, and utility substation applications. For maintenance engineers managing aging protection systems, this module represents a critical spare that directly impacts system availability, protection reliability, and unplanned downtime risk.

The 1MRK000508-BDr04 handles discrete binary signal inputs from field devices such as circuit breaker auxiliary contacts, isolator position switches, motor protection trip outputs, and external interlock signals. When this module fails or degrades, the REX 521 relay loses visibility into field status — a condition that can mask protection logic errors, disable interlocking schemes, or trigger nuisance trips. Maintaining a verified spare in your control room inventory is the most effective way to reduce mean time to repair (MTTR) and protect production continuity.

Each unit supplied by SMARTNEXMSK is sourced from original ABB production runs, individually tested prior to shipment, and covered by a 12-month warranty. Our inventory is maintained specifically to support long-term spare parts programs for protection relay systems that are no longer in active production but remain in service across global industrial sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for REX 521-based protection systems requires a holistic view of the relay’s internal architecture and its connections to the broader control and protection circuit. When replacing the 1MRK000508-BDr04 binary input module, maintenance engineers should simultaneously inspect and verify the condition of several adjacent components to prevent repeat failures and ensure the relay returns to full protective function.

Begin with the REX 521 power supply module — an internal DC/DC converter that feeds all plug-in modules including the binary input card. A degraded power supply can cause intermittent module faults that mimic binary input failures. Verify output voltage stability under load before reinstalling the replacement module.

Next, inspect the terminal block wiring on the relay’s binary input terminals. Loose or corroded connections on the field wiring side are a common root cause of binary input signal loss. Use a calibrated multimeter to confirm continuity and correct polarity on each input circuit before powering up the replacement module.

The REX 521 CPU module (main processing board) should be checked for firmware version compatibility with the BDr04 hardware revision. In some relay configurations, a firmware mismatch between the CPU and a replacement input module can cause initialization errors or incorrect input mapping. Retrieve the relay’s configuration file using the CAP 505 relay configuration tool or PCM 600 protection and control IED manager to verify module slot assignments and parameter settings before commissioning the replacement.

For sites using the REX 521 in a SPACOM communication network or integrated into a LON-based substation automation system, confirm that the binary input signals mapped to SCADA or DCS points are correctly re-assigned after module replacement. Signal mapping errors at this stage can cause incorrect status indications at the control room HMI or SCADA workstation, leading to operator confusion during post-maintenance verification.

If the REX 521 is installed alongside other ABB protection relays such as the REF 541 or RET 521 in the same switchgear panel, use the maintenance window to inspect shared components including signal isolators, auxiliary relay modules, and panel fuse blocks that serve multiple relays in the same protection zone. A single fuse failure upstream of the binary input circuit can affect multiple relays simultaneously and is easily overlooked during single-relay fault diagnosis.

Finally, verify the condition of the REX 521 front panel HMI module and its local indication LEDs. After binary input module replacement, perform a functional test by simulating each input signal from the field and confirming correct status display on the relay front panel and at the remote SCADA point. Document the test results in your maintenance log before returning the relay to service.

Site Replacement Workflow

Replacing the 1MRK000508-BDr04 on a live industrial site requires careful sequencing to minimize protection outage duration and avoid introducing new faults during the maintenance activity.

Step 1 — Isolation and permit: Coordinate with the operations team to obtain a safe work permit. Isolate the REX 521 relay from its trip output circuits to prevent inadvertent tripping of the protected feeder during module handling. Do not de-energize the relay’s auxiliary supply unless required — maintaining relay power preserves the configuration memory and event log.

Step 2 — Configuration backup: Before removing any module, connect a laptop running PCM 600 or CAP 505 and export the full relay configuration file. This backup is essential if the CPU module loses its parameter set during the maintenance activity.

Step 3 — Module extraction: With the relay powered down (if required by site safety rules), carefully extract the faulty 1MRK000508-BDr04 from its slot. Note the slot position and any labeling on the wiring harness connected to the binary input terminals.

Step 4 — Replacement installation: Insert the new 1MRK000508-BDr04 into the correct slot. Reconnect the field wiring harness, ensuring correct terminal assignment per the relay’s wiring diagram. Restore auxiliary power and observe the relay’s self-diagnostic sequence.

Step 5 — Functional verification: Using the PCM 600 tool or the relay’s local HMI, verify that all binary inputs are correctly mapped and responding to field signals. Simulate each input in sequence and confirm correct relay response before restoring the trip output circuits and returning the feeder to service.

This structured workflow typically allows a trained maintenance engineer to complete the replacement and verification within 2–4 hours, minimizing protection outage duration and ensuring the relay returns to full service with documented test evidence.

Spare Parts Support FAQ

Q1: Is the 1MRK000508-BDr04 still available as a new original spare?
Yes. SMARTNEXMSK maintains stock of original ABB 1MRK000508-BDr04 modules sourced from authorized supply channels. Each unit is individually tested and ships with a 12-month warranty covering manufacturing defects and functional failure.

Q2: How do I confirm compatibility with my specific REX 521 relay variant?
Compatibility depends on the relay’s hardware revision and slot configuration. Provide your relay’s full model number and firmware version when ordering, and our technical team will verify compatibility before shipment. The relay’s configuration file (exported via PCM 600 or CAP 505) is the most reliable reference for slot assignment and module type requirements.

Q3: What pre-shipment testing is performed on each module?
Each 1MRK000508-BDr04 undergoes functional testing of all binary input channels, power consumption verification, and visual inspection for physical damage before shipment. A test report is available on request. Units that do not pass all test criteria are not shipped.

Q4: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions. If a module fails within the warranty period, contact [email protected] with your order reference and a description of the fault. We will arrange a replacement shipment or technical support as appropriate. Physical damage caused by incorrect installation or overvoltage is not covered under warranty.
