ABB 1TGE120026R0103 Maintenance-Ready Spare for MSN IS M View

ABB 1TGE120026R0103 Maintenance-Ready Spare for MSN IS M View Automation

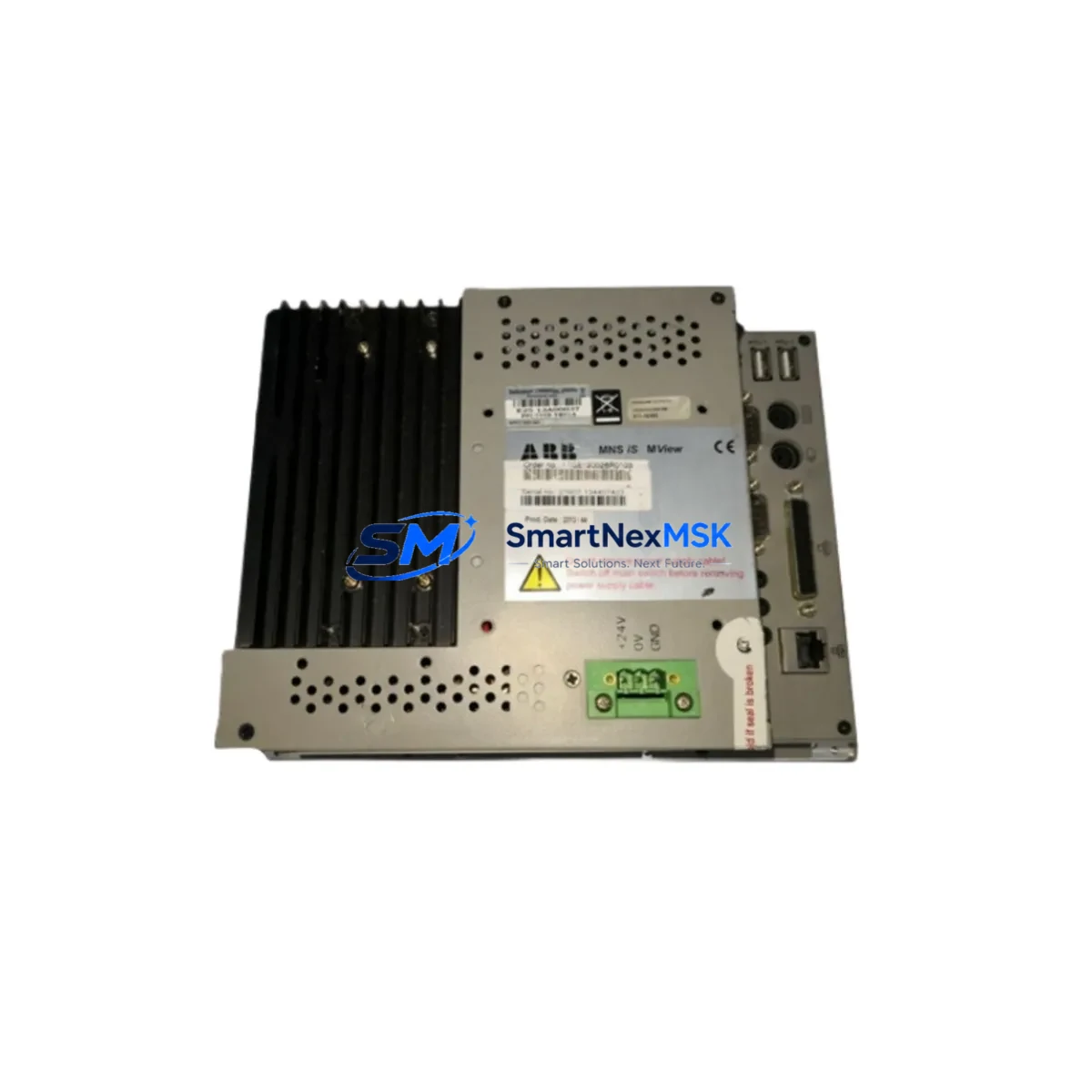

The ABB 1TGE120026R0103 is an original HMI panel component designed for the MSN IS M View industrial monitoring and control system series. In process automation environments — including power distribution, motor control centers, and substation automation — this HMI panel serves as the primary operator interface for real-time status visualization, alarm acknowledgment, and parameter adjustment. When this component fails or degrades, the entire control loop loses its human interface layer, creating immediate risk of undetected faults, delayed operator response, and unplanned downtime.

Sourced directly from ABB’s industrial supply chain and verified against OEM specifications, the 1TGE120026R0103 spare is pre-tested before shipment and backed by a 12-month warranty. It is intended for maintenance engineers and procurement teams managing aging MSN IS M View installations who require a fast, compatible, and reliable replacement to restore system visibility and operator control without extended lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the ABB 1TGE120026R0103 HMI panel, the replacement event should be treated as a broader cabinet health checkpoint — not an isolated swap. The MSN IS M View system integrates tightly with surrounding electrical and communication components, and a degraded HMI is often a symptom of wider stress in the control loop.

During the same maintenance window, engineers should inspect and verify the condition of the ABB MSN IS M View power supply module, which feeds the HMI panel and associated I/O boards. A failing or under-voltage power supply is a common root cause of HMI display faults and communication dropouts. Alongside this, the ABB MSN IS M View communication module — responsible for PROFIBUS, Modbus, or IEC 61850 connectivity depending on system configuration — should be checked for firmware version alignment and physical connector integrity.

The I/O expansion modules connected to the MSN IS M View backplane should be inspected for loose terminal connections and verified against the current I/O mapping. Faulty or intermittent I/O signals frequently manifest as false alarms on the HMI, leading maintenance teams to misdiagnose the panel itself when the root cause lies upstream. Similarly, ABB signal isolators and signal conditioners in the same cabinet should be tested for output drift, particularly in high-vibration or high-temperature environments.

The terminal blocks and wiring harnesses connecting the HMI panel to field devices deserve close attention during any HMI replacement. Corroded or loose terminals cause intermittent communication faults that are difficult to diagnose after reassembly. Replacing the HMI without inspecting the terminal strip is a common source of repeat failures within 6–12 months.

For systems using ABB motor protection relays (such as the REF615 or REM615 series) integrated with the MSN IS M View display, engineers should confirm that relay communication parameters remain correctly configured after the HMI swap, as some relay models store display-linked configuration locally. Additionally, ABB miniature circuit breakers (MCBs) and fuse holders protecting the HMI power rail should be tested for continuity and replaced if showing signs of thermal stress or contact wear.

Where the MSN IS M View system interfaces with a broader ABB AC500 PLC or ABB Freelance DCS installation, the communication gateway or coupler module linking the HMI to the controller should be verified for correct addressing and error-free data exchange. Maintaining a spare ABB communication gateway module alongside the 1TGE120026R0103 HMI panel is a recommended practice for sites with long equipment replacement lead times.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before removing the existing HMI panel, photograph the wiring layout, record all current parameter settings visible on the display, and note the firmware or software version if accessible. This baseline prevents configuration loss during the swap.

Step 2 — Power isolation: Isolate the HMI panel power supply using the dedicated MCB or isolator on the power rail. Verify zero voltage at the panel terminals using a calibrated multimeter before proceeding. Do not rely on the HMI display going dark as confirmation of isolation.

Step 3 — Connector and terminal disconnection: Label all connectors and terminal wires before removal. The MSN IS M View HMI panel typically uses a combination of plug-in connectors and screw terminals. Retain all hardware for reuse or inspection.

Step 4 — Physical installation of 1TGE120026R0103: Mount the replacement panel into the existing cutout or rail position. Verify that the panel seating is flush and all mounting clips or screws are fully engaged to maintain IP rating integrity.

Step 5 — Reconnection and parameter restore: Reconnect all terminals and connectors in reverse order of removal. Restore any parameters that were recorded in Step 1. Where the system supports configuration upload from a connected engineering workstation, use this method to minimize manual re-entry errors.

Step 6 — Functional verification: Restore power and confirm that the HMI panel initializes correctly, displays live process data, and communicates without errors. Test alarm acknowledgment and any operator input functions before returning the system to service.

This workflow is designed to minimize downtime and ensure that the replacement of the ABB 1TGE120026R0103 restores full system visibility and operator control with no residual faults. Sites maintaining a pre-tested spare on the shelf can typically complete this workflow within a single shift, avoiding extended production interruptions.

Spare Parts Support FAQ

Q1: Is the 1TGE120026R0103 compatible with all MSN IS M View system variants?
The 1TGE120026R0103 is designed for the ABB MSN IS M View series. Compatibility across specific hardware revisions of the MSN IS M View platform should be confirmed against the existing system’s nameplate and documentation. Contact our technical team with your system serial number for pre-purchase compatibility verification at no charge.

Q2: What testing is performed before shipment?
Each 1TGE120026R0103 unit undergoes functional inspection and visual quality checks prior to dispatch. Units are verified for display integrity, connector condition, and basic power-on response where applicable. A test report is available upon request for critical installations.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed with priority to minimize site downtime.

Q4: Can you support long-term or recurring supply of this spare part?
Yes. We maintain ongoing sourcing relationships for ABB MSN IS M View components and can support blanket orders, scheduled deliveries, and consignment stock arrangements for sites with high-availability requirements. Contact our procurement team to discuss a long-term supply agreement tailored to your maintenance schedule.
