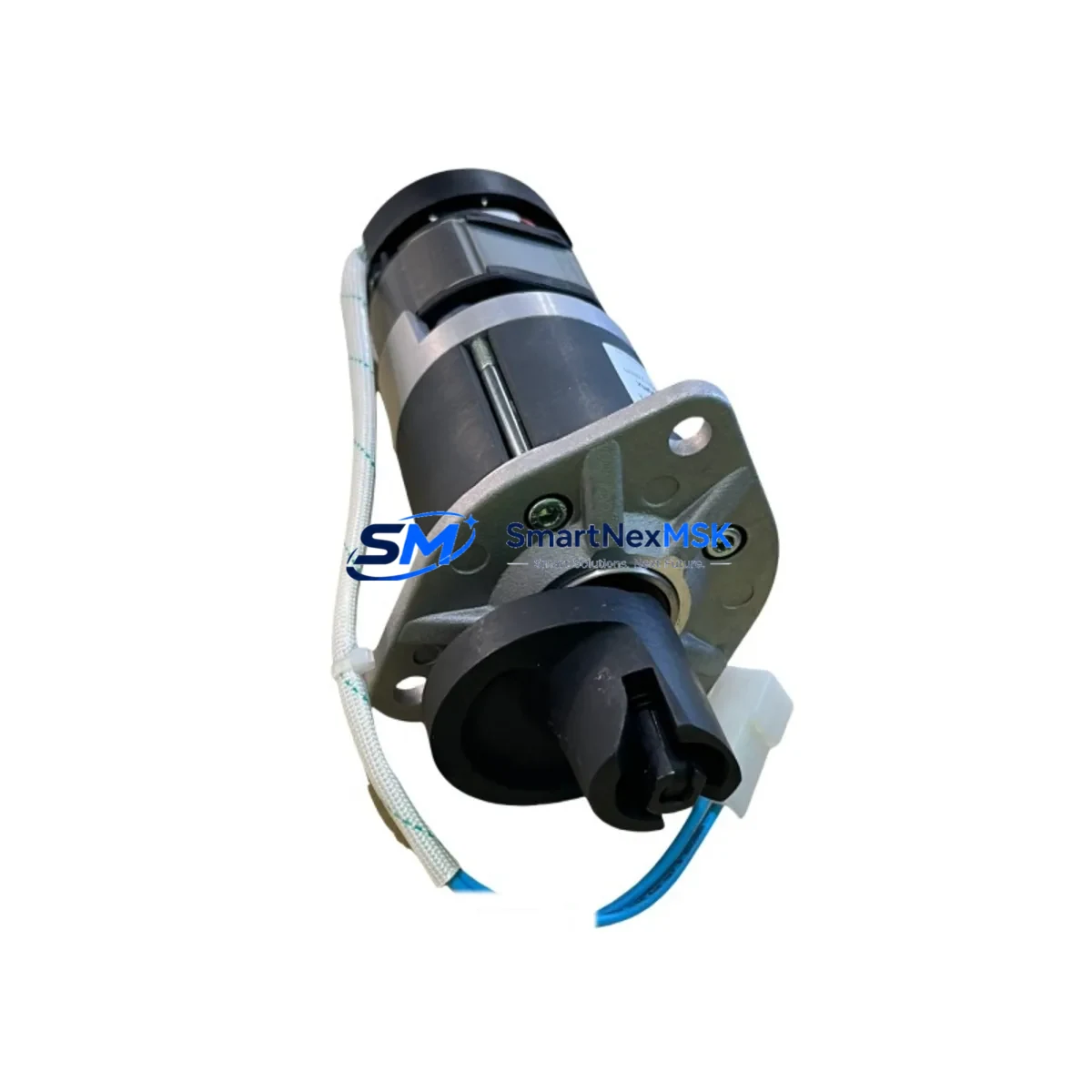

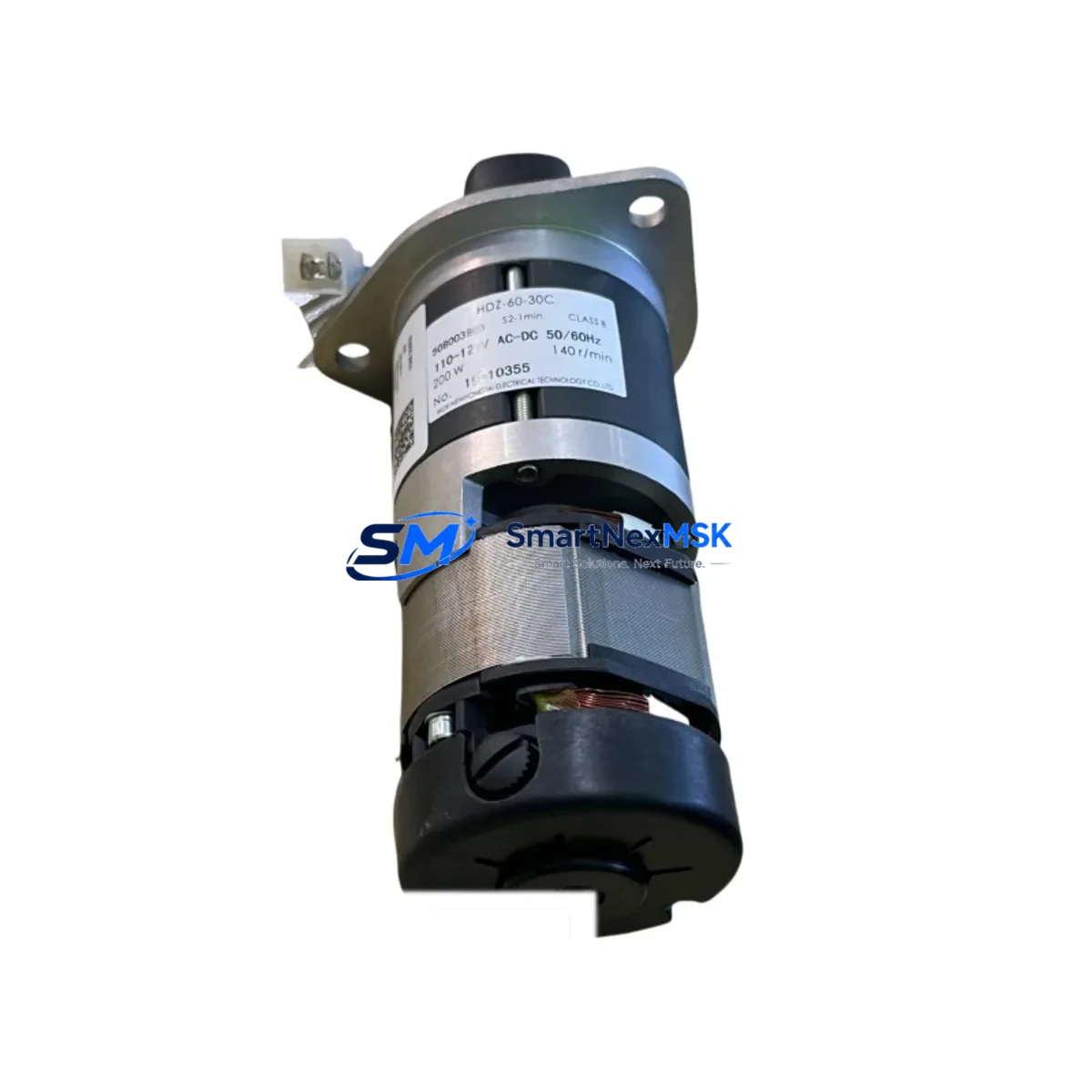

ABB 1VCF349750S0909 Safety-Enhanced Spring Loading Motor

ABB 1VCF349750S0909 Safety-Enhanced Spring Loading Motor: Reliable Control in Harsh Industrial Sites

The ABB 1VCF349750S0909 is a precision-engineered spring loading motor designed for the ABB SACE Emax series air circuit breakers (ACBs), delivering consistent and safe charging performance in the most demanding industrial environments. Whether deployed in petrochemical plants, power distribution substations, mining operations, water treatment facilities, or continuous manufacturing lines, this motor module is engineered to eliminate control interruptions and ensure the mechanical integrity of your circuit breaker’s closing mechanism under all operating conditions.

In high-load industrial control cabinets where uptime is non-negotiable, the 1VCF349750S0909 provides the mechanical energy storage reliability that safety-critical interlock circuits depend on. Its robust internal gear train and motor winding are rated for repeated duty cycles without thermal degradation, making it the preferred replacement and spare component for facilities operating ABB Emax E1, E2, E3, E4, and E6 frame breakers in critical feeder and bus-tie positions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered MV/LV switchgear room or main distribution control cabinet, the spring loading motor is only one element of a layered protection architecture. The ABB 1VCF349750S0909 works in concert with the ABB SACE Emax shunt trip coil and undervoltage release (UVR) to form a complete electrical and mechanical trip-close interlock. When paired with the ABB Emax auxiliary contact block (e.g., S6N or S7N type), the motor’s charged-spring status is continuously monitored by the protection relay, ensuring the breaker is always ready to close on command without manual intervention.

For installations where power quality is a concern — particularly in facilities with large motor drives, arc furnaces, or welding equipment — the spring motor’s performance is protected upstream by ABB OVR surge arresters and line-side RC snubber networks integrated into the ACB control circuit. In critical bus-tie and incomer positions, the motor is typically supervised by an ABB REF615 or REF630 feeder protection relay, which monitors spring-charged status via binary input and triggers an alarm if the motor fails to complete a charge cycle within the defined time window.

In facilities running ABB System pro M compact or ABB Tmax XT molded-case breakers on downstream feeders, the Emax ACB with a properly functioning 1VCF349750S0909 motor serves as the upstream safety barrier, ensuring selective coordination and preventing cascading outages. The control wiring to the motor is typically routed through ABB CM-series monitoring relays for voltage supervision, and the motor’s auxiliary supply is often protected by a dedicated ABB S200 miniature circuit breaker to isolate faults without affecting the main bus.

For facilities with IEC 61511 functional safety requirements — such as SIL-rated interlock loops in chemical or oil & gas plants — the spring loading motor’s reliable operation is a prerequisite for the safety instrumented system (SIS) to achieve its required probability of failure on demand (PFD). Integration with ABB AC500-S Safety PLC modules via hardwired binary outputs ensures that the breaker’s mechanical readiness is verified before any automated closing sequence is initiated.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area switchrooms feeding process units, the 1VCF349750S0909 ensures that Emax ACBs in motor control centers (MCCs) and transformer incomers can be reliably re-energized after a protective trip. Rapid spring recharging minimizes process downtime and supports safe restart procedures in accordance with IEC 60079 area classification requirements.

Power Generation & Substation Distribution: In 6kV–35kV step-down transformer LV panels and generator bus-tie switchgear, the spring motor’s consistent charging torque is essential for auto-transfer schemes (ATS) and bus-coupler operations. A failed or sluggish spring motor can prevent a standby source from connecting within the required transfer time, causing a full plant blackout.

Mining & Mineral Processing: Underground and surface mining operations subject switchgear to extreme vibration, dust ingress, and wide temperature swings. The ABB 1VCF349750S0909’s robust mechanical construction maintains reliable spring charging performance even after years of service in these conditions, supporting safe isolation and re-energization of conveyor drives, crushers, and ventilation fans.

Water & Wastewater Treatment: Pump station and treatment plant switchboards require breakers that can be reliably closed after a fault clearance to restore critical services. The spring motor’s dependable operation supports the rapid restoration of pumping capacity, preventing overflow events and maintaining regulatory compliance.

Metallurgy & Steel Production: Rolling mill and electric arc furnace (EAF) power distribution systems experience severe voltage dips and harmonic disturbances. The 1VCF349750S0909’s motor winding is designed to complete a spring charge cycle even under degraded supply conditions, ensuring the main incomer breaker remains operationally ready throughout the production cycle.

Port & Heavy Logistics Infrastructure: Shore power systems, crane drives, and container terminal power distribution rely on Emax ACBs for high-current switching. The spring loading motor’s reliable operation is critical for safe load transfer between shore power and generator sources during vessel berthing and departure operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 1VCF349750S0909?
The 12-month warranty covers all manufacturing defects, motor winding failures, gear train faults, and functional failures under normal operating conditions from the date of shipment. If the unit fails to complete a spring charge cycle within its rated parameters during the warranty period, we will provide a free replacement or full refund. Warranty claims are processed within 5 business days upon receipt of the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 1VCF349750S0909 undergoes a full functional test before dispatch: motor energization at rated voltage, complete spring charge cycle verification, output torque check, and insulation resistance measurement. A test record is available upon request. This ensures that the unit you receive is confirmed operational and ready for immediate installation.

Q3: Is this motor compatible with all ABB SACE Emax frame sizes and vintages?
The 1VCF349750S0909 is the OEM-specified spring loading motor for the ABB SACE Emax range. It is compatible with E1, E2, E3, E4, and E6 frame breakers produced under the SACE Emax platform. For Emax 2 (second-generation) breakers, please verify the part number against your breaker’s nameplate or contact us with your breaker serial number for confirmation. Our technical team can cross-reference your existing motor part number to confirm fitment.

Q4: Can you guarantee long-term supply and support for ongoing maintenance programs?
Yes. We maintain dedicated stock of the ABB 1VCF349750S0909 and related SACE Emax accessory components to support planned maintenance shutdowns, emergency replacements, and multi-site spare parts programs. We can provide blanket purchase orders, consignment stock arrangements, and scheduled delivery programs for facilities with annual maintenance cycles. Our supply chain is sourced directly from authorized ABB distribution channels, ensuring genuine parts with full traceability.
