ABB 2MBI1400VXB-120P-50 Spare for VXB Series Automation

ABB 2MBI1400VXB-120P-50 Spare for VXB Series Automation: Spare Parts Replacement & Downtime Risk Control

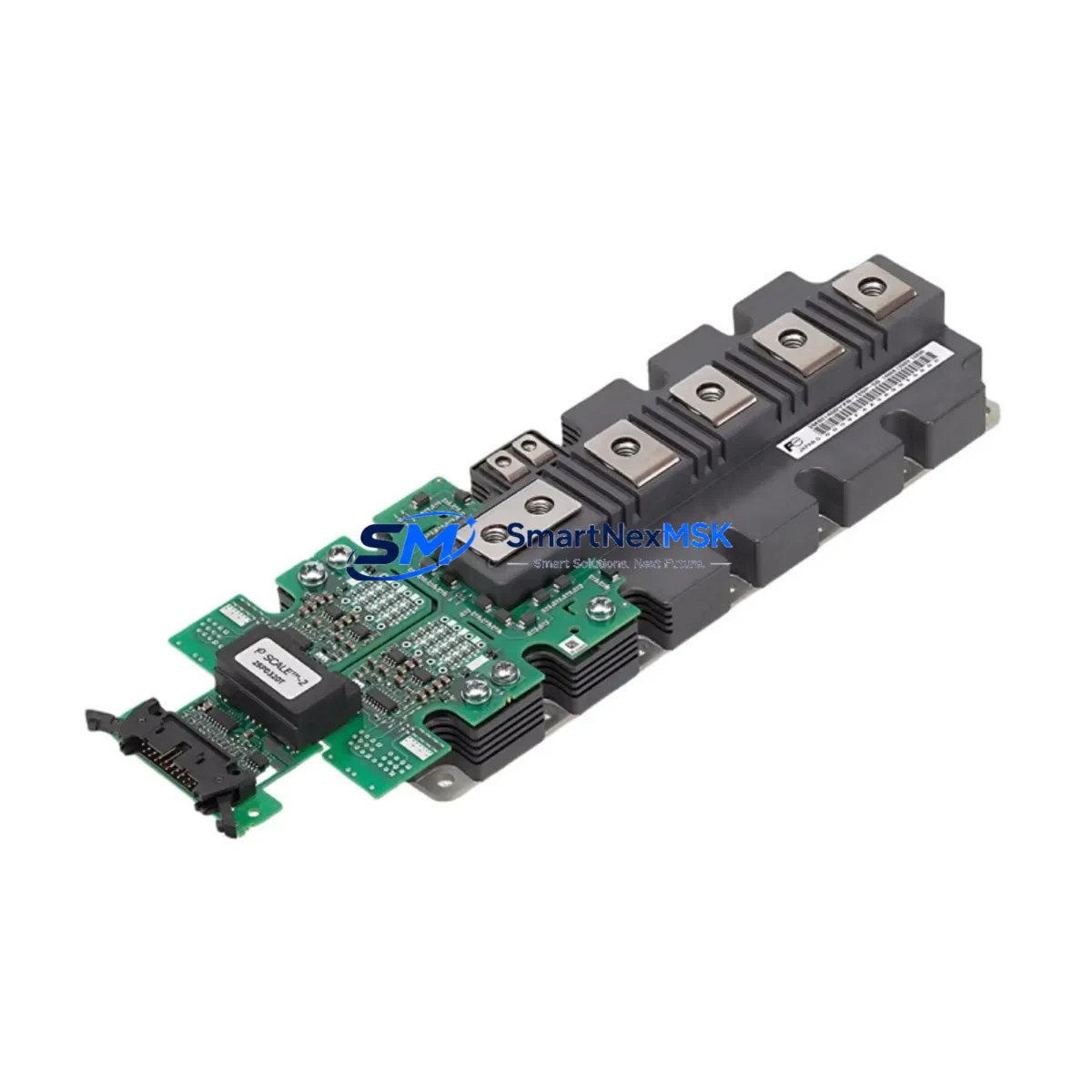

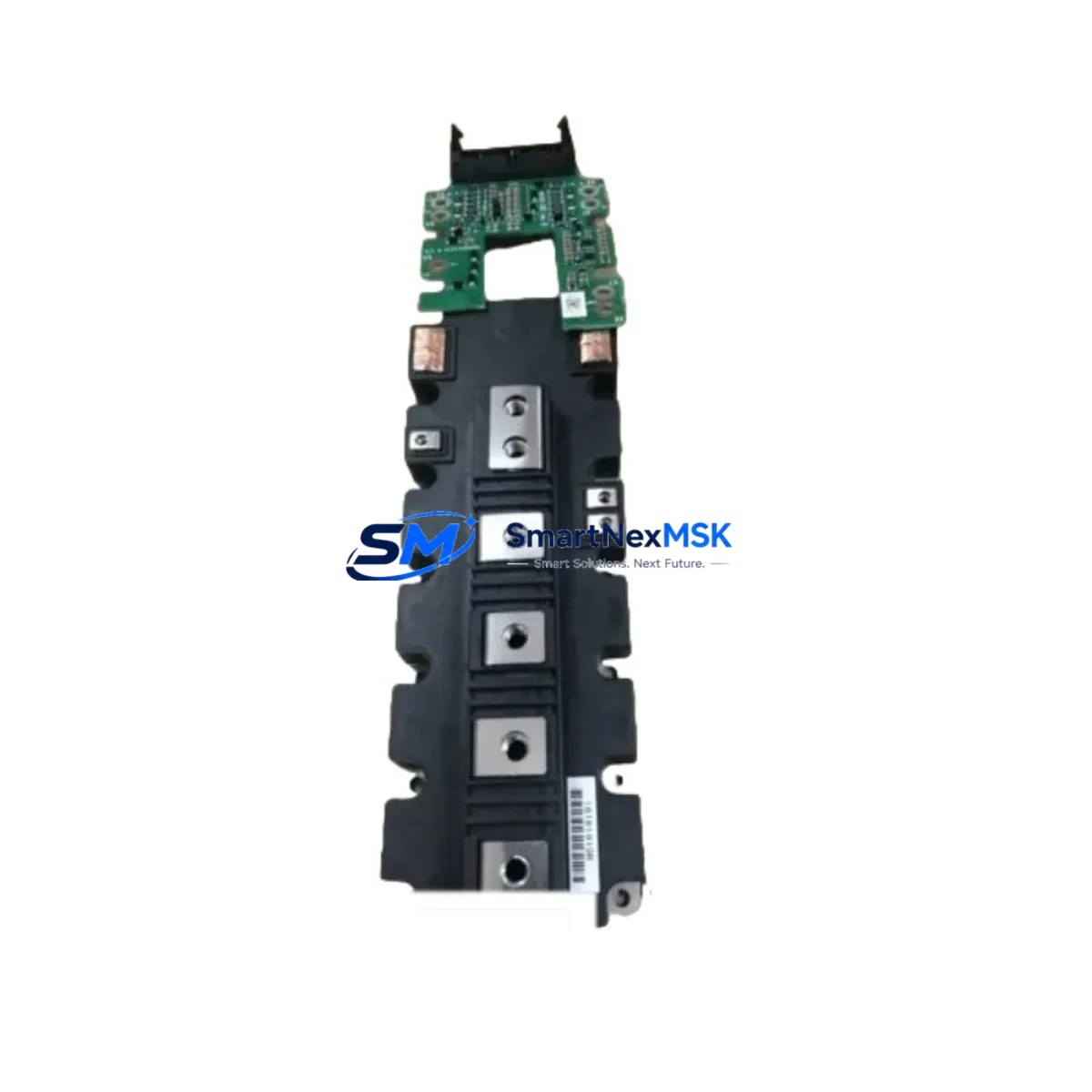

The ABB 2MBI1400VXB-120P-50 is a high-current dual IGBT half-bridge power module rated at 1200V / 1400A, designed for demanding industrial drive and power conversion applications. As a maintenance-ready original spare, this module is a critical component in ACS880 and ACS580 series variable frequency drives, medium-voltage inverter stacks, and industrial power conversion cabinets. Sourced directly from ABB’s manufacturing line in Germany, each unit undergoes factory-level testing before shipment, ensuring full electrical performance and dimensional compatibility with the original installation.

For maintenance engineers managing aging drive systems or planning scheduled overhauls, having the 2MBI1400VXB-120P-50 in your spare parts inventory is a proactive strategy against unplanned downtime. IGBT power modules are among the highest-risk components in any drive cabinet — thermal cycling, overcurrent events, and gate drive faults can cause sudden module failure, bringing production lines to a halt. Replacing a failed module with a verified original spare is the fastest path to system restoration, often reducing downtime from days to hours.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2MBI1400VXB-120P-50 in a drive cabinet, a thorough maintenance inspection of the surrounding system is essential to prevent repeat failures and ensure long-term reliability. Maintenance engineers should treat this replacement as an opportunity for a full cabinet audit.

Begin with the gate driver board — ABB AGDR-61C or AGDR-71C units paired with this module should be inspected for burnt traces, capacitor bulge, or gate signal anomalies. A degraded gate driver is a common root cause of IGBT failure and must be replaced simultaneously to avoid damaging the new module. Next, verify the DC bus capacitor bank: electrolytic capacitors in the DC link are subject to aging and should be measured for capacitance and ESR — any unit outside tolerance should be replaced as a set.

The ABB AINT-02C or AINT-14C interface board connecting the control section to the power stage should be checked for communication integrity and proper fiber optic signal levels. Fiber optic cables between the control board and IGBT gate drivers are often overlooked during module replacement — inspect connectors and replace any yellowed or cracked fibers. The APOW-01C power supply module feeding the gate driver and control logic should be load-tested to confirm stable output voltages under drive operating conditions.

On the AC input side, inspect the input fuses and fuse holders — high-rupture-capacity (HRC) fuses rated for the drive’s input current should be verified for continuity and physical condition. The main contactor and pre-charge resistor circuit should also be tested: a worn contactor or degraded pre-charge resistor can cause inrush stress on the new IGBT module during power-up. Check the thermistor and temperature sensor wiring on the heatsink — accurate thermal feedback is critical for protecting the replacement module from overtemperature events.

For systems using ABB’s RDCO-03C or RDCO-04C communication adapter (PROFIBUS, DeviceNet, or Modbus), verify that the fieldbus communication is stable and that no parameter corruption occurred during the fault event. Finally, review the I/O terminal block wiring and any signal isolators on analog inputs — a ground fault or signal loop issue can cause erratic drive behavior that mimics a hardware fault, leading to unnecessary module replacement cycles.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the drive, apply LOTO (Lockout/Tagout), and allow the DC bus to fully discharge (verify with a calibrated meter — typically wait 5–10 minutes after power-off for high-power ACS880 units).

Step 2 — Documentation: Photograph all wiring, bus bar connections, and gate driver cable routing before disassembly. Record the existing drive parameters from the ACS880/ACS580 control panel or via DriveStudio software — parameter backup prevents configuration loss during the outage.

Step 3 — Module Removal: Remove bus bar connections (note torque values — typically 20–25 Nm for M8 bolts on this module class), disconnect gate driver cables, and unbolt the module from the heatsink. Clean the heatsink surface thoroughly and remove all old thermal compound.

Step 4 — New Module Installation: Apply a uniform layer of high-performance thermal interface material (e.g., Bergquist GP3000 or equivalent) to the module base plate. Mount the 2MBI1400VXB-120P-50 to the heatsink at the specified torque. Reconnect gate driver cables in the correct sequence — refer to the ABB ACS880 hardware manual for fiber optic channel assignments.

Step 5 — Pre-Power Verification: Before energizing, perform an insulation resistance test between DC+ / DC- and PE ground. Verify gate driver supply voltages with the drive in a de-energized but control-powered state. Confirm all parameter settings are restored from backup.

Step 6 — Commissioning: Power up the drive in local control mode, run a no-load test, then gradually increase load while monitoring module temperature, output current balance, and drive fault logs. Document the replacement in the site maintenance record.

This workflow minimizes re-work risk and ensures the replacement module operates within its rated parameters from the first power-on, protecting both the equipment and the maintenance team.

Spare Parts Support FAQ

Q1: Is the 2MBI1400VXB-120P-50 a direct drop-in replacement for older VXB series modules?
Yes. The 2MBI1400VXB-120P-50 maintains the standard VXB footprint, pin layout, and electrical ratings, making it a direct mechanical and electrical replacement for earlier production batches of the same part number. Always verify the gate driver compatibility (AGDR series) and confirm heatsink mounting dimensions before installation in legacy cabinets.

Q2: What pre-shipment testing is performed on each unit?
Every 2MBI1400VXB-120P-50 shipped from our inventory undergoes full electrical parameter verification including Vces, Ic, gate threshold voltage, on-state voltage drop, and insulation resistance testing. Units that do not meet ABB’s original datasheet specifications are quarantined and not shipped. A test report is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical parameter failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the module’s rated specifications. In the event of a warranty claim, we provide a replacement unit or full refund after technical review.

Q4: Can you support long-term or blanket purchase orders for this module?
Yes. We maintain dedicated stock of the 2MBI1400VXB-120P-50 and can support scheduled delivery agreements, consignment stock arrangements, and emergency same-day dispatch for critical production facilities. Contact our technical sales team to discuss volume pricing and supply continuity agreements.
