ABB 35AA92C GJR5143000R0002 Analog Output Advant OCS

ABB 35AA92C GJR5143000R0002 Retrofit-Ready Analog Output Module for Advant OCS Control Systems

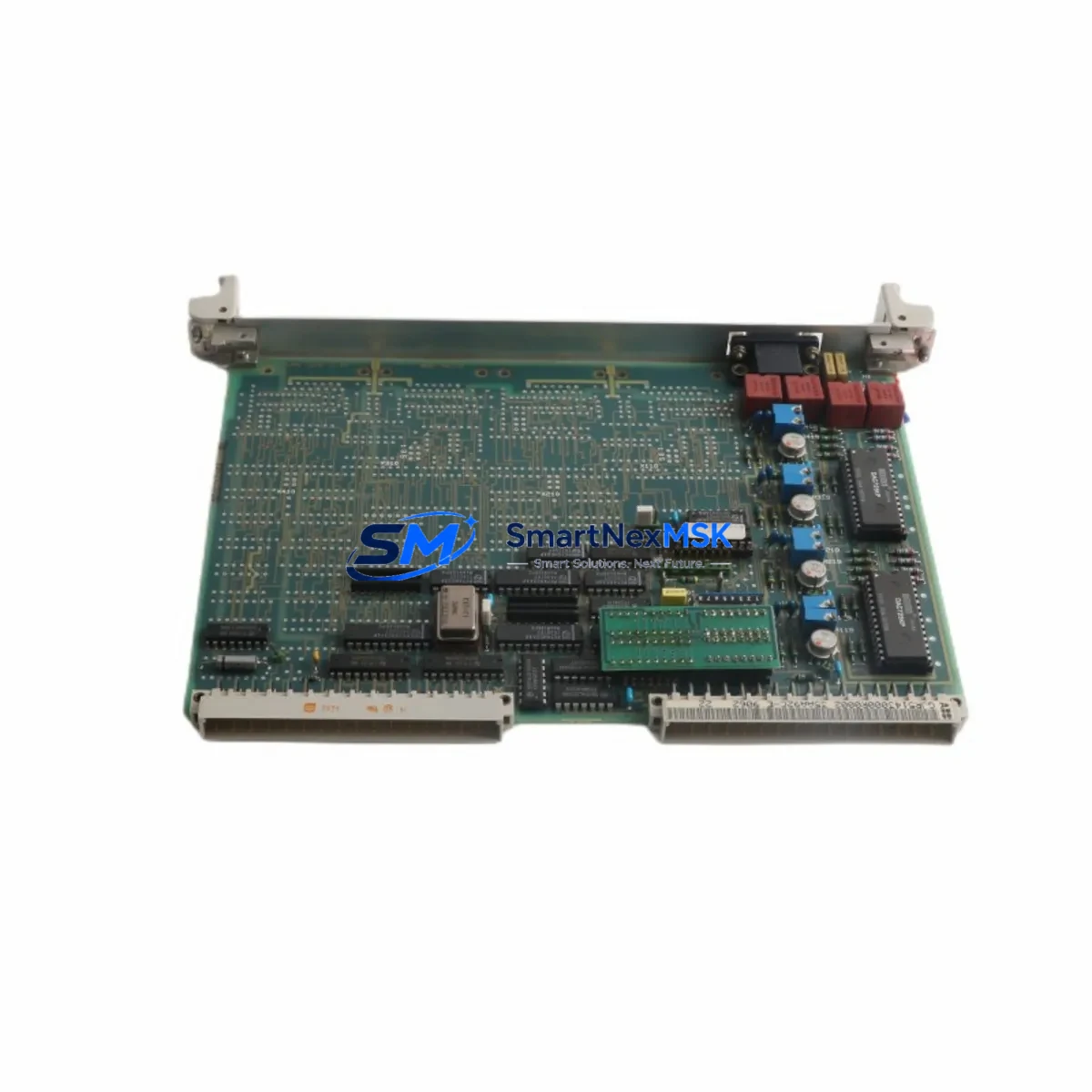

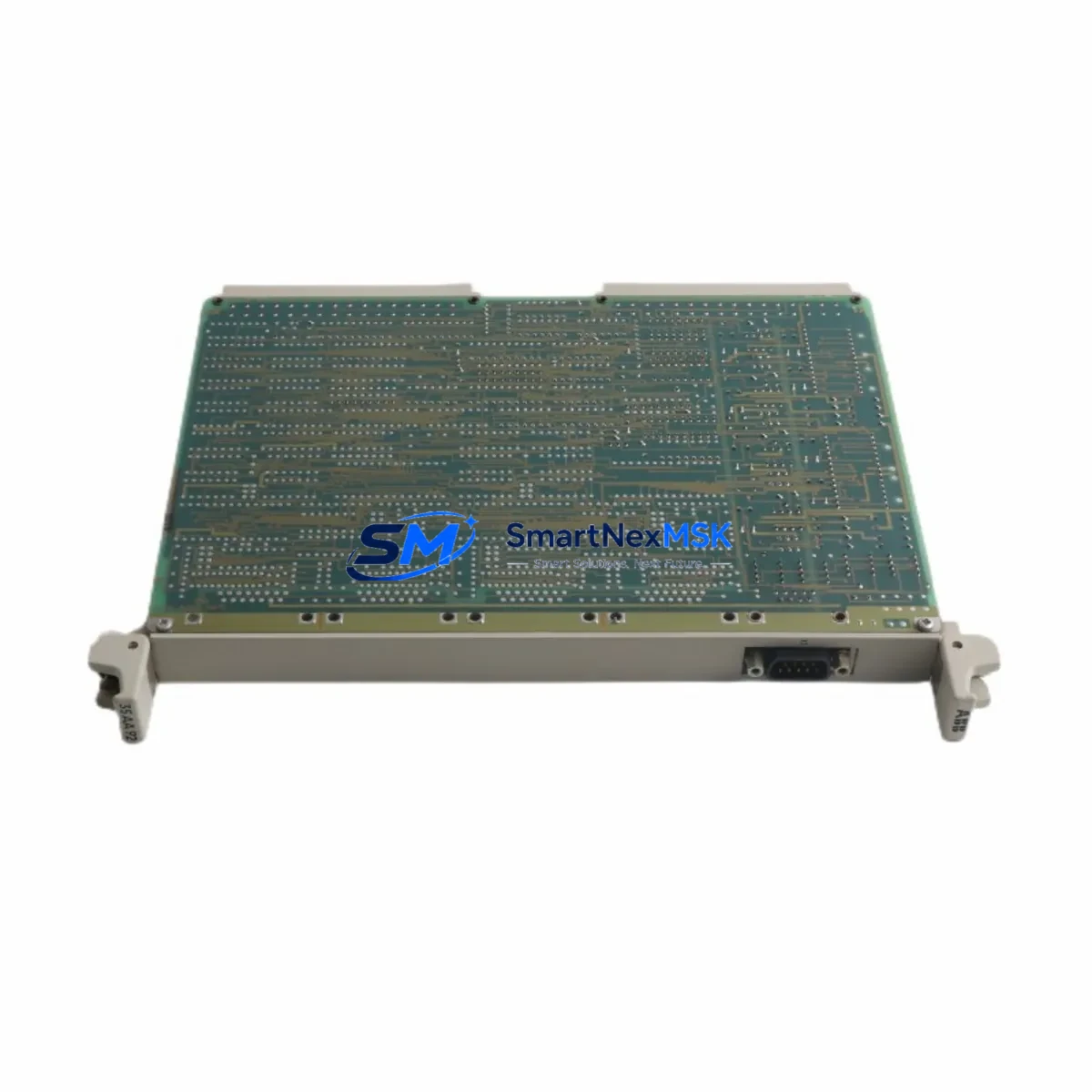

The ABB 35AA92C (part number GJR5143000R0002) is an 8-channel analog output module engineered for the Advant OCS distributed control platform. As legacy Advant OCS installations approach end-of-life and spare parts become increasingly scarce, this module serves as a verified drop-in replacement that preserves existing wiring layouts, backplane addressing, and program logic — enabling plant engineers to extend system service life without committing to a full control system overhaul.

Manufactured in Germany to ABB’s industrial-grade specifications, the 35AA92C delivers 4–20 mA or 0–10 V DC analog output signals across all eight channels, with channel-to-channel isolation and hardware diagnostics accessible through the Advant OCS engineering workstation. Its compact S800 I/O form factor allows direct installation into existing MTU or CI858 communication interface racks without mechanical modification.

For facilities running mixed-generation Advant OCS and AC500 architectures, the 35AA92C integrates cleanly alongside the CI858 PROFIBUS DP communication interface module and the TB820 media redundancy unit, maintaining the same PROFIBUS DP V1 protocol stack used across the installed base. Engineers migrating from older AI810 or AO810 I/O modules will find that the GJR5143000R0002 revision maintains backward-compatible terminal assignments, significantly reducing re-termination labor during scheduled maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on-site. When replacing a failed or end-of-life analog output module in an Advant OCS cabinet, the first step is to document the existing channel configuration using Control Builder M or the legacy Advant Engineer workstation. Export the current AO810 or AO820 configuration file and verify that the 35AA92C GJR5143000R0002 revision accepts the same parameter set — in most cases it does, but channel scaling offsets and filter time constants should be cross-checked against the module’s hardware manual.

Power budget verification is critical before installation. The S800 MTU rack draws supply from the PS800 power supply module, and adding or replacing I/O modules can shift the total current draw. Confirm that the existing PS800 — or its equivalent TB807 redundant power supply — has sufficient headroom for the 35AA92C’s 24 V DC consumption. If the cabinet also houses CI858 communication interface modules, SD802 or SD812 signal conditioners, and multiple AI810 analog input modules, a full rack power audit is recommended before the maintenance window begins.

Terminal block wiring on the 35AA92C follows the same pin-out convention as the AO810 and AO820 predecessors. Field cables connected to the TU810 or TU812 termination units do not require re-termination, which is one of the primary advantages of this replacement path. However, engineers should inspect terminal torque values and verify that shielding continuity is maintained, particularly in high-EMI environments where variable frequency drives or large motor starters are installed in adjacent panels.

For systems where the Advant OCS communicates upstream to a DCS or SCADA layer via the AF100 fieldbus or a legacy MasterBus 300 network, confirm that the communication interface — typically a CI810 or CI830 module — continues to map the analog output channels correctly after the module swap. In some installations, the CI858 PROFIBUS DP master requires a GSD file refresh if the firmware revision of the replacement module differs from the original. This step is often overlooked and can cause unexpected channel offset errors during post-installation commissioning.

If the retrofit scope extends beyond a single module replacement to a broader I/O expansion — for example, adding new control loops to an existing Advant OCS rack — the TB820 media redundancy unit and additional S800 MTU extension racks may be required. In these cases, coordinate the module address DIP switch settings across all new and existing modules to avoid address conflicts that would prevent the CI858 from polling the new 35AA92C correctly.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer executing a live system migration. For the 35AA92C replacement, the recommended approach is a hot-standby swap during a scheduled maintenance window rather than an emergency replacement under process pressure. Before the window opens, pre-configure the replacement module offline using a bench-top S800 rack and a laptop running Control Builder M, verifying that all eight analog output channels respond correctly to forced test values before the module is transported to the field.

During the swap, the existing program logic in the AC500 PM595 or PM564 controller does not need to be modified if the module address and channel mapping are preserved. The controller will continue executing its scan cycle, and the new 35AA92C will resume output within one communication cycle after the CI858 re-establishes the PROFIBUS DP connection — typically under 100 milliseconds. For processes where even brief output interruption is unacceptable, consider placing the affected control loops in manual mode at the Advant Station 500 operator interface or the connected SCADA system before initiating the swap.

After installation, perform a structured commissioning check: verify each channel’s 4–20 mA output against a calibrated loop calibrator, confirm that the Advant OCS diagnostic display shows no module fault codes, and validate that the HMI trend displays for each analog output tag are updating correctly. Document the as-found and as-left values for each channel in the plant’s maintenance management system. This record supports both regulatory compliance and future troubleshooting if channel drift is observed during subsequent production runs.

Each 35AA92C GJR5143000R0002 unit shipped by SMARTNEXMSK undergoes a pre-shipment functional test that verifies output accuracy across all eight channels at 0%, 50%, and 100% of span. A test certificate is included with each unit, reducing the time required for incoming inspection and accelerating the path from goods receipt to installation.

Retrofit Support FAQ

Q1: Is the 35AA92C GJR5143000R0002 a direct replacement for the AO810 and AO820 modules?
Yes. The 35AA92C is the current production revision of ABB’s 8-channel analog output module for the S800 I/O family and is fully compatible with the TU810 and TU812 termination units used by the AO810 and AO820. No field wiring changes are required. The module address DIP switch settings from the original module should be replicated on the replacement unit before installation.

Q2: Will I need to modify my Control Builder M program after replacing the module?
In the vast majority of cases, no program modification is required. The 35AA92C GJR5143000R0002 presents the same I/O object type to the AC500 or Advant OCS controller as its predecessors. If your application uses hardware-specific function blocks that reference the exact module type string, a minor configuration update in Control Builder M may be needed — but this does not require a full program recompile or download.

Q3: What commissioning steps are required after installation?
After seating the module in the S800 MTU rack and restoring power, verify that the CI858 PROFIBUS DP master recognizes the module within its polling cycle (check the diagnostic LEDs on both the CI858 and the 35AA92C). Then force each analog output channel to a known value from Control Builder M or the Advant Station 500 operator interface and confirm the corresponding 4–20 mA signal at the field device terminals using a loop calibrator. Finally, clear any latched diagnostic alarms in the controller and confirm normal operation across all channels before returning the process to automatic mode.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers all hardware defects, including component failures, output accuracy drift beyond specification, and dead-on-arrival (DOA) units. If a module fails within the warranty period under normal operating conditions, SMARTNEXMSK will provide a replacement unit at no charge. Each unit is pre-tested before shipment and ships with a functional test certificate. Warranty claims are processed within 3 business days of fault confirmation.
