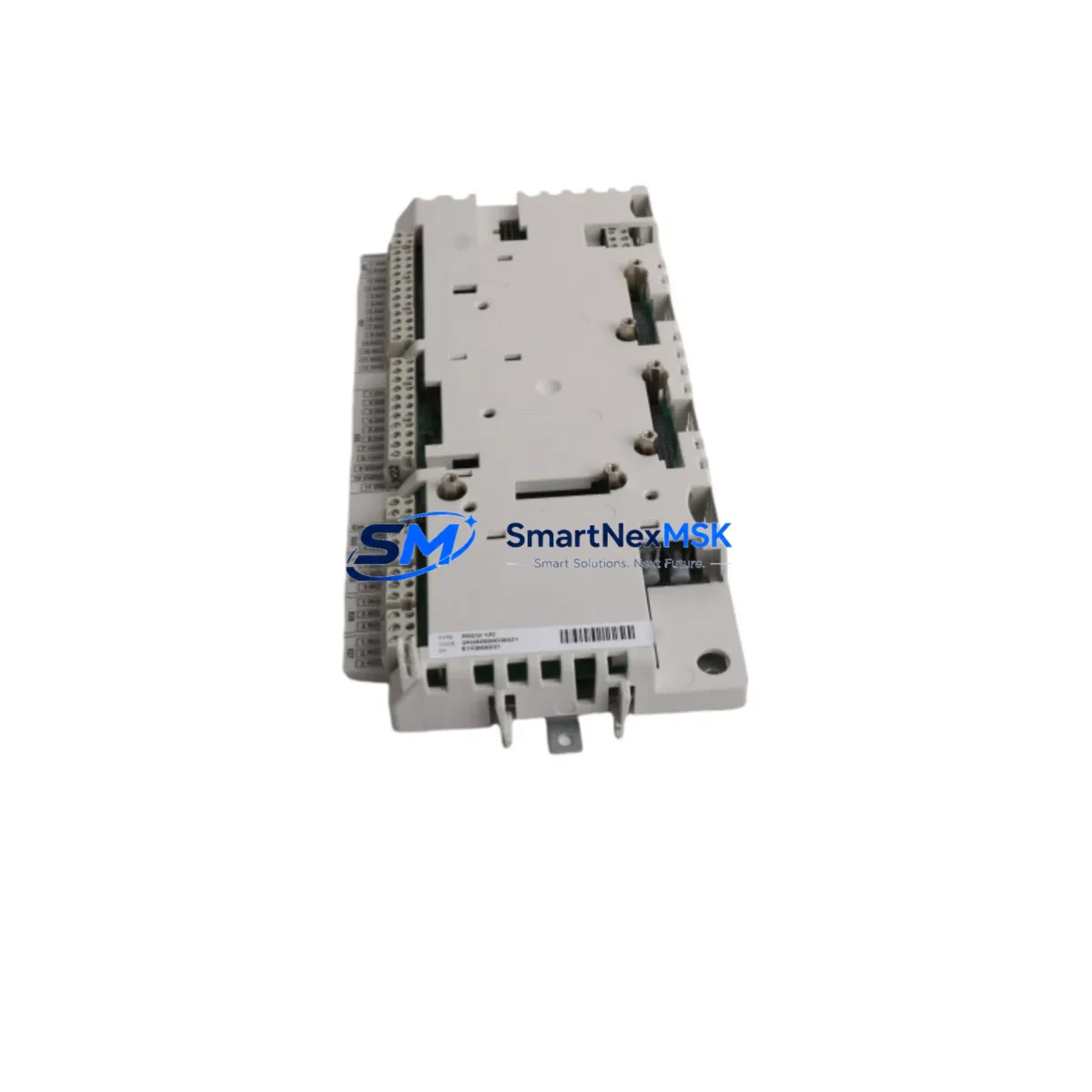

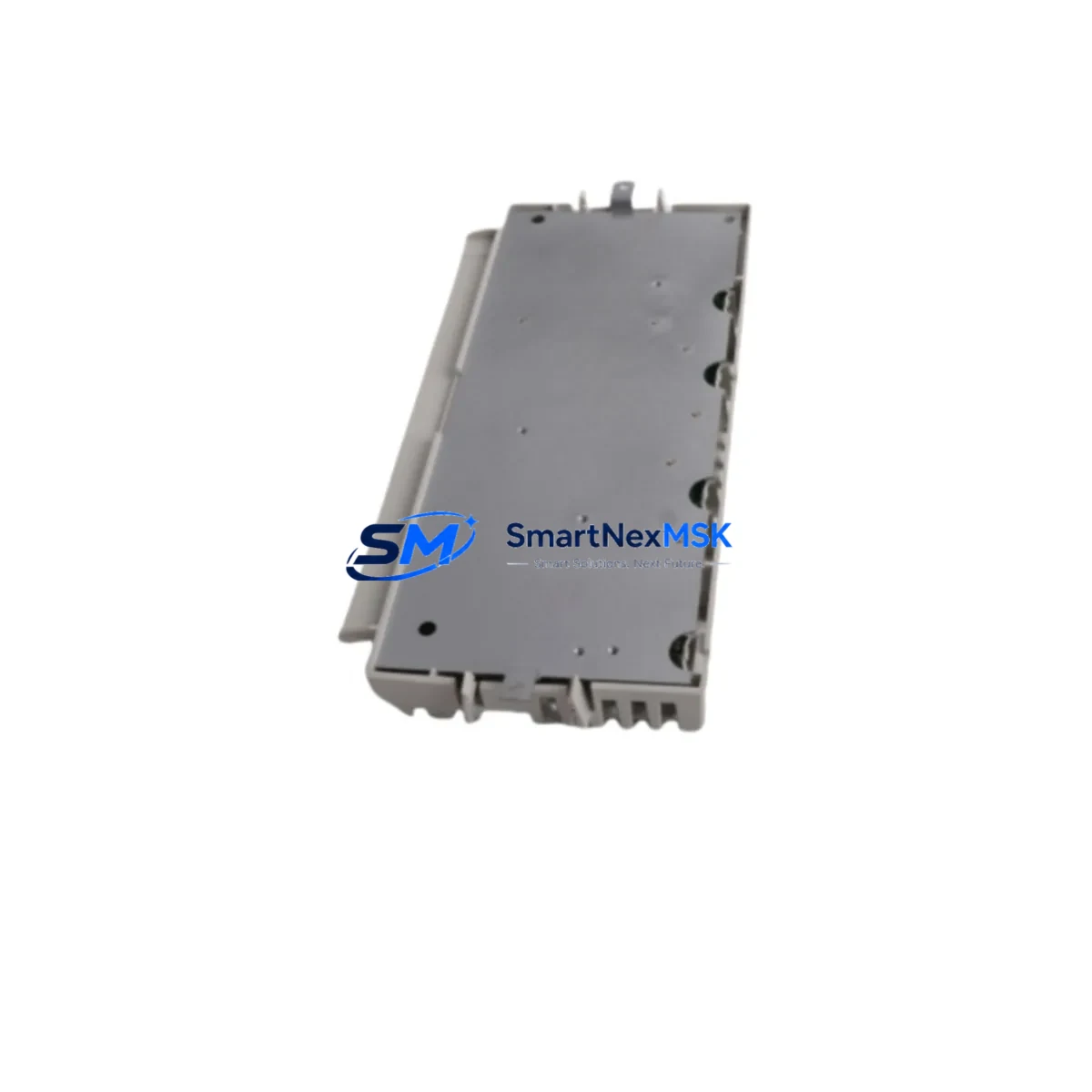

The ABB 3AUA0000036521 BDCU-12C is the original Drive Control Unit (DCU) designed for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families in process automation, material handling, and heavy manufacturing environments. When this control unit fails or degrades, the entire drive becomes inoperable, causing unplanned downtime that can cascade across production lines. Stocking a verified original spare is the most effective strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.

This unit is sourced as a genuine ABB original component, fully tested prior to shipment, and backed by a 12-month warranty. It is suitable for direct replacement in ACS800 single drives, cabinet-built drives, and multi-drive configurations where the BDCU-12C board governs drive logic, parameter memory, and fieldbus communication interfaces.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing ACS800-based drive systems, the BDCU-12C is rarely the only component at risk during a control board failure event. A thorough site inspection and preventive replacement strategy should extend to the surrounding electrical architecture. When replacing the 3AUA0000036521 BDCU-12C, it is strongly recommended to simultaneously inspect and — where service hours indicate — replace the following associated components:

The APOW-01 power supply board provides the 24 VDC rail that feeds the BDCU-12C directly; a degraded APOW-01 is a common root cause of repeated control board failures and should be tested or replaced as part of the same maintenance window. The AINT-xx inverter control board works in close coordination with the DCU and should be verified for firmware compatibility after any control board swap. If the drive uses fieldbus communication, the installed RPBA-01 PROFIBUS adapter or RDNA-01 DeviceNet adapter should be reseated and tested, as communication faults are frequently misdiagnosed as DCU failures.

On the I/O side, the AIMA-01 analog I/O extension module and any installed RDIO-01 digital I/O extension modules should be inspected for loose terminal connections and corrosion, particularly in high-humidity or high-vibration environments. Terminal blocks on the X1 and X2 control wiring connectors are a known wear point and should be checked for fretting corrosion. If the drive cabinet includes a CDP312R control panel or remote keypad, verify that the panel cable and RJ-45 connector are intact, as a faulty panel connection can prevent parameter upload after board replacement.

For drives operating in older installations, the NINT-xx interface board and NAIO-03 analog I/O board may also be approaching end-of-service life and should be included in the spare parts inventory review. Maintaining a small buffer stock of these components — alongside the BDCU-12C — significantly reduces the risk of extended downtime during emergency repair scenarios.

Site Replacement Workflow

Replacing the ABB 3AUA0000036521 BDCU-12C in the field is a structured process that, when followed correctly, can restore drive operation within a single maintenance shift. Begin by recording all drive parameters using the CDP312R control panel or DriveWindow software before powering down — the BDCU-12C stores the parameter set, and a backup ensures rapid recommissioning after the swap.

After confirming the drive is fully de-energized and the DC bus has discharged (verify with a calibrated multimeter across the DC bus terminals), remove the control section cover and carefully disconnect the flat ribbon cables and I/O connectors from the existing BDCU-12C. Note the orientation of all connectors before removal. Install the replacement 3AUA0000036521 board, reconnect all cables in reverse order, and restore power. Upload the saved parameter backup via the control panel or PC tool, verify fieldbus node address settings, and perform a no-load test run before returning the drive to production service.

This workflow is compatible with ACS800-01, ACS800-02, ACS800-04, ACS800-07, and ACS800-11 drive variants. For multi-drive configurations, ensure the replacement board’s firmware version matches the existing drive system to avoid compatibility conflicts. Our technical team can advise on firmware version verification prior to shipment upon request.

Spare Parts Support FAQ

Q: Is the 3AUA0000036521 BDCU-12C compatible with all ACS800 variants?
A: The BDCU-12C is the standard control unit for the ACS800 series, compatible with the majority of ACS800 single-drive and cabinet-drive configurations. Compatibility should be confirmed against the drive’s hardware revision and existing firmware version. Contact our team with your drive nameplate data for pre-shipment compatibility verification.

Q: What testing is performed before shipment?
A: Each unit undergoes functional power-on testing and communication interface verification before dispatch. Units are packaged in anti-static ESD bags with foam protection to prevent transit damage. A test report is available upon request.

Q: How should I manage long-term spare parts inventory for ACS800 systems?
A: For facilities operating multiple ACS800 drives, we recommend maintaining at least one BDCU-12C per drive family group, alongside APOW-01 power supply boards and the relevant fieldbus adapter modules. A structured spare parts list aligned to your preventive maintenance schedule reduces emergency procurement lead times and protects against obsolescence risk as ABB transitions legacy ACS800 lines.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Warranty claims are processed with return shipment support and priority replacement dispatch.
