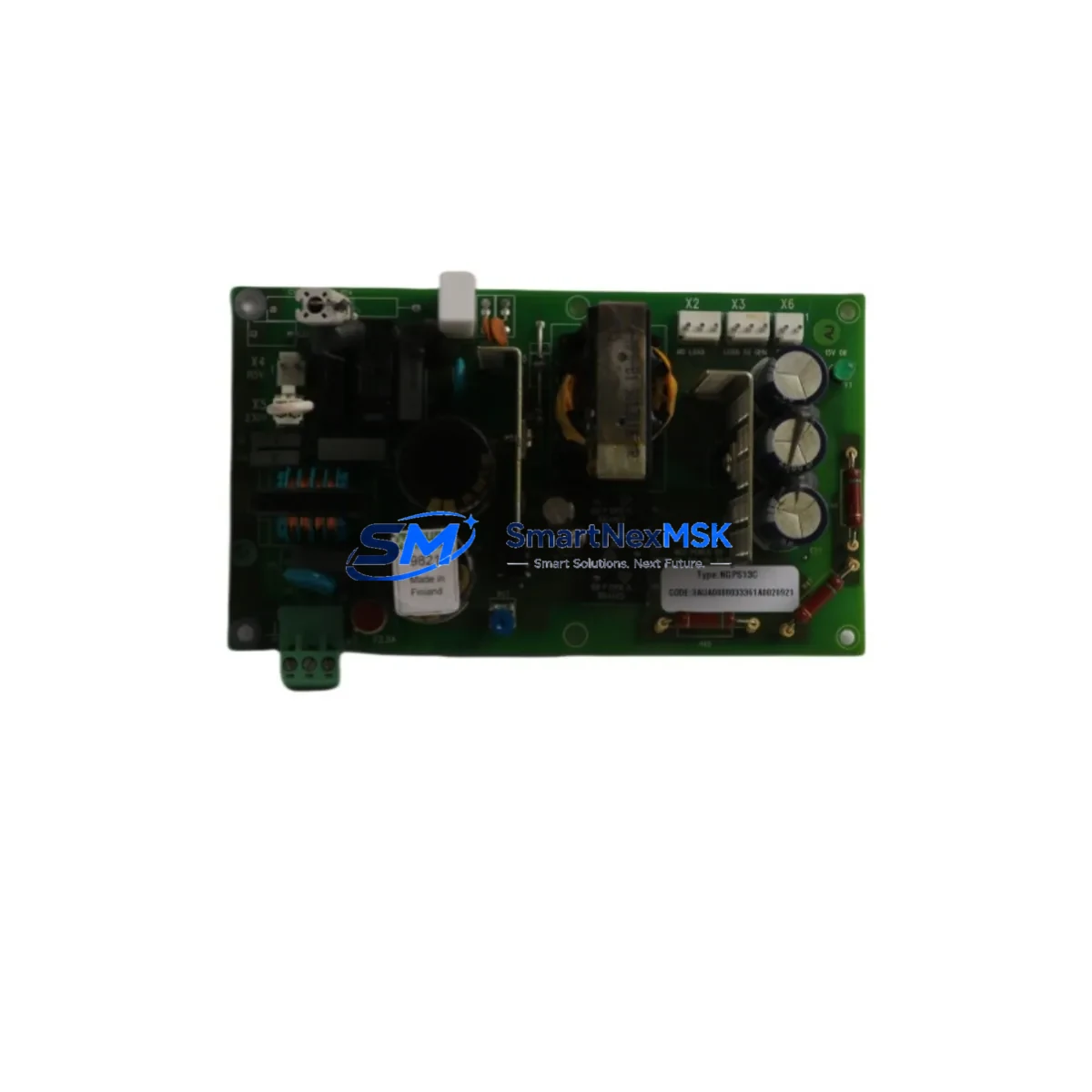

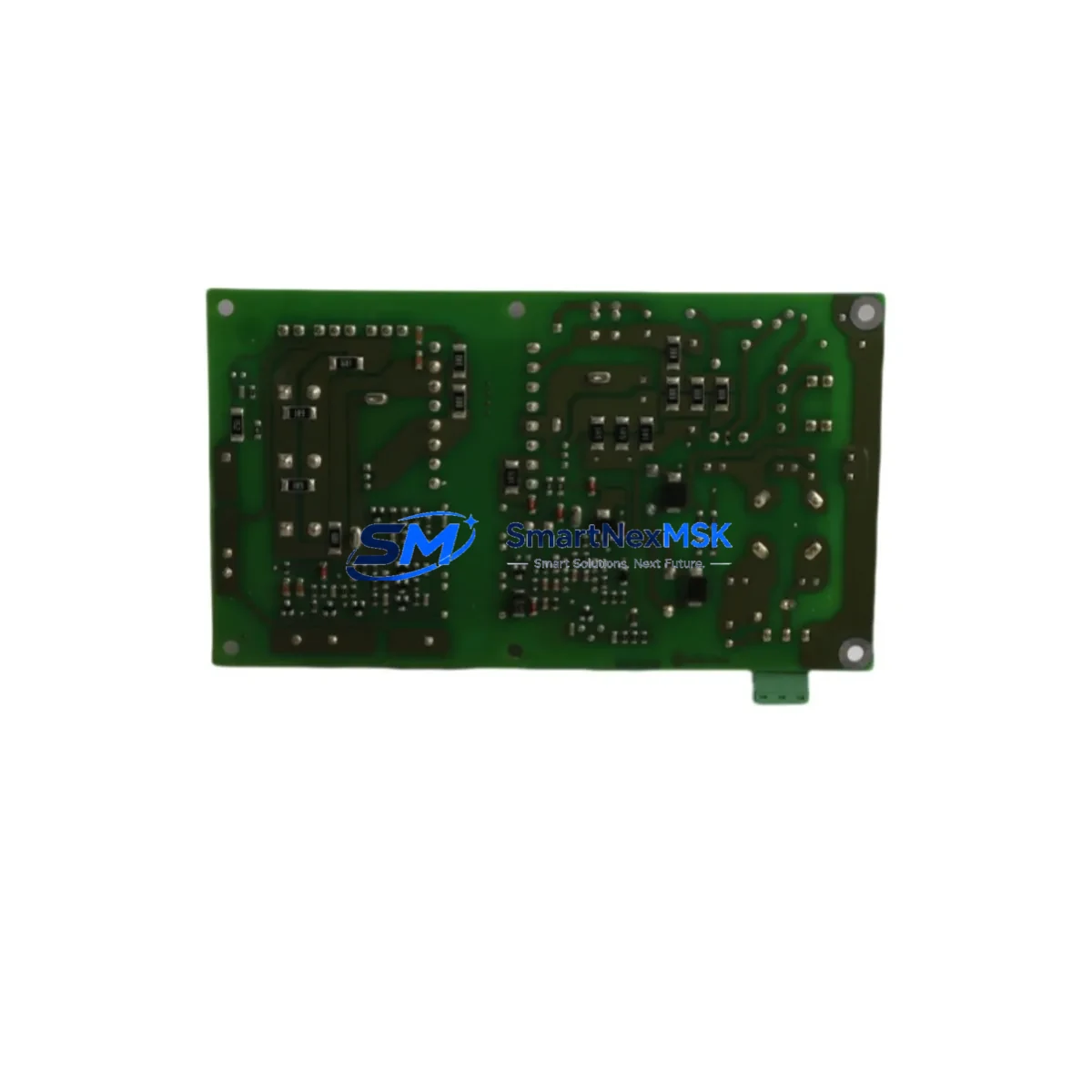

The ABB 3AUA0000042489 (NGPS-13C) is an original control board designed for the ABB ACS800 series variable frequency drive platform — one of the most widely deployed drive families in industrial automation, process control, and heavy manufacturing environments. When this board fails, the entire drive becomes inoperable, resulting in unplanned downtime that can cascade across production lines, conveyor systems, pump stations, and compressor banks. Holding a verified spare of the 3AUA0000042489 in your maintenance inventory is a direct investment in uptime assurance and rapid fault recovery.

This listing supplies the NGPS-13C control board as an original ABB spare component, tested before shipment, and backed by a 12-month warranty. Each unit is inspected for firmware integrity, connector condition, and board-level continuity prior to dispatch. Whether you are managing a single ACS800 cabinet or a fleet of drives across multiple production cells, this spare is engineered to restore full drive functionality with minimal intervention time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3AUA0000042489 NGPS-13C control board is rarely an isolated task. Experienced maintenance engineers know that a failed control board is often a symptom of broader stress within the drive cabinet or the electrical circuit it serves. During any planned or emergency replacement of this board, a structured inspection of adjacent components is strongly recommended to prevent repeat failures and ensure the restored drive operates reliably.

Begin with the drive’s power supply section. The NGPS-13C interfaces directly with the ACS800’s internal power supply board — inspect the APOW-01 or equivalent power supply module for output voltage stability and capacitor condition. A degraded power supply is a common root cause of control board failure and must be ruled out before commissioning the replacement board.

Next, verify the integrity of the RDCO-01 or RDCO-02 DDCS communication adapter if your ACS800 is integrated into a distributed control system or connected to a DCS via fiber optic ring. A faulty communication module can generate false fault codes that mimic control board failures. Similarly, inspect the AINT-02 or AINT-14 inverter control interface board, which works in close coordination with the NGPS-13C in multi-drive configurations.

On the I/O side, check the AIMA-01 I/O extension module and any RAIO-01 analog I/O expansion boards for signal integrity. Loose terminal connections on the X1 and X2 I/O terminal strips are a frequent source of intermittent faults that stress the control board over time. Inspect all 24 VDC control wiring for insulation damage, particularly in high-vibration environments.

For drives equipped with encoder feedback, inspect the RTAC-01 pulse encoder interface module and verify encoder cable shielding continuity. Signal noise on the encoder line can cause the control board to log erroneous speed reference faults. If the drive uses a fieldbus adapter such as the RPBA-01 PROFIBUS module or RCAN-01 CANopen adapter, confirm that the adapter firmware version is compatible with the replacement board’s firmware revision.

Do not overlook the drive’s protection components. Inspect the main fuses, DC bus fuses, and any installed surge protection devices (SPDs) on the input side. A single blown fuse or a degraded varistor can cause recurring board damage if left unaddressed. The ACS800’s brake chopper circuit and braking resistor connections should also be verified if dynamic braking is part of the application.

Finally, if the drive cabinet includes an HMI panel such as the CDP312R or ACS-CP-C control panel, confirm that the panel communication cable is undamaged and that the panel itself powers up correctly after the board replacement. A non-responsive panel after board swap is typically a communication parameter issue, not a hardware fault.

Site Replacement Workflow

The 3AUA0000042489 NGPS-13C is a direct plug-in replacement for the original control board in compatible ACS800 drive frames. Before beginning the replacement, de-energize the drive fully and wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify zero voltage on the DC bus terminals using a calibrated multimeter before touching any internal components.

Remove the old NGPS-13C board by disconnecting all ribbon cables and fiber optic connections in sequence, noting their positions for reinstallation. The replacement board should be installed in the same orientation, with all connectors fully seated. After installation, restore power and perform a parameter upload from the drive’s memory backup or re-enter drive parameters manually if no backup is available. Run a no-load test before reconnecting the motor load to confirm stable operation.

This replacement workflow is compatible with ACS800-01, ACS800-02, ACS800-04, ACS800-07, and ACS800-11 frame variants. Always cross-reference the drive’s hardware manual for frame-specific torque values on terminal connections. Proper commissioning after board replacement reduces the risk of repeat failures and extends the operational life of the drive system.

Spare Parts Support FAQ

Q: Is the 3AUA0000042489 NGPS-13C compatible with all ACS800 drive variants?
A: The NGPS-13C is designed for the ABB ACS800 series platform. Compatibility depends on the specific drive frame and firmware revision. We recommend confirming your drive’s hardware revision code before ordering. Our technical team can assist with compatibility verification upon request.

Q: How is the board tested before shipment?
A: Every 3AUA0000042489 unit undergoes functional testing and board-level continuity checks prior to dispatch. Test results are documented and available upon request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q: What is the recommended spare parts stocking strategy for ACS800 drives?
A: For facilities operating multiple ACS800 drives, we recommend maintaining at least one NGPS-13C control board per drive family in your on-site spare parts inventory. Pairing this with a stocked APOW power supply module and a set of DC bus fuses provides coverage for the most common failure modes and minimizes mean time to repair (MTTR).

Q: Can this board be used to replace an older or discontinued NGPS revision?
A: In most cases, the NGPS-13C is backward compatible with earlier NGPS revisions within the ACS800 platform. However, firmware parameter migration may be required. Contact our sales team with your existing board’s revision code and drive nameplate data for a confirmed compatibility assessment before installation.
