ABB 3AXD50000183012/ZCU-12 Safety-Enhanced Drive Control Unit

ABB 3AXD50000183012/ZCU-12 Safety-Enhanced Drive Control Unit for Harsh Industrial Sites

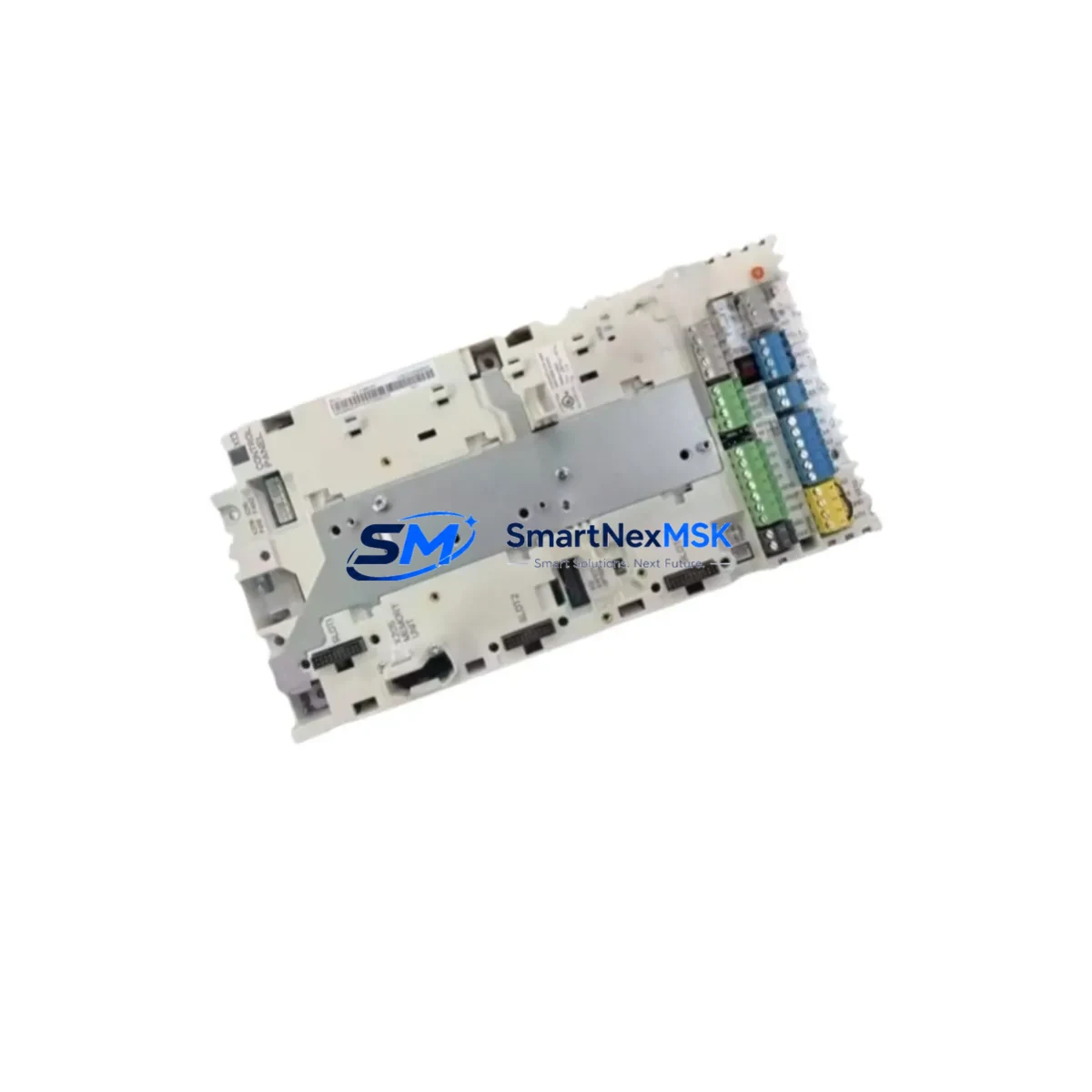

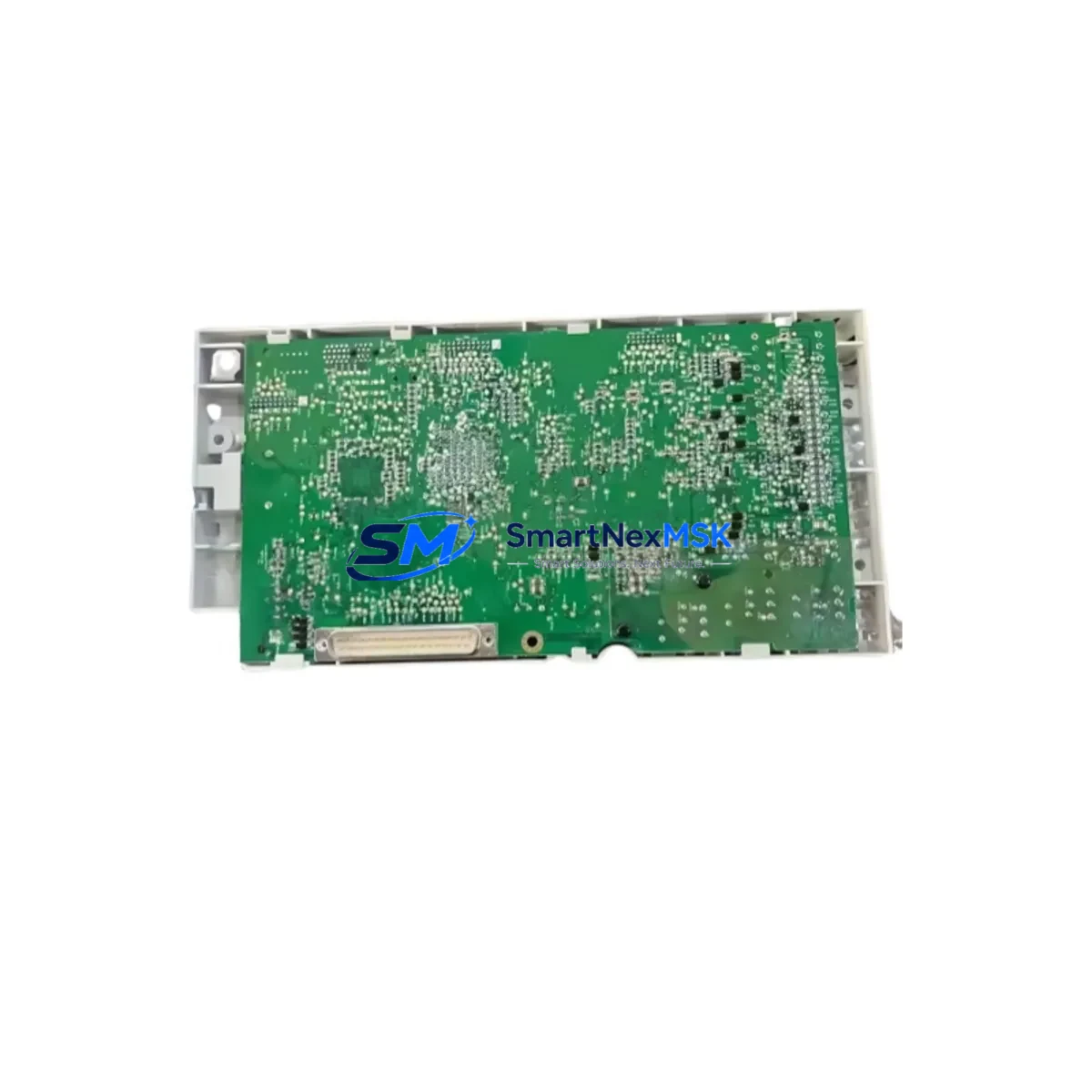

The ABB ZCU-12 (Part No. 3AXD50000183012) is a ruggedized drive control unit engineered for the ABB ACS880 series of industrial drives. Designed to operate reliably in high-load, high-interference, and continuous-production environments, the ZCU-12 serves as the central intelligence of the ACS880 drive system — managing motor control algorithms, safety interlocks, fieldbus communication, and real-time diagnostics. In critical industrial installations where unplanned downtime carries severe operational and safety consequences, the ZCU-12 delivers the signal integrity, thermal resilience, and fault-tolerance demanded by modern heavy-industry control architectures.

Whether deployed in petrochemical pump stations, steel mill rolling lines, mine hoist systems, water treatment blower drives, or port crane hoisting applications, the ZCU-12 maintains stable closed-loop vector control even under severe electrical noise, voltage fluctuations, and ambient temperature extremes. Its onboard firmware supports Safe Torque Off (STO) and other functional safety inputs, making it a key component in safety-rated drive circuits that must comply with IEC 62061 and ISO 13849 requirements.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered ACS880 control cabinet, the ZCU-12 does not operate in isolation — it functions as the command hub of a layered protection architecture. Upstream, a properly rated ABB SACE Tmax XT series molded-case circuit breaker provides short-circuit and overload protection for the drive input, while an ABB FENA-21 Ethernet adapter module or FPBA-01 PROFIBUS adapter extends the ZCU-12’s fieldbus reach to the plant DCS or SCADA system without introducing communication latency or packet loss under high-traffic conditions.

On the power quality side, an ABB ACH580 or ACS880 du/dt filter installed between the drive output and motor terminals suppresses voltage spikes that would otherwise stress motor winding insulation and generate reflected wave interference back into the ZCU-12’s analog measurement circuits. Pairing the ZCU-12 with an ABB FSO-12 functional safety module — mounted directly onto the ZCU-12 — enables certified STO and SS1 safety functions without external safety relays, simplifying cabinet wiring and reducing the risk of safety circuit wiring errors that could cause spurious trips or, worse, failure to trip on demand.

For installations in zones with significant harmonic distortion, an ABB ACH580 line reactor (NOCH0100-60) or equivalent input choke reduces THD at the drive input, protecting the ZCU-12’s internal power supply from voltage notching and harmonic-induced overheating. Where the control cabinet also houses ABB AC500 PLC modules (such as the PM591 or PM592 CPU) coordinating multi-drive sequences, the ZCU-12’s DriveAP application programming interface allows direct peer-to-peer logic execution, reducing reliance on external PLC scan cycles for time-critical safety interlocks.

Surge protection at the cabinet’s incoming supply — typically an ABB OVR surge protective device (SPD) rated for the local grid’s lightning and switching transient exposure — prevents transient energy from propagating into the ZCU-12’s sensitive control circuitry. Finally, a 24 VDC SITOP or ABB CP-E series power supply module dedicated to the ZCU-12 and its I/O circuits ensures that control power remains stable even during main supply dips, preventing nuisance faults and preserving the integrity of safety interlock signals during grid disturbances.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude oil pump stations and compressor drives, the ZCU-12 maintains precise speed control under variable load while its STO function enables emergency stop without mechanical brake wear. Integration with plant safety instrumented systems (SIS) via hardwired STO inputs ensures the drive responds within the required SIL 2 reaction time during process upsets or ESD activations.

Electric Power Generation & Utilities: Boiler feed pump drives and induced draft fan drives in thermal power plants demand continuous, uninterrupted operation across wide load ranges. The ZCU-12’s adaptive motor control algorithm compensates for supply frequency variations and load transients, while its onboard diagnostics flag insulation degradation trends before they escalate to catastrophic motor failures.

Mining & Mineral Processing: Conveyor belt drives, ball mill drives, and mine hoist systems in underground and open-pit operations expose drive control electronics to coal dust, silica particulate, and high-humidity atmospheres. The ZCU-12, housed within an IP54 or IP55 ACS880 cabinet, maintains reliable operation in these conditions, with its fault logging capability providing maintenance teams with actionable data for predictive maintenance scheduling.

Water & Wastewater Treatment: Municipal water treatment plants rely on variable-speed pump and blower drives to optimize energy consumption while maintaining process flow targets. The ZCU-12’s PID control and sleep/wake functions reduce energy waste during low-demand periods, while its communication interfaces allow seamless integration with SCADA systems for remote monitoring and alarm management.

Metallurgy & Steel: Rolling mill main drives and continuous casting line drives in steel plants operate under extreme mechanical shock, high ambient temperatures, and intense electromagnetic interference from arc furnaces and induction heaters. The ZCU-12’s robust EMC design and high-speed torque response make it a proven choice for these demanding applications, where control instability directly translates to product quality defects and safety hazards.

Port & Heavy Lifting: Container crane hoisting and gantry travel drives require precise speed and torque control with rapid response to load changes. The ZCU-12’s direct torque control (DTC) algorithm provides millisecond-level torque response, preventing load swing and mechanical shock that could damage crane structures or endanger personnel.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the ZCU-12 fails due to a verified manufacturing defect within the warranty period, we will provide a replacement unit or full refund. The warranty does not cover damage caused by incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each unit?
Every ZCU-12 unit undergoes functional verification testing prior to dispatch, including power-on self-test, I/O channel continuity checks, and firmware version confirmation. Units sourced from authorized ABB distribution channels are accompanied by original ABB packaging and traceability documentation where available. We do not ship units that fail functional verification.

Q3: Is this ZCU-12 compatible with all ACS880 drive variants?
The 3AXD50000183012/ZCU-12 is the standard control unit for the ABB ACS880-01, ACS880-04, and ACS880-07 single-drive and cabinet-built drive families. Compatibility with specific drive frame sizes and firmware versions should be confirmed against the ABB ACS880 hardware manual. Our technical team can assist with compatibility verification prior to order placement.

Q4: Can you support long-term or repeat supply for maintenance programs?
Yes. We maintain standing inventory of ZCU-12 and related ACS880 spare parts to support planned maintenance programs, emergency breakdown replacements, and capital spares strategies. Customers with multi-site or multi-unit installations are encouraged to contact us for volume pricing, reserved stock arrangements, and scheduled delivery programs to minimize downtime risk.
