ABB 3AXD50000711901 Safety-Enhanced Dual IGBT Module for Harsh Industrial Sites

ABB 3AXD50000711901 Safety-Enhanced Dual IGBT Module for Harsh Industrial Sites

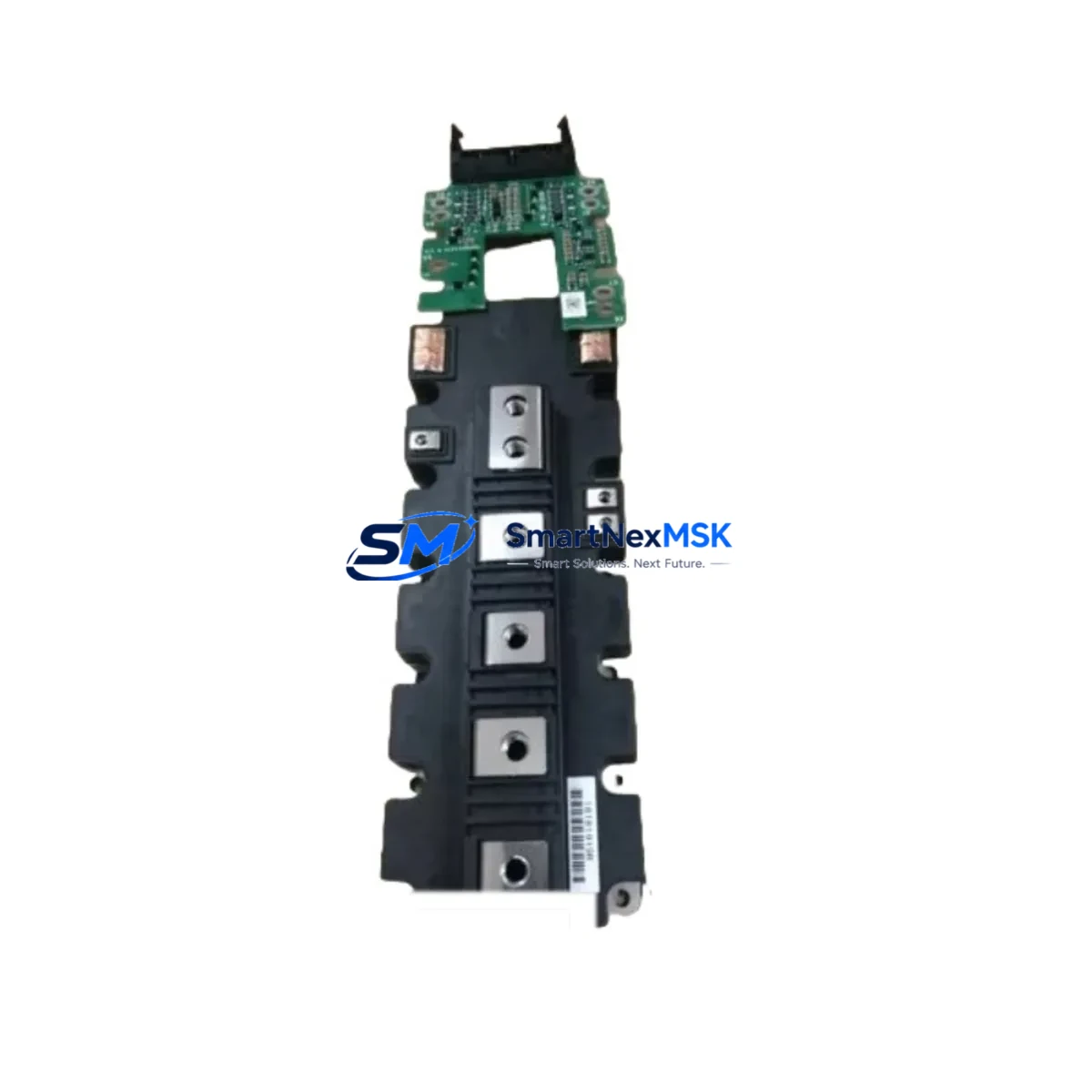

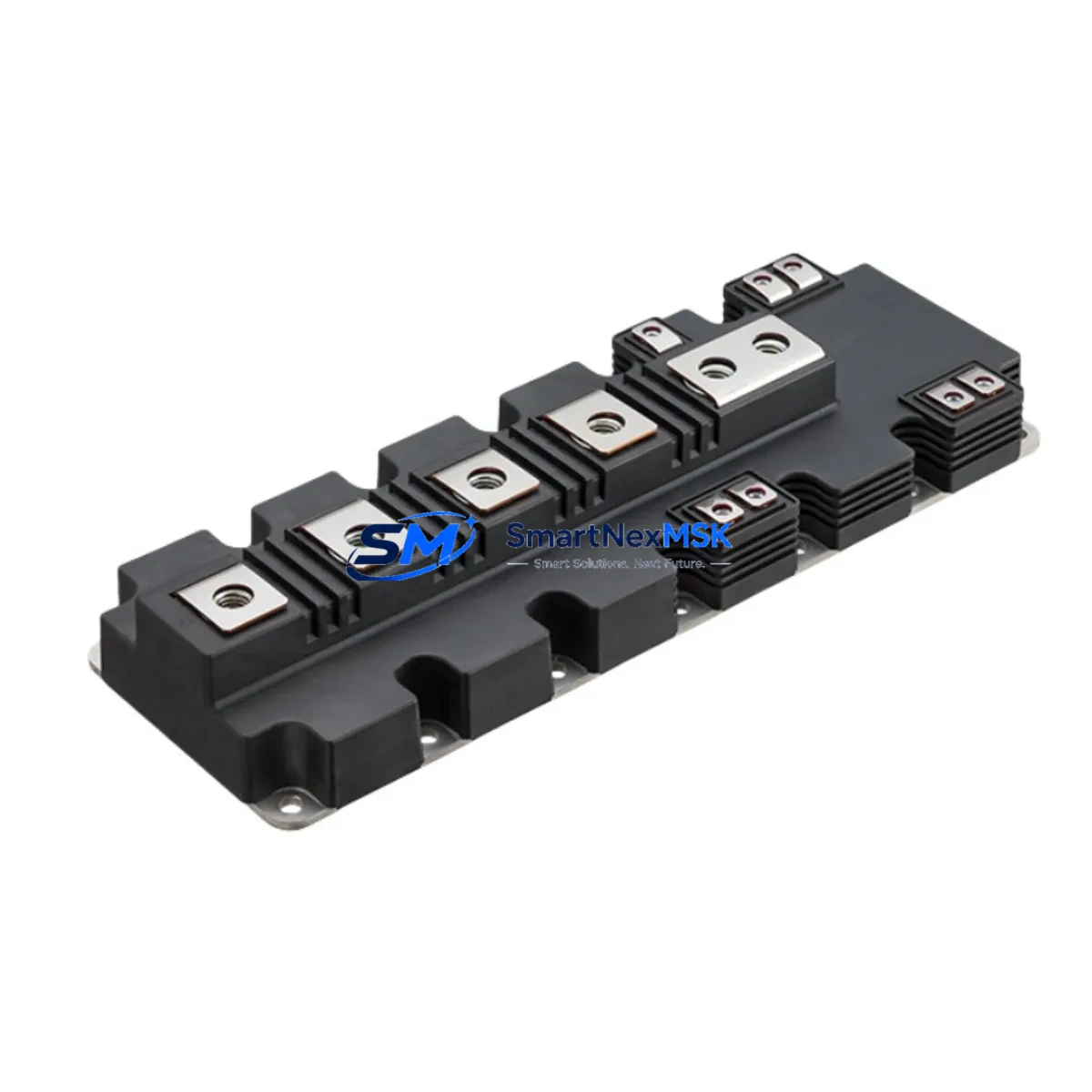

The ABB 3AXD50000711901 (cross-reference: Fuji 2MBI1000VXB-170E-50) is a high-power dual IGBT module rated at 1000 A / 1700 V, engineered for continuous, safety-critical operation in the most demanding industrial environments. Designed to serve as the core switching element in ABB ACS880 and ACS580 series variable-frequency drives, this module delivers exceptional thermal stability, ultra-low switching losses, and robust short-circuit withstand capability — all essential attributes for control systems where an unexpected shutdown can trigger cascading process failures, personnel hazards, or regulatory non-compliance.

In high-load industrial applications — including petrochemical compressor drives, mine hoist controllers, steel mill rolling-mill inverters, and port crane hoisting systems — power semiconductor reliability is not a performance metric; it is a safety requirement. The 3AXD50000711901 addresses this reality through its press-pack-style dual IGBT topology, which minimises parasitic inductance, reduces gate-drive stress, and ensures symmetrical current sharing between the two IGBT cells. The result is a module that sustains rated current under continuous duty cycles without the thermal runaway risk that plagues lower-grade alternatives.

Safety Reliability Table

Control Cabinet Protection Strategy

A single IGBT module, however robust, operates within a broader protection ecosystem. In a properly engineered ABB ACS880 drive cabinet, the 3AXD50000711901 works in concert with the ABB AGDR-81C gate driver board, which provides isolated gate signals, desaturation detection, and active clamping to suppress collector voltage spikes during hard switching. Upstream of the DC bus, ABB SACE Tmax XT series DC fuses and a DC bus capacitor bank (typically 3300 µF / 1800 V film capacitors) absorb energy surges and limit dV/dt stress on the module’s collector junction.

On the AC input side, an ABB ACH580 line reactor or du/dt filter attenuates voltage transients and harmonic disturbances that would otherwise propagate into the rectifier stage and elevate DC bus ripple — a known contributor to IGBT gate-oxide degradation over time. For installations in areas with frequent lightning strikes or utility switching events, an ABB OVR surge protective device at the MCC panel provides the first line of defence, preventing impulse voltages from reaching the drive’s sensitive power stage.

Temperature management is equally critical. The module’s base plate must be mounted against a properly rated liquid-cooled or forced-air heat sink with thermal interface material applied to specification. ABB recommends pairing the 3AXD50000711901 with the drive’s AINT-02C cooling fan assembly and monitoring junction temperature via the drive’s AINT-02C IGBT temperature sensor feedback loop. When the drive’s ACS880 RDCU-12C control unit detects an over-temperature condition, it initiates a controlled ramp-down rather than an abrupt trip, protecting both the module and the connected mechanical load.

For safety interlock circuits, the drive’s FSO-12 functional safety module (SIL 2 / PLd certified) interfaces directly with the control unit to execute Safe Torque Off (STO) and Safe Stop 1 (SS1) functions without requiring the IGBT module to be physically isolated — reducing wear on contactors and improving response time in emergency stop scenarios. Complementing this, the ABB BCON-11C Bluetooth adapter enables wireless parameter monitoring during commissioning, eliminating the need to open energised cabinets for routine checks.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In compressor and pump drive applications operating in Zone 2 hazardous areas, control continuity is a process safety requirement. The 3AXD50000711901’s high short-circuit withstand capability and low VCE(sat) reduce heat generation in confined drive enclosures, lowering the risk of thermal events in flammable-atmosphere environments. Drives equipped with this module maintain torque control during grid voltage dips, preventing uncontrolled compressor surge.

Electric Power Generation & Transmission: In utility-scale wind turbine converters and hydro-generator excitation systems, the module’s 1700 V blocking voltage provides adequate margin against DC bus overvoltage transients caused by grid fault ride-through events. Its symmetrical dual-cell construction ensures balanced reactive power compensation in STATCOM and active front-end rectifier topologies.

Mining & Mineral Processing: Mine hoist and conveyor drives demand zero unplanned stops. The 3AXD50000711901’s proven compatibility with ABB ACS880 multi-drive architectures allows hot-standby redundancy configurations, where a pre-tested spare module can be swapped within a planned maintenance window — minimising production loss and eliminating the safety risk of an uncontrolled load drop.

Water & Wastewater Treatment: Municipal pumping stations running 24/7 cannot tolerate drive failures that interrupt water supply or effluent treatment. The module’s wide operating temperature range (−40 °C to +150 °C junction) ensures reliable switching even in outdoor pump houses subject to seasonal temperature extremes, while its high isolation voltage (4000 V AC) protects control circuits from ground faults common in wet environments.

Metallurgy & Steel Mills: Rolling mill main drives and ladle crane hoists impose severe regenerative braking loads that stress IGBT modules with high peak currents and rapid polarity reversals. The 3AXD50000711901’s optimised freewheeling diode co-packaged within the dual module handles reverse recovery currents efficiently, reducing EMI emissions that could interfere with proximity sensors, encoders, and safety PLCs on the mill floor.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The warranty covers all manufacturing defects and parametric failures — including VCE(sat) drift, gate threshold shift, and diode forward voltage deviation — from the date of shipment. Each unit is individually tested before dispatch. In the event of a warranty claim, we provide a replacement unit or full refund within the agreed lead time, with no requirement to return the failed module for initial assessment.

Q2: What outgoing inspection tests are performed before shipment?
Every 3AXD50000711901 / 2MBI1000VXB-170E-50 unit undergoes a 100% functional test covering: collector-emitter saturation voltage (VCE(sat)) at rated gate drive, gate threshold voltage (VGE(th)), reverse leakage current (ICES), freewheeling diode forward voltage (VF), and isolation resistance. Test data is available on request for critical applications.

Q3: Is this module compatible with my existing ABB ACS880 drive without firmware changes?
Yes. The 3AXD50000711901 is the OEM-specified module for ABB ACS880 R8i and R9i power units. It is a direct drop-in replacement requiring no firmware modification. The drive’s IGBT temperature feedback and desaturation protection circuits are fully compatible with this module’s electrical characteristics. Always verify the drive’s hardware revision against ABB’s spare parts list before ordering.

Q4: Can you guarantee long-term supply for ongoing maintenance contracts?
Yes. We maintain dedicated safety stock of the 3AXD50000711901 / 2MBI1000VXB-170E-50 to support planned maintenance schedules and emergency breakdown requirements. For customers with multi-site maintenance contracts or annual procurement agreements, we offer reserved inventory allocation and priority dispatch. Contact our technical sales team to discuss volume pricing and supply continuity arrangements.
