ABB 3BHB005727R0001 Retrofit-Ready Excitation Control for UNS2880A Control Systems

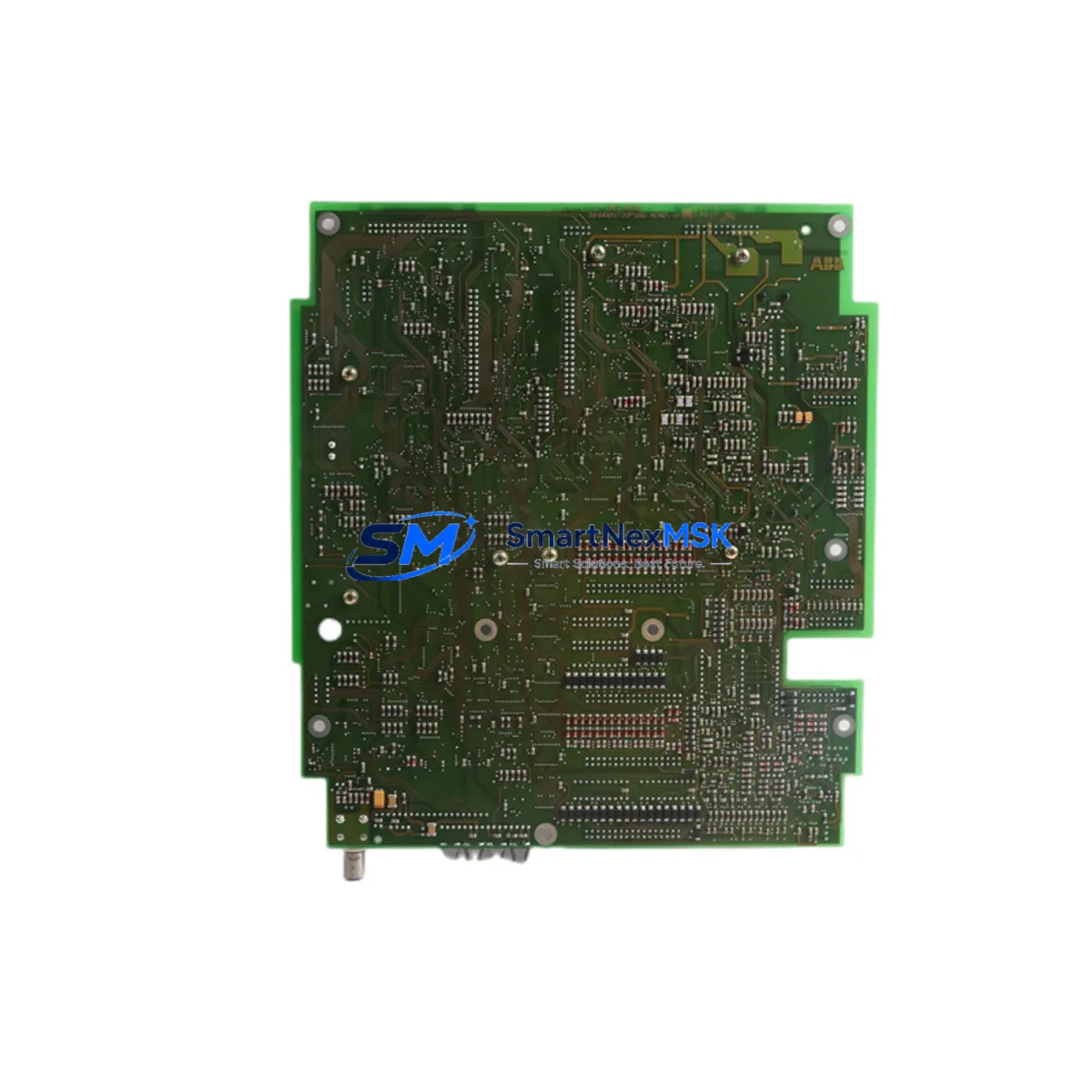

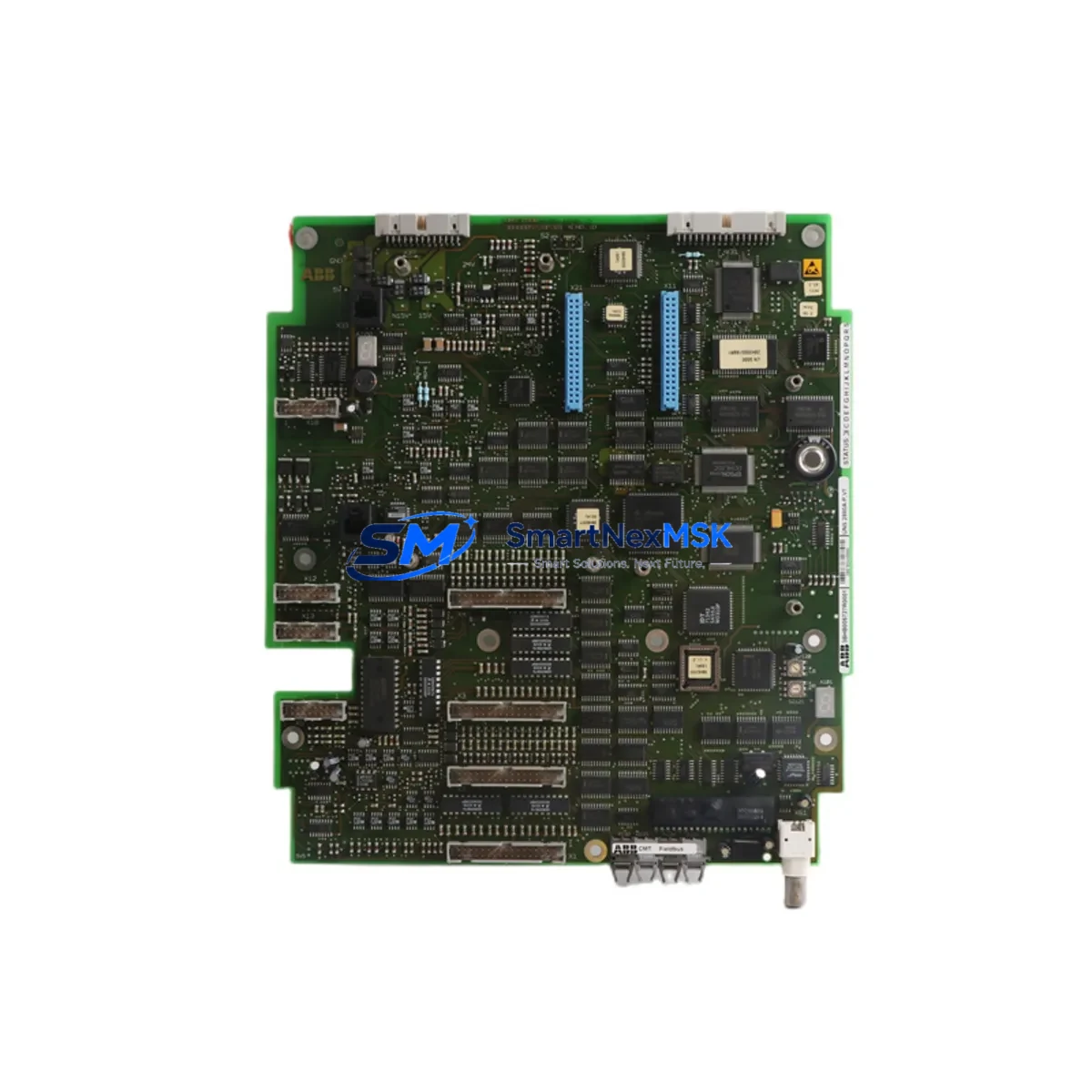

The ABB 3BHB005727R0001 is a retrofit-ready excitation control PC board engineered for seamless integration into legacy UNS2880A excitation control systems. As ABB’s installed base of UNITROL and MEGADRIVE excitation platforms ages, plant engineers and maintenance teams increasingly face the challenge of sourcing verified replacement modules that preserve original control logic, field bus topology, and generator protection sequences without requiring a full system overhaul. This module addresses that challenge directly — offering a drop-in compatible solution backed by pre-shipment functional testing and a 12-month warranty.
Whether you are managing a planned outage window, responding to an unscheduled trip, or executing a phased modernization of your excitation and AVR infrastructure, the 3BHB005727R0001 is stocked and ready for immediate dispatch. Each unit undergoes bench verification against ABB’s original electrical specifications before leaving our facility, ensuring that terminal assignments, backplane interface signals, and firmware compatibility align with your existing UNS2880A rack configuration.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | ABB UNS2880A Excitation Control System |
| Module Function | Excitation Control PC Board (AVR / Field Current Regulation) |
| Backplane Interface | Compatible with UNS2880A standard rack backplane connector |
| Terminal Wiring | Matches original terminal block layout; no rewiring required for direct swap |
| Communication Compatibility | Supports existing PROFIBUS / serial communication links on UNS2880A platform |
| Replacement Recommendation | Direct replacement for failed or end-of-life 3BHB005727R0001 boards |
| Commissioning Notes | Verify module address settings and AVR parameter upload before energizing |
| Country of Origin | Germany |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure |
| Pre-Shipment Test | Full functional verification performed on every unit |
Retrofit Planning for Existing Automation Systems
Retrofitting an ABB UNS2880A excitation system requires careful coordination across multiple hardware layers. The 3BHB005727R0001 board sits at the heart of the excitation regulation loop, but a successful retrofit also depends on the condition and compatibility of surrounding components. During pre-outage planning, engineers should audit the UNS2880A power supply module to confirm that DC bus voltage and current capacity remain within specification — a degraded power supply can cause intermittent faults that mimic a failed control board. The ABB UNS0880A-P power supply board is a common companion replacement in aging excitation cabinets.
The backplane and rack assembly of the UNS2880A chassis should be inspected for corrosion on edge connectors and cracked PCB traces before the new 3BHB005727R0001 is seated. In multi-axis or multi-generator installations, the UNITROL 5000 or UNITROL 6800 communication interface modules may also require firmware alignment to ensure that the replacement board is recognized correctly on the excitation bus. If the site uses a PROFIBUS DP network for supervisory control, the GSD file and station address of the excitation controller must be confirmed against the SCADA or DCS configuration — typically a Freelance 800F or System 800xA node in ABB-centric plants.
For sites that have integrated the excitation system with an ABB ACS800 or ACS880 drive platform for coordinated motor-generator control, the inter-system communication parameters should be documented before the swap and restored immediately after commissioning. The SDCS-COM-8 or RDCO communication option board on the drive side may need to be re-initialized if the excitation controller address changes during the replacement process.
I/O mapping is another critical checkpoint. The 3BHB005727R0001 board interfaces with analog and digital I/O signals including field current feedback, AVR reference setpoint, generator terminal voltage, and protection relay outputs. Before removal of the old board, technicians should record all active I/O signal levels using a handheld calibrator and compare them against the original commissioning records. Any deviation should be investigated before the new board is powered up. The ABB NTAC-02 or NTAI-20 I/O terminal modules connected to the excitation rack should also be checked for loose terminations and insulation resistance.
HMI screens linked to the excitation system — whether running on an ABB CP600 operator panel or a third-party SCADA display — should be reviewed to confirm that all dynamic tags referencing the excitation controller remain valid after the board swap. In some installations, the HMI tag database references the module’s rack slot address, which must remain unchanged for the replacement to be transparent to the operator interface.
Downtime Control During System Migration
Minimizing unplanned downtime during an excitation control board replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the full AVR parameter set stored in the existing 3BHB005727R0001 should be uploaded and saved using ABB’s UNITROL configuration tool or the applicable DriveWindow / Drive Composer software version. This parameter backup is the single most important step in protecting the original control logic — it allows the replacement board to be pre-configured offline and verified against the original setpoints before installation.
During the physical swap, the generator should be de-excited and isolated from the grid in accordance with site protection procedures. The field breaker and AVR enable signals should be confirmed open before the board is removed. Once the 3BHB005727R0001 replacement is seated and secured, the saved parameter file should be downloaded to the new board and all setpoints verified against the commissioning baseline. A staged re-energization sequence — starting with no-load excitation and progressing through reactive power loading — allows the control loop to be validated before the unit is returned to full service.
For sites where continuous generation is critical, a parallel excitation path using a standby AVR channel or a temporary manual excitation bypass can maintain field current during the board exchange, reducing the effective outage window to the time required for parameter restoration and loop verification rather than a full cold-start sequence. This approach is particularly effective in power stations where the UNS2880A system supports a generator that cannot be taken offline for extended periods.
Retrofit Support FAQ
Q1: Is the 3BHB005727R0001 a direct drop-in replacement for the original ABB UNS2880A excitation control board?
Yes. The 3BHB005727R0001 is designed as a direct replacement for the original board used in the UNS2880A excitation control platform. Terminal wiring, backplane connector pinout, and module addressing are compatible with the standard UNS2880A rack. No hardware modifications are required for a like-for-like swap, though parameter restoration from a saved backup is strongly recommended before re-energization.
Q2: What commissioning steps are required after installing the replacement board?
After physical installation, the AVR parameter set should be downloaded from a pre-saved backup file. Key setpoints to verify include voltage reference, droop setting, field current limits, and protection relay thresholds. A no-load excitation test should be performed before reconnecting to the grid. Communication link integrity with the supervisory system should also be confirmed, and any HMI dynamic tags referencing the excitation controller should be validated.
Q3: How is the unit tested before shipment, and what does the 12-month warranty cover?
Every 3BHB005727R0001 unit is subjected to a full functional verification test on a dedicated test bench that replicates the UNS2880A operating environment. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination. Warranty claims are supported by our technical team with a target response time of one business day.
Q4: Can this module be used in a UNS2880A system that has been partially upgraded to a newer ABB excitation platform?
In most cases, yes — provided the backplane and rack assembly remain original UNS2880A hardware. If the site has migrated the power supply or communication interface to a newer ABB UNITROL 5000 or UNITROL 6800 component, compatibility should be verified against the specific firmware revision of those modules before installation. Our technical support team can assist with compatibility assessment based on your system’s serial number and configuration records.
