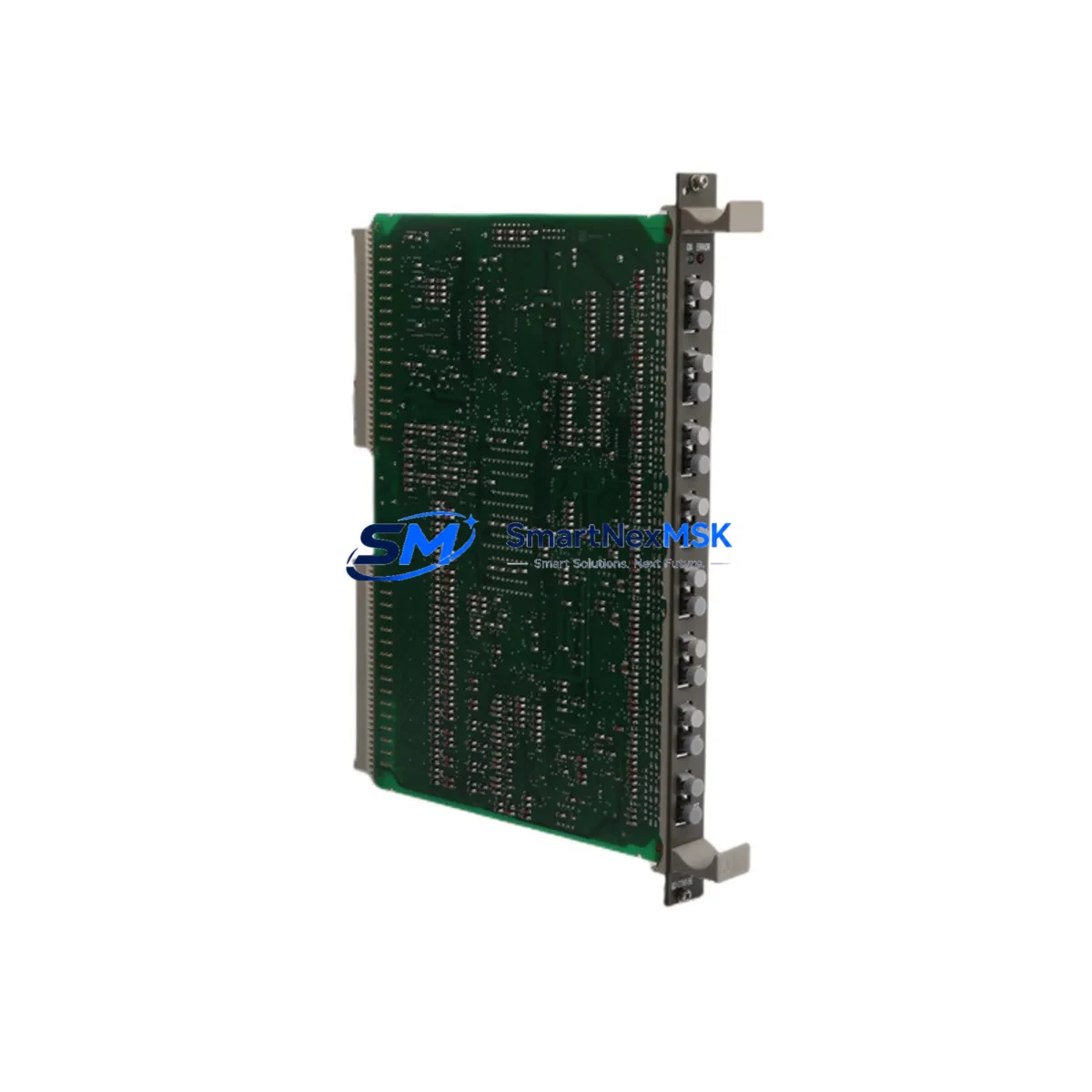

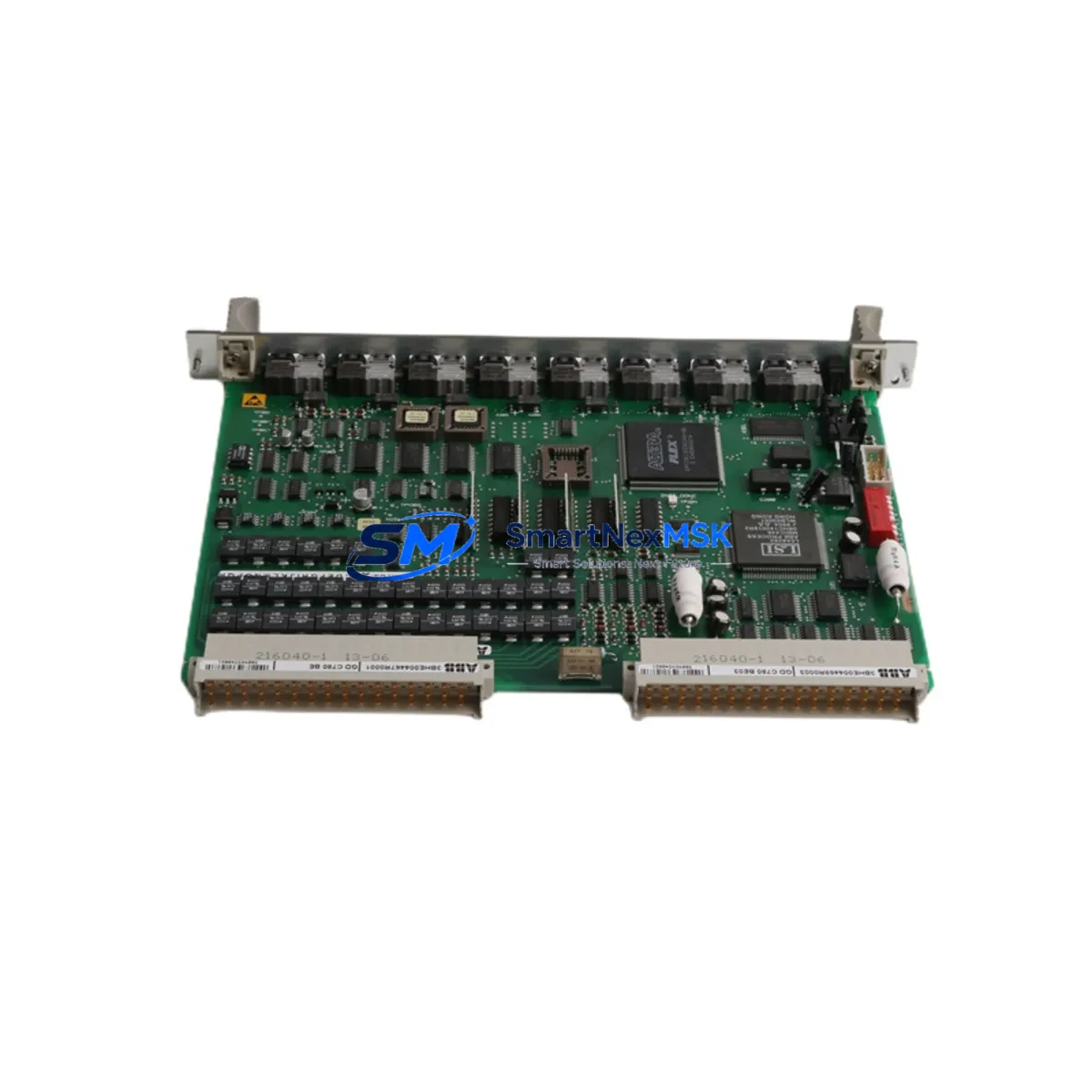

ABB 3BHE004468R0021 GDC780BE21 Safety Gate Drive Module

ABB 3BHE004468R0021 GDC780BE21 Safety Gate Drive Module: Reliable Control for Harsh Industrial Sites

The ABB 3BHE004468R0021 GDC780BE21 is a ruggedized gate drive control module engineered for mission-critical medium-voltage drive applications in the most demanding industrial environments. Designed as a core component of the ABB ACS6000 medium-voltage AC drive platform, this module governs the precise firing and protection of IGCT (Integrated Gate-Commutated Thyristor) power semiconductors, making it indispensable in high-load, continuous-production facilities where control interruption is not an option.

In petrochemical plants, power generation stations, mining hoists, water treatment pump drives, metallurgical rolling mills, and port crane systems, the integrity of the gate drive layer is the first line of defense against catastrophic drive failure. The GDC780BE21 delivers deterministic gate pulse timing, robust isolation between the control and power domains, and built-in fault detection that immediately suppresses erroneous firing signals before they can propagate into the IGCT stack. This suppression capability is critical in preventing overcurrent events, DC bus overvoltage, and thermal runaway in the power converter section.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust ACS6000 control cabinet is a layered system, and the 3BHE004468R0021 GDC780BE21 sits at the heart of its protection architecture. In high-load applications such as mine winders or steel mill main drives, the gate drive module works in concert with the ABB AMC80 main control board (3BHE024577R0100) to execute closed-loop speed and torque regulation. Any degradation in gate pulse fidelity — caused by aging components, moisture ingress, or vibration-induced connector fatigue — can result in IGCT misfiring, leading to phase-to-phase short circuits or uncontrolled motor deceleration.

To maintain system integrity, the GDC780BE21 is typically paired with the ABB SDCS-CON-4 control board or equivalent drive control units that handle the supervisory logic, while the ABB AINT-02C fiber-optic interface board ensures that gate signals traverse the isolation barrier without electromagnetic contamination from the high-voltage power bus. In installations where power quality is poor — common in arc furnace facilities or facilities sharing a bus with large motor starters — the ABB NPOW-41C power supply module provides stable, regulated auxiliary voltage to the gate drive electronics, preventing logic resets caused by voltage sag or harmonic distortion.

For safety interlock circuits, the GDC780BE21 integrates with the ABB RDCO-03C DDCS communication module, which relays real-time drive status to the plant DCS or safety PLC. In SIL-rated interlock loops — such as emergency stop circuits for compressor trains or conveyor systems — this communication path ensures that a gate drive fault triggers a controlled, safe shutdown rather than an uncontrolled trip. Complementing this, the ABB AGPS-21C gate power supply maintains gate bias voltage stability during transient grid events, while the ABB BAMU-01 branch monitoring unit provides branch-level current surveillance across the IGCT stack, enabling predictive fault isolation before a full drive trip occurs.

In water treatment and desalination pump drives, where continuous uptime is a regulatory requirement, facilities maintain on-shelf spares of the GDC780BE21 alongside the ABB IOEC-04 I/O extension module and ABB RMIO-11C motor control board to ensure that any single-point failure in the drive control layer can be remediated within a planned maintenance window rather than an emergency shutdown.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor and pump drives operating in Zone 2 hazardous areas, the GDC780BE21 ensures that the ACS6000 drive responds deterministically to emergency stop commands from the safety instrumented system (SIS). Gate drive faults are isolated within microseconds, preventing uncontrolled motor coast-down that could cause pressure surges in process pipelines.

Power Generation: In boiler feed pump drives and induced draft fan drives at thermal power stations, the module maintains gate signal integrity across full load swings from 10% to 110% rated current. Its fiber-optic signal architecture eliminates ground loop interference from high-voltage bus transients, which are endemic in generator step-up transformer environments.

Mining & Minerals: Hoist and conveyor drives in underground mines demand zero-tolerance for spurious gate firing. The GDC780BE21’s real-time desaturation detection prevents IGCT latch-up under blocked-rotor conditions, protecting both the drive and the mechanical brake system from simultaneous failure — a scenario with direct personnel safety implications.

Metallurgy & Steel: Rolling mill main drives experience extreme cyclic loading and frequent regenerative braking. The gate drive module’s ability to handle rapid current reversal commands without timing jitter is essential for maintaining strip thickness tolerances and preventing cobble events on the rolling line.

Water & Wastewater: Municipal water authorities operating large centrifugal pump drives rely on the ACS6000 platform for its energy efficiency and soft-start capability. The GDC780BE21 ensures that pump drives restart cleanly after grid disturbances, avoiding water hammer events in distribution mains.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB 3BHE004468R0021 GDC780BE21?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects under normal operating conditions. Each module undergoes pre-shipment functional verification including gate signal output testing, isolation resistance measurement, and visual inspection for component integrity. Warranty claims are supported with direct technical assistance and expedited replacement dispatch.

Q2: How is the module tested before shipment?
Every 3BHE004468R0021 GDC780BE21 unit is bench-tested against ABB’s original functional specification prior to dispatch. Testing covers gate pulse timing accuracy, auxiliary power supply regulation, fiber-optic transceiver performance, and fault output signal verification. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all ACS6000 drive variants?
The GDC780BE21 is designed for the ABB ACS6000 medium-voltage drive platform and is compatible with IGCT-based power stacks in the standard ACS6000 cabinet configuration. Compatibility with specific drive ratings and firmware revisions should be confirmed against the drive’s hardware revision documentation. SMARTNEXMSK technical staff can assist with cross-referencing your drive’s serial number and hardware BOM.

Q4: Can long-term supply continuity be guaranteed for this spare part?
SMARTNEXMSK maintains dedicated inventory of ABB ACS6000 series spare modules, including the 3BHE004468R0021 GDC780BE21, to support facilities with long equipment lifecycle requirements. For plants operating ACS6000 drives beyond the standard product support window, we offer scheduled procurement agreements to ensure spare availability aligned with planned maintenance intervals. Contact our team to discuss volume and lead-time commitments.
