ABB 3BHE004573R0142 Maintenance-Ready Spare for UFC760

ABB 3BHE004573R0142 Maintenance-Ready Spare for UFC760 Automation

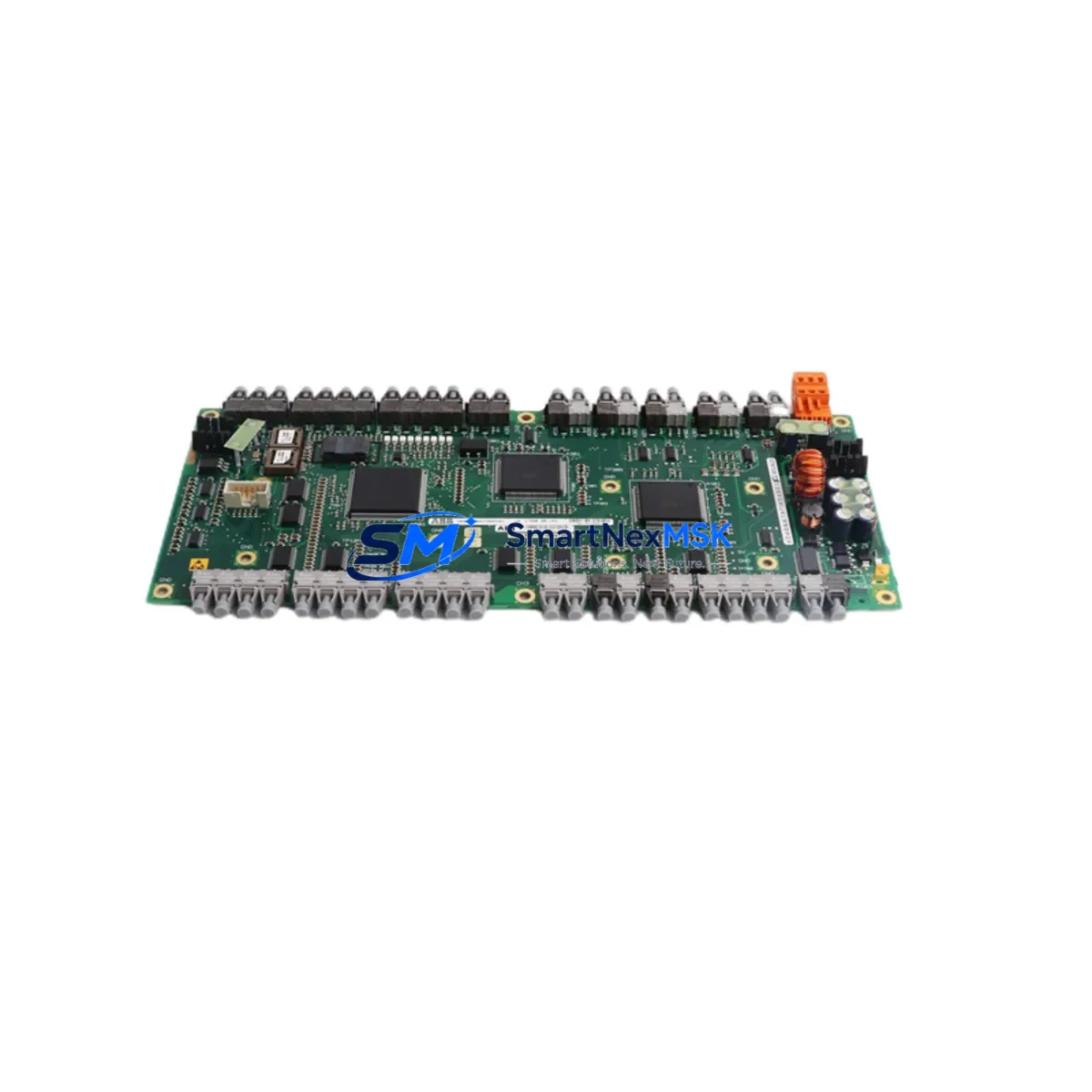

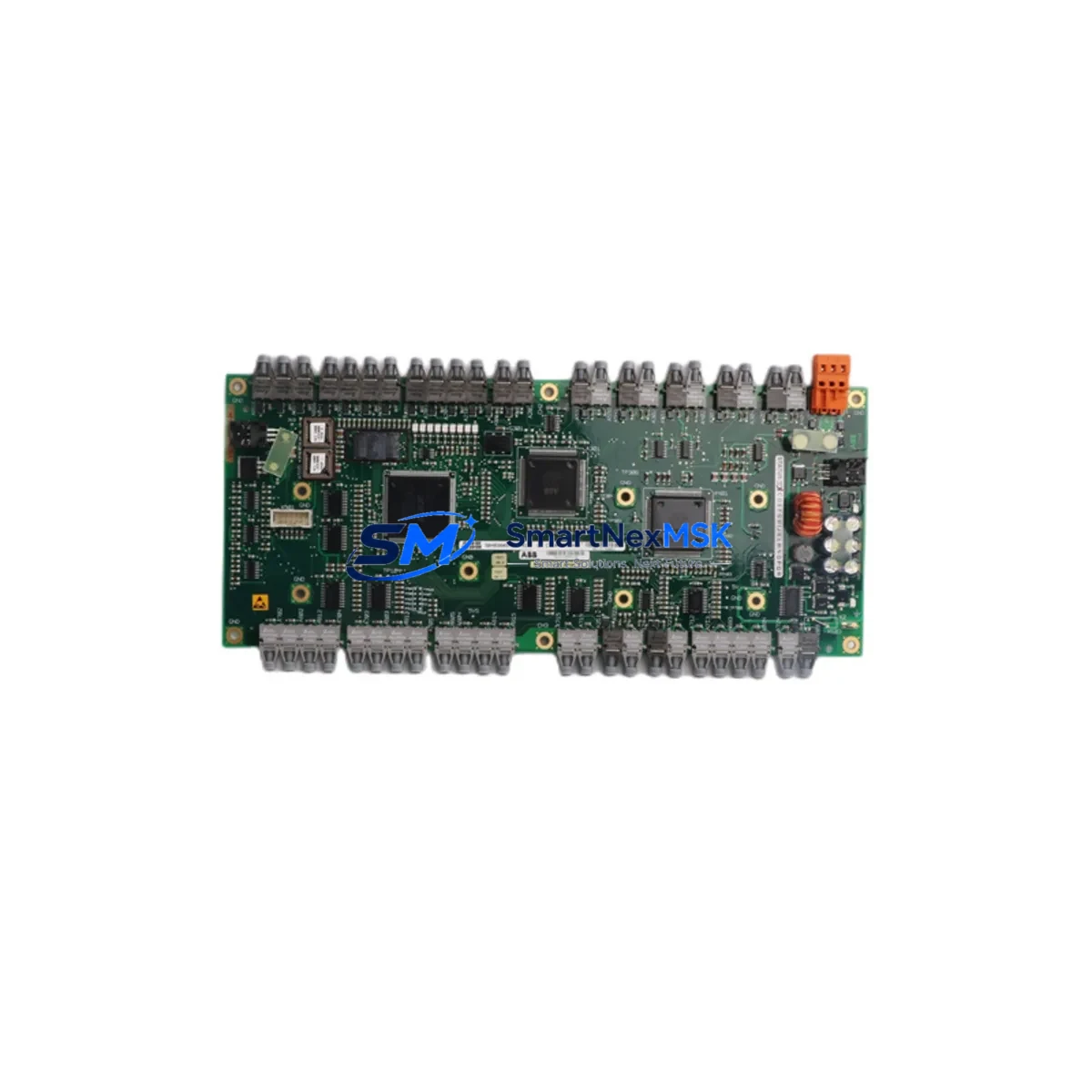

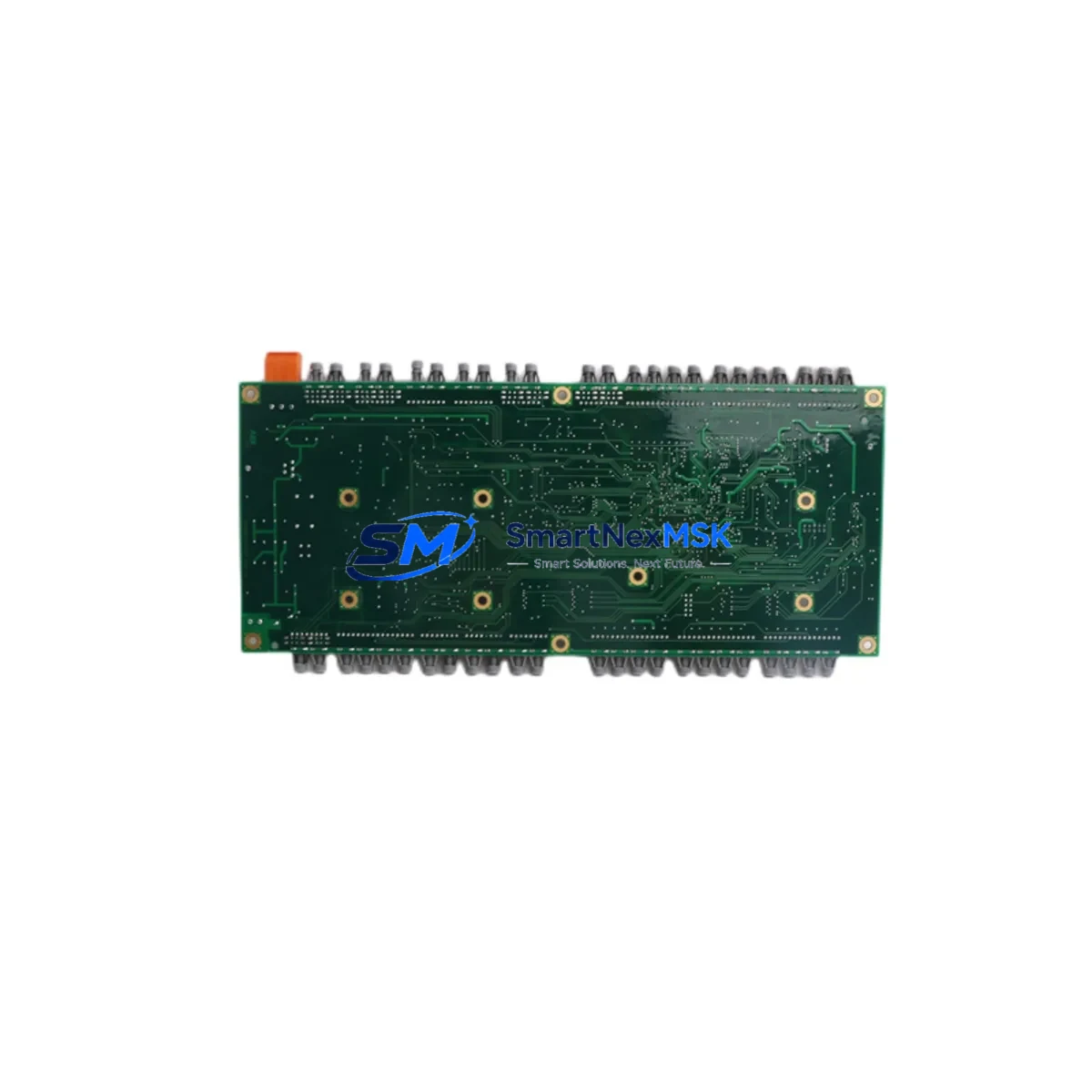

The ABB 3BHE004573R0142 — also referenced as UFC760 BE142 — is an original DDCS (Distributed Drive Control System) fiber optic interface board engineered for ABB’s AC800M controller platform and ACS800 industrial drive series. In high-availability production environments, this board serves as the critical communication bridge between the drive control unit and the fiber optic fieldbus backbone. Its failure directly interrupts drive coordination, triggering unplanned downtime that can cascade across entire process lines. Stocking a verified replacement is the single most effective measure a maintenance team can take to compress mean time to repair (MTTR) for this failure mode.

At SMARTNEXMSK, every 3BHE004573R0142 unit is sourced from authorized supply channels, subjected to functional bench testing prior to dispatch, and covered by a 12-month warranty. Units ship with original packaging and full traceability documentation, supporting your incoming inspection and asset-management records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 3BHE004573R0142 UFC760 BE142 board, the scope of inspection should extend beyond the board itself. The DDCS fiber optic interface sits at the intersection of several interdependent subsystems, and a thorough site assessment prevents repeat failures and reduces the risk of a second unplanned outage.

Power supply integrity is the first checkpoint. The AC800M backplane distributes logic power to all installed modules; a degraded PM860 or PM861 processor module power rail can stress interface boards and cause intermittent DDCS link drops that mimic board failure. Verify backplane voltage rails with a calibrated meter before installing the replacement UFC760 BE142.

Fiber optic cabling and connectors deserve equal attention. DDCS networks use plastic or glass fiber in a ring topology; contaminated or cracked connectors on the NDBU-95 or NDBU-12 branching unit will prevent the new board from establishing a stable link. Clean all fiber terminations with an appropriate IEC 61300-3-35 compliant kit and inspect for bend-radius violations in cable routing.

I/O and signal modules in the same control cabinet should be logged during the outage window. ABB DI810, DO810, AI810, and AO810 I/O modules share the same S800 I/O bus infrastructure; a cabinet inspection is the right moment to check module status LEDs, reseat any modules showing fault indicators, and record firmware versions for the next planned maintenance cycle.

Communication and fieldbus modules warrant a parallel review. If the ACS800 drive communicates upstream via PROFIBUS (RPBA-01) or PROFINET (RETA-02) adapter boards, confirm that these adapters are seated correctly and that their fiber or copper links to the PLC/DCS are error-free. A UFC760 replacement is an ideal opportunity to audit the entire drive communication chain.

Relay output and protection circuits connected to the drive’s fault relay — typically wired through terminal blocks (e.g., Phoenix Contact or Weidmüller DIN-rail terminals) — should be inspected for loose terminations, corrosion, or thermal discoloration. Loose relay wiring is a common secondary fault that surfaces only after a primary board replacement restores drive operation.

Finally, if the control cabinet houses an ABB CP600 or CP620 HMI panel, verify that the HMI communication parameters (node address, baud rate) still match the restored drive configuration. Parameter mismatches after a board swap are a frequent cause of post-maintenance commissioning delays.

Site Replacement Workflow

Step 1 — Isolation and lockout/tagout (LOTO): De-energize the ACS800 drive and the AC800M controller cabinet following your site LOTO procedure. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after power-off, or verify with a voltmeter).

Step 2 — Document existing configuration: Before removing the UFC760 BE142, photograph the fiber optic connector routing and record the DDCS node address set on the board’s DIP switches or parameter memory. This eliminates configuration ambiguity during reinstallation.

Step 3 — Board removal: Release the board retaining latch, disconnect fiber optic connectors (cap immediately to prevent contamination), and extract the board from the backplane slot. Handle by edges only — avoid touching the fiber optic transceiver lens.

Step 4 — Replacement installation: Insert the 3BHE004573R0142 replacement into the same backplane slot. Reconnect fiber optic cables in the correct port sequence (TX→RX cross-connection). Set DIP switches to match the documented node address.

Step 5 — Power-up and link verification: Restore power and observe the UFC760 BE142 status LEDs. A solid green DDCS link LED confirms successful ring establishment. Use ABB DriveWindow or Control Builder M to verify that all drive nodes appear on the DDCS network before releasing the system to production.

Step 6 — Functional test and handover: Run a no-load functional test of the drive, confirm I/O response, and log the replacement in your CMMS (Computerized Maintenance Management System) with the new board’s serial number and installation date.

Spare Parts Support FAQ

Q1: Is the 3BHE004573R0142 compatible with both AC800M and ACS800 platforms?
Yes. The UFC760 BE142 board is designed for use across ABB’s AC800M controller family and ACS800 drive series that employ DDCS fiber optic communication. Always cross-reference your system’s firmware version against ABB’s compatibility matrix — SMARTNEXMSK’s technical team can assist with verification before order confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 3BHE004573R0142 unit undergoes a functional bench test that confirms DDCS link establishment, fiber transceiver output power, and board power consumption within ABB specification. A test report is available upon request and ships with the unit.

Q3: How should I manage long-term spare parts inventory for aging UFC760-based systems?
For systems beyond ABB’s active production lifecycle, we recommend holding a minimum of one cold-standby UFC760 BE142 per control cabinet. SMARTNEXMSK maintains a dedicated buffer stock of 3BHE004573R0142 to support long-term supply continuity. Contact our team to discuss a blanket order or consignment arrangement that aligns with your planned maintenance schedule.

Q4: What does the 12-month warranty cover?
The warranty covers functional defects arising under normal operating conditions — including DDCS communication failure, fiber transceiver degradation, and board power faults — for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize your downtime exposure.
