ABB 3BHE012049R0101 Maintenance-Ready Spare for AC800M Automation

ABB 3BHE012049R0101 Maintenance-Ready Spare for AC800M Automation

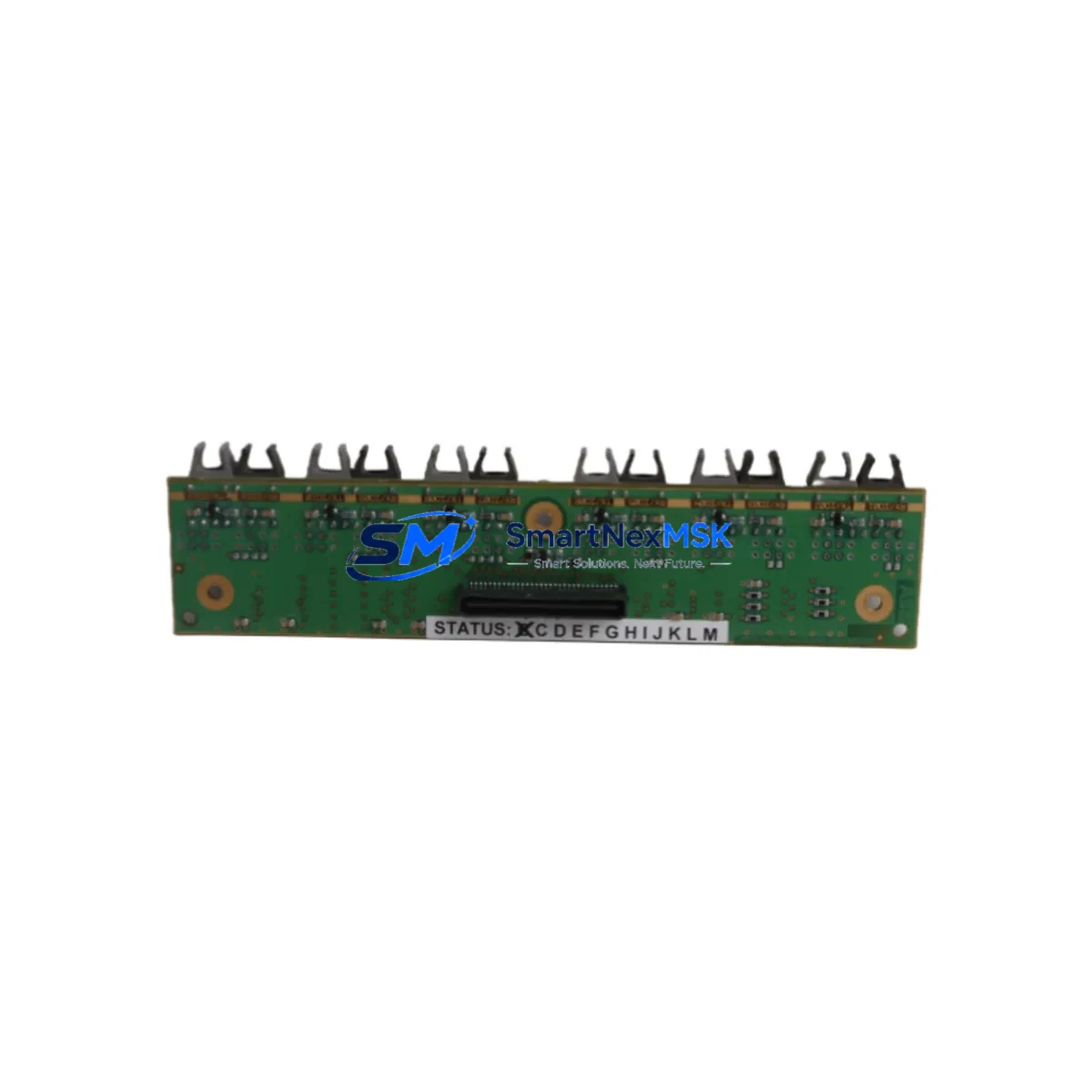

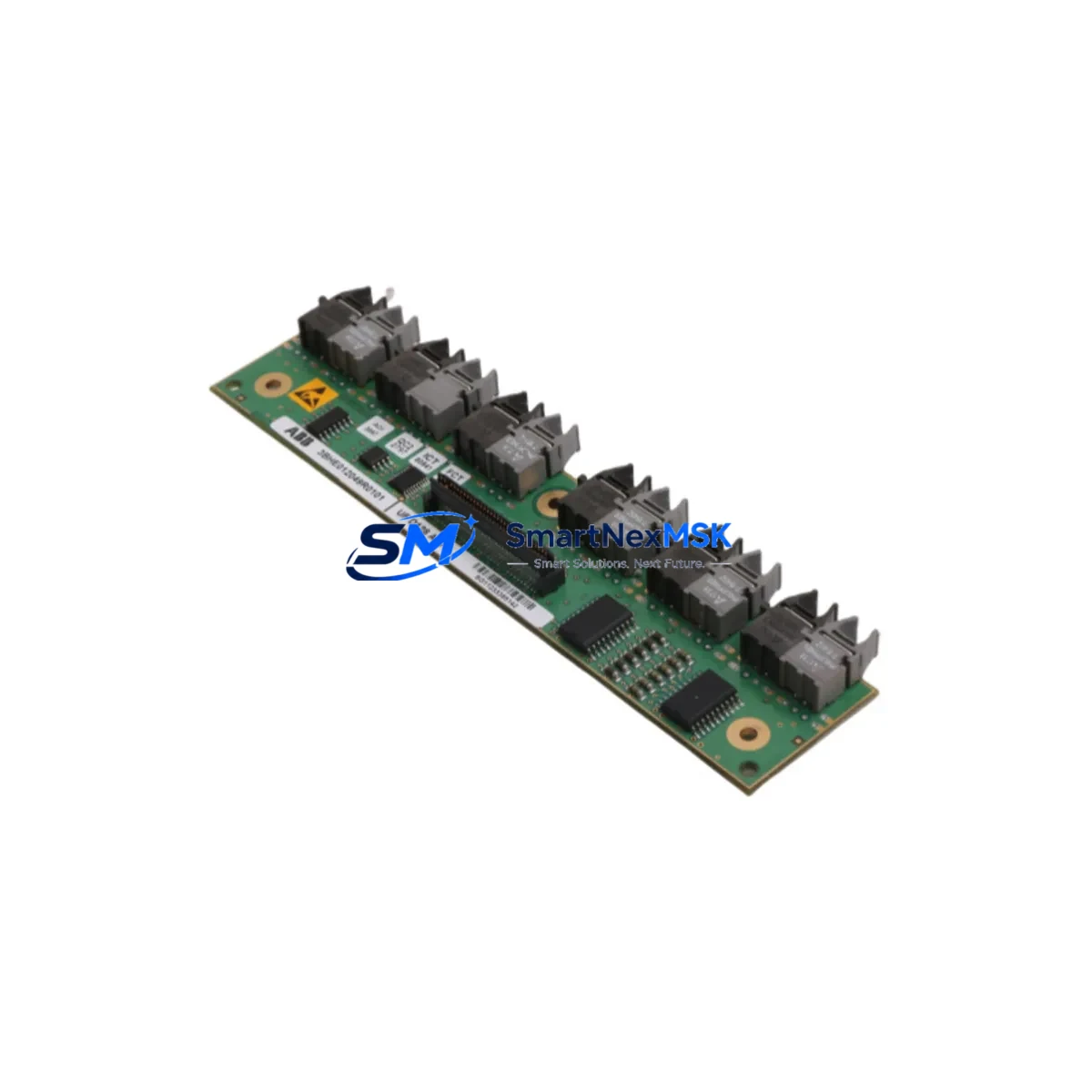

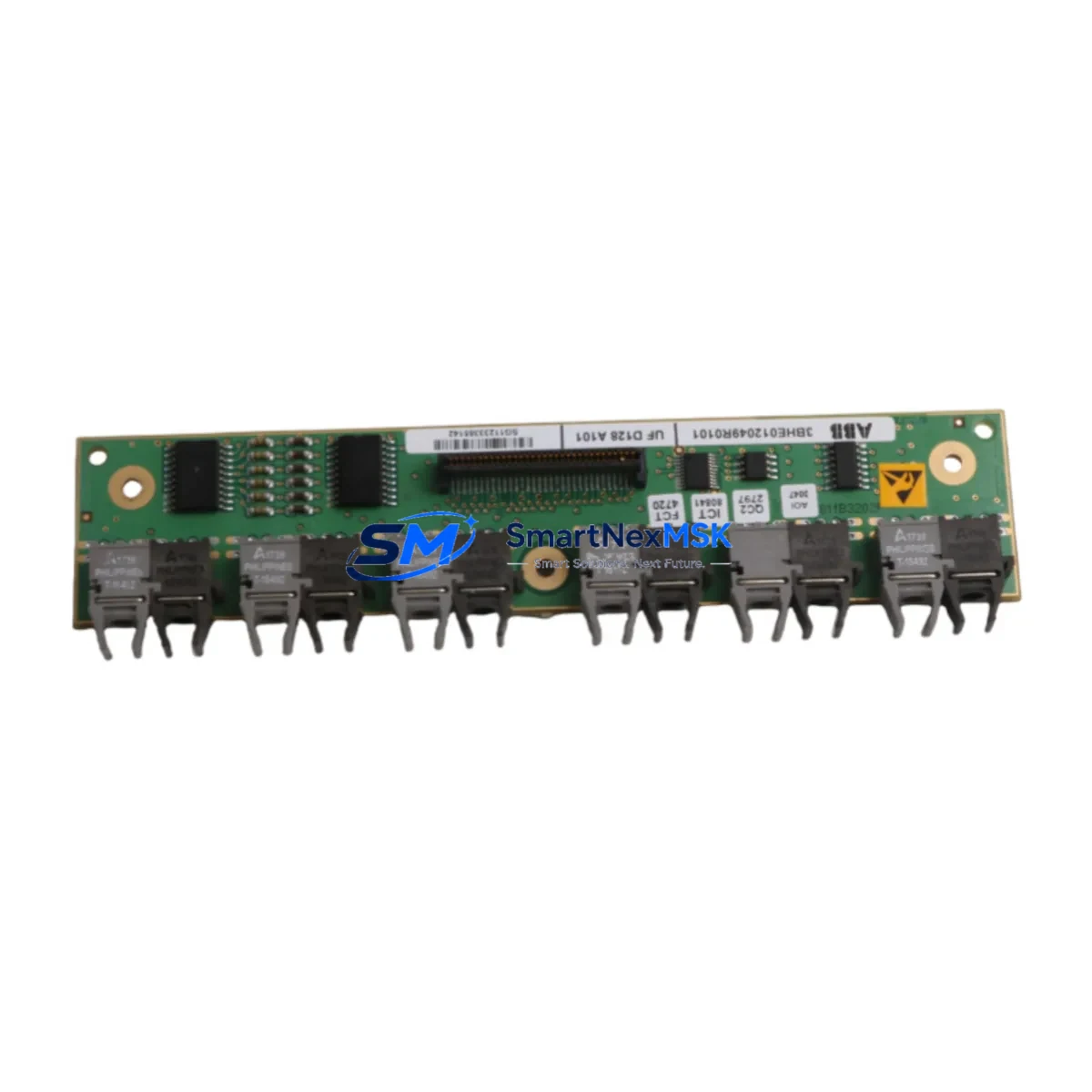

The ABB 3BHE012049R0101 (UFD128A101) is an original fiber optic communication module engineered for the ABB AC800M Distributed Control System (DCS). In process industries where continuous operation is non-negotiable — oil & gas, power generation, chemical processing, and pulp & paper — this module serves as a critical link in the high-speed optical data bus that connects controllers, I/O clusters, and supervisory systems. Holding a verified spare in your maintenance inventory is one of the most cost-effective strategies for eliminating unplanned downtime caused by fiber optic link failures.

Sourced directly from authorized supply chains and subjected to pre-shipment functional verification, every unit shipped by SMARTNEXMSK carries a 12-month warranty and is accompanied by full traceability documentation. Whether you are executing a planned turnaround, responding to an emergency fault, or building a strategic spare parts buffer for an aging AC800M installation, the 3BHE012049R0101 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a fiber optic communication fault is detected in an AC800M system — whether through a controller diagnostic alarm, a loss-of-communication event on the Modulebus, or a physical inspection during a scheduled outage — the replacement of the 3BHE012049R0101 module is rarely an isolated task. Experienced maintenance engineers know that a single fiber link failure can mask or be caused by upstream and downstream issues across the control cabinet.

Before or alongside replacing the UFD128A101, a thorough site inspection should include the following components and assemblies:

• AC800M Controller Modules (PM856 / PM860 / PM864): Verify the host controller’s firmware revision and backplane connector integrity. A degraded controller module can cause repeated fiber communication faults even after module replacement.
• S800 I/O Modules (AI810, AO810, DI810, DO810): Confirm that all I/O modules on the affected Modulebus segment are responding correctly after the fiber link is restored. Latent I/O faults may surface once communication is re-established.
• TB820 / TB840 Modulebus Optical Port Units: These termination units sit at the I/O cluster end of the fiber link. Inspect for physical damage, contaminated ST connectors, and correct optical power budget.
• 24 V DC Power Supply Modules (SD821 / SD822 / SD823): Unstable backplane supply voltage is a common root cause of intermittent fiber communication errors. Measure output voltage under load and check for ripple exceeding specification.
• Fiber Optic Patch Cables and Trunk Cables: Inspect all ST-to-ST jumpers for bend radius violations, connector contamination, and physical damage at cable entry points. A dirty or cracked fiber end-face is the most frequent cause of optical link degradation.
• CI854 / CI857 PROFIBUS / Industrial Ethernet Communication Interfaces: If the AC800M system uses fieldbus communication in parallel with the Modulebus, verify that PROFIBUS DP or Industrial Ethernet links remain stable during and after the fiber module swap.
• TP830 / TP854 Terminal Panels and Wiring Marshalling: Check terminal block torque values and inspect for loose field wiring that may have contributed to I/O signal anomalies during the communication fault period.
• 800xA System Software and Controller Configuration Backup: Before any hardware replacement, ensure a current controller configuration backup exists in the 800xA engineering station. Confirm the replacement module is recognized by the system without requiring a full controller restart where possible.
• UPS and Cabinet Cooling Systems: Verify that the control cabinet UPS is holding charge and that cabinet cooling fans are operational. Thermal stress is a leading cause of premature fiber optic module failure in high-ambient-temperature installations.

Proactive inspection of these interconnected components during a planned replacement of the 3BHE012049R0101 transforms a reactive repair into a comprehensive preventive maintenance event, significantly reducing the probability of a repeat fault within the next maintenance cycle.

Site Replacement Workflow

Replacing the ABB 3BHE012049R0101 UFD128A101 in a live AC800M installation requires a structured approach to minimize control system disruption and ensure a clean handover back to operations.

1. Pre-Replacement Verification: Confirm the replacement module part number matches 3BHE012049R0101 exactly. Cross-reference with the AC800M system documentation and the installed hardware list in the 800xA project. Verify that the firmware version of the replacement module is compatible with the installed controller firmware.
2. System State Documentation: Record all active alarms, controller status, and Modulebus diagnostics before beginning work. Take a screenshot or printout of the 800xA hardware topology view showing the affected communication path.
3. Safe Isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. For hot-swap capable slots, confirm with the system documentation whether the UFD128A101 supports online replacement without controller restart. If not, coordinate a controlled shutdown window with operations.
4. Physical Replacement: Clean the fiber ST connectors on both the new module and the patch cables using an approved fiber optic cleaning tool before insertion. Seat the module firmly in the backplane slot and secure the locking mechanism.
5. Post-Replacement Commissioning: Monitor the 800xA hardware status display for Modulebus link restoration. Confirm all I/O modules on the affected segment return to normal communication status. Verify process values are reading correctly at the operator station before releasing the system to operations.
6. Documentation Update: Record the replacement in the site maintenance management system (CMMS), including the old module serial number, new module serial number, date, technician, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement spare.

SMARTNEXMSK supports long-term supply continuity for legacy and current-generation AC800M components. For sites managing extended system lifecycles beyond the original ABB product support window, maintaining a pre-qualified spare of the 3BHE012049R0101 eliminates the risk of extended lead times during a critical fault event.

Spare Parts Support FAQ

Q1: Is the 3BHE012049R0101 compatible with all AC800M controller variants?
The UFD128A101 fiber optic module is designed for the AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 series controllers. Compatibility with specific firmware revisions should be confirmed against the ABB AC800M hardware compatibility matrix. SMARTNEXMSK can assist with compatibility verification prior to order confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 3BHE012049R0101 unit undergoes functional verification before dispatch, including optical transmit and receive power level measurement, backplane interface continuity check, and visual inspection of fiber connectors and module housing. A test report is available upon request. All units are shipped with ESD-protective packaging and fiber connector dust caps installed.

Q3: How should I manage spare parts inventory for an AC800M system approaching end-of-support?
For AC800M installations in the extended lifecycle phase, we recommend maintaining a minimum of one UFD128A101 spare per fiber-connected controller cluster, with additional spares proportional to the number of Modulebus segments in the system. Pairing this with spares for the TB820 Modulebus Optical Port Unit and the SD822 24 V DC power supply module provides a robust buffer against the most common hardware failure modes. SMARTNEXMSK offers long-term supply agreements to lock in pricing and availability for multi-year maintenance programs.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or contamination. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference, module serial number, and a description of the fault. SMARTNEXMSK will arrange return shipping and provide a replacement or full refund within an agreed timeframe.
