ABB 3BHE013299R0002 Spare for LTC743 Series Automation: Spare Replacement & Industrial Downtime Risk Control

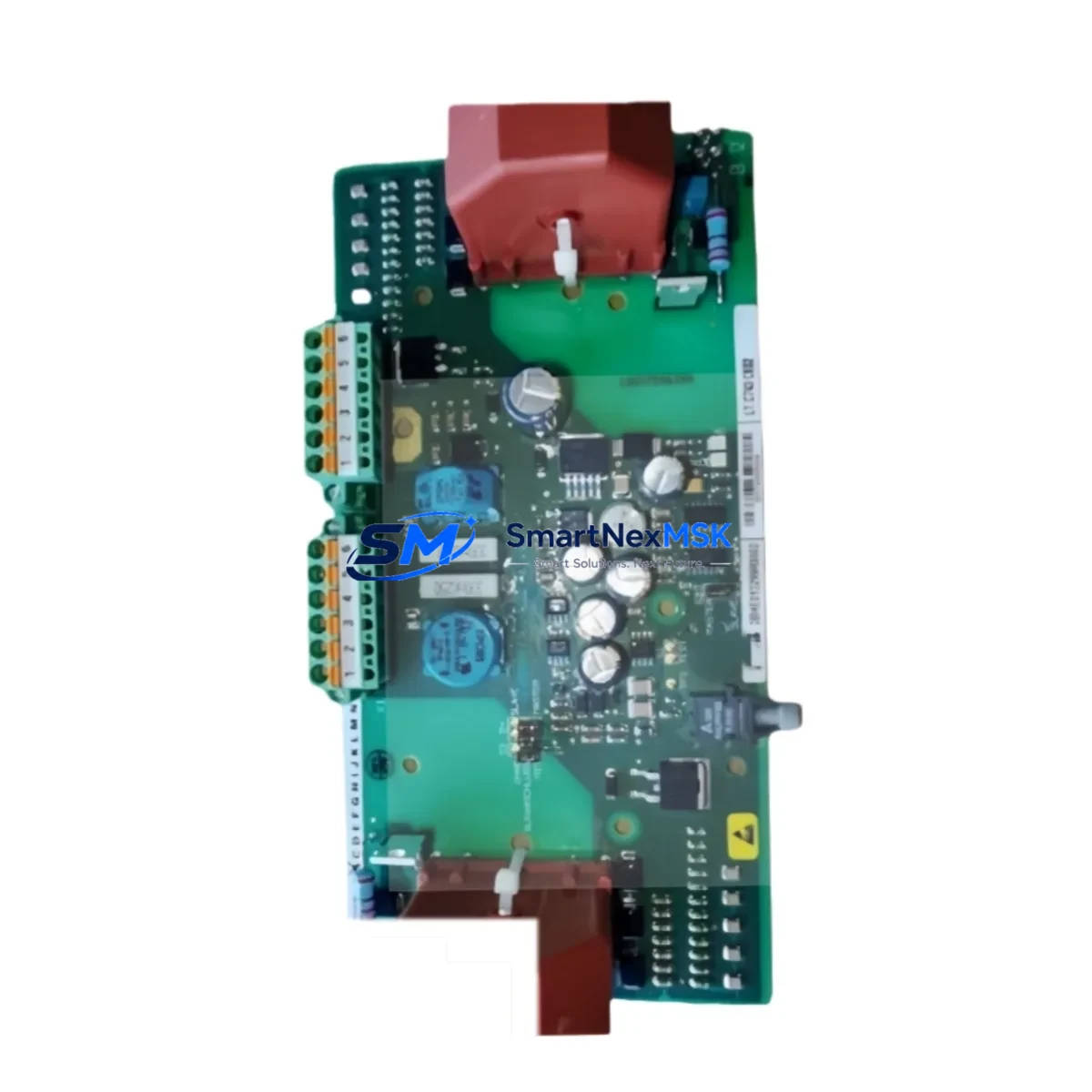

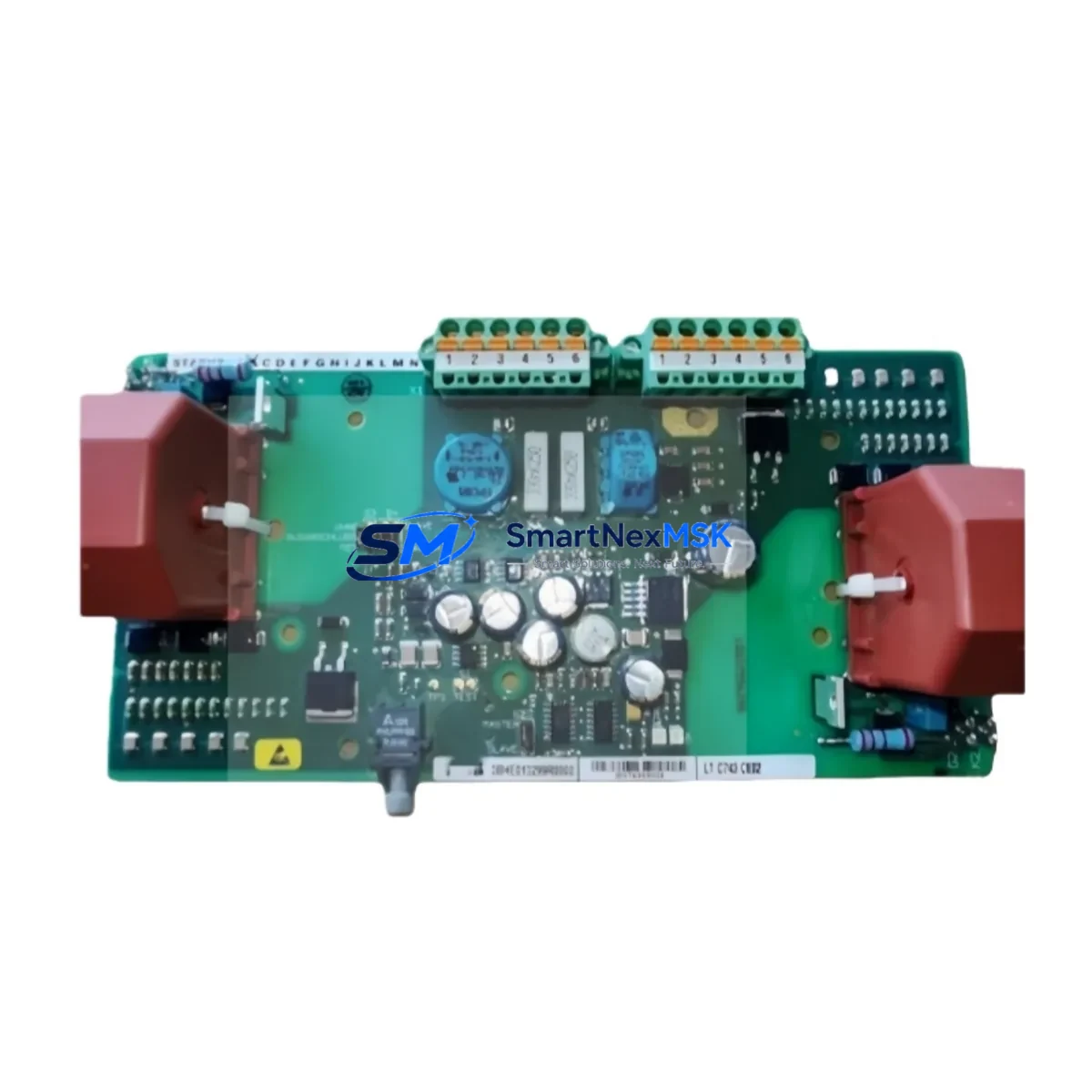

The ABB 3BHE013299R0002 is an original drive control board designed for the LTC743 CE02 platform, widely deployed in ABB ACS and DCS drive systems across heavy industrial environments including steel mills, paper mills, chemical plants, water treatment facilities, and offshore installations. As a maintenance-ready spare, this board is essential for any facility running ABB medium-voltage or low-voltage drive systems where unplanned downtime carries significant operational and financial risk.
Sourced from verified ABB supply channels, each unit undergoes functional inspection and power-on testing prior to dispatch. With a 12-month warranty and same-week shipping capability, the 3BHE013299R0002 is positioned as a critical line item in any proactive spare parts inventory strategy for ABB drive systems.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 3BHE013299R0002 |
| Board Designation | LTC743 CE02 |
| Manufacturer | ABB |
| Country of Origin | Germany (DE) |
| Product Type | Drive Control Board |
| Compatible Systems | ABB ACS Series, DCS800, ACS800, ACS600 drive platforms |
| Application Environment | Industrial automation, variable speed drives, process control |
| Mounting | Backplane / drive cabinet rack-mount |
| Condition | Original, tested, verified functional |
| Pre-shipment Testing | Power-on functional test, visual inspection |
| Warranty | 12 Months |
| Lead Time | In-stock, ships within 3–5 business days |
| Packaging | Anti-static ESD packaging, foam-protected |
| Weight | Approx. 500 g |
| Maintenance Recommendation | Replace at first sign of drive fault codes, thermal stress, or communication loss; inspect every 24 months in high-cycle environments |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer identifies the ABB 3BHE013299R0002 LTC743 as a replacement requirement, the replacement event should be treated as a broader system health checkpoint — not an isolated board swap. Drive control board failures in ABB ACS and DCS systems are frequently symptomatic of upstream or downstream component stress that, if left unaddressed, will cause repeat failures within weeks.
During the same maintenance window, engineers should inspect and verify the condition of the ABB SDCS-CON-4 control board and SDCS-POW-4 power supply board, which share the same control cabinet and are subject to the same thermal and electrical load cycles. The ABB AINT-02C fiber optic interface board should also be checked for signal integrity, as communication faults between the control board and the inverter section are a common secondary failure mode.
On the power distribution side, inspect the 24 VDC auxiliary power supply module feeding the control logic section — voltage ripple or brownout conditions are a leading cause of premature control board failure. Fuse holders and NH-type semiconductor fuses in the DC bus section should be visually inspected and replaced if discoloration or thermal marking is present.
I/O integrity is equally critical. Verify all digital input/output terminal blocks (typically Phoenix Contact or equivalent) for loose terminations, oxidation, or insulation breakdown. If the drive is connected to a PROFIBUS DP or Modbus RTU communication network, the RPBA-01 PROFIBUS adapter or equivalent fieldbus module should be tested for correct node addressing and signal quality. Signal isolators on analog speed reference inputs (4–20 mA or 0–10 V) should be checked for drift.
For facilities running older ABB drive cabinets, the RMIO-11C or RMIO-02C main control boards in adjacent drive units should be flagged for condition assessment if they share the same vintage as the failed 3BHE013299R0002. Aging control boards in the same production line often fail within similar timeframes due to shared environmental exposure. Stocking a secondary spare of the 3BHE013299R0002 alongside an ABB APOW-01C auxiliary power board is a recommended practice for facilities with zero-tolerance downtime requirements.
HMI connectivity should also be verified post-replacement: confirm that the ABB Panel Bus or ACS drive keypad (CDP312R) correctly reads drive parameters and that no parameter reset has occurred due to the board exchange. Re-upload the drive parameter backup file before returning the system to production.
Site Replacement Workflow
Step 1 — Isolation & Lockout: Follow site LOTO (Lockout/Tagout) procedures. Isolate the drive from mains supply and allow the DC bus to fully discharge (minimum 5 minutes after isolation, verify with a calibrated multimeter).
Step 2 — Parameter Backup: Before removing the existing 3BHE013299R0002, confirm that a full parameter backup has been saved to the drive keypad memory or an external PC tool (ABB DriveWindow or DriveStudio). This is non-negotiable — parameter loss will extend downtime significantly.
Step 3 — Board Removal: Disconnect all ribbon cables, fiber optic links, and connector harnesses from the LTC743 board in sequence. Label each connector if not already marked. Remove the board from the backplane using the appropriate extraction tool to avoid pin damage.
Step 4 — Inspection of Mating Connectors: Before installing the replacement 3BHE013299R0002, inspect all mating connectors on the backplane for bent pins, corrosion, or debris. Clean with isopropyl alcohol if required.
Step 5 — Installation: Seat the new board firmly into the backplane. Reconnect all cables in reverse order of removal. Verify fiber optic connections are fully seated and latched.
Step 6 — Parameter Restore & Commissioning: Power up the drive in local control mode. Restore the parameter backup. Verify drive ID, motor data, and control mode settings. Run a no-load test before returning to process control.
Step 7 — Documentation: Record the replacement in the site maintenance log with the new board serial number, installation date, and technician sign-off. Update the spare parts inventory to trigger reorder of a replacement spare.
Spare Parts Support FAQ
Q1: Is the ABB 3BHE013299R0002 compatible with both ACS800 and DCS800 drive platforms?
The LTC743 CE02 board is primarily associated with ABB’s medium and low-voltage drive control architecture. Compatibility should be confirmed against the drive’s hardware revision and software version. We recommend providing your drive’s full nameplate data when ordering to allow cross-reference verification before shipment.
Q2: What testing is performed before the 3BHE013299R0002 is shipped?
Each unit undergoes a power-on functional test and full visual inspection for component damage, solder joint integrity, and connector condition. Units that do not pass inspection are not offered for sale. A test report summary is available upon request for critical applications.
Q3: How should the 3BHE013299R0002 be stored as a long-term spare?
Store in original ESD anti-static packaging in a climate-controlled environment: temperature 15–25°C, relative humidity below 60%, away from direct sunlight and magnetic fields. Inspect annually and perform a power-on test every 24 months if the spare remains unused. Shelf life under proper storage conditions exceeds 5 years.
Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or operation outside specified environmental parameters. In the event of a warranty claim, contact our technical team with the installation date, fault description, and drive system details for rapid assessment and replacement dispatch.
