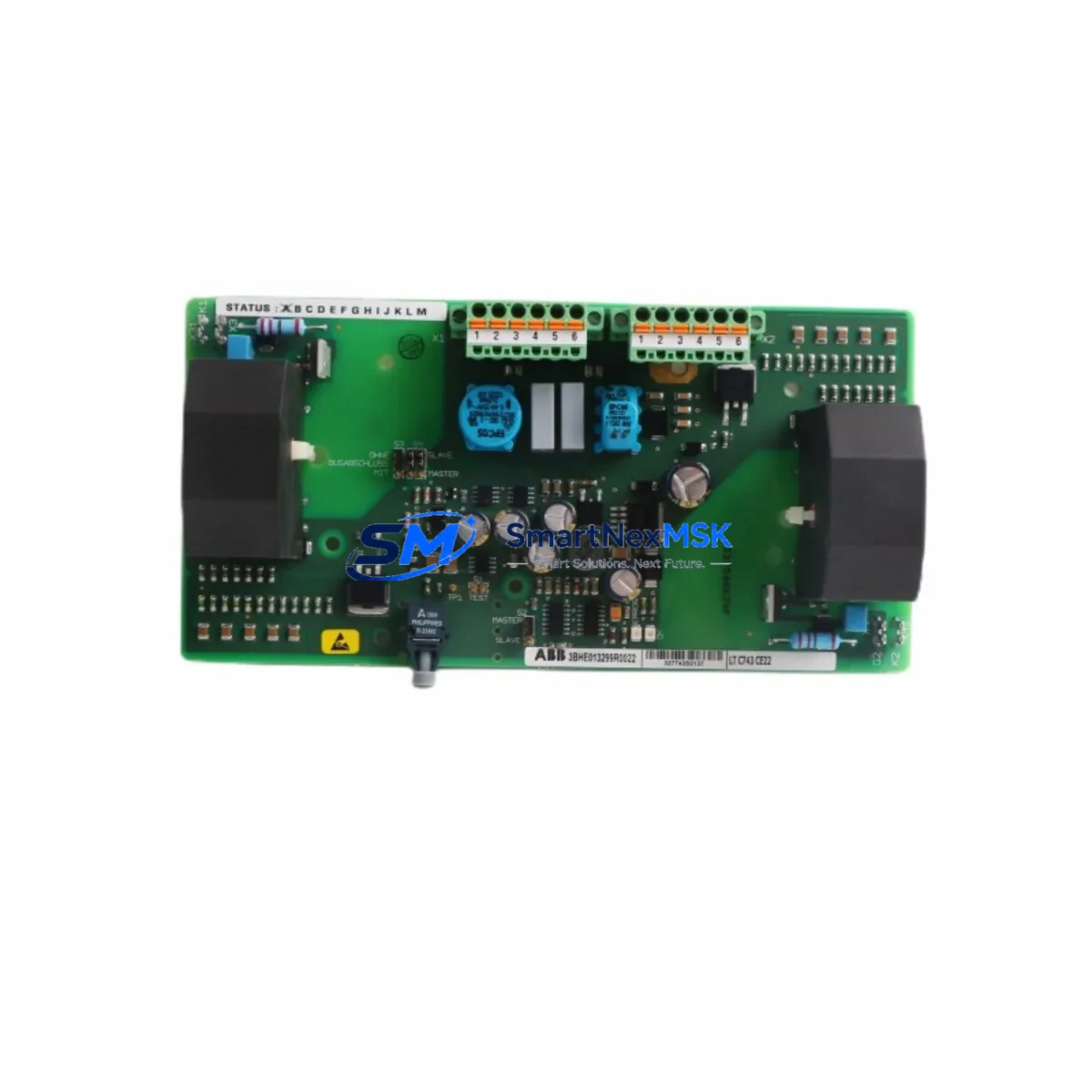

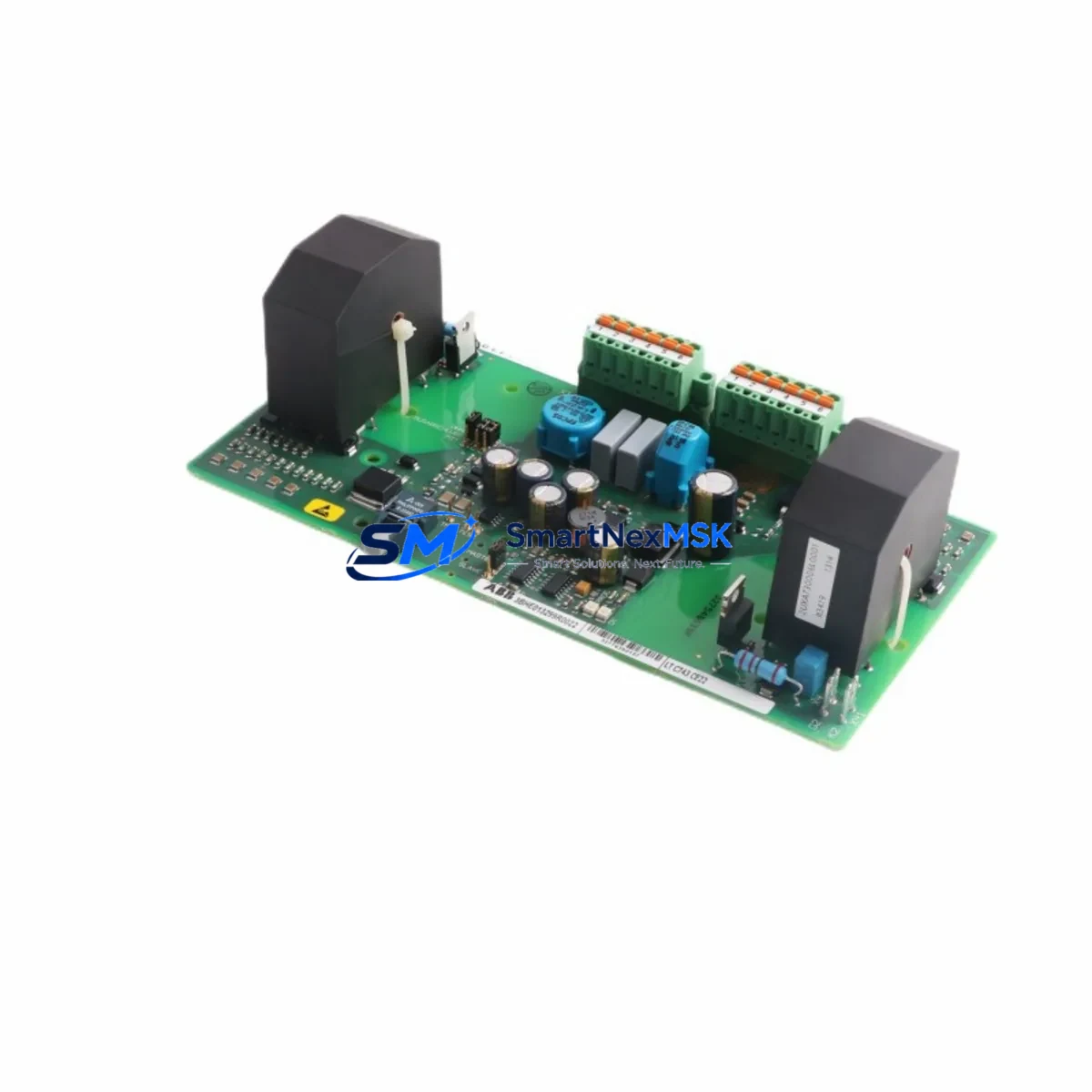

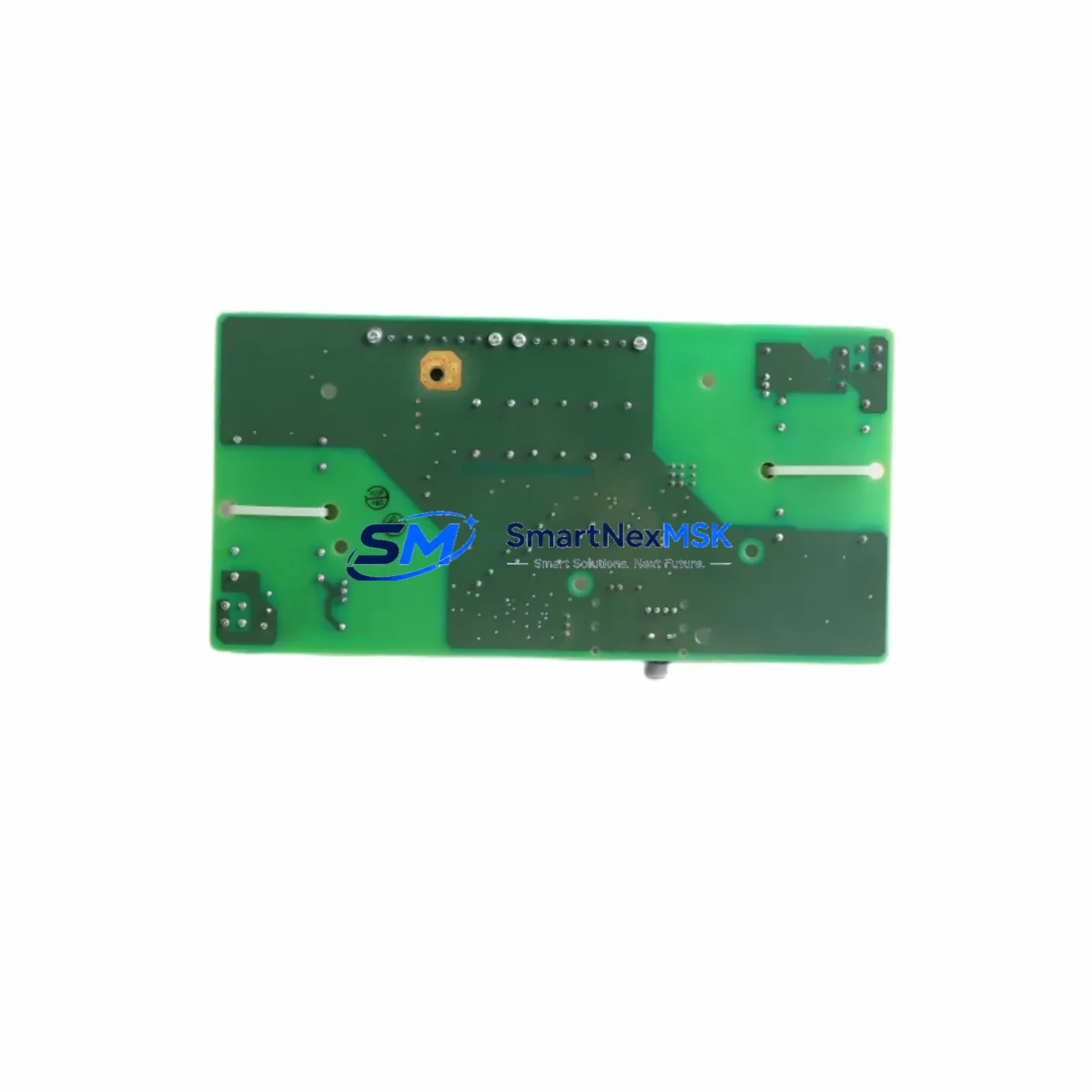

ABB 3BHE013299R0022 LTC743 CE22 Safety Gate Driver

ABB 3BHE013299R0022 LTC743 CE22 Safety Gate Driver: Reliable Control for Harsh Industrial Sites

The ABB 3BHE013299R0022 LTC743 CE22 is a ruggedized gate driver module engineered for mission-critical industrial drive systems operating in high-interference, high-load, and continuous-production environments. Designed as a core component of ABB’s ACS800 series medium-voltage variable frequency drives, this module governs IGBT switching with precision timing and robust fault isolation — making it indispensable in control cabinets where unplanned downtime carries serious safety and financial consequences.

In heavy industrial settings — petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port logistics systems — the gate driver sits at the heart of motor control safety. Any failure in gate signal integrity can cascade into IGBT overcurrent events, drive trips, or uncontrolled motor runaway. The 3BHE013299R0022 LTC743 CE22 addresses these risks through hardened signal isolation, stable power supply rejection, and fast fault response circuitry that protects both the drive and the connected process.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered ACS800 drive cabinet, the 3BHE013299R0022 LTC743 CE22 gate driver does not operate in isolation — it functions as part of a layered protection architecture. The gate driver interfaces directly with the ABB AINT-02C fiber optic interface board, which transmits pulse-width modulation signals from the control unit to the power stage with complete galvanic isolation, eliminating ground loop interference that is common in high-current industrial environments.

Upstream, the ABB APOW-01C power supply board provides regulated auxiliary voltages to the gate driver and control electronics. Voltage ripple or dropout on this supply can cause erratic gate switching — a risk that the LTC743 CE22 mitigates through its internal power conditioning, but which is best eliminated at the source by maintaining a healthy APOW-01C. Similarly, the ABB AINT-02C and RDCU-02C control unit must be in stable condition to ensure that gate command signals arrive with correct timing and without corruption.

For drives operating in environments with significant harmonic distortion or capacitive load switching — such as those found in steel rolling mills or large pump stations — the ABB du/dt filter and ABB sine filter assemblies are recommended upstream of the motor terminals. These components reduce voltage stress on motor windings and minimize reflected wave effects that can otherwise stress the IGBT modules that the 3BHE013299R0022 is responsible for driving.

In safety interlock circuits, the gate driver works in conjunction with the ABB AGPS-21C gate power supply and the drive’s internal safe torque off (STO) logic. When an emergency stop or safety relay — such as those from the ABB Pluto safety PLC series — commands a drive shutdown, the gate driver must respond within microseconds to suppress IGBT firing and bring the motor to a controlled stop. The LTC743 CE22’s fast fault response circuitry is specifically designed to meet this requirement, making it a trusted component in safety-rated motor control loops.

For cabinet-level surge protection, pairing the drive system with ABB OVR surge protective devices at the incoming power terminals provides an additional layer of defense against lightning-induced transients and utility switching surges that could otherwise propagate into the gate driver circuitry.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where motor drives control compressors, pumps, and agitators in classified hazardous areas, the 3BHE013299R0022 LTC743 CE22 ensures that IGBT switching remains stable under high ambient temperatures and aggressive chemical atmospheres. Drive trips in these environments can trigger process upsets with serious safety implications, making gate driver reliability a plant-level safety requirement.

Power Generation & Utilities: Large-scale power plants rely on ACS800 drives for boiler feed pumps, induced draft fans, and cooling water systems. The gate driver’s ability to maintain precise switching under load transients and grid disturbances is critical to maintaining generation continuity. A failed gate driver in this context can force a unit trip, with cascading effects on grid stability.

Mining & Mineral Processing: Underground and surface mining operations subject drive systems to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the LTC743 CE22 makes it well-suited for conveyor drives, crusher motors, and hoist systems where replacement logistics are complex and downtime costs are high.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate drives continuously, often in humid, corrosive environments. The gate driver’s moisture tolerance and stable operation under partial load conditions make it reliable for pump and blower drive applications where process continuity is a public safety obligation.

Metallurgy & Steel Production: Rolling mills and electric arc furnace auxiliaries demand drives that can handle rapid load changes and high harmonic content. The 3BHE013299R0022’s fault isolation and desaturation detection protect IGBT stacks from the current spikes associated with these demanding load profiles.

Port & Logistics Automation: Container cranes, ship loaders, and conveyor systems in port environments operate in salt-laden, high-humidity air with frequent load reversals. The gate driver’s EMI hardening and robust signal isolation ensure reliable operation in these electrically noisy environments.

Safety and Quality FAQ

Q1: What warranty is provided with the ABB 3BHE013299R0022 LTC743 CE22?
A: Every unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical consultation, replacement coordination, and documentation assistance.

Q2: How is each unit tested before shipment?
A: All units undergo a full functional outgoing inspection prior to dispatch. Testing covers gate signal output integrity, isolation resistance, power supply rail verification, and fault detection circuit response. A test record is available upon request.

Q3: Is the 3BHE013299R0022 LTC743 CE22 compatible with all ACS800 drive variants?
A: This board is designed for the ABB ACS800 medium-voltage drive series. Compatibility depends on the specific drive frame size and firmware revision. We recommend confirming your drive’s exact model and software version before ordering. Our technical team can assist with cross-referencing.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
A: Yes. We maintain dedicated stock of the 3BHE013299R0022 LTC743 CE22 to support planned maintenance schedules, emergency replacements, and multi-unit procurement programs. For facilities managing large ACS800 fleets, we offer reserved stock arrangements and priority fulfillment to minimize exposure to lead-time risk.
