ABB 3BHE013299R0022 Maintenance-Ready Spare for AC800PEC Automation

ABB 3BHE013299R0022 Maintenance-Ready Spare for AC800PEC Automation

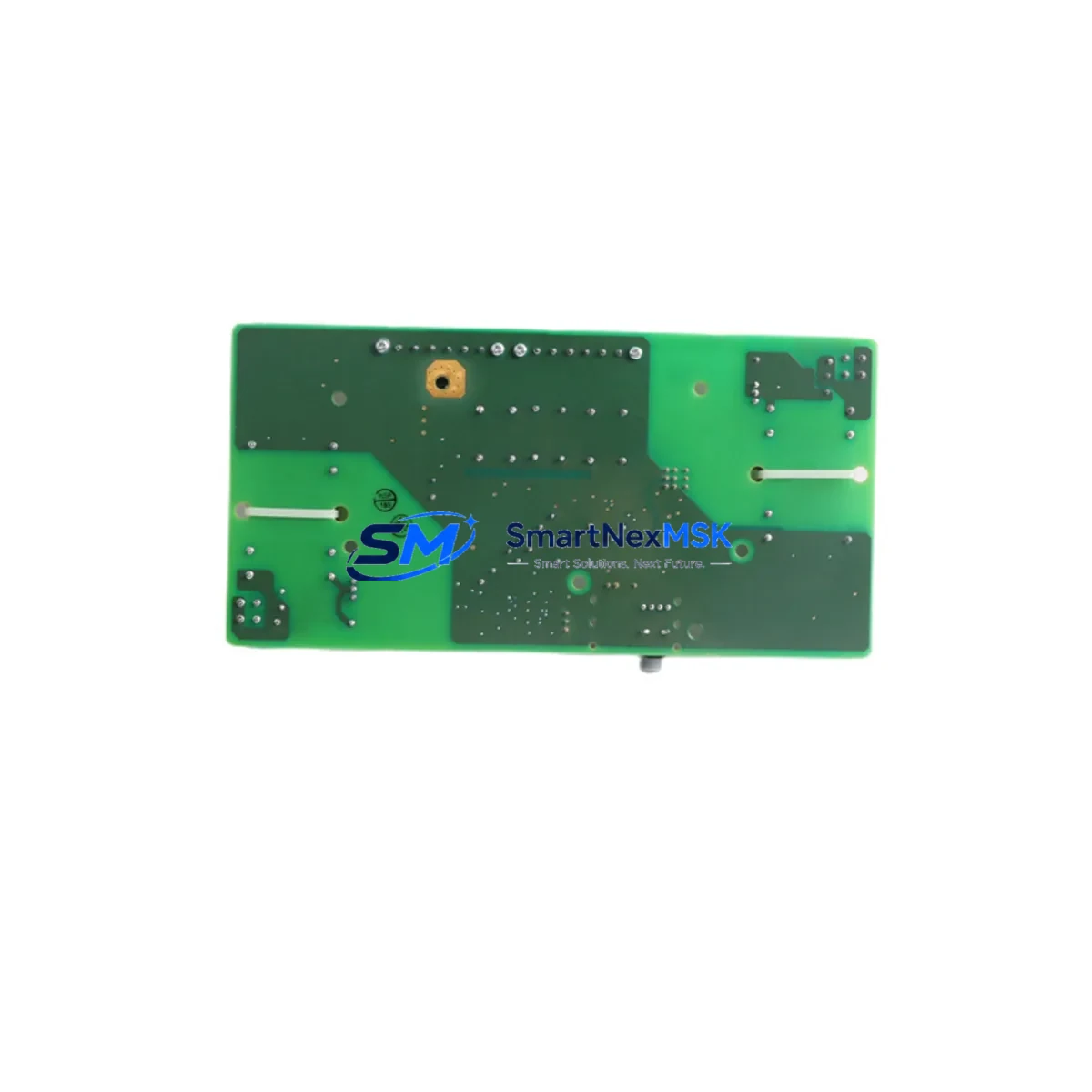

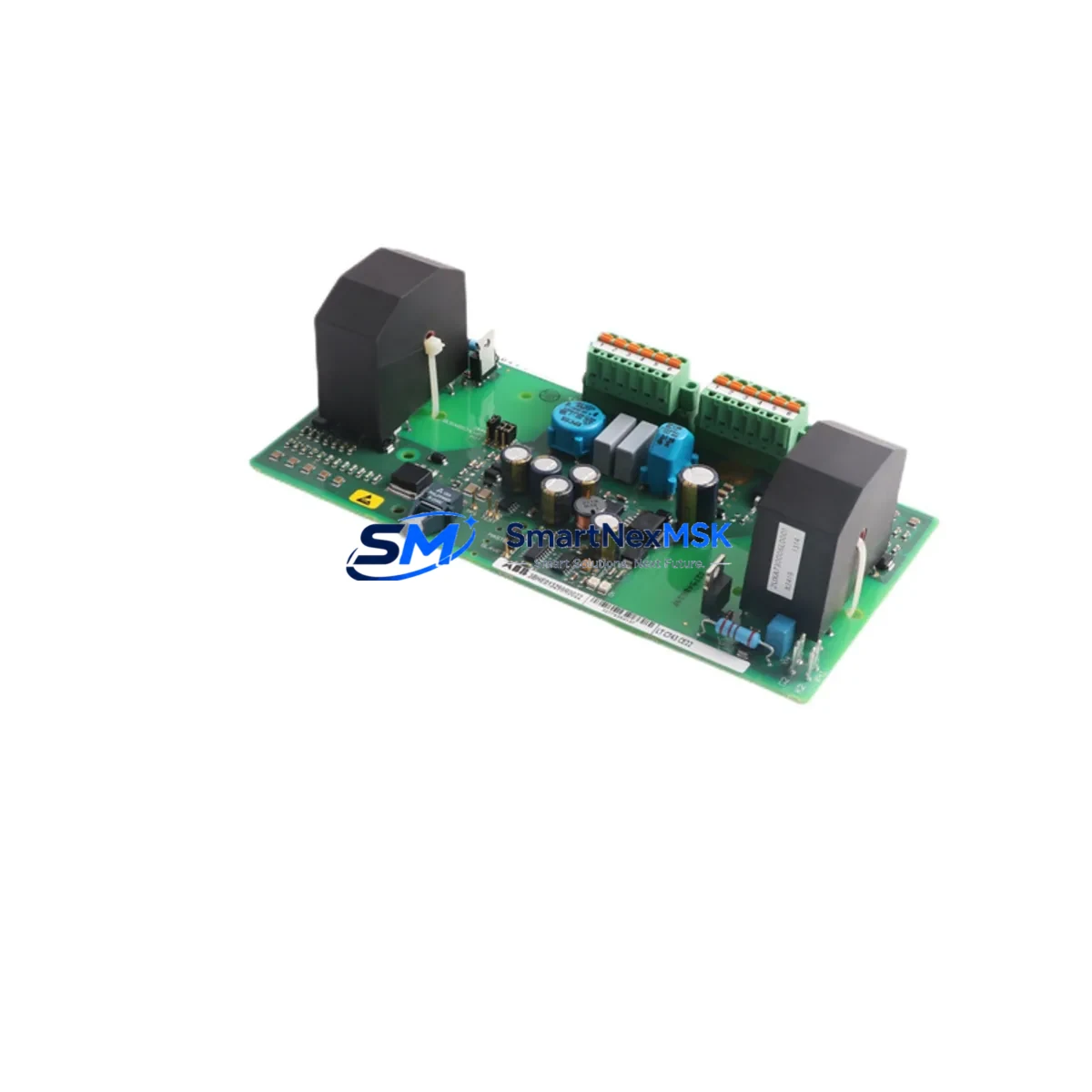

The ABB 3BHE013299R0022 LTC743CE22 is an original excitation control circuit board engineered for deployment within ABB’s AC800PEC high-performance controller platform and UNITROL excitation systems. For maintenance engineers managing power generation assets, synchronous motor drives, or large-scale industrial automation infrastructure, this board represents a critical spare that directly governs excitation regulation, field current control, and AVR (Automatic Voltage Regulator) feedback loops. Unplanned failure of this component can result in immediate generator trip, loss of reactive power control, or full unit shutdown — making proactive spare parts inventory an operational necessity rather than an option.

Sourced as a genuine ABB original, the 3BHE013299R0022 LTC743CE22 is fully tested prior to shipment and backed by a 12-month warranty. It is suitable for direct replacement in existing AC800PEC controller cabinets without firmware re-flashing in most standard configurations, significantly reducing mean time to repair (MTTR) during unplanned outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned inspection or responding to an excitation fault alarm on an AC800PEC-based system, replacing the 3BHE013299R0022 LTC743CE22 board alone is rarely sufficient for a complete and reliable restoration. Maintenance engineers should treat this replacement as an opportunity to audit the full excitation and control chain within the same cabinet visit.

Begin with the AC800PEC CPU module (e.g., PPD113 or PPD512 series) — verify firmware version compatibility and check for any logged fault codes that may indicate upstream communication errors rather than a board-level failure. The UNITROL excitation transformer and rectifier bridge assembly should be inspected for thermal discoloration, loose connections, or capacitor bulge, as these components share the same electrical stress cycle as the LTC743CE22.

On the I/O side, inspect the AI810 or AO810 analog I/O modules connected to the AVR feedback circuit. Signal drift on voltage or current feedback channels is a common root cause of apparent excitation board faults. Similarly, the DI810 / DO810 digital I/O modules handling field breaker status and protection relay interlocks should be verified for contact integrity.

Check the 24 VDC auxiliary power supply module (such as the ABB SD831 or SD832) that feeds the controller backplane — undervoltage on the logic supply rail is a frequent but overlooked contributor to intermittent board resets. The CI854 or CI858 communication interface module linking the AC800PEC to the plant DCS or SCADA should also be tested for Profibus or FOUNDATION Fieldbus signal integrity, particularly if the excitation fault coincided with a communication timeout alarm.

For cabinet-level inspection, examine the terminal blocks and field wiring on the excitation feedback and field current measurement circuits — loose terminations at the TB820 or equivalent terminal base units are a disproportionate source of intermittent faults in high-vibration environments. Finally, verify the condition of the backplane bus connector on the AC800PEC chassis itself; oxidized or mechanically stressed backplane contacts can cause the LTC743CE22 to report faults even when the board itself is serviceable.

Maintaining a minimum stock of one spare 3BHE013299R0022 LTC743CE22 board, alongside a spare CPU module and at least one analog I/O module, is recommended for any facility operating AC800PEC-based excitation systems where unplanned downtime carries significant production or grid stability risk.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is board-level by reviewing AC800PEC diagnostic logs and ruling out power supply, communication, and field wiring faults. Cross-reference the board’s hardware revision marking against the replacement unit to confirm compatibility before de-energizing the cabinet.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the excitation cabinet, discharge any capacitor banks in the rectifier section, and verify zero-energy state with a calibrated multimeter before opening the chassis.

Step 3 — Board extraction and installation: Remove the LTC743CE22 board by releasing the front-panel ejector levers. Note the backplane slot position — the replacement must be installed in the identical slot to preserve address mapping. Insert the new 3BHE013299R0022 board firmly until the backplane connector is fully seated and the ejector levers lock.

Step 4 — Power-up and functional test: Re-energize the cabinet in stages. Monitor the AC800PEC boot sequence for any hardware fault indicators. Verify AVR setpoint tracking, field current response, and reactive power output against pre-fault baseline values. Confirm no new fault codes are logged within the first 15 minutes of operation.

Step 5 — Documentation: Record the replacement in the site maintenance log, including the old board’s serial number, replacement date, and post-installation test results. Update the spare parts inventory to trigger reorder of a replacement stock unit.

This workflow is applicable to both emergency replacements following unplanned trips and scheduled replacements during planned outage windows. The 3BHE013299R0022 LTC743CE22 is a direct form-fit-function replacement for earlier LTC743 board revisions in most AC800PEC configurations, eliminating the need for system re-engineering or parameter re-entry in standard deployments.

Spare Parts Support FAQ

Q1: What is the shelf life and storage requirement for the 3BHE013299R0022 LTC743CE22 spare board?
When stored in its original anti-static packaging in a dry, temperature-controlled environment (10–40°C, <70% RH, non-condensing), the board maintains full serviceability for a minimum of 5 years. Annual visual inspection of the packaging integrity is recommended for long-term stock. The 12-month warranty period begins from the date of shipment, not from the date of installation.

Q2: How is compatibility with my specific AC800PEC system version confirmed before shipment?
Provide your AC800PEC system version, existing board hardware revision (marked on the board label), and UNITROL firmware version at the time of order. Our technical team will cross-reference these against the ABB hardware compatibility matrix and confirm suitability before dispatch. If a firmware update is required for the replacement board, this will be communicated in advance.

Q3: What pre-shipment testing is performed on each unit?
Every 3BHE013299R0022 LTC743CE22 board undergoes functional power-on testing and key signal path verification prior to shipment. Units are shipped with a test report. Boards that do not pass functional testing are not dispatched. This process applies to both new surplus and refurbished units.

Q4: What is the process if the replacement board develops a fault within the 12-month warranty period?
Contact our technical support team with the original order reference, a description of the fault symptom, and any AC800PEC diagnostic log extracts. We will arrange return shipping, perform fault analysis, and dispatch a replacement unit or issue a refund based on the findings. Warranty claims are processed within 5 business days of receiving the returned unit.
