ABB 3BHE014967R0001 Maintenance-Ready Spare for UNITROL Automation

ABB 3BHE014967R0001 Maintenance-Ready Spare for UNITROL Automation

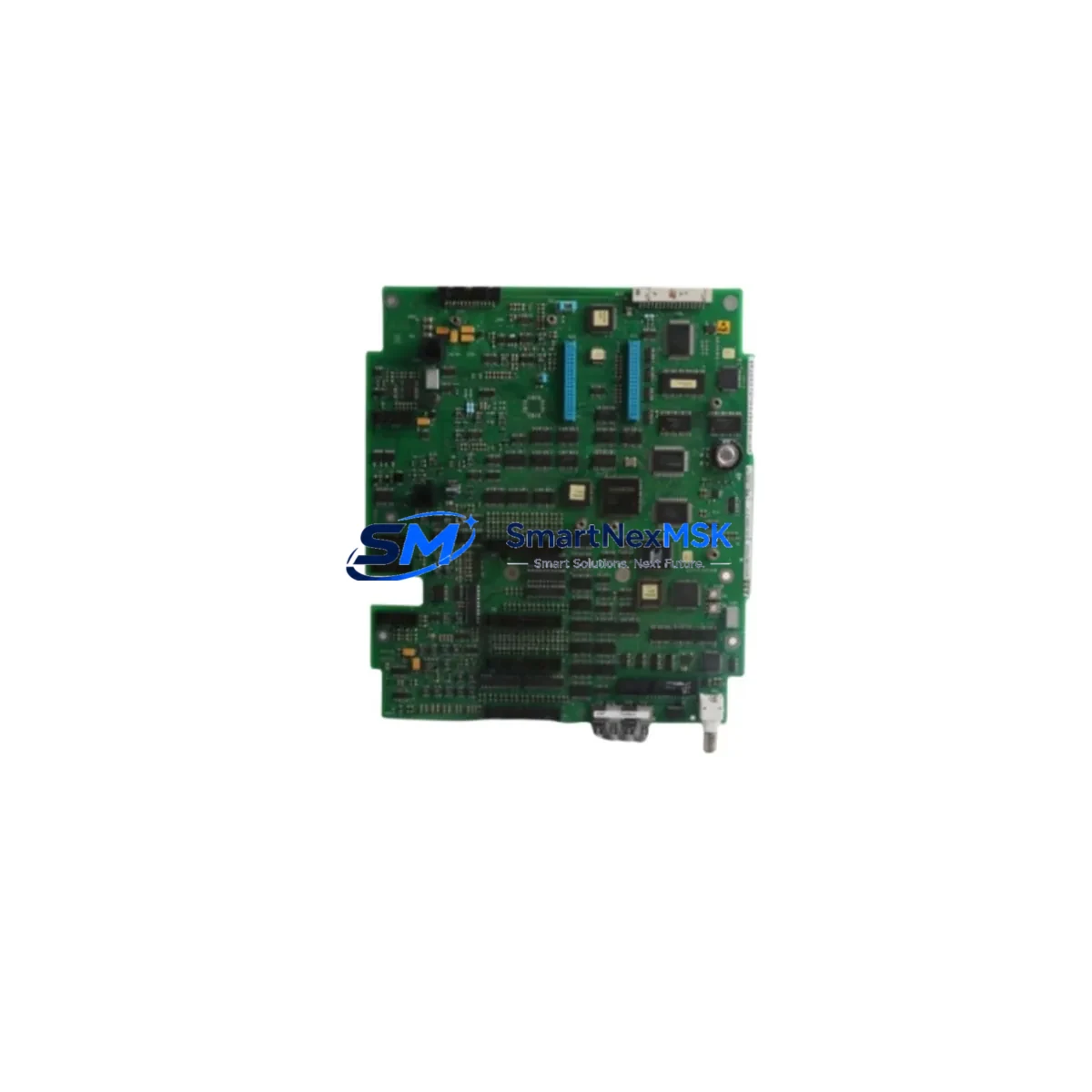

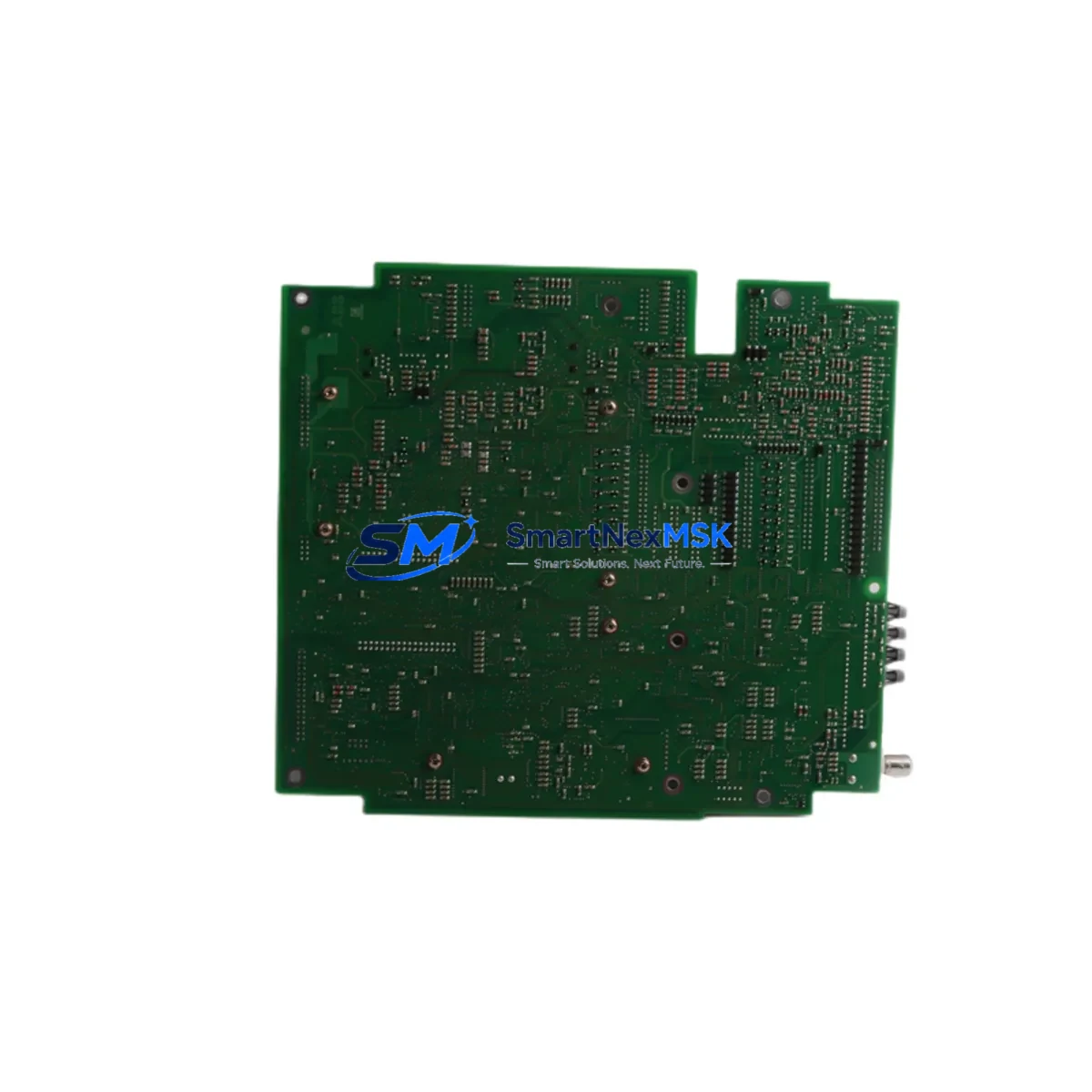

The ABB 3BHE014967R0001 (UNS2880b-P) is an original excitation control board designed for ABB’s UNITROL series automatic voltage regulators (AVR) and generator excitation systems. As a critical component in power generation and industrial drive applications, this board governs voltage regulation, reactive power control, and generator field excitation — making it one of the highest-priority spare parts in any maintenance engineer’s inventory for facilities running ABB UNITROL 5000, UNITROL 6000, or legacy UNITROL 1000/2000 platforms.

Sourced directly from ABB-authorized supply chains, each unit is tested prior to shipment to verify signal integrity, firmware compatibility, and board-level functionality. With a 12-month warranty and documented traceability, this spare is suitable for both emergency breakdown recovery and planned preventive maintenance rotations.

For maintenance engineers managing generator control cabinets, the 3BHE014967R0001 is typically replaced during scheduled overhauls or following AVR fault diagnostics indicating excitation loop errors, field current instability, or communication faults on the UNITROL bus. Procurement engineers sourcing this part for critical infrastructure should verify the hardware revision and firmware version against the installed base before ordering.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3BHE014967R0001 excitation control board in a UNITROL cabinet, a thorough site inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure a clean commissioning after the swap. Maintenance engineers should treat this replacement as an opportunity to audit the full excitation loop.

Begin by inspecting the UNITROL power supply module (such as the UNS0880 or equivalent 24 VDC auxiliary supply board) — a degraded power supply is a common root cause of control board failures and will damage a new board if not addressed. Check the field circuit protection fuses and field suppression diodes on the exciter output stage; these are inexpensive components that are frequently overlooked during emergency replacements.

Next, verify the condition of the UNITROL I/O interface board (e.g., UNS0776 or UNS2881 series) which handles analog and digital signal conditioning between the control board and the generator instrumentation. Faulty I/O boards can produce erratic AVR behavior that mimics control board faults. Similarly, inspect the measurement transformer module responsible for voltage and current feedback — signal drift from aging transformers will cause the new 3BHE014967R0001 to operate outside its calibrated range.

For systems with communication-enabled UNITROL configurations, check the PROFIBUS DP communication module or Modbus RTU interface card for loose connectors or firmware mismatches. If the generator is part of a parallel operation scheme, the synchronization and load-sharing module should also be inspected and re-parameterized after the control board replacement.

On the cabinet wiring side, inspect all terminal blocks on the excitation circuit — particularly those carrying field current and AVR reference signals — for signs of overheating, oxidation, or loose crimps. Replace any suspect signal isolation relays or interposing relays in the AVR enable/disable circuit. Finally, if the UNITROL system interfaces with a plant DCS or SCADA via a signal isolator module, verify loop integrity and 4–20 mA signal accuracy before returning the generator to service.

Site Replacement Workflow

Step 1 — Preparation: Download the UNITROL system parameter backup from the existing control board using ABB’s UNITROL commissioning software before powering down. This preserves all AVR tuning parameters, PID settings, and protection thresholds, eliminating the need for full recommissioning after the swap.

Step 2 — Safe Isolation: Follow the site LOTO (Lockout/Tagout) procedure. De-energize the excitation cabinet, discharge the field circuit, and verify zero voltage on the field terminals before removing the 3BHE014967R0001 board. Note the hardware revision label on the outgoing board to confirm the replacement unit matches.

Step 3 — Board Replacement: Install the new 3BHE014967R0001 into the correct backplane slot. Verify all connector seating — particularly the multi-pin ribbon connectors and the field bus interface. Torque terminal screws to specification.

Step 4 — Parameter Restore & Commissioning: Restore the parameter backup to the new board. Perform a no-load AVR test to verify voltage regulation response before synchronizing the generator to the busbar. Check all protection relay setpoints and confirm communication with the plant DCS is re-established.

Step 5 — Documentation: Record the replacement in the equipment maintenance log, including the new board serial number, firmware version, and test results. Update the spare parts inventory to trigger reorder of a replacement 3BHE014967R0001 for the next maintenance cycle.

This structured workflow minimizes generator downtime to under 4 hours for a prepared maintenance team and ensures the system returns to service with full performance and protection integrity.

Spare Parts Support FAQ

Q1: Is the 3BHE014967R0001 compatible with all UNITROL series AVR cabinets?
The UNS2880b-P variant is primarily designed for UNITROL 5000 and UNITROL 6000 platforms. Compatibility with UNITROL 1000 or UNITROL 2000 systems depends on the hardware revision and firmware version of the installed base. Always cross-reference the existing board’s revision label and consult the UNITROL system documentation before ordering. Our technical team can assist with compatibility verification upon request.

Q2: What pre-shipment testing is performed on this spare?
Each 3BHE014967R0001 unit undergoes functional power-on testing, signal integrity verification, and visual inspection for component-level defects before dispatch. Units sourced as tested surplus are additionally checked against ABB’s original test specifications. A test report is available upon request for critical infrastructure procurement.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and DOA (dead-on-arrival) units. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating environment. Warranty claims are processed within 5 business days with advance replacement available for critical applications.

Q4: How should this spare be stored if not immediately installed?
Store the 3BHE014967R0001 in its original anti-static packaging in a dry, temperature-controlled environment (10°C–30°C, <70% RH). Avoid storage near strong magnetic fields or in environments with conductive dust. For long-term inventory (12+ months), perform a visual inspection and functional test before installation. Proper storage ensures the board remains installation-ready throughout its shelf life.
