ABB 3BHE016842R0101 UAD144A101 Retrofit-Ready License Dongle for AC800M Control Systems

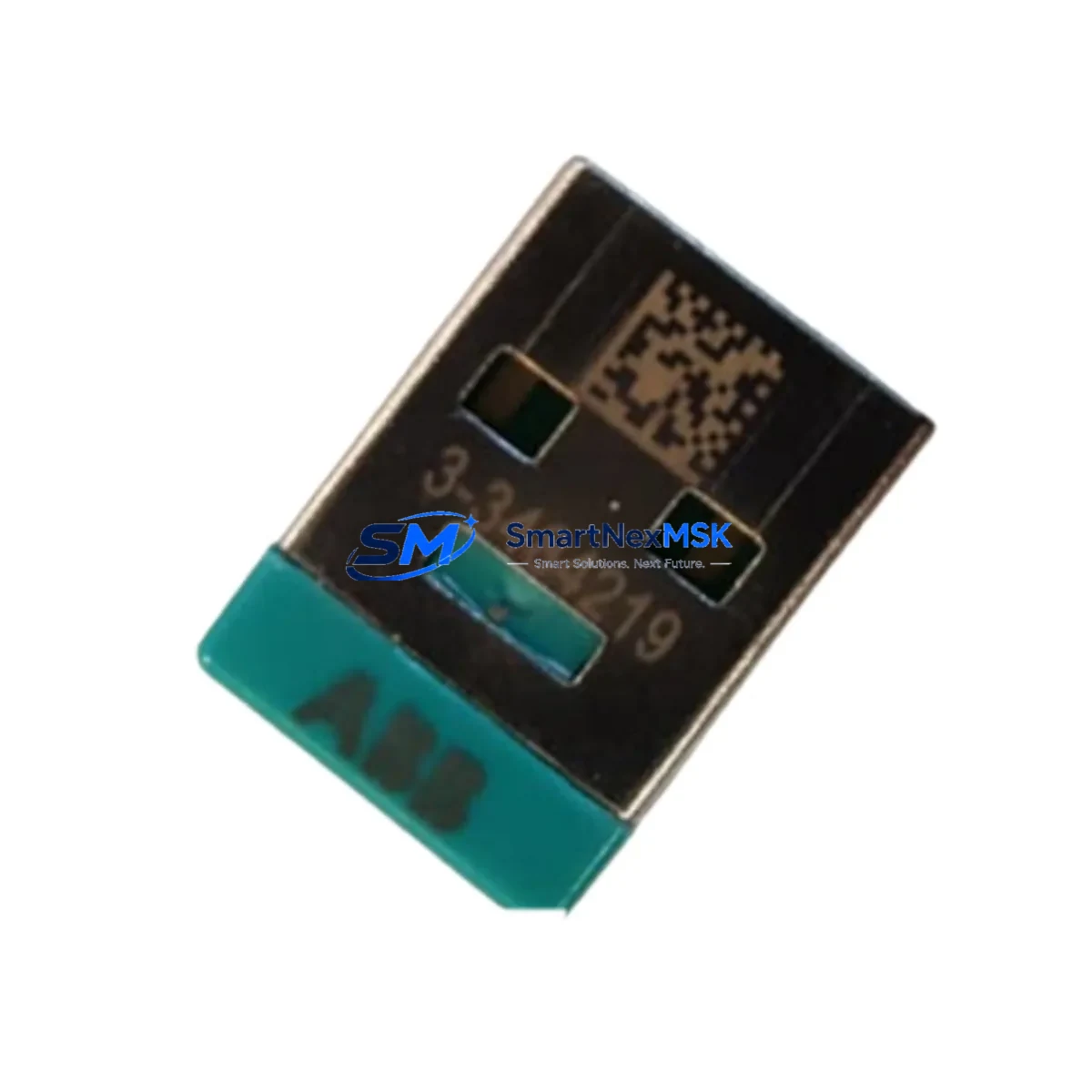

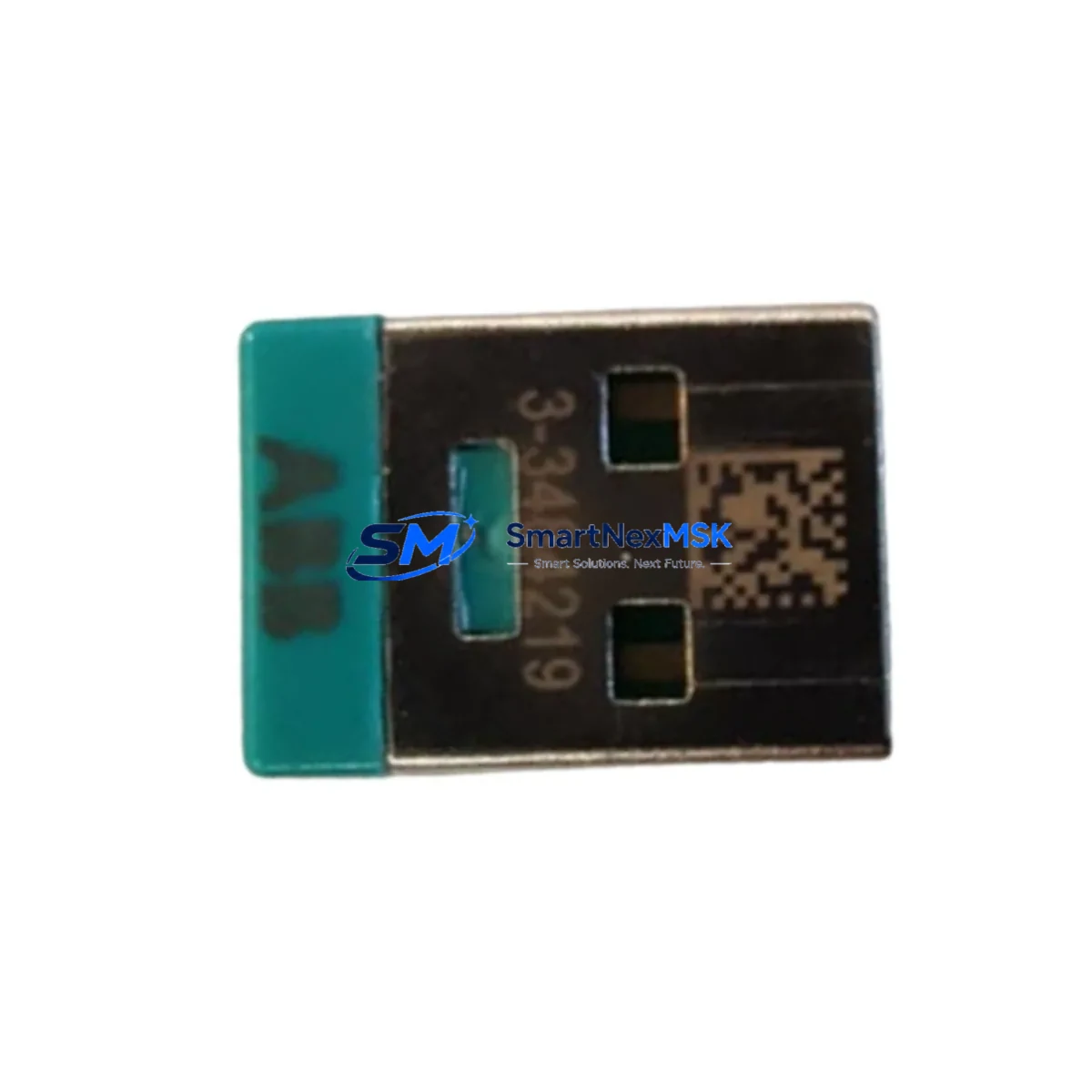

The ABB 3BHE016842R0101 (UAD144A101) is a USB hardware security key — commonly referred to as a license dongle — designed to authorize and activate software licenses on ABB AC800M Distributed Control System (DCS) platforms. As legacy AC800M installations approach end-of-life and engineering teams undertake control system modernization projects, sourcing a verified replacement for this dongle has become a critical step in maintaining uninterrupted software authorization across Symphony Plus and Extended Automation System 800xA environments.

This unit is a direct retrofit replacement for the original ABB 3BHE016842R0101 dongle. It is supplied pre-tested and verified against AC800M controller firmware to ensure seamless license recognition without requiring re-engineering of the existing software configuration. Each unit ships with a 12-month warranty covering hardware defects and license authorization failures, giving procurement and maintenance teams confidence in long-term operational continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit or upgrade of an AC800M-based control system, the license dongle is often overlooked until a critical software authorization failure halts engineering access or runtime execution. In practice, the 3BHE016842R0101 dongle works in conjunction with the AC800M PM864A or PM865A process controllers, which communicate with I/O modules such as the AI810 analog input module and DI810 digital input module mounted on the S800 I/O backplane. Ensuring the dongle is present and recognized is a prerequisite before any Control Builder M project download or online program modification can proceed.

During a control cabinet upgrade, engineers frequently encounter the need to replace not only the dongle but also associated hardware. The TB820V2 PROFIBUS DP communication interface module is commonly replaced alongside the dongle when migrating from older fieldbus topologies to updated network architectures. Similarly, the CI854A PROFIBUS DP master module may require re-addressing if the rack configuration changes during the retrofit. The PM864A controller itself, if being swapped, requires the dongle to be re-bound to the new hardware ID through the ABB License Manager utility.

For projects involving communication protocol migration — for example, transitioning from legacy serial Modbus to PROFIBUS DP or FOUNDATION Fieldbus — the CI873 FOUNDATION Fieldbus HSE linking device and associated FF segment couplers must be verified for compatibility with the updated AC800M firmware version. The dongle authorization level must match the licensed feature set, which may include advanced process control, redundancy management, or batch execution modules. Procurement teams should confirm the exact license tier encoded in the original dongle before ordering a replacement to avoid feature mismatches.

Backplane and rack integrity should also be assessed during any retrofit. The S800 I/O station baseplate and MTU (Module Termination Unit) wiring must be inspected for terminal corrosion and label accuracy before the new dongle is commissioned. In multi-drop PROFIBUS segments, the DP/PA coupler and segment termination resistors should be verified to prevent communication errors that could be misattributed to the dongle replacement. A pre-commissioning checklist covering power supply capacity (typically the SD821 or SD822 power supply units), earthing continuity, and cabinet ventilation will reduce the risk of unexpected faults during the cutover window.

Downtime Control During System Migration

Minimizing downtime during a dongle replacement or broader AC800M retrofit requires careful pre-staging and a structured cutover plan. Before removing the original 3BHE016842R0101 dongle, engineers should export a full backup of the Control Builder M project, including all function block diagrams, SFC sequences, and hardware configuration files. This backup should be stored on an isolated engineering workstation and verified for completeness.

Where the production process permits, a parallel commissioning approach is recommended: install and authorize the replacement dongle on a secondary workstation running a mirrored project, validate all license features, and confirm online connectivity to the AC800M controller before switching over. For systems with redundant PM864A or PM865A controllers, the switchover can be executed without interrupting the running process by performing a controlled bumpless transfer. HMI screens connected via OPC DA or OPC UA to the 800xA server should be monitored throughout the cutover to confirm tag continuity and alarm state integrity. Communication links to field devices via the CI854A or TB820V2 modules should be verified post-cutover using the PROFIBUS diagnostic tools available within Control Builder M.

Maintaining field control continuity during the migration window depends on the integrity of the I/O wiring, the stability of the power supply, and the correct re-establishment of the dongle license binding. A structured post-commissioning test — covering analog loop checks, digital I/O verification, interlock logic validation, and HMI faceplate confirmation — should be completed before returning the system to automatic control mode.

Retrofit Support FAQ

Q1: Is the 3BHE016842R0101 a direct replacement for the original UAD144A101 dongle without any software reconfiguration?
A: Yes. This unit is a hardware-equivalent replacement. In most cases, the AC800M Control Builder M software will recognize the dongle automatically upon insertion. If the license is bound to a specific hardware ID, re-activation through the ABB License Manager will be required — a process that typically takes less than 10 minutes with the correct license file available.

Q2: What commissioning steps are required after installing the replacement dongle?
A: Insert the dongle into the designated USB port on the engineering workstation or license server. Launch Control Builder M and verify that all licensed modules are shown as active. If any module shows as unlicensed, open ABB License Manager, select the dongle as the license source, and re-apply the license file. Confirm online connectivity to the AC800M controller and perform a project download verification before resuming operations.

Q3: Can this dongle be used with both AC800M and System 800xA environments?
A: The 3BHE016842R0101 / UAD144A101 is primarily associated with AC800M Control Builder M licensing. Compatibility with System 800xA depends on the specific license tier and software version. Customers are advised to confirm the license feature set with their ABB software agreement documentation before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q4: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers hardware defects and license authorization failures attributable to the unit itself. Units that fail to be recognized by a compatible AC800M system within the warranty period are eligible for replacement or refund. Each unit undergoes pre-shipment functional testing. To initiate a warranty claim, contact our sales team with the order reference and a description of the fault. Replacement units are typically dispatched within 3–5 business days.

—
