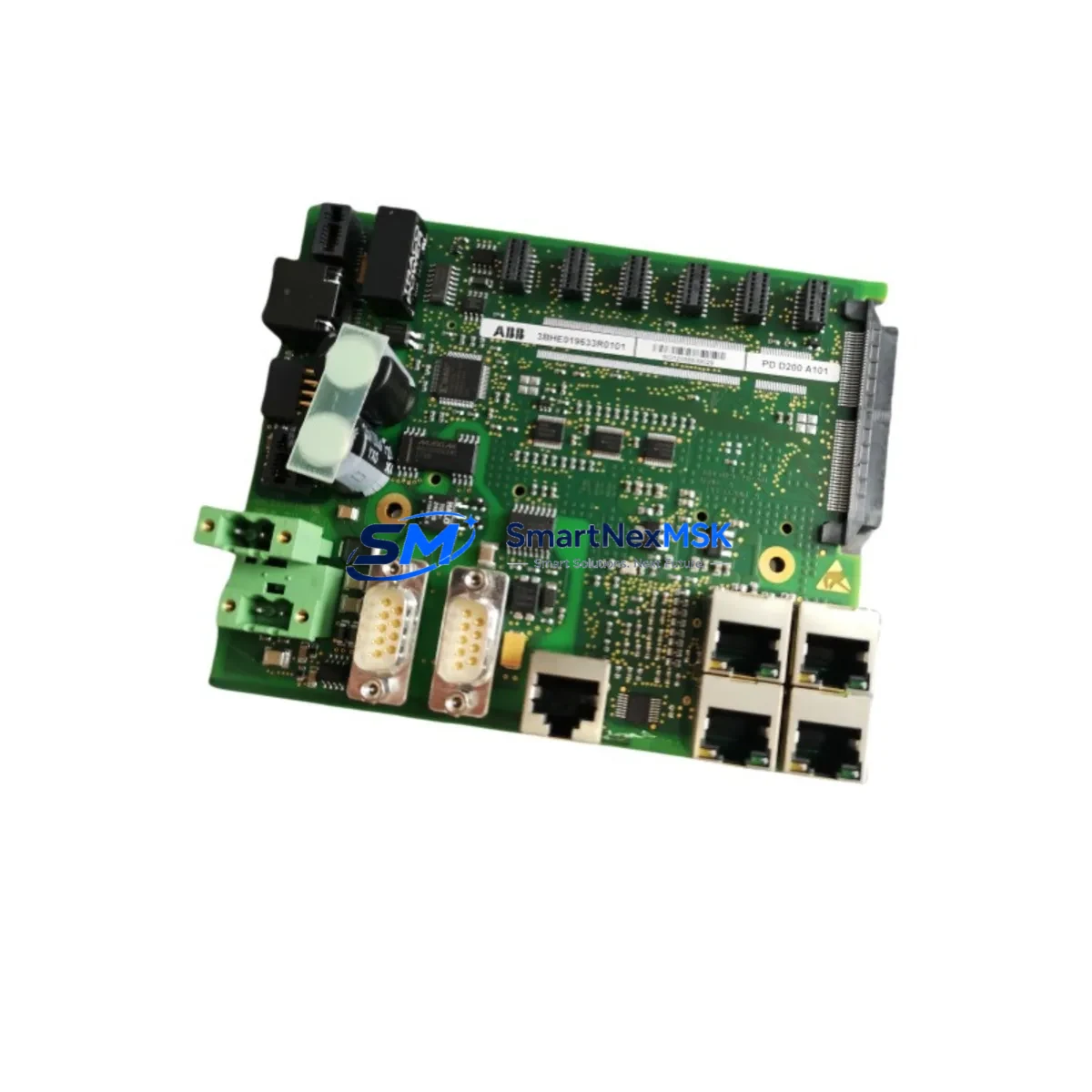

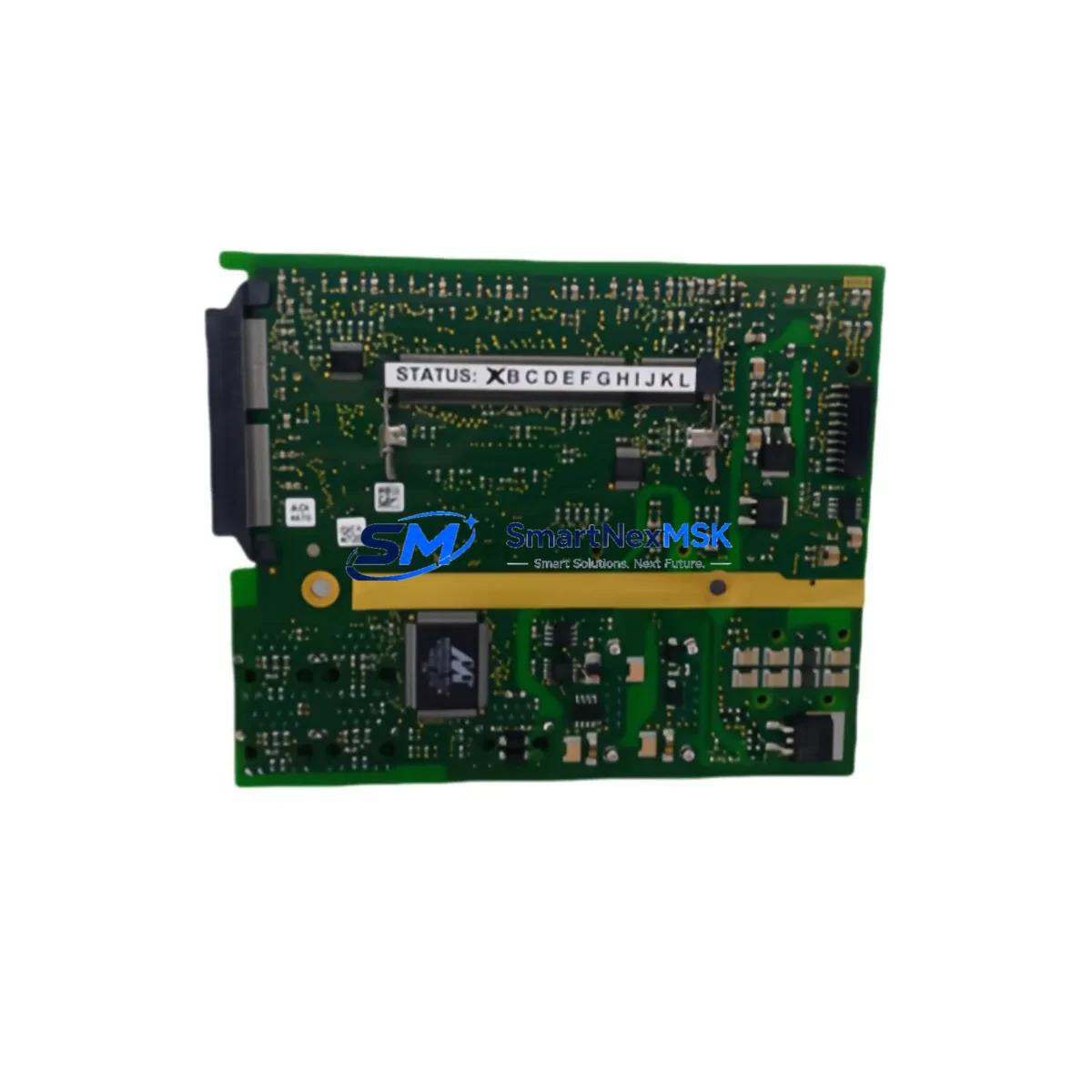

ABB 3BHE019633R0101 Safety-Enhanced Exciter Controller

ABB 3BHE019633R0101 Safety-Enhanced Exciter Controller for Harsh Industrial Sites

The ABB 3BHE019633R0101 is a high-reliability exciter controller board from ABB’s UNITROL series, engineered specifically for automatic voltage regulation (AVR) in generator excitation systems operating under demanding industrial conditions. Designed to sustain continuous, uninterrupted control in power generation, heavy industry, and critical infrastructure environments, this module delivers the signal integrity, thermal resilience, and fault-tolerant performance that safety-critical applications demand.

In high-load power plants, petrochemical facilities, and metallurgical operations, generator excitation control is a foundational safety function. Any instability in the excitation loop — whether caused by voltage transients, electromagnetic interference, thermal stress, or aging components — can cascade into generator trips, production shutdowns, or equipment damage. The 3BHE019633R0101 addresses these risks directly, providing stable AVR output even under fluctuating grid conditions, load surges, and harsh ambient environments.

This board integrates seamlessly within ABB’s UNITROL 1000 and UNITROL 5000 excitation platforms, working in coordination with the ABB PDD200 A101 power distribution board, 3BHE022293R0101 field flashing modules, and 3BHE004573R0001 measurement input cards. Together, these components form a complete, safety-rated excitation chain capable of sustaining generator stability across the full operating envelope — from cold start to full-load continuous operation.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered generator excitation cabinet, the ABB 3BHE019633R0101 controller board sits at the center of a layered protection architecture. Reliable excitation control depends not only on the AVR board itself, but on the integrity of every upstream and downstream component in the control loop.

On the power supply side, the ABB UNITROL PSU24 auxiliary power supply module provides the stable 24 VDC rail that the exciter controller requires for consistent logic operation. Voltage ripple or dropout on this rail is a leading cause of AVR instability; pairing the 3BHE019633R0101 with a properly rated PSU eliminates this risk. Upstream of the PSU, ABB SACE Tmax series molded-case circuit breakers provide overcurrent and short-circuit protection, preventing fault currents from reaching sensitive control electronics.

For signal conditioning and measurement accuracy, the ABB 3BHE004573R0001 analog input measurement card works in tandem with the exciter controller to capture generator terminal voltage and current feedback with high fidelity. Inaccurate feedback signals are a primary driver of AVR hunting and instability; this measurement card’s precision directly supports the 3BHE019633R0101’s ability to maintain tight voltage regulation under dynamic load conditions.

In excitation systems where field flashing is required during generator startup, the ABB 3BHE022293R0101 field flashing module provides controlled initial excitation current, protecting the AVR board from startup transients that could otherwise cause premature component stress. Surge arresters and ABB OVR series surge protection devices installed at the cabinet entry points further shield the entire excitation assembly — including the 3BHE019633R0101 — from grid-borne voltage spikes and lightning-induced transients.

Communication integrity between the excitation system and the plant DCS or SCADA is maintained through ABB AC800M series controllers and associated CI854 PROFIBUS communication interface modules, ensuring that the AVR’s operating status, alarm signals, and setpoint commands are transmitted reliably without data corruption or communication dropout — a critical requirement in continuous-process industries where undetected excitation faults can escalate to generator trips.

For interlock and safety relay functions within the excitation cabinet, ABB Relion series protection relays provide generator protection functions including over-excitation, under-excitation, and loss-of-field detection, forming the final safety layer that backs up the 3BHE019633R0101’s primary voltage regulation function.

Critical Industrial Safety Applications

Power Generation & Grid-Connected Plants: In thermal, hydro, and gas turbine power stations, the 3BHE019633R0101 maintains generator terminal voltage within tight tolerances during load swings, grid disturbances, and parallel operation. Stable excitation is essential for reactive power sharing and grid stability compliance — a failure here can trigger generator protection trips and grid disconnection events.

Petrochemical & Refinery Operations: Continuous-process petrochemical plants operate captive generators that must sustain uninterrupted power to critical process loads including compressors, pumps, and safety shutdown systems. The 3BHE019633R0101’s robust design ensures that excitation control remains stable even in environments with high ambient temperatures, chemical vapors, and significant electromagnetic interference from variable-frequency drives and large motor starters.

Metallurgical & Steel Mill Applications: Electric arc furnaces and rolling mill drives impose severe voltage fluctuations on plant power systems. Excitation controllers in these environments must respond rapidly to voltage depressions caused by arc furnace ignition and large motor starts. The UNITROL platform’s fast AVR response, anchored by the 3BHE019633R0101, provides the dynamic voltage support needed to prevent voltage collapse in these high-disturbance environments.

Mining & Mineral Processing: Remote mine sites operating island-mode power systems rely entirely on local generator excitation for voltage and frequency stability. In these isolated grids, the 3BHE019633R0101 must perform reliably without the voltage support of an interconnected grid, making its fault tolerance and long-term reliability especially critical for continuous mining operations.

Water Treatment & Municipal Infrastructure: Pumping stations and water treatment facilities operating on standby or emergency generators require excitation systems that can start reliably after extended standby periods and sustain stable voltage during critical load pickup sequences. The 3BHE019633R0101’s proven UNITROL platform architecture supports these demanding start-and-sustain duty cycles.

Port & Heavy Logistics Operations: Shore power systems and port crane power supplies demand stable generator voltage to support large, rapidly varying crane and conveyor loads. Excitation instability in these applications causes voltage flicker that affects crane control systems and can trigger protective shutdowns during cargo operations.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the ABB 3BHE019633R0101?
A: The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified AVR and excitation control functions within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are supported by our technical team with documented failure analysis.

Q: How is the 3BHE019633R0101 tested before shipment?
A: Every unit undergoes a full pre-shipment functional verification, including power-on testing, signal I/O checks, and communication interface validation. Boards are inspected for physical integrity, connector condition, and component-level anomalies before packaging. Test records are available upon request for quality-critical procurement processes.

Q: Is the 3BHE019633R0101 compatible with both UNITROL 1000 and UNITROL 5000 platforms?
A: Yes. The 3BHE019633R0101 PDD200 A101 board is designed for use within ABB’s UNITROL excitation system family. Compatibility with your specific system configuration should be confirmed against your existing UNITROL platform revision and associated hardware documentation. Our technical team can assist with compatibility verification prior to order.

Q: Can you support long-term or repeat supply of this module for ongoing maintenance programs?
A: Yes. We maintain stock of ABB UNITROL series excitation components to support planned maintenance, emergency replacement, and long-term spare parts programs. For facilities managing multiple generators or operating under strict maintenance schedules, we can discuss framework supply agreements to ensure consistent availability of the 3BHE019633R0101 and associated UNITROL components.
