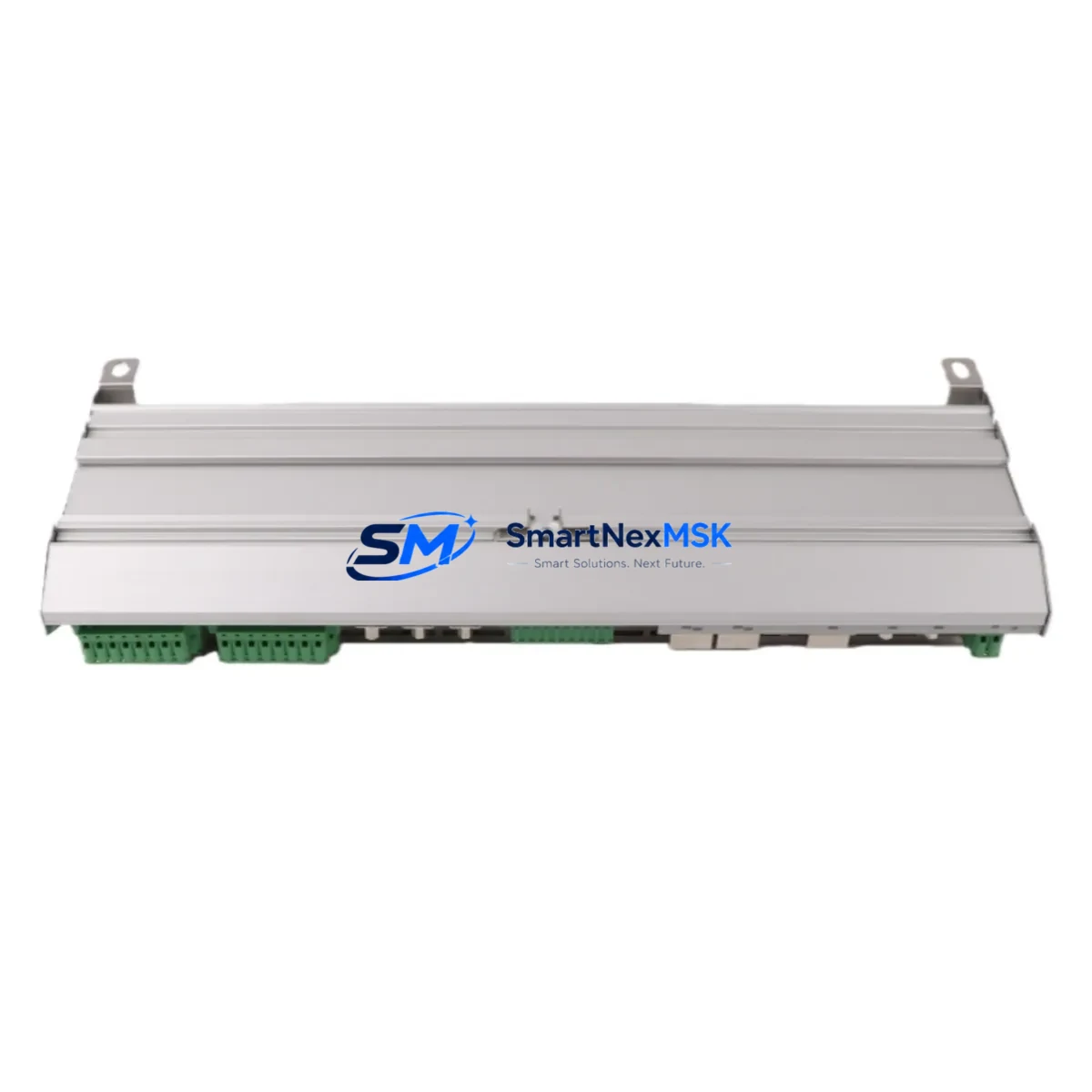

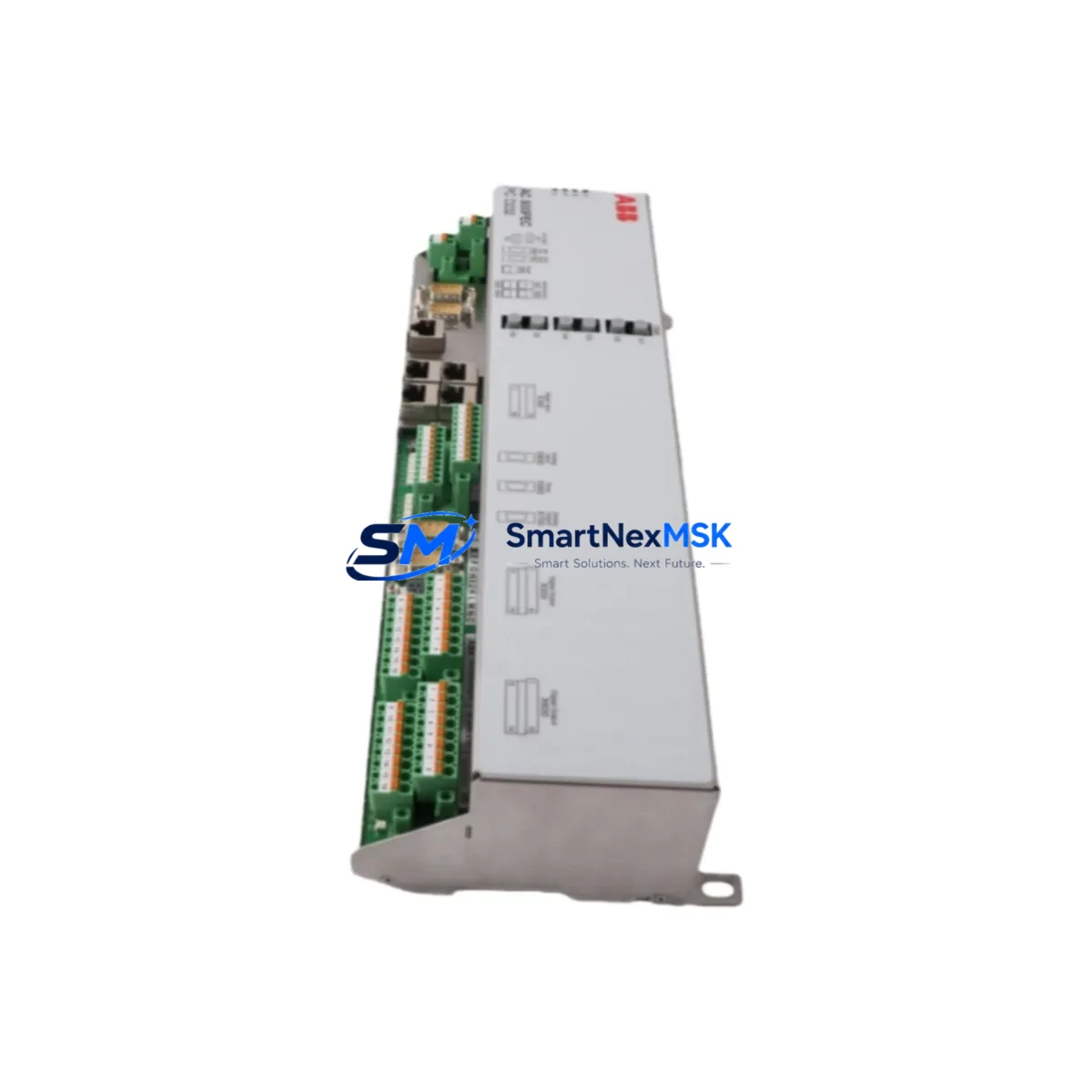

ABB 3BHE022293R0101 Retrofit-Ready DCS Controller Module

ABB 3BHE022293R0101 Retrofit-Ready DCS Controller for Symphony Plus Control Systems

The ABB 3BHE022293R0101 PCD232 A106 is a high-performance DCS controller module engineered for seamless integration into ABB Symphony Plus distributed control systems. Designed to serve as a direct retrofit replacement for aging or discontinued controller hardware, this module enables plant engineers and automation teams to restore full control system functionality with minimal disruption to existing infrastructure. Whether you are managing a scheduled upgrade, responding to an unexpected module failure, or executing a phased modernization of a legacy control platform, the 3BHE022293R0101 delivers the compatibility, reliability, and processing capability required for continuous industrial operations.

In many brownfield facilities — including power generation plants, chemical processing units, pulp and paper mills, and water treatment stations — the ABB Symphony Plus platform remains the backbone of process control. When a controller module such as the PCD232 A106 reaches end-of-life or fails in service, the replacement process demands careful attention to hardware compatibility, backplane interface alignment, firmware version matching, and communication link continuity. The 3BHE022293R0101 addresses all of these concerns as a verified drop-in replacement, reducing the engineering burden on site teams and shortening the path from failure to full restoration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 3BHE022293R0101 into an existing Symphony Plus system begins well before the module arrives on site. The first step is a thorough audit of the current control cabinet configuration. Engineers should document the existing rack layout, confirm the slot position of the failed or retiring PCD232 A106, and verify that the ABB SPNIS01 network interface module and associated SPFEC12 or SPFEC22 field excitation cards remain functional. These companion modules share the same backplane bus and must be in good working order to support the new controller after installation.

Power supply capacity is a critical pre-installation check. The ABB SPSPF1 or equivalent Symphony Plus power supply module must be confirmed to provide adequate 24 VDC output for the full rack load, including the replacement controller. If the existing PSU is aging or operating near its rated capacity, this is an appropriate time to evaluate a parallel replacement to prevent a secondary failure during or after the retrofit.

Communication link continuity is equally important. The 3BHE022293R0101 connects to the S+ control network via the existing Ethernet or PROFIBUS DP infrastructure. Before removal of the old module, engineers should capture a full network topology map and confirm that the ABB AC800M or Symphony Plus engineering station retains a valid backup of the current control program, including all function block diagrams, loop configurations, and alarm setpoints. This backup serves as the reference for post-installation verification and ensures that no logic is lost during the transition.

Terminal wiring on the associated I/O modules — such as the ABB SPDSO14 digital output module or SPASO81 analog signal module — does not require modification during a like-for-like controller replacement. However, all terminal connections should be inspected for corrosion, loose crimps, or insulation degradation as part of the planned maintenance window. This is also an appropriate time to replace any aging PROFIBUS DP connectors or shielded cables that may have accumulated wear in a high-vibration or high-humidity environment.

Once the 3BHE022293R0101 is physically installed in the rack, the module address must be set to match the original configuration. This is typically managed through the ABB System 800xA or Symphony Plus engineering environment. After address assignment, the control program is downloaded from the engineering station, and a cold-start sequence is initiated. Engineers should monitor the HMI display — whether running on an ABB MP200 operator panel or a PC-based S+ Operations workstation — to confirm that all I/O points are correctly mapped and that process values are reading within expected ranges before returning the loop to automatic control.

For sites operating redundant controller pairs, the retrofit procedure should follow the ABB-recommended hot-standby switchover protocol. The standby controller takes over process control while the primary is replaced, eliminating unplanned downtime. After the new 3BHE022293R0101 is commissioned and synchronized, the redundancy pair is restored and tested under live process conditions.

Downtime Control During System Migration

Minimizing downtime during a DCS controller replacement is a primary concern for any continuous process facility. The ABB 3BHE022293R0101 PCD232 A106 is designed to support rapid swap-in procedures that protect original program logic and maintain field control continuity throughout the migration window.

The most effective downtime reduction strategy is pre-staging. Before the maintenance window opens, the replacement module should be bench-tested using an ABB engineering station to confirm firmware compatibility and basic I/O response. A full program backup should be loaded onto the module in advance where the system architecture permits offline pre-loading. This reduces the on-site commissioning window to address verification, program download confirmation, and loop checkout — tasks that can typically be completed within a single shift.

For facilities that cannot tolerate any interruption to process control, the Symphony Plus redundant controller architecture provides the safest migration path. With a healthy standby PCD232 module in place, the primary controller can be replaced without a process upset. The standby module maintains all active control loops during the swap, and the new 3BHE022293R0101 is synchronized to the running system before redundancy is re-established.

In non-redundant installations, the migration window should be coordinated with the production schedule to align with a planned shutdown or low-demand period. All field devices — including control valves, transmitters, and motor starters connected through the I/O subsystem — should be placed in manual or safe-state mode before the controller is removed. Clear communication between the control room operator and the field engineering team is essential to prevent process upsets during the transition.

Every unit of the ABB 3BHE022293R0101 supplied by SMARTNEXMSK undergoes pre-shipment functional testing to verify module initialization, communication link establishment, and I/O channel integrity. This testing reduces the risk of receiving a non-functional unit and eliminates one of the most common causes of extended downtime during emergency replacements. Units are shipped with full export documentation and are available for immediate dispatch from stock, supporting rapid response to both planned and unplanned replacement scenarios.

Retrofit Support FAQ

Q1: Is the ABB 3BHE022293R0101 a direct replacement for the original PCD232 A106 installed in my Symphony Plus system?
Yes. The 3BHE022293R0101 is the correct part number for the PCD232 A106 controller module and is designed as a direct slot-compatible replacement within the Symphony Plus rack architecture. No mechanical modification to the rack or backplane is required. Firmware version alignment should be verified against your existing system configuration prior to installation.

Q2: What pre-installation checks are required before replacing the controller module?
Before installation, confirm the rack slot position, verify power supply output capacity, back up the current control program from the engineering station, and document all active communication links and I/O assignments. For redundant systems, confirm that the standby controller is healthy and capable of assuming full process control during the swap window.

Q3: Does the module come with a warranty, and what does it cover?
Yes. All ABB 3BHE022293R0101 modules supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating and storage conditions. Each unit is pre-shipment tested for module initialization, communication response, and I/O channel function before dispatch.

Q4: Can SMARTNEXMSK support long-term supply of this module for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains inventory of the ABB 3BHE022293R0101 and related Symphony Plus components to support both emergency replacement and planned maintenance programs. We provide consistent supply, pre-shipment testing, export documentation, and global express shipping to minimize lead times for critical spare parts procurement.
