ABB 3BHE026866R0001 Safety-Enhanced Encoder Interface Module

ABB 3BHE026866R0001 Safety-Enhanced Encoder Interface Module: Reliable Control in Harsh Industrial Sites

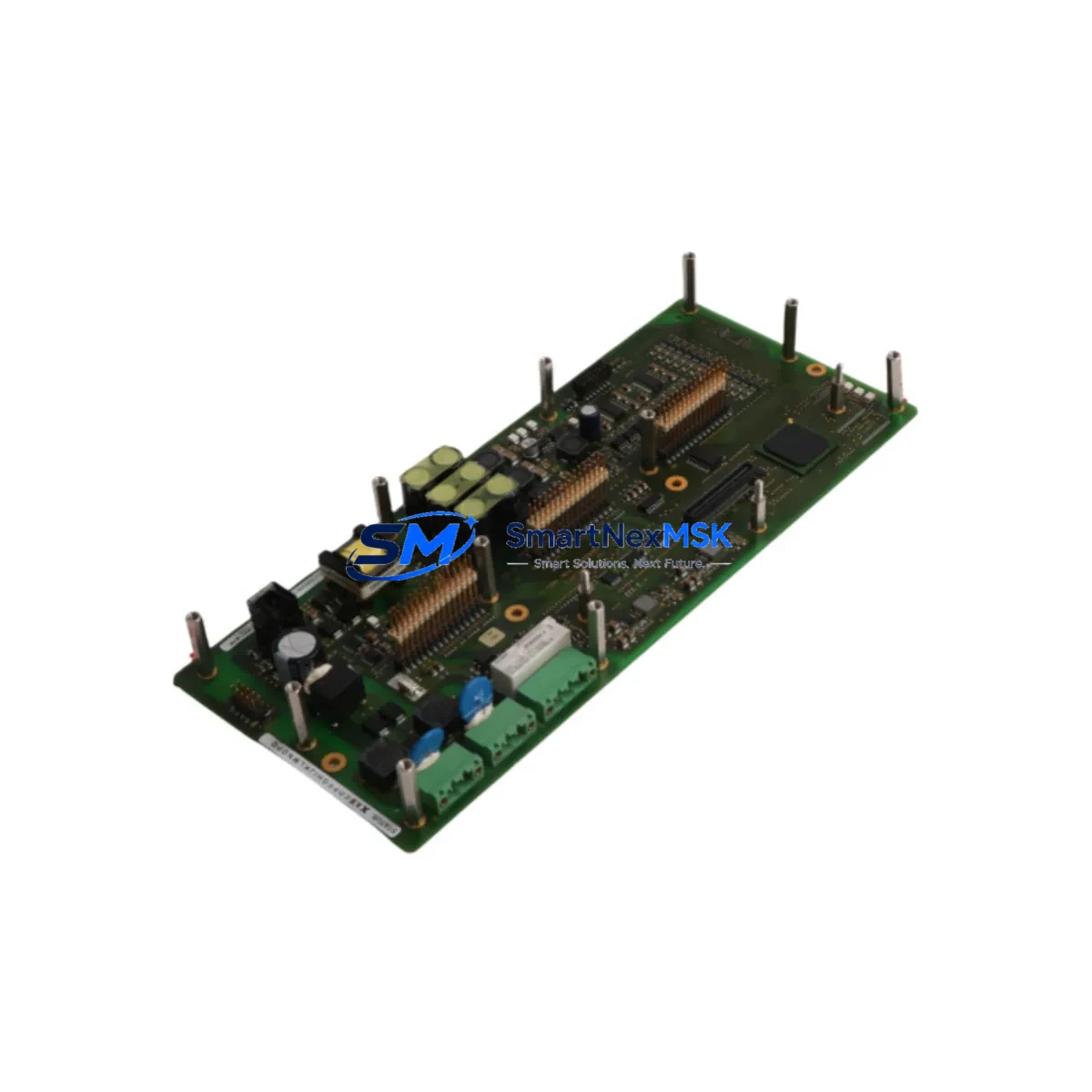

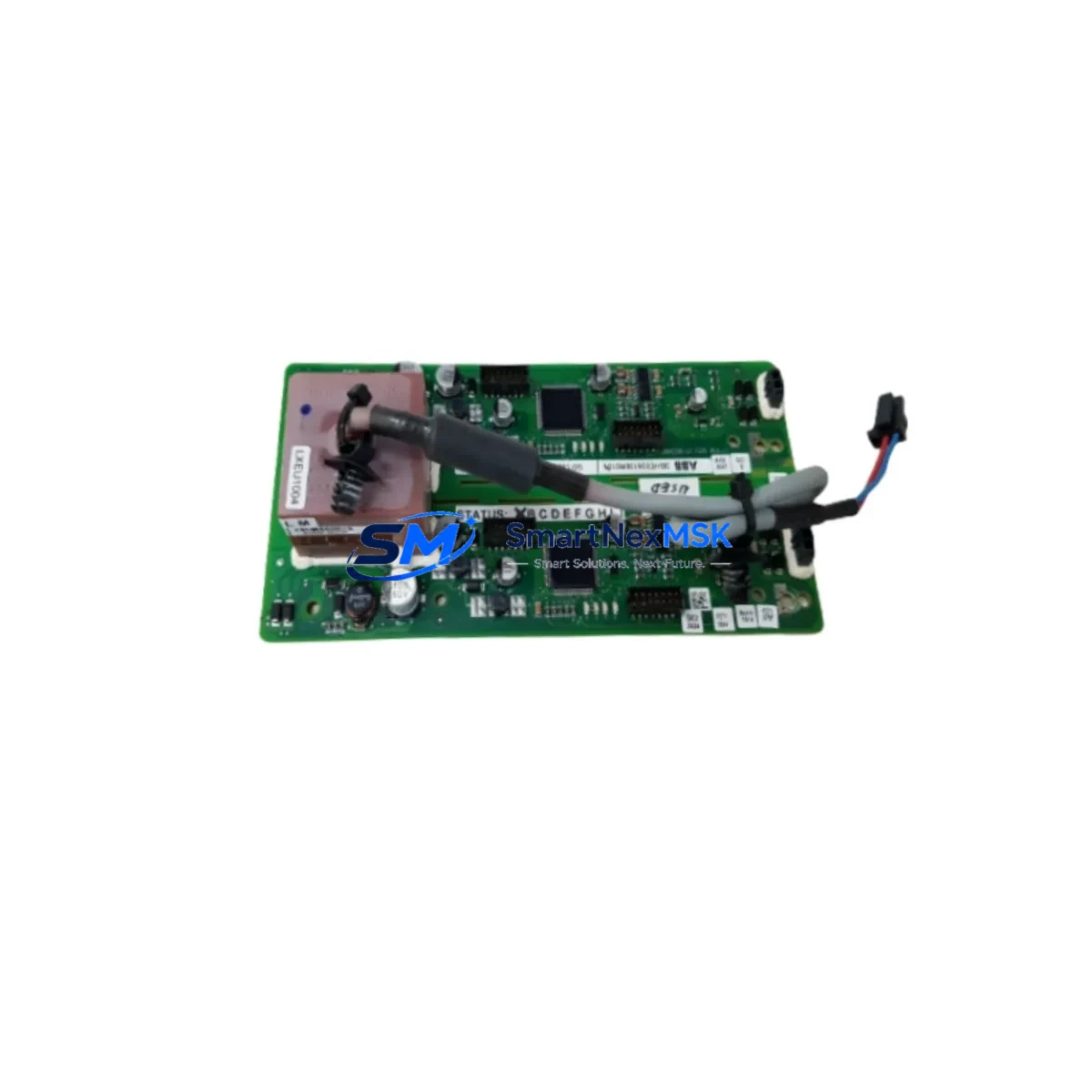

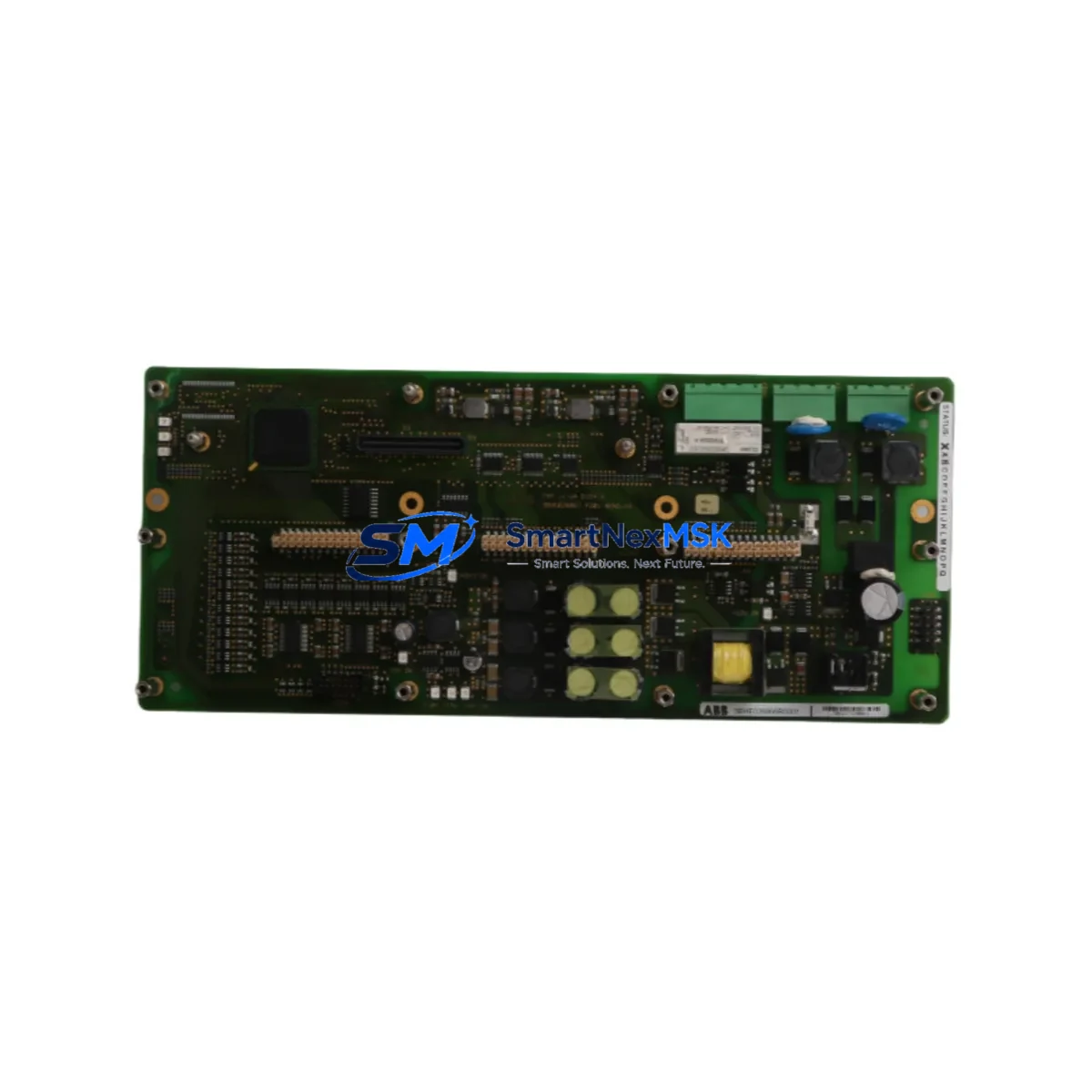

The ABB 3BHE026866R0001 is a ruggedized encoder interface module engineered for the ABB AC800PEC high-performance controller platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, metallurgical smelters, and heavy-process manufacturing lines — this module delivers precise, uninterrupted speed and position feedback even under extreme electrical stress, mechanical vibration, and thermal cycling.

In safety-critical control architectures, encoder signal integrity is non-negotiable. A single instance of signal drift, communication dropout, or module misoperation can cascade into unplanned shutdowns, equipment damage, or personnel hazards. The 3BHE026866R0001 addresses these risks through robust hardware design, wide operating temperature tolerance, and full compatibility with the AC800PEC’s real-time control loop — ensuring that speed feedback remains accurate and latency-free across the full production cycle.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered AC800PEC control cabinet, the 3BHE026866R0001 encoder interface module operates as part of a layered protection architecture. The module slots directly into the AC800PEC rack alongside the ABB PPD113 A10-10000000 processor module, which handles real-time closed-loop control. Power to the rack is typically supplied through a dedicated ABB SD831 or SD832 24 VDC power supply module, providing stable, regulated voltage that prevents encoder signal corruption caused by power rail fluctuations.

To guard against surge events from the field — particularly in drives-heavy environments where large motors start and stop frequently — the encoder cable shield must be properly terminated, and the cabinet should incorporate ABB SACE surge protective devices or equivalent DIN-rail SPDs on the 24 VDC bus. Communication between the AC800PEC and the plant DCS backbone is typically handled via the ABB CI854A PROFIBUS DP communication interface module, which isolates the controller from fieldbus-induced noise that could otherwise propagate into the encoder feedback path.

For applications requiring redundant speed measurement — such as overspeed protection in turbine or compressor control — the 3BHE026866R0001 can be paired with a secondary encoder channel or cross-validated against a ABB NTAC-02 pulse encoder interface adapter. In safety interlock circuits, the encoder feedback signal is often cross-referenced with the ABB ACS880 drive’s internal speed estimate to detect encoder failure before it causes a process trip. The ABB RDCO-04 communication adapter and ABB RETA-02 Ethernet adapter modules further extend the diagnostic visibility of the drive-encoder system to the SCADA layer, enabling predictive maintenance before a field failure occurs.

Proper grounding of the control cabinet, use of shielded twisted-pair encoder cables, and installation of ferrite cores on signal lines entering the cabinet are all recommended practices when deploying the 3BHE026866R0001 in high-interference environments such as arc furnace control rooms, variable-frequency drive panels, or high-voltage switchgear substations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In compressor train control and pump speed regulation, the 3BHE026866R0001 provides the AC800PEC with continuous, high-resolution shaft speed data. Any encoder signal interruption in these applications risks compressor surge or pump cavitation — both of which carry significant safety and equipment damage consequences. The module’s EMI-hardened design ensures reliable operation even in the presence of high-frequency interference from variable-speed drives and power converters common in refinery electrical systems.

Power Generation & Turbine Control: Steam and gas turbine governor systems demand sub-millisecond speed feedback latency. The 3BHE026866R0001 supports the AC800PEC’s real-time control cycle, delivering encoder data with the timing precision required for turbine speed governing and load control. In these applications, module reliability directly impacts grid stability and plant safety system response.

Mining & Mineral Processing: Conveyor drives, ball mill motors, and hoisting systems in underground and open-pit mining environments subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the 3BHE026866R0001 ensures continuous encoder feedback under these conditions, reducing the risk of uncontrolled conveyor runaway or hoist overspeed events.

Metallurgy & Steel Production: Rolling mill drives and ladle crane control systems require precise speed synchronization across multiple drive axes. The 3BHE026866R0001 supports the AC800PEC in maintaining tight speed loop control, preventing material gauge variation and mechanical stress caused by speed mismatch between tandem rolling stands.

Water & Wastewater Treatment: Pump station VFD control and aeration blower speed regulation rely on accurate encoder feedback to maintain flow rates within safe operating bands. In critical water supply infrastructure, control system reliability is a public safety matter, and the 3BHE026866R0001’s proven field performance supports continuous, unattended operation.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB 3BHE026866R0001?
All units are covered by a 12-month warranty from the date of delivery. If the module fails under normal operating conditions within the warranty period, we provide replacement or repair support. Our warranty applies to both new and tested-good surplus units.

Q2: What outgoing inspection and testing is performed before shipment?
Every 3BHE026866R0001 unit undergoes a full functional inspection prior to dispatch, including visual examination for physical damage, connector integrity check, and where applicable, power-on verification. Units are packed in anti-static protective packaging with appropriate cushioning to prevent transit damage.

Q3: Is the 3BHE026866R0001 compatible with all AC800PEC rack configurations?
The 3BHE026866R0001 is designed specifically for the ABB AC800PEC platform. Compatibility depends on the firmware version of the AC800PEC processor and the specific encoder interface slot assignment in your rack configuration. We recommend verifying the module slot address and firmware compatibility with your system documentation or ABB engineering support before installation.

Q4: Can long-term supply and spare parts support be guaranteed?
Yes. We maintain stock of the 3BHE026866R0001 and related AC800PEC series modules to support ongoing maintenance, planned shutdowns, and emergency replacement requirements. For customers with critical installed bases, we recommend discussing a consignment or reserved stock arrangement to ensure availability when needed. Our team can provide lead time commitments and multi-unit pricing for MRO procurement planning.
