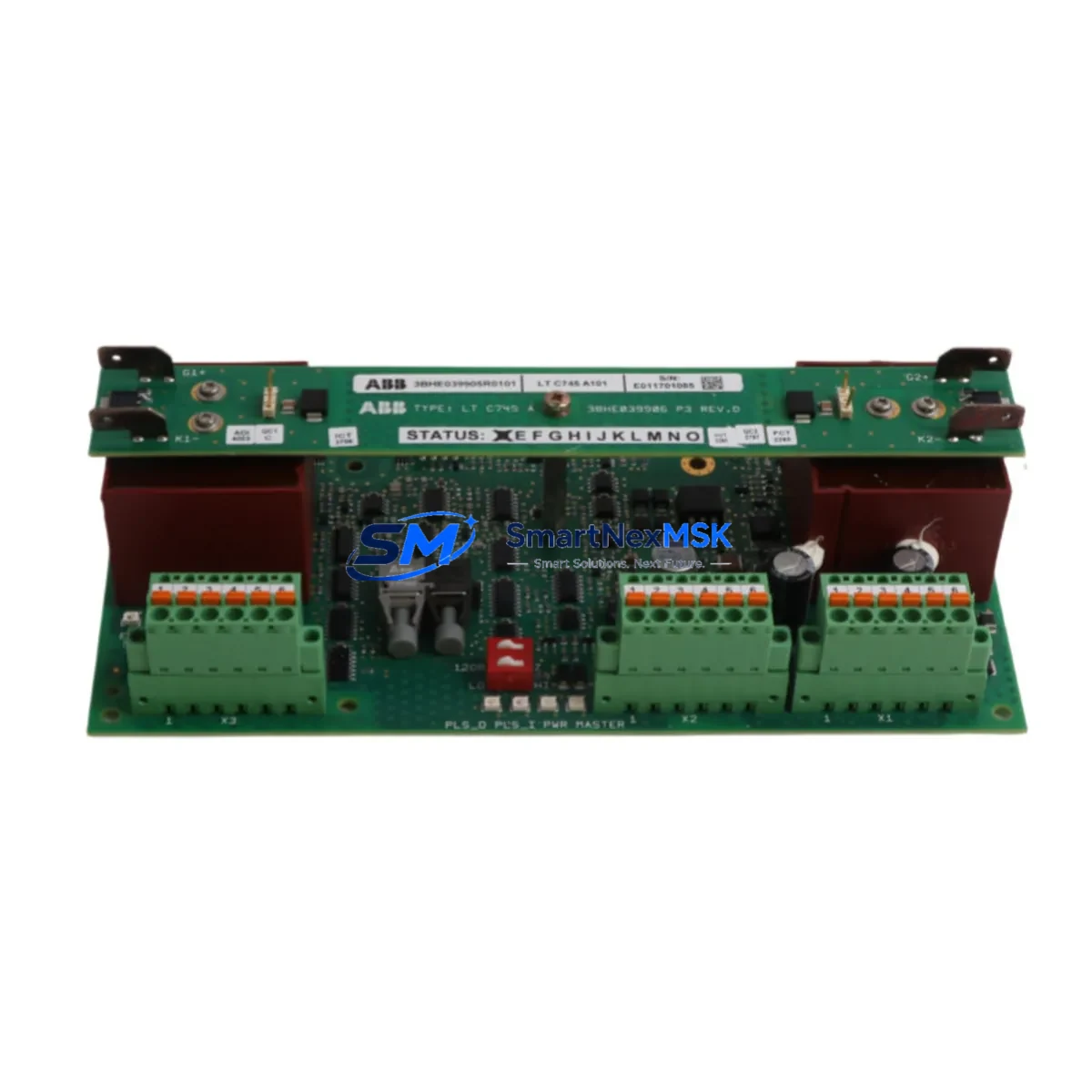

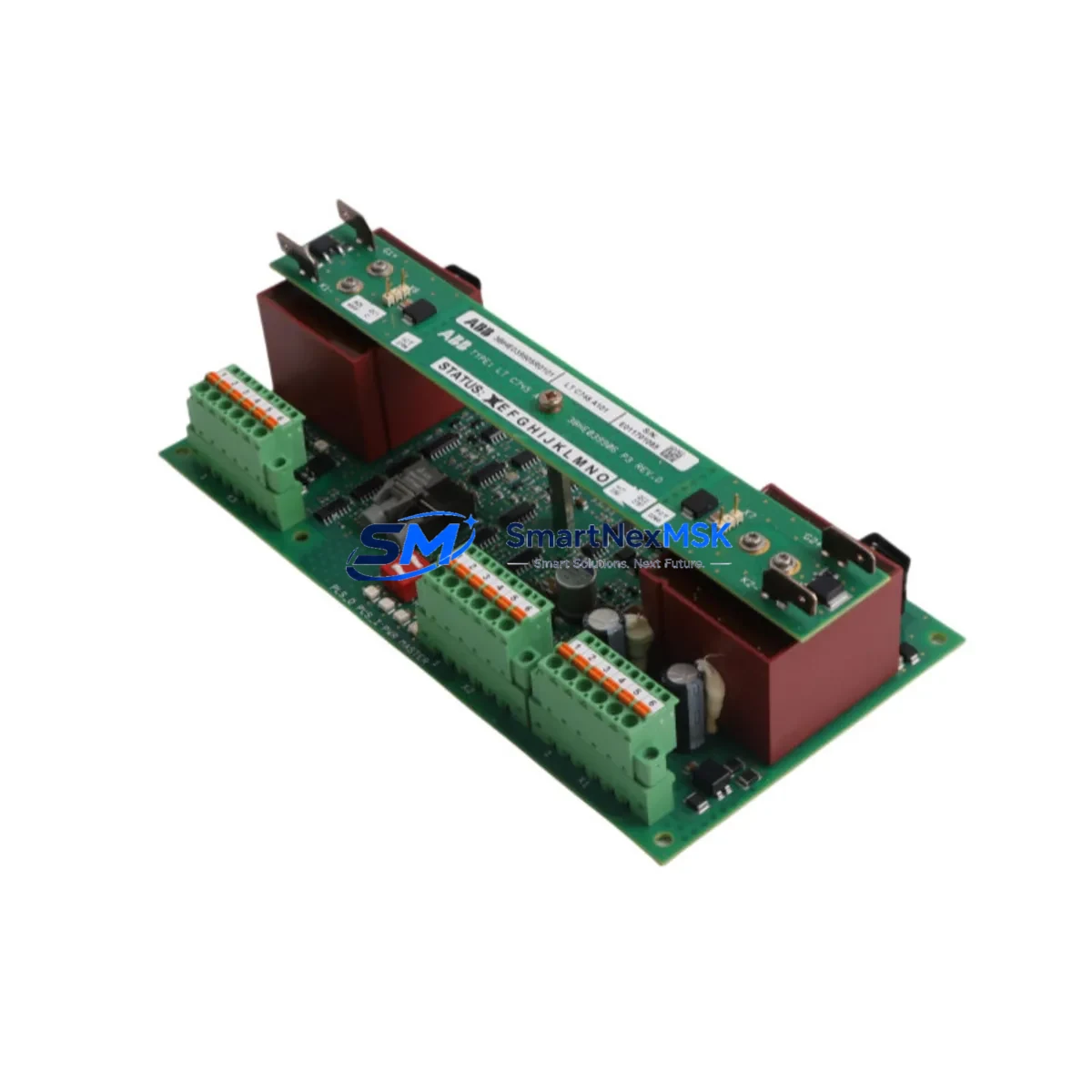

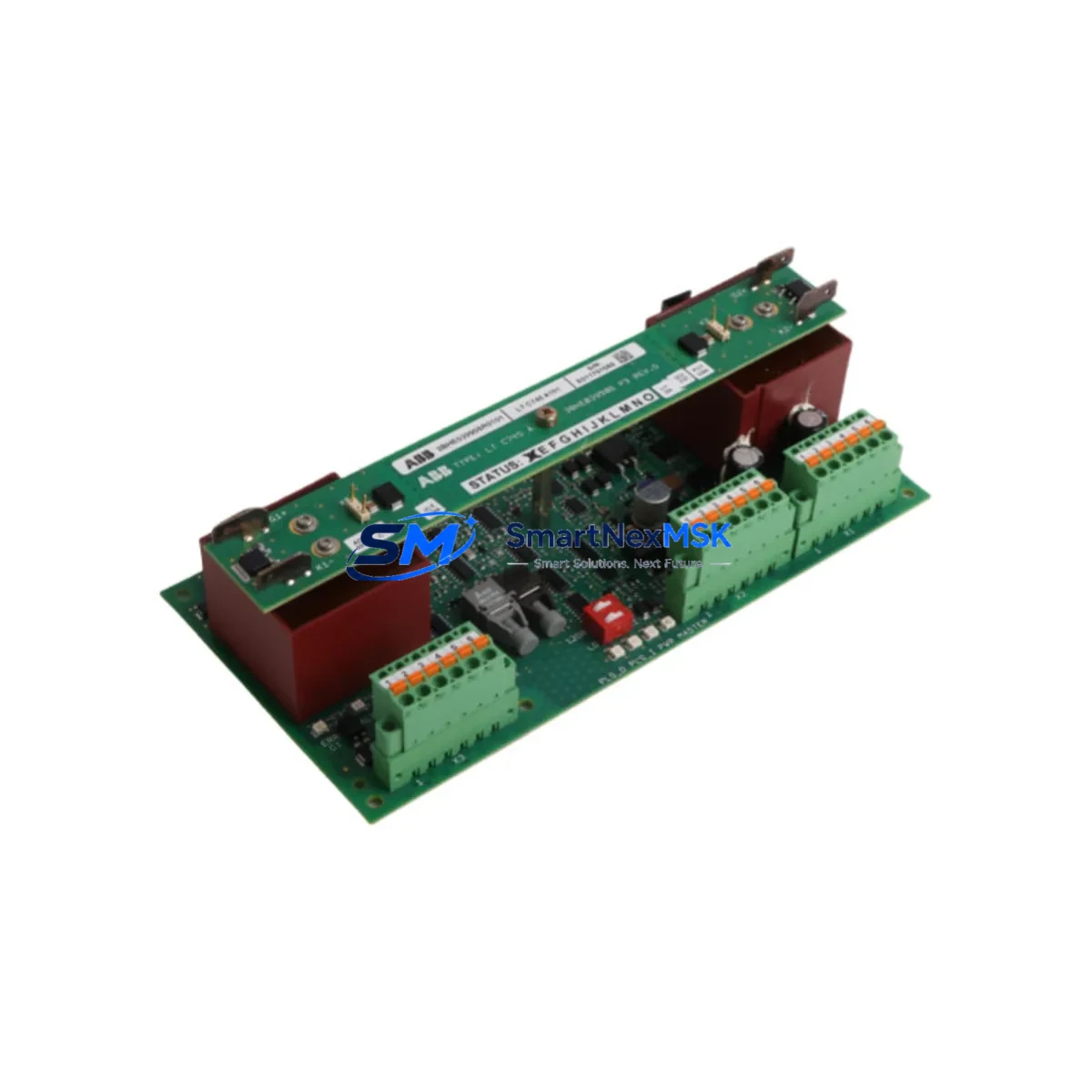

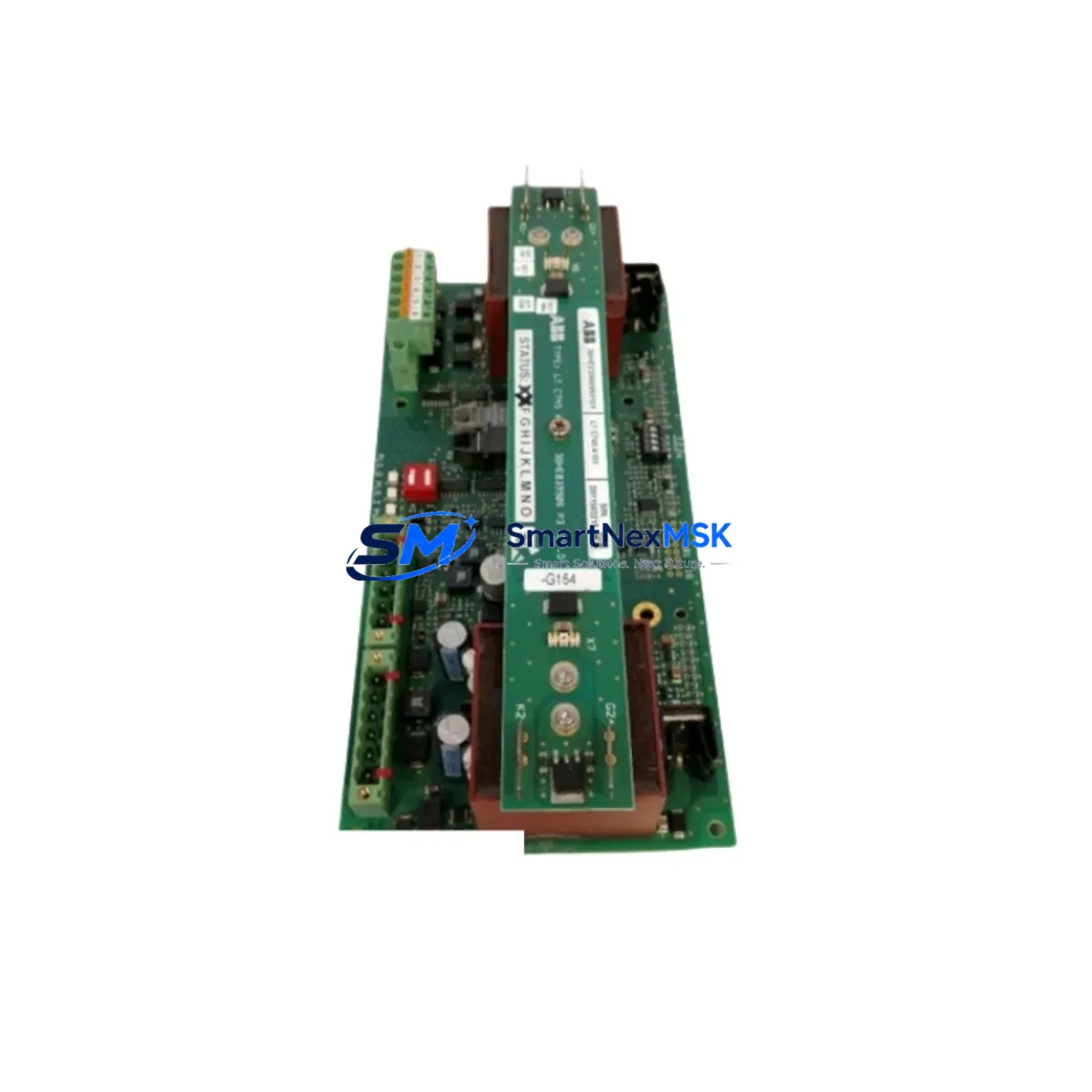

ABB 3BHE039905R0101 LTC745A101 Retrofit-Ready Crowbar Board

ABB 3BHE039905R0101 LTC745A101 Retrofit-Ready Crowbar Protection Board for ACS Series Control Systems

The ABB 3BHE039905R0101 (function code LTC745A101) is a crowbar protection board engineered for ABB’s ACS and UNITROL series medium-voltage drive and excitation control platforms. As legacy ACS 1000, ACS 5000, and UNITROL 5000/6000 installations reach end-of-service milestones, this module has become a critical retrofit component for engineers tasked with extending system life, replacing discontinued spare parts, and maintaining grid-connected generator excitation continuity without full system replacement.

SMARTNEXMSK maintains verified stock of the 3BHE039905R0101 LTC745A101, with each unit subject to pre-shipment functional testing, insulation resistance verification, and visual inspection against ABB factory standards. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3BHE039905R0101 LTC745A101 in an operating ACS or UNITROL installation requires a structured approach that accounts for the full control architecture — not just the board itself. Before scheduling a maintenance window, engineers should audit the existing cabinet for the condition of adjacent components that are commonly replaced during the same intervention.

The AINT-02C or AINT-14C interface boards, which manage the IGBT gate driver signals upstream of the crowbar circuit, should be inspected for thermal stress and connector oxidation. If the LTC745A101 failed due to a DC link overvoltage event, the AGPS-21C or AGPS-31C gate power supply boards may also have sustained damage and warrant replacement. The APBU-44C or APBU-12C pulse distribution boards, responsible for distributing firing pulses to the IGBT stacks, should be verified for signal integrity before the new crowbar board is commissioned.

On the control side, the NAMC-11 or NAMC-03 main control boards running the ACS 5000 or ACS 1000 application software must be confirmed to be running a firmware version compatible with the replacement board’s hardware revision. This is typically verified through DriveWindow Light or Drive Composer Pro, where the board’s hardware ID is read automatically upon power-up. If the existing RDCO-02 or RDCO-03 DDCS communication option board is present, the fiber-optic link to the upper-level DCS or SCADA system should be looped back and tested before the cabinet is returned to service.

Terminal wiring on the crowbar board’s auxiliary connections — typically low-voltage feedback signals for DC link voltage sensing — must be mapped against the original cabinet wiring diagram. Polarity errors on these terminals can cause immediate protection trips or, worse, suppress the crowbar function entirely. Where original wiring diagrams are unavailable, SMARTNEXMSK’s technical team can assist in identifying terminal assignments based on the cabinet serial number and ABB project documentation.

For UNITROL 5000 or UNITROL 6000 excitation systems, the LTC745A101 retrofit must be coordinated with the UNITROL application engineer to ensure that the excitation control parameters stored in the SDCS-CON-4 or SDCS-CON-2 control boards are not affected by the board swap. The AVR (Automatic Voltage Regulator) tuning parameters and PSS (Power System Stabilizer) settings should be backed up via the UNITROL PC tool before any hardware change is made.

Downtime Control During System Migration

Minimizing production downtime during a crowbar board replacement in an ACS or UNITROL system depends on preparation quality. The single most effective measure is a pre-staged replacement board that has been bench-tested and confirmed functional before the maintenance window opens. SMARTNEXMSK ships each 3BHE039905R0101 LTC745A101 with a pre-shipment test report, allowing the site engineer to confirm the board’s condition before scheduling the outage.

The recommended sequence for a controlled replacement is: (1) back up all drive parameters using DriveWindow or Drive Composer, capturing the full parameter set including application macros and user-defined parameter sets; (2) de-energize the drive cabinet following the ABB lockout/tagout procedure, verifying DC link discharge to below 50 V before opening the cabinet; (3) photograph the existing board’s terminal connections and fiber-optic routing before removal; (4) install the replacement LTC745A101, reconnect all terminals and fiber links per the photographs and wiring diagram; (5) power up in local control mode and verify the board’s hardware ID is recognized by the main control board; (6) perform a no-load test run, monitoring DC link voltage and crowbar trigger status via the drive’s diagnostic panel or DriveWindow; (7) return to production under close monitoring for the first 24 hours of operation.

For sites where continuous process operation makes even a brief outage costly, a parallel hot-standby drive configuration — where a second ACS 1000 or ACS 5000 drive is available for immediate switchover — is the most effective downtime mitigation strategy. SMARTNEXMSK can supply matched spare boards for standby cabinets to ensure that the backup system is maintained at the same hardware revision level as the primary.

Retrofit Support FAQ

Q1: Is the 3BHE039905R0101 LTC745A101 a direct drop-in replacement for all ACS 1000 and ACS 5000 variants?
In the majority of ACS 1000 and ACS 5000 configurations, the LTC745A101 is a direct hardware replacement requiring no firmware changes. However, cabinet variants produced before 2005 may use an earlier backplane revision that requires a hardware adapter bracket. Confirm the cabinet’s manufacturing date and hardware revision from the nameplate before ordering.

Q2: What commissioning steps are required after installing the replacement board?
After installation, power up the drive in local mode and use DriveWindow or Drive Composer to confirm the board is recognized. Verify the DC link voltage feedback reading against a calibrated meter. Perform a crowbar trigger test at reduced DC link voltage if the drive’s diagnostic mode supports it. Log all commissioning results for the site maintenance record.

Q3: Can the LTC745A101 be used in UNITROL 5000 and UNITROL 6000 excitation systems?
Yes. The 3BHE039905R0101 is used in both ACS series drives and UNITROL series excitation controllers that share the same power electronics platform. For UNITROL applications, coordinate the board replacement with a backup of the AVR and PSS parameters stored in the SDCS-CON-4 control board before proceeding.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events beyond the board’s rated specification, or physical damage in transit. To initiate a warranty claim, contact SMARTNEXMSK with the order number, a description of the failure mode, and any available diagnostic data from the drive’s fault log. Replacement or repair will be arranged within 5 business days of claim confirmation.
