ABB 3BHL000986P3012 5SDD2545L0001 Safety-Enhanced IGCT Module

ABB 3BHL000986P3012 5SDD2545L0001 Safety-Enhanced IGCT Module: Reliable Control in Harsh Industrial Sites

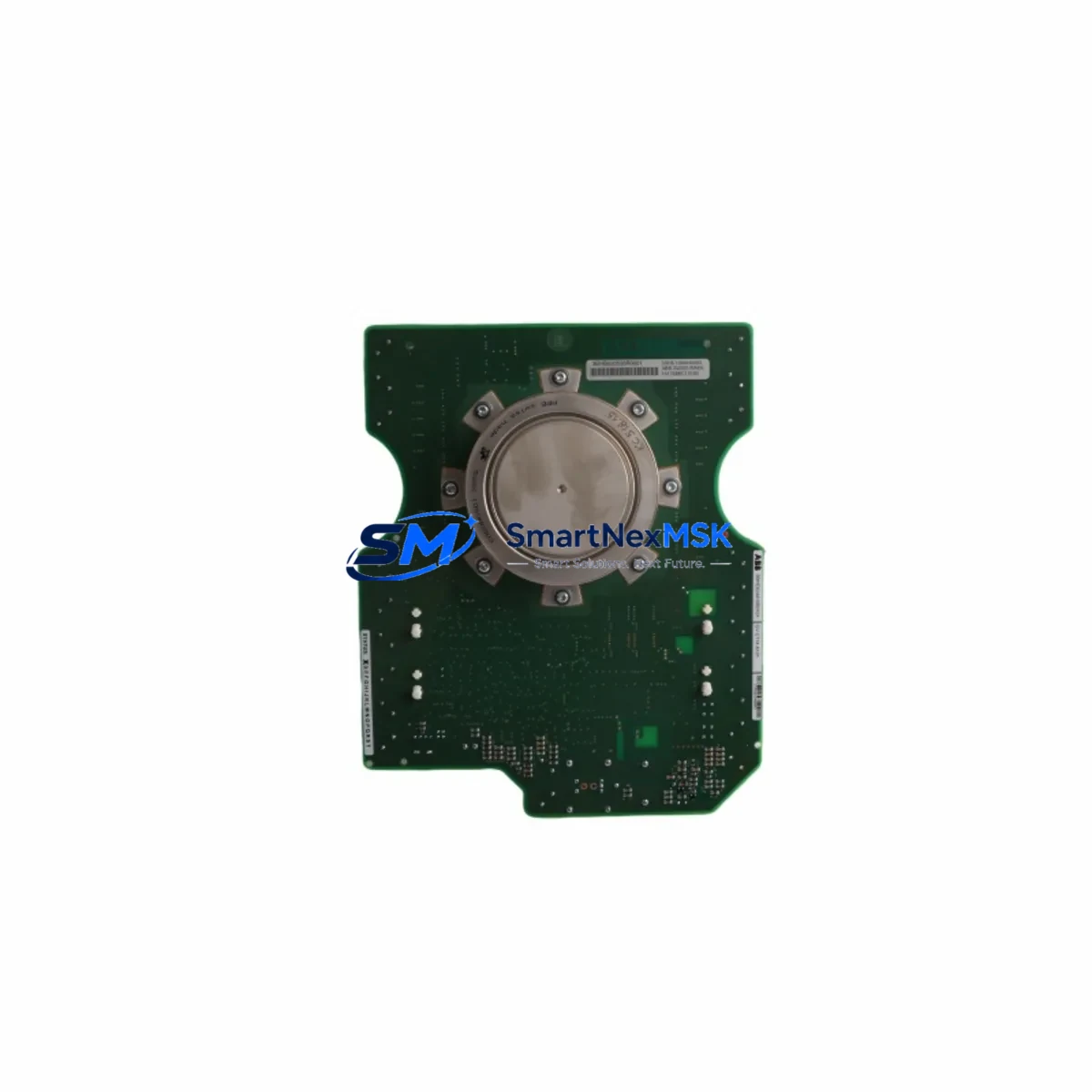

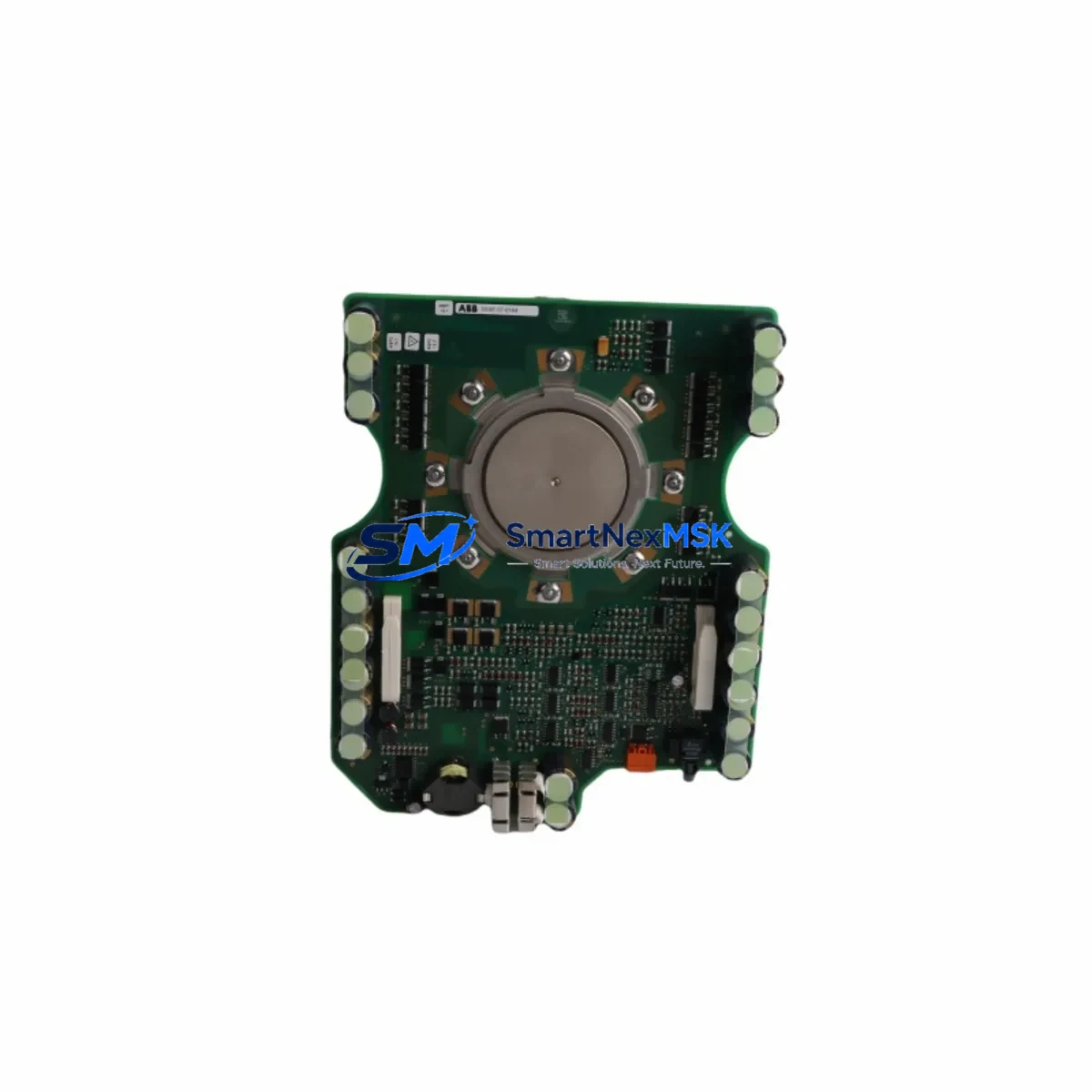

The ABB 3BHL000986P3012 / 5SDD2545L0001 is a high-power press-pack Integrated Gate-Commutated Thyristor (IGCT) module engineered for mission-critical industrial power conversion and drive control applications. Designed within ABB’s proven 5SDD series press-pack platform, this module delivers exceptional switching performance, robust surge immunity, and long-term operational stability in environments where control interruption is simply not an option. Whether deployed in medium-voltage variable-speed drives, STATCOM reactive power compensators, traction converters, or high-capacity industrial UPS systems, the 3BHL000986P3012 / 5SDD2545L0001 provides the switching precision and thermal resilience that safety-critical control loops demand.

In heavy industrial facilities — including petrochemical plants, metallurgical smelters, mining hoists, port crane drives, and continuous-process manufacturing lines — power conversion equipment is exposed to extreme thermal cycling, high-frequency electromagnetic interference, voltage transients, and mechanical vibration. Standard power semiconductors often fail prematurely under these conditions, triggering unplanned shutdowns, production losses, and safety incidents. The ABB 5SDD2545L0001 press-pack IGCT addresses these risks through its hermetically sealed, pressure-contact construction, which eliminates bond-wire fatigue failures and ensures consistent gate-cathode contact integrity across thousands of switching cycles. This structural advantage directly reduces the risk of module misfire, false triggering, and catastrophic shoot-through events in the inverter bridge.

The gate unit interface of the 3BHL000986P3012 is fully compatible with ABB’s 3BHL000986P0001 gate driver board and the broader 3BHE series gate unit assemblies used in ACS6000 and PCS6000 drive platforms. When paired with the appropriate ABB 3BHE004573R0001 gate unit or equivalent driver, the IGCT achieves precise turn-off control with minimal tail current, reducing switching losses and thermal stress on the DC link capacitor bank. Maintaining a healthy DC link — supported by correctly rated ABB CLMD or equivalent DC link capacitors — is essential to preventing overvoltage spikes that could exceed the IGCT’s repetitive peak off-state voltage rating and compromise the safety of the entire converter cabinet.

In control cabinet protection strategy, the 5SDD2545L0001 operates as the core switching element within a layered protection architecture. Upstream, ABB SACE Emax2 or Tmax series circuit breakers provide short-circuit and overload protection for the incoming AC supply. On the DC bus, high-speed semiconductor fuses — such as those from the ABB OFAF or equivalent series — protect the IGCT from fault currents that exceed its non-repetitive surge current rating. Snubber circuits, typically comprising a series RC network or a clamp diode assembly, are mounted in close proximity to the press-pack stack to suppress voltage overshoot during commutation. The thermal management subsystem — including ABB-compatible deionized water cooling units or forced-air heat exchangers — must maintain junction temperature within the rated operating window to prevent thermal runaway and ensure the IGCT’s long-term reliability in continuous-duty cycles.

Signal integrity and communication reliability are equally critical in safety-oriented drive systems. The gate firing signals transmitted from the ABB RDCU-02C or RDCU-12C control units to the IGCT gate driver must be free from noise-induced jitter, which could cause mistimed switching and destructive current imbalance in parallel-connected IGCT stacks. Fiber-optic gate signal transmission — standard in ACS6000 configurations — provides galvanic isolation and eliminates ground-loop interference between the low-voltage control domain and the high-voltage power stage. This isolation is a fundamental safety requirement in installations where the DC bus voltage exceeds 2.8 kV, as is typical in medium-voltage drive applications using the 5SDD2545L0001.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust medium-voltage drive cabinet built around the ABB 3BHL000986P3012 / 5SDD2545L0001 IGCT requires a coordinated protection strategy across every layer of the power and control architecture. At the incoming supply level, ABB SACE Emax2 air circuit breakers provide selective overcurrent and short-circuit protection, ensuring that upstream faults do not propagate into the converter section. The DC link is protected by high-speed semiconductor fuses rated to interrupt fault currents faster than the IGCT’s I²t withstand limit, preventing irreversible damage to the press-pack stack during phase-to-phase or phase-to-ground fault events.

Within the converter bridge, each IGCT position is supported by a dedicated snubber network — typically an RCD clamp or RC snubber — that limits dV/dt during turn-off and suppresses voltage overshoot caused by stray inductance in the busbar assembly. The ABB 3BHE004573R0001 gate unit monitors gate current waveform integrity and provides desaturation detection, triggering a controlled shutdown if abnormal conduction is detected. This gate-level protection is the last line of defense against shoot-through, which is the most destructive failure mode in a voltage-source inverter topology.

Thermal management is handled by a closed-loop deionized water cooling circuit, with flow rate and inlet temperature monitored by the ABB ACS6000 cooling control module. A thermal overtemperature alarm — set at 10°C below the maximum junction temperature — provides early warning before the IGCT’s thermal protection trips the drive. On the communication side, ABB RDCU-02C control units transmit gate firing pulses via fiber-optic links, ensuring that high-voltage transients on the power bus cannot corrupt the low-voltage control signals. The ABB DDCS fiber-optic communication board provides the interface between the main control processor and the gate driver, with built-in watchdog and communication fault detection that halts firing pulses if the link is interrupted — preventing uncontrolled IGCT conduction during a control system fault.

For installations requiring redundant control, the drive system can be configured with a hot-standby ABB APBU-44C pulse encoder interface unit, which maintains synchronization between the primary and backup control channels. Surge protection on the auxiliary power supply — typically a 24 VDC rail feeding the gate drivers and control electronics — is provided by ABB OVR series surge protective devices, which clamp transient overvoltages caused by nearby lightning strikes or switching operations on the medium-voltage network.

Critical Industrial Safety Applications

The ABB 5SDD2545L0001 IGCT module is deployed across the most demanding sectors of heavy industry, where control system reliability is directly linked to personnel safety and production continuity.

In petrochemical and refinery facilities, medium-voltage variable-speed drives using this IGCT control large compressor trains and boiler feed pumps that operate continuously for months between planned shutdowns. An unplanned drive trip caused by a failed power module can trigger a process upset, flare event, or emergency shutdown — with significant safety and financial consequences. The press-pack construction of the 5SDD2545L0001 eliminates the bond-wire failure mode that is the leading cause of IGCT degradation in high-cycle-count applications, making it the preferred choice for critical rotating equipment drives in this sector.

In electric power generation and grid-connected STATCOM systems, the 3BHL000986P3012 / 5SDD2545L0001 is used in reactive power compensation equipment that maintains grid voltage stability. A module failure in a STATCOM converter can reduce the reactive power reserve available to the grid operator, increasing the risk of voltage collapse during peak demand periods. Rapid spare-part availability — supported by SMARTNEXMSK’s in-stock inventory and same-day dispatch capability — minimizes the mean time to repair and restores grid support capacity as quickly as possible.

In mining and mineral processing, high-power drives using this IGCT control conveyor systems, ball mills, and hoisting equipment in underground and open-pit operations. These environments are characterized by high dust concentrations, wide ambient temperature swings, and frequent voltage sags caused by large motor starts on weak grid connections. The IGCT’s high surge current withstand and fast recovery characteristics make it resilient to the voltage disturbances that are endemic in mining power systems.

In metallurgical and steel mill applications, the 5SDD2545L0001 is found in the main drive converters of rolling mills and arc furnace electrode regulators, where rapid torque response and high current capacity are essential. The cyclic loading profile of these applications — with frequent acceleration and deceleration transients — places extreme demands on the thermal cycling endurance of the power semiconductor. The press-pack construction, with its uniform pressure contact and superior thermal path to the heat sink, provides the thermal fatigue resistance needed for reliable long-term operation in this duty cycle.

In port and harbor crane drives, medium-voltage IGCT-based converters provide the regenerative braking capability that allows energy recovered during lowering operations to be fed back to the port’s electrical network. This energy recovery function requires precise IGCT switching control across a wide range of load conditions, from light hook to full rated load, and the 3BHL000986P3012 gate unit interface ensures consistent gate drive performance across this entire operating range.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3BHL000986P3012 / 5SDD2545L0001?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and gate unit interface faults attributable to the module itself. Warranty claims are supported by our technical team, who will assess the returned unit and provide a replacement or repair within an agreed lead time. The warranty period begins from the date of shipment and applies to units installed and operated within the manufacturer’s specified ratings.

Q2: What pre-shipment testing is performed on each unit?
Every ABB 3BHL000986P3012 / 5SDD2545L0001 unit dispatched by SMARTNEXMSK undergoes a full pre-shipment inspection that includes visual examination for physical damage, leakage current measurement at rated off-state voltage, gate trigger threshold verification, and thermal resistance check where applicable. Units that do not meet ABB’s original factory acceptance criteria are quarantined and not offered for sale. A test report is available upon request for critical applications.

Q3: Is this module compatible with my existing ABB ACS6000 or PCS6000 drive system?
The 5SDD2545L0001 press-pack IGCT is designed for use in ABB’s ACS6000 medium-voltage drive platform and PCS6000 power conversion system, as well as compatible MEGADRIVE-LCI and STATCOM converter configurations. Compatibility depends on the specific converter topology, DC link voltage rating, and gate unit type used in your installation. We recommend confirming the exact gate unit part number (3BHE series) and press-pack stack configuration with your ABB drive documentation before ordering. Our technical team can assist with cross-referencing if you provide your drive’s nameplate data.

Q4: Can SMARTNEXMSK guarantee long-term supply continuity for this module?
Yes. SMARTNEXMSK maintains a dedicated inventory of ABB press-pack IGCT modules, including the 3BHL000986P3012 / 5SDD2545L0001, to support customers with long-lifecycle drive systems that require periodic spare-part replenishment. We source directly from authorized distribution channels and maintain quality records for all stock. For customers with planned maintenance schedules or multi-unit installations, we offer reserved stock arrangements to ensure availability when your maintenance window arrives. Contact our sales team to discuss your long-term supply requirements.
