ABB 3BHT300065R0001 PS-25 Maintenance-Ready Spare AC800M: Spare Replacement & Industrial Downtime Risk Control

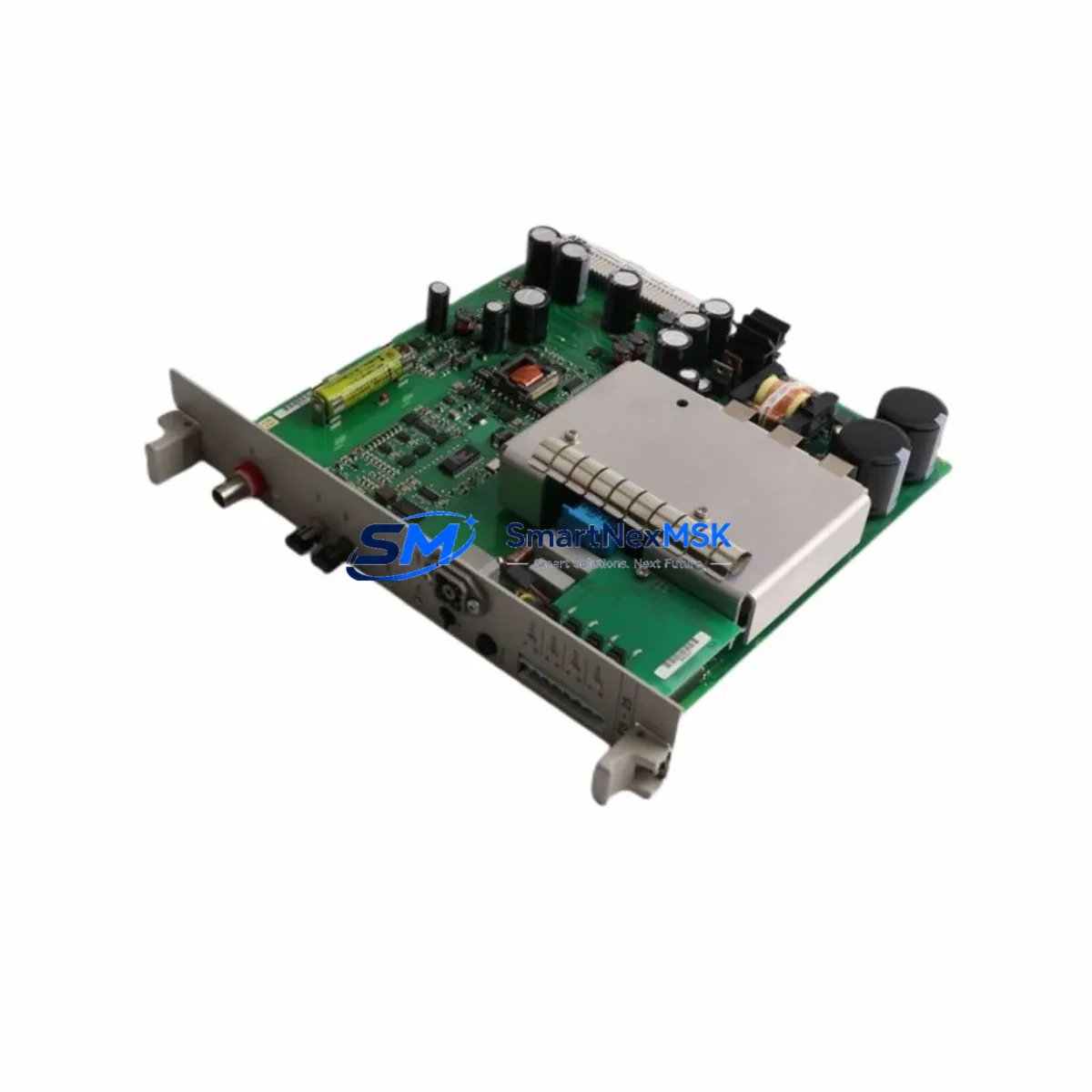

The ABB 3BHT300065R0001 PS-25 is an original DCS power supply module engineered for the ABB AC800M controller platform — one of the most widely deployed distributed control systems in process automation, power generation, and heavy industry. When this module fails or degrades, the entire AC800M controller rack loses its regulated DC supply, triggering an unplanned shutdown that can cascade across connected I/O modules, communication buses, and field instruments. Maintaining a verified, tested spare of the 3BHT300065R0001 PS-25 in your site inventory is the single most effective measure to reduce mean time to repair (MTTR) and protect continuous operation.

This listing supplies an original ABB 3BHT300065R0001 PS-25 power supply module — not a third-party substitute — sourced from authorized industrial channels, individually inspected, and tested under load before shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Whether you are managing a planned turnaround, responding to an emergency fault, or building a strategic spare parts buffer for aging AC800M infrastructure, this module is ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance engineers know that a power supply failure in an AC800M rack rarely occurs in isolation. When the 3BHT300065R0001 PS-25 is flagged for replacement — whether during a scheduled inspection or after an unplanned trip — the surrounding electrical environment deserves equal scrutiny before the new module is commissioned.

Begin with the incoming AC supply: verify that the 24 VDC distribution rail feeding the controller cabinet is within tolerance and that the upstream circuit breaker or fuse (typically a 2A or 4A DIN-rail fuse block) shows no signs of thermal stress or intermittent contact. A degraded fuse block is a common root cause of repeated power supply failures and should be replaced as a matter of course during any PS-25 swap.

Next, inspect the AC800M backplane itself. The backplane carries the power bus from the PS-25 to every module in the rack — including the PM865 or PM866 CPU module, CI854 PROFIBUS communication interface, CI873 PROFINET adapter, and any installed AI810, AO810, DI810, or DO810 I/O modules. Connector pins on the backplane should be cleaned and checked for oxidation; a corroded backplane contact can cause the new power supply to report undervoltage faults immediately after installation.

While the rack is de-energized, this is also the right moment to inspect the TB820 or TB840 terminal base units and their associated field wiring. Loose or corroded terminal connections on analog input or digital output channels can introduce ground loops that stress the power supply’s output regulation. Signal isolators — such as those used on 4–20 mA loops feeding the AC800M analog inputs — should be checked for correct loop power draw, as a failed isolator can present as an overload condition on the PS-25 output.

For sites running redundant AC800M configurations, the second PS-25 unit in the redundant pair should be inspected and its output voltage measured under load. Redundant power supplies that have been in service for more than five years may show output voltage drift that falls within the alarm threshold but indicates approaching end-of-life. Proactive replacement of both units during the same maintenance window eliminates the risk of a second failure shortly after the first is resolved.

Finally, review the SD821 or SD822 power distribution module if present in the cabinet, and confirm that the 24 VDC bus voltage at the load end of the distribution wiring matches the PS-25 output within ±2%. A significant voltage drop across the distribution wiring points to undersized cable or a deteriorating connection that will shorten the service life of the replacement module.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the AC800M diagnostic tool (Control Builder M or Asset Vision) to confirm the PS-25 fault code. Common codes include power supply undervoltage, output current limit, and module not present. Document the fault log timestamp for maintenance records.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedure. If the system is running in simplex mode, coordinate with the process control room for a controlled shutdown. In redundant configurations, confirm that the standby controller has assumed control before isolating the faulted rack.

Step 3 — Module Removal: The PS-25 is a hot-swap-capable module in redundant configurations. In simplex installations, the rack must be de-energized. Release the front-panel locking lever, slide the module out of the backplane slot, and place it in an ESD-safe bag for return or failure analysis.

Step 4 — Compatibility Check: Confirm that the replacement 3BHT300065R0001 PS-25 hardware revision is compatible with your AC800M rack revision. Refer to ABB document 3BSE036351 (AC800M Hardware Product Manual) for revision compatibility tables. Our team cross-references this prior to shipment, but a site-level check is best practice.

Step 5 — Installation and Commissioning: Slide the new PS-25 into the backplane slot until the locking lever engages. Re-energize the rack and observe the module status LED — steady green indicates normal operation. Verify output voltage at the backplane test points and confirm that all downstream I/O modules and the CPU module have returned to RUN state.

Step 6 — System Validation: Run a full I/O channel check using Control Builder M to confirm that all AI810, DI810, AO810, and DO810 channels are reporting correctly. Check PROFIBUS and PROFINET communication status on the CI854 and CI873 adapters. Log the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the 3BHT300065R0001 PS-25 compatible with all AC800M rack revisions?
The PS-25 is designed for the AC800M controller platform and is compatible with the majority of rack revisions in service. Hardware revision compatibility is documented in ABB’s AC800M Hardware Product Manual (3BSE036351). We cross-reference your rack revision against the compatibility matrix before dispatch. If you can provide your rack revision or controller serial number, we can confirm compatibility before your order is placed.

Q2: What is included in the 12-month warranty, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact [email protected] with your order number, fault description, and site fault log if available. We will arrange return logistics and dispatch a replacement unit upon confirmation of the defect.

Q3: How should the PS-25 be stored if purchased as a long-term spare?
Store the module in its original ESD-safe packaging in a dry, temperature-controlled environment (recommended: 10°C to 40°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or in environments with high particulate contamination. For long-term storage exceeding 24 months, we recommend a functional power-on test before installation to confirm that electrolytic capacitors have not degraded during storage.

Q4: Can this module replace older or discontinued ABB power supply variants used in legacy AC800M installations?
The 3BHT300065R0001 PS-25 is the current production reference for the 25W power supply position in the AC800M rack. It is the direct replacement for earlier variants used in the same rack slot. For legacy systems where the original part number differs, we recommend providing the existing module’s label information so we can confirm form, fit, and function equivalence before shipment. Our engineering support team is available via [email protected] to assist with legacy system compatibility assessments.
