ABB 3BSE018293R1 Safety-Enhanced Analog Output Module

ABB 3BSE018293R1 Safety-Enhanced Analog Output Module: Reliable Control for Harsh Industrial Sites

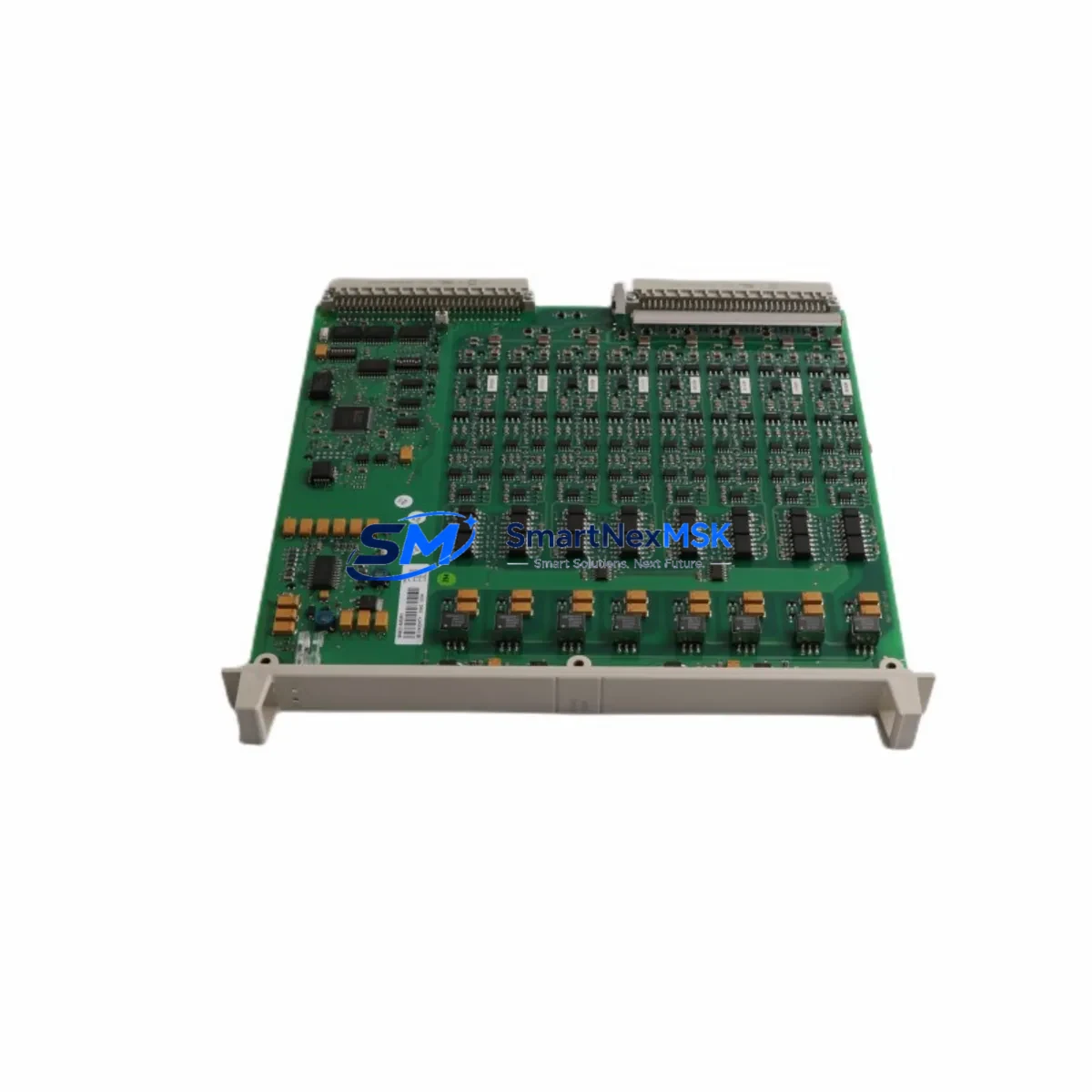

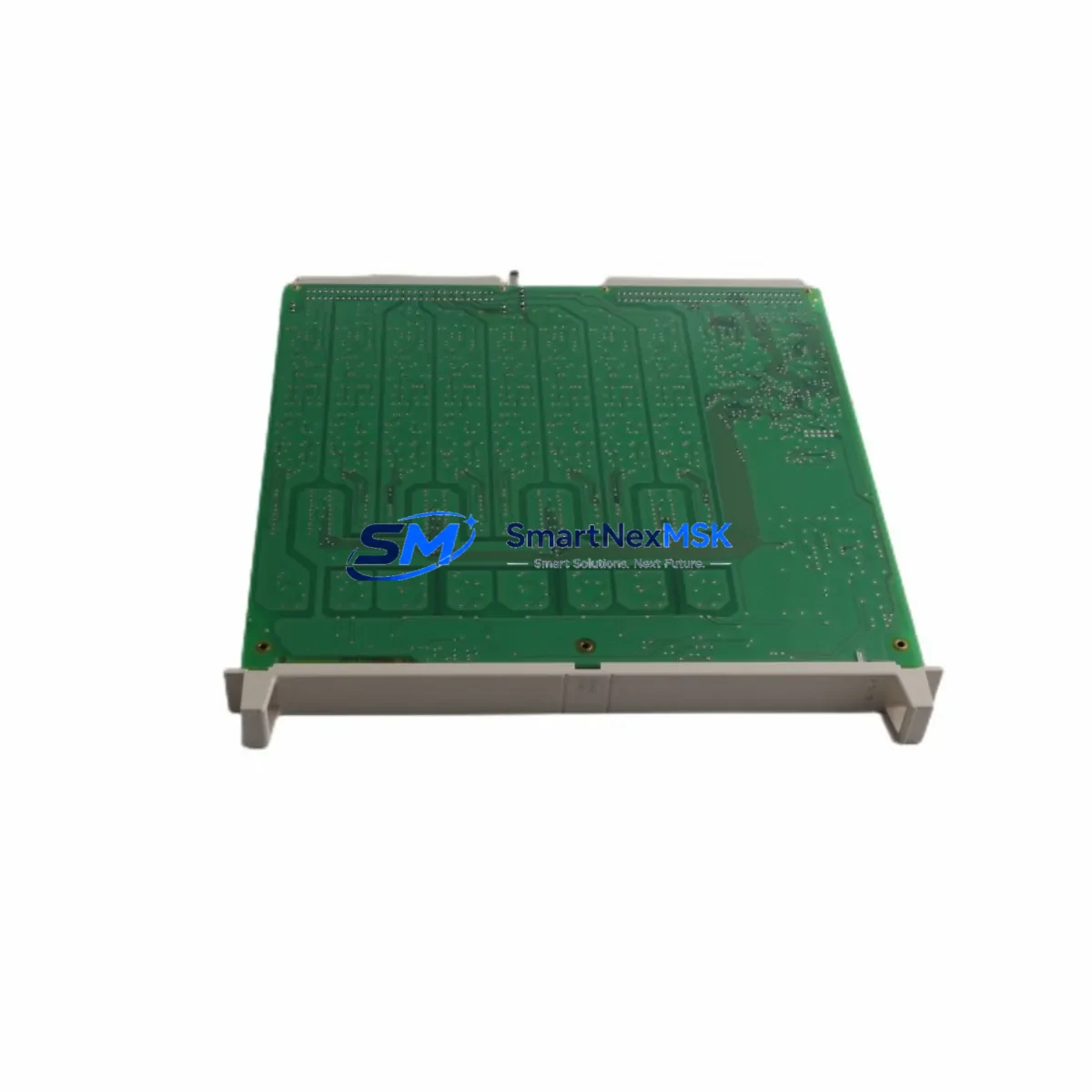

The ABB 3BSE018293R1 DSAO 120A is a high-integrity analog output module engineered for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation and safety-critical control architectures. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module delivers stable 4–20 mA or 0–10 V analog output signals to field actuators, control valves, variable-frequency drives, and positioners without signal drift or output interruption, even under sustained electrical stress.

In demanding industrial environments — petrochemical plants, power generation facilities, metallurgical smelters, water treatment stations, mining control rooms, and port logistics automation systems — analog output integrity is a foundational requirement for process safety. A single instance of signal drift or module misoperation can cascade into valve misposition, pump overspeed, or burner control failure. The 3BSE018293R1 DSAO 120A addresses these risks through robust EMI shielding, galvanic isolation between output channels, and tight output accuracy maintained across the full operating temperature range of -25°C to +70°C.

Within an ABB AC800M or AC800F controller cabinet, this module integrates seamlessly with the ABB TB820V2 ModuleBus Optical Interface and CI854A PROFIBUS DP Interface Module, forming a deterministic, low-latency communication backbone that eliminates timing jitter in safety-critical output commands. When paired with the ABB 3BSE008516R1 AI810 Analog Input Module, the system achieves closed-loop control with matched I/O latency — essential for PID loops governing temperature, pressure, and flow in continuous process plants.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the ABB 3BSE018293R1 DSAO 120A requires a layered protection strategy that addresses power quality, signal integrity, communication reliability, and thermal management simultaneously. On the power supply side, the ABB 3BSE023675R1 SD833 Power Supply Module provides regulated 24 VDC to the S800 I/O bus, with built-in overvoltage and short-circuit protection that prevents supply transients from propagating into the analog output circuitry. For applications where power continuity is non-negotiable — such as emergency shutdown systems or burner management loops — a redundant power supply configuration using a second SD833 unit with automatic switchover is strongly recommended.

Signal surge protection is equally critical. In field environments with long cable runs to actuators or valve positioners, induced surges from nearby motor starts or lightning events can damage output channels. Installing ABB SACE surge protection devices or equivalent DIN-rail-mounted transient voltage suppressors at the cabinet terminal block provides a first line of defense before signals reach the 3BSE018293R1 output terminals. This is particularly important in outdoor substations, mining headframes, and port crane control panels where cable exposure is unavoidable.

For communication architecture, the ABB CI854A PROFIBUS DP Interface or CI840A PROFIBUS PA Interface Module connects the S800 I/O station to the AC800M controller over a deterministic fieldbus, ensuring that output commands from the controller reach the DSAO 120A within defined cycle times regardless of network load. In high-availability configurations, the ABB TB820V2 ModuleBus Optical Interface replaces copper bus connections with fiber-optic links, eliminating ground loop interference and providing galvanic isolation between the controller rack and remote I/O stations — a critical safety measure in high-voltage switchgear rooms and electrolytic process areas.

Thermal management within the cabinet should account for the module’s heat dissipation under full-load conditions. Pairing the 3BSE018293R1 with the ABB 3BSE008514R1 AI801 Analog Input Module and 3BSE008516R1 AI810 in a shared I/O station requires adequate forced-air ventilation or heat exchanger cooling to maintain ambient temperatures below 55°C at the module face. The ABB SA811 Analog I/O Module can serve as a supplementary output resource in mixed-signal cabinets where both analog and digital outputs must coexist within the same S800 station, reducing the number of separate I/O stations and simplifying cabinet wiring.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In crude distillation units, catalytic crackers, and hydroprocessing reactors, the ABB 3BSE018293R1 DSAO 120A drives control valve positioners that regulate feed flow, reflux ratios, and reactor pressure. Its galvanic isolation and EMI resistance ensure that output signals remain stable even in the presence of high-frequency interference from variable-speed drives and large induction motors operating in the same facility. Any signal drift in these loops can result in off-spec product, pressure excursions, or safety system activation — making output module reliability a direct process safety requirement.

Power Generation and Grid Substations: In coal-fired, gas turbine, and hydroelectric generating stations, analog output modules control excitation systems, governor actuators, and boiler feedwater control valves. The 3BSE018293R1‘s wide operating temperature range and surge-tolerant design make it suitable for installation in turbine hall control panels where ambient temperatures fluctuate significantly and electrical noise from generator excitation equipment is persistent.

Mining and Mineral Processing: Flotation cell level control, ball mill feed rate regulation, and thickener underflow density control all rely on stable analog output signals to maintain process efficiency and prevent equipment damage. In underground mining environments, the module’s robust construction and compliance with IEC 61000-4 EMC standards provide confidence that output commands will be executed accurately despite the high-interference electrical environment created by draglines, conveyors, and ventilation fan drives.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use analog output modules to control dosing pump speeds, aeration blower inlet guide vanes, and UV disinfection intensity. The ABB 3BSE018293R1‘s 12-bit resolution ensures precise control of chemical dosing rates, preventing both under-treatment (a public health risk) and over-treatment (a chemical cost and compliance risk). Its 12-month warranty and guaranteed spare parts availability support the long maintenance intervals typical of water utility operations.

Metallurgy and Steel Production: Continuous casting machines, electric arc furnace electrode regulators, and rolling mill tension control systems demand analog output modules that can sustain accurate output under the extreme electromagnetic interference generated by high-current DC bus systems and induction heating equipment. The 3BSE018293R1 DSAO 120A‘s channel isolation architecture prevents cross-channel interference that could cause simultaneous misoperation of multiple actuators — a scenario that could result in strand breakout or roll damage in steel production.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3BSE018293R1 DSAO 120A?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions consistent with ABB S800 I/O system specifications. Warranty claims are supported by pre-shipment test documentation provided with each unit. Replacement or repair is arranged promptly to minimize control system downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 3BSE018293R1 DSAO 120A unit undergoes functional output verification across all 8 channels, isolation resistance testing, and communication bus handshake validation before dispatch. Units that do not meet ABB factory acceptance criteria are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 3BSE018293R1 compatible with both AC800M and AC800F controller platforms?
Yes. The 3BSE018293R1 DSAO 120A is a standard S800 I/O module compatible with all ABB controller platforms that support the S800 ModuleBus interface, including the AC800M, AC800F, and Symphony Plus DCS environments. Configuration is performed through ABB Control Builder or Symphony Plus Engineering tools using standard function block libraries, with no hardware modification required.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. We maintain dedicated stock of the ABB 3BSE018293R1 and related S800 I/O modules to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Customers operating continuous-process facilities with extended turnaround intervals are encouraged to contact our team to discuss consignment stock arrangements and priority dispatch agreements that ensure module availability when it is needed most.
