ABB 3BSE018295R1 DSDI 110AV1 Safety Digital Input Module

ABB 3BSE018295R1 DSDI 110AV1 Safety Digital Input Module: Reliable Control in Harsh Industrial Sites

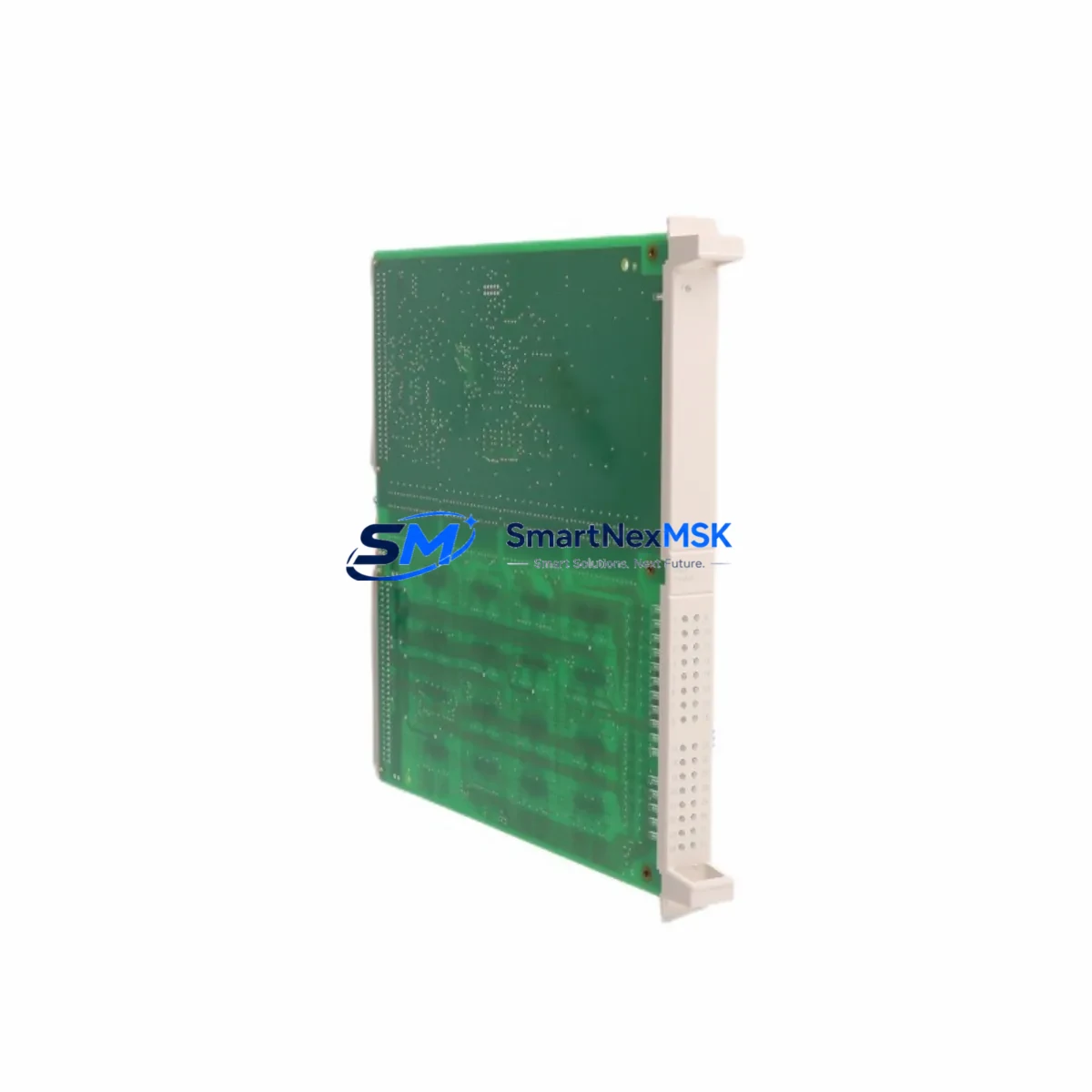

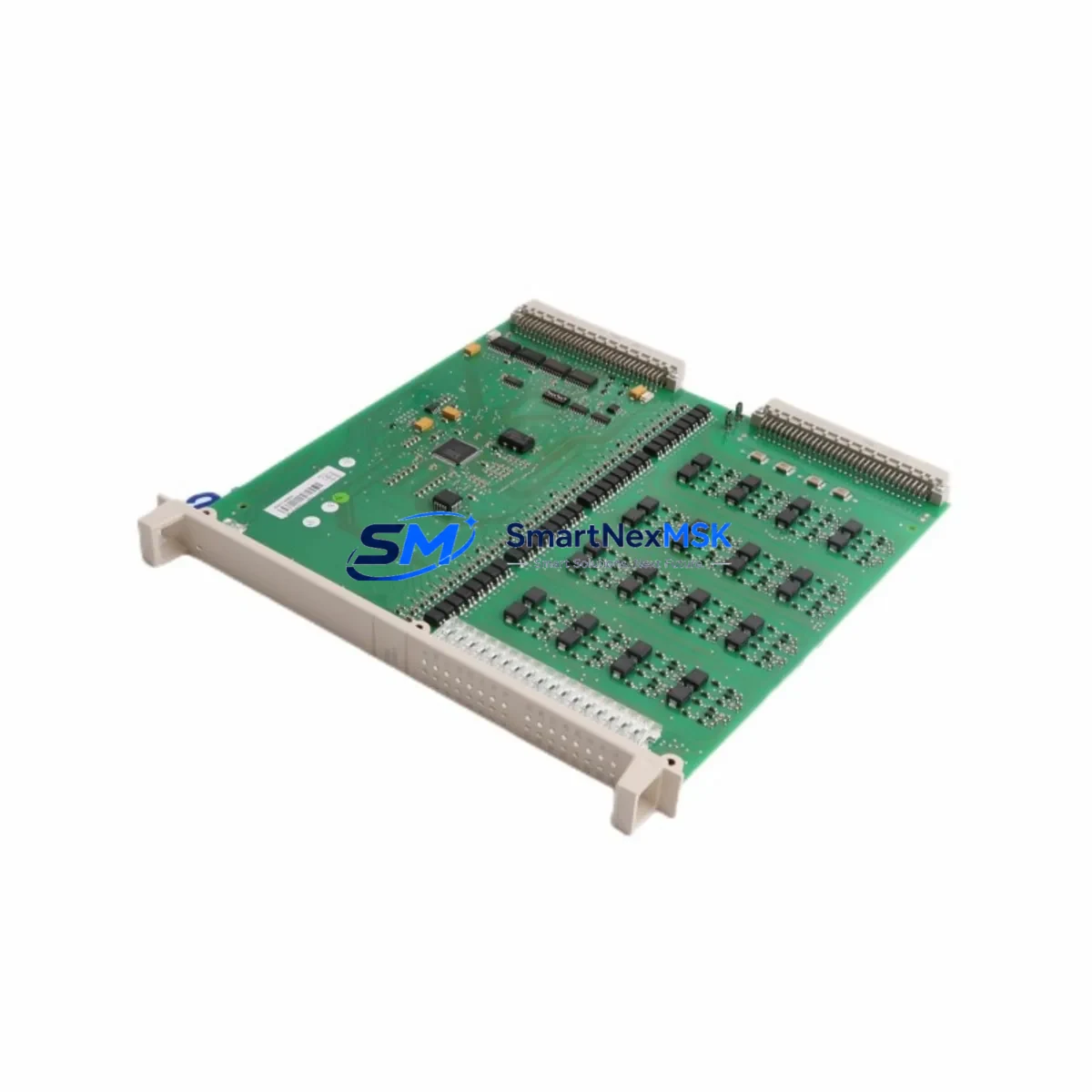

The ABB 3BSE018295R1 DSDI 110AV1 is a 110VAC digital input module engineered for the ABB AC450 Distributed Control System (DCS), purpose-built to deliver uninterrupted signal acquisition in high-load, high-interference, and safety-critical industrial environments. In petrochemical plants, power generation facilities, metallurgical smelters, mining operations, water treatment stations, and continuous manufacturing lines, the integrity of every digital input channel directly determines whether a safety interlock fires correctly or a process shutdown executes on time. The DSDI 110AV1 addresses this demand with robust hardware design, wide operating temperature tolerance, and proven compatibility with the AC450 control architecture.

Signal integrity is the foundation of any reliable safety loop. The 3BSE018295R1 module provides galvanically isolated input channels that suppress common-mode noise, ground loops, and transient surges originating from high-power motor drives, welding equipment, and switchgear operations on the same bus. In environments where electromagnetic interference routinely causes signal drift or false triggering in lesser modules, the DSDI 110AV1 maintains stable logic-level discrimination across all 16 input channels simultaneously, ensuring that emergency shutdown (ESD) systems, fire and gas detection circuits, and critical interlock relays receive accurate field status at all times.

Within a fully configured AC450 control cabinet, the 3BSE018295R1 operates alongside complementary modules including the DSDO 110AV1 digital output module, the DSDP 140 processor module, and the DSCS 140 communication supervisor to form a tightly integrated control node. Power conditioning for the entire rack is typically handled by the DSPU 110A power supply unit, which provides regulated 24VDC backplane power and protects downstream modules — including the DSDI 110AV1 — from upstream voltage fluctuations and surge events. For applications requiring analog process variable monitoring in the same cabinet, the DSAI 130A analog input module and DSAO 120A analog output module are commonly installed in adjacent slots, sharing the same S100 I/O bus and benefiting from the same surge-protected backplane environment.

In safety instrumented systems (SIS) and critical interlock architectures, the DSDI 110AV1 is frequently paired with the DSMB 127 module bus interface and the DSBC 172 bus connection board to extend I/O capacity across multiple racks without introducing additional latency or communication errors. Where redundant communication paths are required — as in offshore platforms or continuous chemical reactors — the DSCL 110 communication link module provides the network backbone that keeps the AC450 system synchronized with supervisory SCADA layers, ensuring that the digital input states captured by the 3BSE018295R1 are accurately reflected at the operator station within the required scan cycle.

Field installation of the DSDI 110AV1 follows standard AC450 rack mounting procedures, with the module sliding into any compatible S100 I/O slot and securing via the front-panel locking mechanism. Terminal connections are made through the corresponding DSTC 190 termination cable assembly, which routes field wiring from the marshalling cabinet to the module’s input channels without exposing live conductors inside the control rack. This design minimizes the risk of accidental contact during maintenance activities and supports hot-swap replacement in systems configured for redundant I/O operation, reducing planned downtime during spare-part exchanges in live production environments.

Safety Reliability Table

Control Cabinet Protection Strategy

A well-protected AC450 control cabinet integrates multiple layers of hardware defense to prevent cascading failures. The DSDI 110AV1 sits at the field-signal entry point of this defense chain, but its reliable operation depends on the health of every upstream and downstream component. The DSPU 110A power supply unit must deliver clean, regulated backplane voltage; any ripple or dropout at the power rail will manifest as spurious input state changes in the DSDI 110AV1 channels, potentially triggering unintended safety responses or masking genuine field events.

Surge events entering through field cabling — particularly in outdoor installations at port terminals, open-pit mining sites, or substations — are the most common cause of premature module failure. Installing surge protective devices (SPDs) at the marshalling cabinet terminal blocks, upstream of the DSTC 190 termination cable, provides the first line of defense. The DSDI 110AV1’s internal transient suppression then handles residual energy that passes through the SPDs, ensuring that neither the module nor the DSMB 127 bus interface downstream is exposed to damaging voltage spikes.

Communication integrity between the AC450 processor and the DSDI 110AV1 is maintained through the S100 I/O bus, supervised by the DSCL 110 communication link module. In environments with strong variable-frequency drive (VFD) interference — common in steel mills, cement plants, and large pump stations — proper cable shielding, grounding of the DSBC 172 bus connection board, and physical separation of signal cables from power cables are essential practices that complement the module’s built-in EMI filtering. Together, these measures ensure that the digital input states reported by the 3BSE018295R1 accurately reflect field conditions at all times, supporting reliable operation of emergency shutdown systems and process interlocks.

Critical Industrial Safety Applications

In petrochemical refineries and LNG terminals, the ABB 3BSE018295R1 DSDI 110AV1 is deployed in emergency shutdown (ESD) panels and fire and gas (F&G) detection systems, where it monitors the open/closed status of safety valves, pressure switches, and flame detector relay outputs. The module’s 110VAC input compatibility makes it directly suitable for field devices wired at AC voltage levels without requiring additional signal converters, simplifying cabinet design and reducing potential failure points in the safety loop.

In coal-fired and hydroelectric power plants, the DSDI 110AV1 monitors turbine protection relay contacts, generator breaker auxiliary contacts, and transformer Buchholz relay outputs. The module’s galvanic isolation prevents ground potential differences between the high-voltage switchyard and the control room from corrupting input signals, a critical requirement in substations where ground grid voltages can reach several volts during fault events.

In underground mining operations and open-pit extraction sites, the module is used in conveyor belt safety interlock systems, monitoring belt misalignment switches, pull-cord emergency stops, and blocked-chute detectors. Its wide operating temperature range and resistance to vibration and dust ingress — when installed in a properly sealed control enclosure — make it suitable for the demanding physical environment of mining control rooms located close to the extraction face.

In water and wastewater treatment plants, the DSDI 110AV1 monitors pump run/fail status, valve position feedback, and high-level float switch inputs across multiple pump stations. Its ability to handle 110VAC field signals directly from motor control center (MCC) auxiliary contacts eliminates the need for interposing relays in many applications, reducing panel complexity and improving overall system reliability in unmanned remote pump stations.

In metallurgical smelters and continuous casting lines, where high ambient temperatures, heavy electromagnetic interference from arc furnaces, and aggressive chemical atmospheres challenge every piece of control hardware, the DSDI 110AV1’s robust construction and proven AC450 compatibility make it a preferred choice for critical process interlocks that must operate without interruption across multi-year production campaigns.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB 3BSE018295R1 DSDI 110AV1?
Every unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize control system downtime.

Q2: How is each module tested before shipment?
Each 3BSE018295R1 DSDI 110AV1 unit undergoes a full functional test prior to dispatch, verifying correct operation of all 16 input channels, backplane communication, and LED status indication. Test records are available upon request for quality-critical applications in regulated industries.

Q3: Is the DSDI 110AV1 compatible with all AC450 rack configurations?
The DSDI 110AV1 is designed for the ABB S100 I/O bus and is compatible with standard AC450 rack assemblies. Compatibility with specific system revisions should be confirmed against the ABB AC450 hardware manual or by contacting our technical team with your system’s processor and bus interface details.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated stock of the 3BSE018295R1 and other AC450 series modules to support ongoing maintenance, planned shutdowns, and emergency replacement requirements. We provide consistent supply for industrial facilities operating legacy ABB DCS systems where OEM availability may be limited, ensuring that critical control infrastructure can be maintained without forced system upgrades.
