ABB 3BSE022366R1 CI801 Safety-Enhanced PROFIBUS DP for Harsh Sites

ABB 3BSE022366R1 CI801 Safety-Enhanced PROFIBUS DP Module: Reliable Control in Harsh Industrial Sites

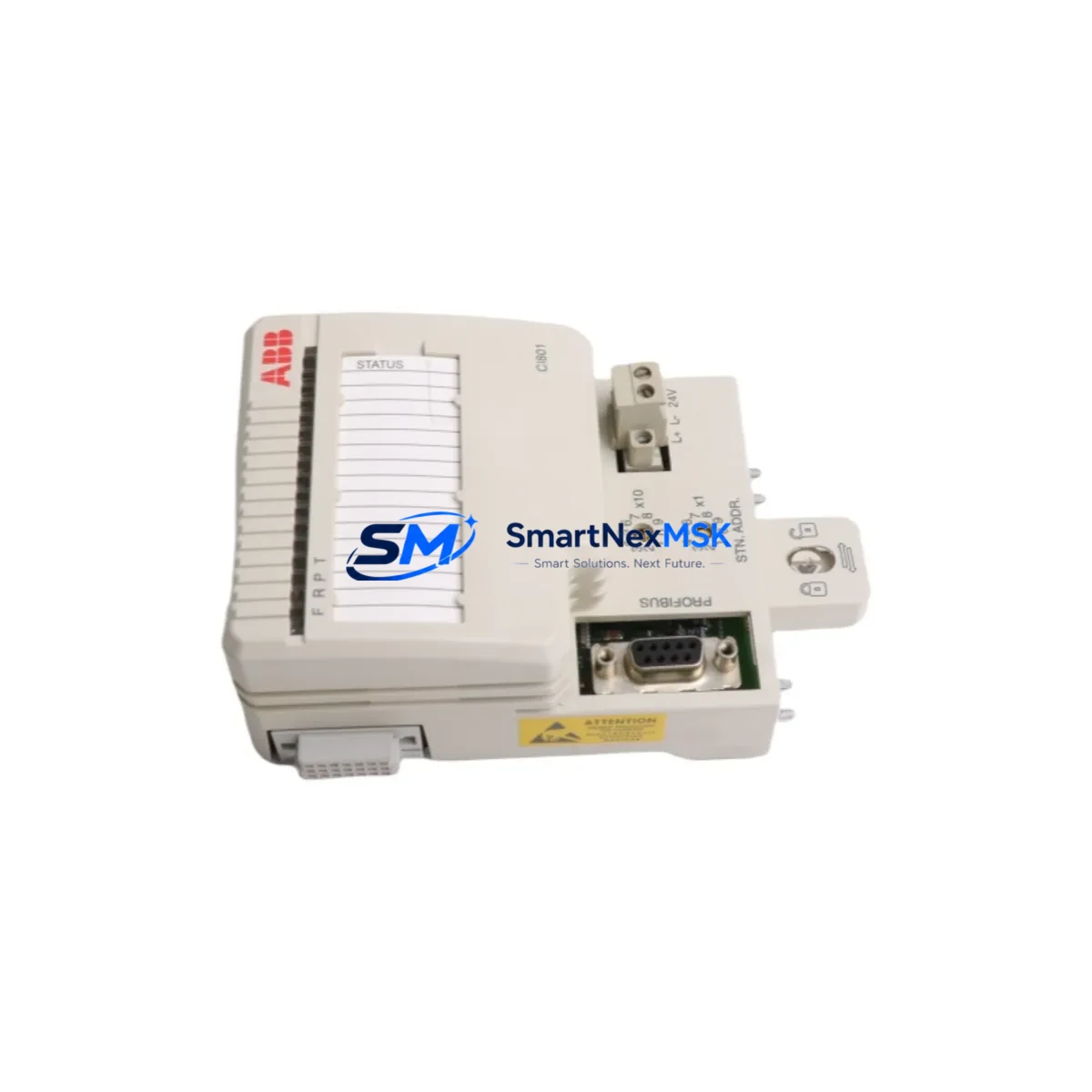

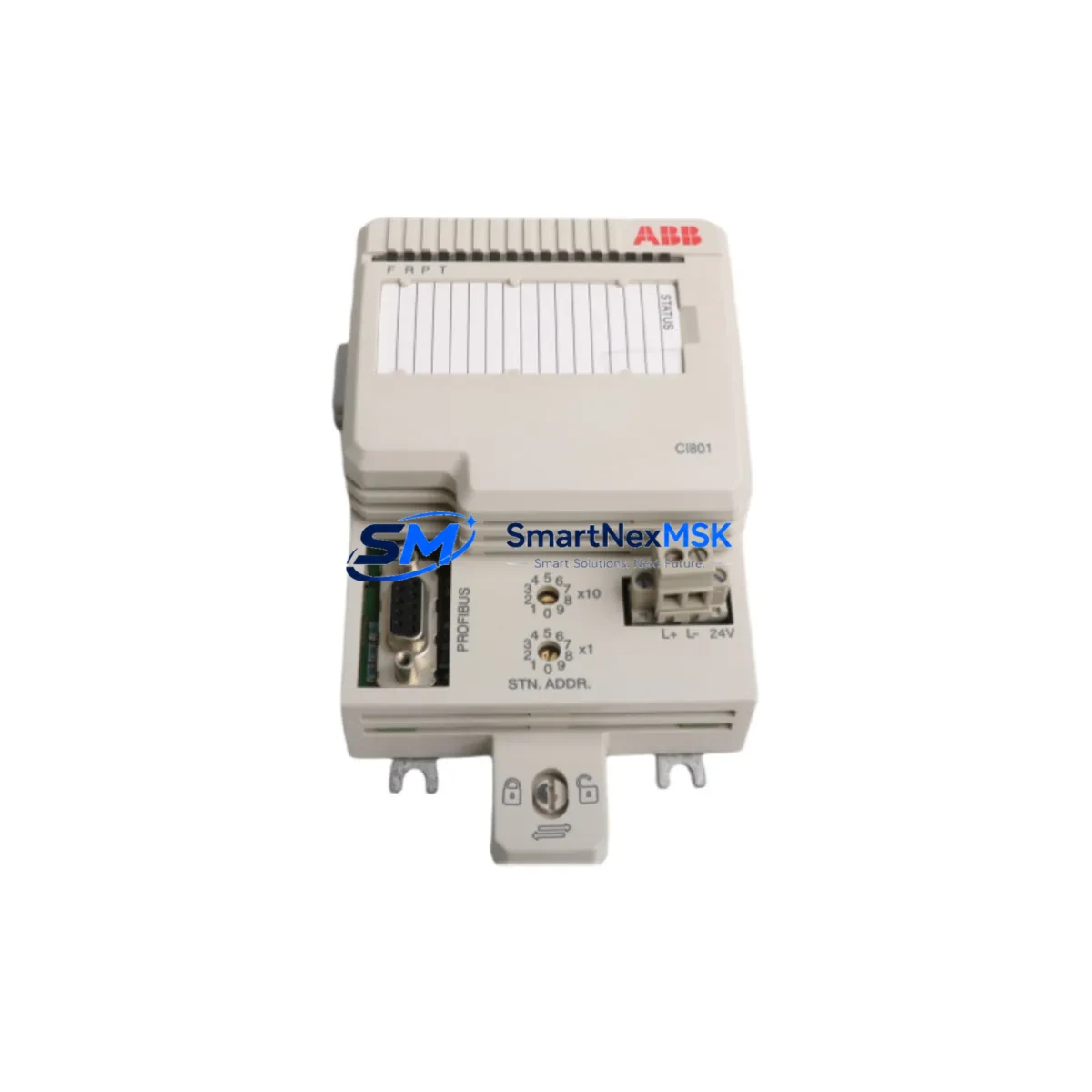

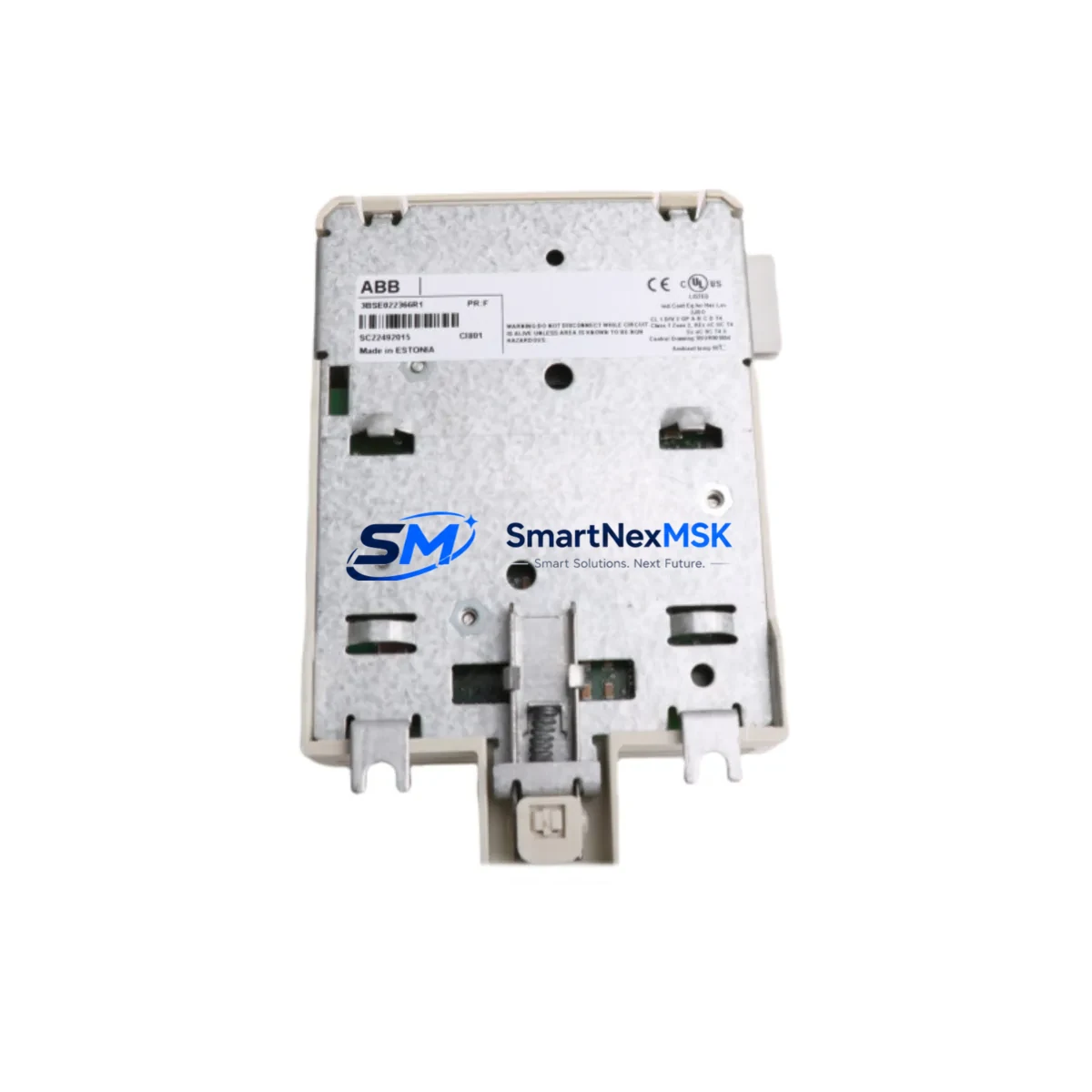

The ABB 3BSE022366R1 CI801 is a high-integrity PROFIBUS DP communication interface module engineered for the ABB AC800M Distributed Control System (DCS). Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port automation systems — this module delivers deterministic, low-latency fieldbus communication where control interruption is not an option.

In high-load, high-interference production environments, the CI801 serves as the critical communication backbone between the AC800M controller and field devices such as remote I/O stations, variable frequency drives, intelligent valve positioners, and safety instrumented system (SIS) nodes. Its robust EMI shielding and galvanic isolation architecture prevent signal drift and spurious trip events caused by electromagnetic interference from large motors, welding equipment, and high-voltage switching gear commonly found in heavy industrial control cabinets.

The module’s hardware design addresses the full spectrum of fieldbus reliability risks: surge immunity protects against transient overvoltage events on the PROFIBUS cable; onboard diagnostics continuously monitor communication health and flag faults before they escalate to process shutdowns; and the module’s wide operating temperature range ensures stable performance in both climate-controlled control rooms and harsh outdoor enclosures exposed to extreme heat or cold.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB 3BSE022366R1 CI801 as part of a comprehensive control cabinet protection strategy requires careful attention to the surrounding hardware ecosystem. In a typical AC800M-based control architecture, the CI801 operates alongside the ABB PM864A or PM866K01 processor modules, which handle real-time control execution. The CI801 bridges these controllers to field devices over PROFIBUS DP, making its communication integrity directly tied to process safety.

On the power supply side, the ABB SD822 or SD823 redundant power supply modules provide the stable 24 VDC rail that feeds the S800 I/O backplane. Any voltage fluctuation or power interruption at this level can cascade into communication timeouts on the CI801’s PROFIBUS segment. Pairing the CI801 with a properly sized ABB TP830 or TP854 termination panel and a dedicated PROFIBUS repeater — such as the ABB CI840A for redundant PROFIBUS configurations — significantly reduces the risk of segment-level communication failure in large-scale installations.

For installations where the PROFIBUS segment spans long cable runs across noisy industrial floors, the use of ABB TK212A PROFIBUS cables with proper shielding termination at both ends is essential. In safety instrumented systems (SIS), the CI801 may interface with ABB S800 I/O modules such as the AI810 analog input or DO810 digital output modules, which feed critical process variables and actuator commands into the safety logic. Ensuring these I/O modules are mounted in vibration-dampened racks with proper grounding prevents ground loop interference that could cause spurious analog signal drift or false digital outputs.

In high-availability architectures, the CI801 is often deployed in a redundant pair configuration, with automatic switchover managed by the AC800M controller firmware. This eliminates single-point-of-failure risk on the PROFIBUS communication path — a critical requirement in continuous process industries where an unplanned fieldbus outage can trigger emergency shutdowns, product loss, or safety system activation.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In refinery control systems, the CI801 connects the AC800M DCS to PROFIBUS-enabled pressure transmitters, flow meters, and control valve positioners across hazardous area boundaries. Its galvanic isolation prevents ground faults in Zone 1/Zone 2 classified areas from propagating into the control room, protecting both personnel and process integrity.

Power Generation & Grid Substations: Thermal and hydroelectric power plants rely on PROFIBUS DP for turbine governor control, excitation system monitoring, and auxiliary equipment supervision. The CI801’s high baud rate capability (up to 12 Mbit/s) ensures that time-critical control commands reach actuators within the deterministic cycle times required for grid-synchronization operations.

Mining & Mineral Processing: In underground and open-pit mining operations, control systems face extreme vibration, dust ingress, and wide temperature swings. The CI801’s industrial-grade construction and wide temperature tolerance make it a reliable choice for conveyor control, crusher automation, and ventilation management systems where communication failure can create immediate safety hazards.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use PROFIBUS DP to integrate pump stations, chemical dosing systems, and filtration controls. The CI801 enables centralized monitoring and control of distributed field devices across large treatment plant footprints, reducing the need for local operator intervention in potentially hazardous chemical handling areas.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference. The CI801’s EMI immunity ensures uninterrupted communication between the DCS and critical drive systems, preventing the communication-induced process interruptions that can cause costly equipment damage or molten metal handling incidents.

Port & Terminal Automation: Container terminals and bulk cargo handling facilities use DCS-based automation for crane control, conveyor management, and ship-to-shore loading systems. The CI801 provides the reliable PROFIBUS backbone that keeps these high-throughput operations running safely around the clock.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3BSE022366R1?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified PROFIBUS DP communication functions within the warranty period, we provide a replacement or full refund. The warranty period begins from the date of shipment and is supported by our technical team throughout.

Q2: What pre-shipment testing is performed on each CI801 module?
Every ABB 3BSE022366R1 unit undergoes functional verification testing prior to shipment, including power-on self-test confirmation, PROFIBUS DP communication initialization check, and visual inspection for physical integrity. Modules sourced from authorized distribution channels are verified against ABB’s original firmware and hardware revision specifications to ensure full compatibility with AC800M controller platforms.

Q3: Is the 3BSE022366R1 compatible with all AC800M controller versions?
The CI801 (3BSE022366R1) is compatible with the full AC800M controller family, including PM861A, PM864A, PM866K01, and PM891 processor modules, subject to the firmware version requirements specified in ABB’s system compatibility matrix. It is recommended to verify the controller firmware version against ABB’s CI801 release notes before installation in safety-critical applications.

Q4: Can you guarantee long-term supply and replacement support for this module?
Yes. We maintain dedicated stock of the ABB 3BSE022366R1 and related AC800M components to support both planned maintenance programs and emergency replacement requirements. For customers operating aging DCS installations where ABB has transitioned the CI801 to limited availability, we offer sourcing support and can advise on compatible alternative modules where direct replacements are no longer available from the OEM.
