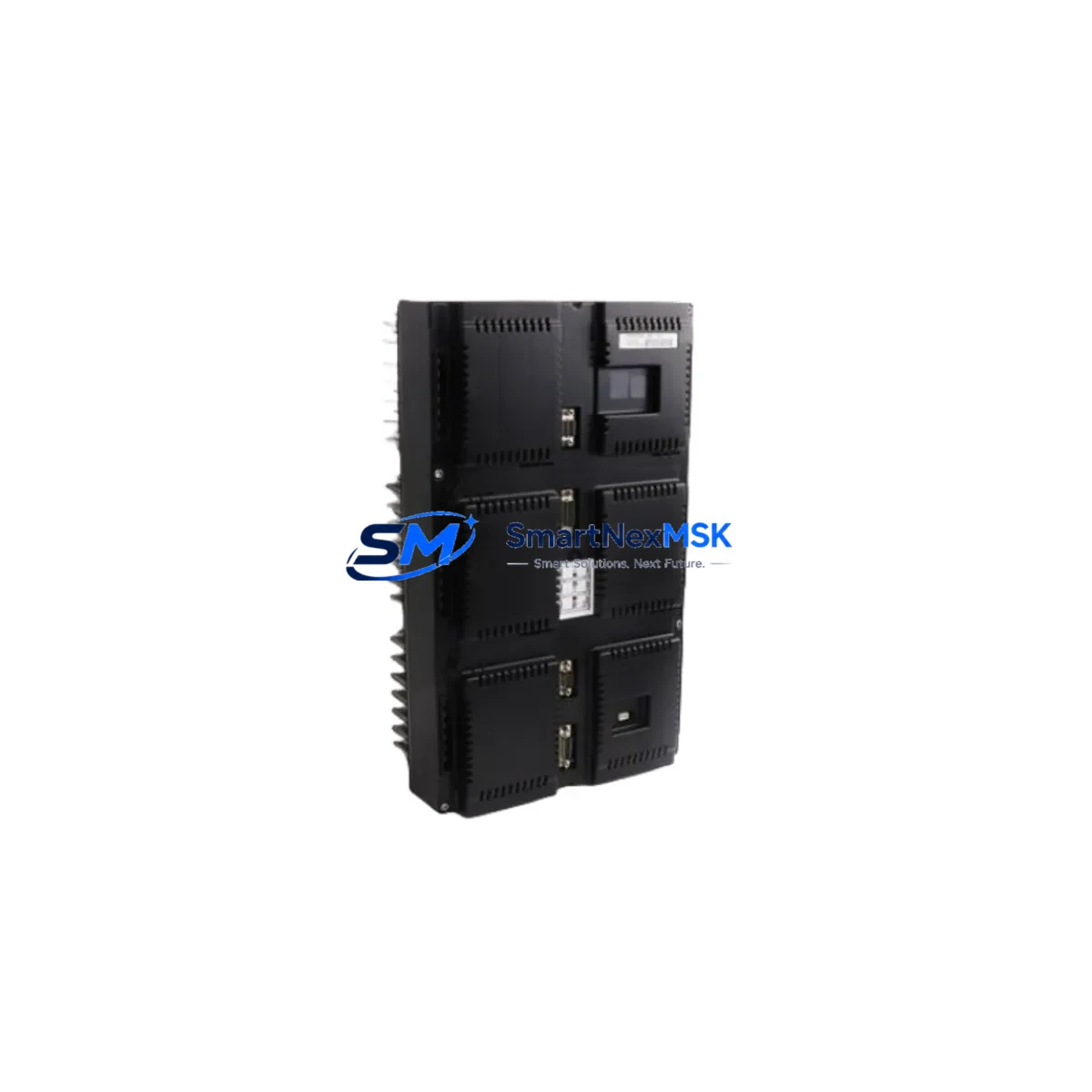

ABB 3HAC025338-004 Safety-Enhanced Servo Drive Module

ABB 3HAC025338-004 Safety-Enhanced Servo Drive Module: Reliable Control for Harsh Industrial Sites

The ABB 3HAC025338-004 is a high-performance IRC5 main servo drive module engineered for continuous, safety-critical operation in demanding industrial environments. Designed to deliver stable, precise motor control under extreme electrical and mechanical stress, this module is a cornerstone component in robotic control cabinets, automated production lines, and safety interlock circuits where control interruption is not an option.

In high-load, high-interference industrial settings — including petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and port automation systems — the integrity of the servo drive directly determines the safety and continuity of the entire control loop. The 3HAC025338-004 addresses this challenge with robust surge suppression, thermal stability across wide operating temperature ranges, and EMI-hardened signal processing that resists the noise generated by heavy motor loads, variable frequency drives, and high-current switching equipment operating in the same cabinet.

Signal drift and power fluctuation are among the leading causes of unplanned shutdowns in continuous manufacturing. The ABB 3HAC025338-004 maintains output stability even when upstream power quality degrades, reducing the risk of axis runaway, positional error accumulation, and safety relay false-triggering. When integrated with the ABB IRC5 controller unit and paired with the DSQC639 power supply module, the drive maintains regulated DC bus voltage within tight tolerances, protecting downstream servo amplifier stages and motor feedback circuits from transient damage.

In control cabinet protection strategies, the 3HAC025338-004 works in concert with a range of protective and communication components. The ABB DSQC508 I/O module handles digital safety signals routed through the emergency stop and protective stop circuits, ensuring that any axis fault detected by the servo drive is immediately propagated to the safety PLC layer. The ABB DSQC643 drive unit and DSQC646 additional drive module complement the 3HAC025338-004 in multi-axis configurations, distributing load across axes while maintaining synchronized motion profiles critical to robotic welding, palletizing, and press-tending applications.

Power integrity is maintained through the ABB DSQC609 power distribution board, which conditions incoming AC supply and provides isolated DC rails to the servo drive and controller logic. Surge events — common in facilities with large inductive loads such as arc furnaces, overhead cranes, and high-voltage switchgear — are absorbed before reaching the sensitive drive electronics. The ABB DSQC611 rectifier unit further stabilizes the DC bus, preventing voltage sag during rapid acceleration cycles that could otherwise trigger undervoltage faults and emergency stops.

Communication reliability is equally critical. The 3HAC025338-004 interfaces with the IRC5 controller via the internal DeviceNet and PROFIBUS backplane, and its operation is monitored by the ABB DSQC656 fieldbus adapter, which bridges the robot controller to plant-level SCADA and DCS systems. In facilities running Siemens S7-300 or S7-400 PLCs as supervisory controllers, the servo drive’s fault status is transmitted in real time, enabling predictive maintenance workflows and reducing mean time to repair. The ABB DSQC679 teach pendant interface unit provides local operator visibility into drive status, axis load, and fault history without requiring remote access to the control network.

For safety interlock and zone protection applications, the 3HAC025338-004 supports integration with safety relay modules such as the ABB JSHD4 safety board, which enforces speed and position monitoring in collaborative and semi-collaborative robot cells. In hazardous area installations — including ATEX-classified zones in chemical processing and offshore platforms — the drive’s sealed construction and conformal-coated PCB assemblies resist moisture ingress, corrosive atmospheres, and particulate contamination that would degrade unprotected electronics within weeks of deployment.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust IRC5 control cabinet protection strategy begins with verified, tested spare modules. The ABB 3HAC025338-004 servo drive is the primary power conversion and motor control element; its failure directly halts all robot axes. To minimize downtime risk, industrial maintenance teams pair it with a stocked ABB DSQC639 power supply as the first line of defense against power-related faults. The DSQC643 and DSQC646 drive units handle individual axis amplification, and their health is continuously monitored through the IRC5 controller’s built-in diagnostics.

Upstream power conditioning via the DSQC609 distribution board and DSQC611 rectifier unit ensures that voltage transients from plant-wide switching events do not propagate into the servo drive’s sensitive input stage. On the communication side, the DSQC656 fieldbus adapter maintains the data link between the robot controller and the plant DCS, while the DSQC679 teach pendant unit provides local fault acknowledgment capability — critical in facilities where network access to the robot controller is restricted during safety incidents. The ABB JSHD4 safety board enforces the protective stop chain, ensuring that any servo drive fault triggers a controlled, safe deceleration rather than an abrupt axis drop that could damage tooling or injure personnel.

Critical Industrial Safety Applications

The ABB 3HAC025338-004 servo drive module is deployed across the most demanding industrial sectors where control reliability directly impacts personnel safety and production continuity.

In petrochemical and refinery facilities, robotic systems equipped with IRC5 controllers manage valve actuation, pipe inspection, and hazardous material handling in classified zones. The servo drive’s surge-hardened design and conformal PCB coating ensure reliable operation despite the corrosive atmospheres and frequent electrical transients generated by large pump motors and compressor drives sharing the same power infrastructure.

In power generation plants — including thermal, hydroelectric, and nuclear facilities — robotic maintenance systems rely on the 3HAC025338-004 to execute precision positioning tasks in high-radiation or high-temperature environments where human access is restricted. The module’s stable DC bus regulation prevents axis drift during the slow, controlled movements required for turbine inspection and fuel handling operations.

In mining and mineral processing operations, continuous production schedules mean that any unplanned robot downtime translates directly to lost tonnage. The 3HAC025338-004’s robust fault detection and real-time diagnostic reporting allow maintenance teams to identify degrading components before failure, enabling planned replacement during scheduled maintenance windows rather than emergency shutdowns.

In metallurgical and steel production environments, the servo drive operates in close proximity to arc furnaces and induction heating equipment that generate intense electromagnetic interference. The module’s EMI-hardened signal processing maintains accurate motor feedback even under these conditions, preventing the positional errors that could cause robotic welding or casting equipment to operate outside safe parameters.

In port and logistics automation, high-cycle robotic palletizing and container handling systems demand servo drives that can sustain millions of motion cycles without performance degradation. The 3HAC025338-004’s proven reliability in continuous-duty applications, combined with SMARTNEXMSK’s 12-month warranty and verified stock availability, makes it the preferred replacement module for port automation maintenance teams managing aging IRC5 fleets.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB 3HAC025338-004?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical diagnosis assistance and replacement coordination to minimize your system downtime.

Q2: How is each unit tested before shipment?
Every 3HAC025338-004 module undergoes a full functional test prior to dispatch, verifying power stage integrity, communication interface operation, and fault detection response. Units that do not meet ABB’s original performance specifications are quarantined and not offered for sale.

Q3: Is this module compatible with all IRC5 controller variants?
The 3HAC025338-004 is designed for the ABB IRC5 platform, including single-cabinet and dual-cabinet configurations. Compatibility with specific robot models (IRB 1600, IRB 2400, IRB 4600, IRB 6640, and others) depends on the controller software version and drive configuration. Our technical team can confirm compatibility for your specific installation before order confirmation.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated stock of critical IRC5 spare modules including the 3HAC025338-004 to support planned maintenance programs, emergency replacements, and multi-unit procurement for facilities managing large robot fleets. Contact our team to discuss volume availability, lead times, and scheduled supply agreements.
