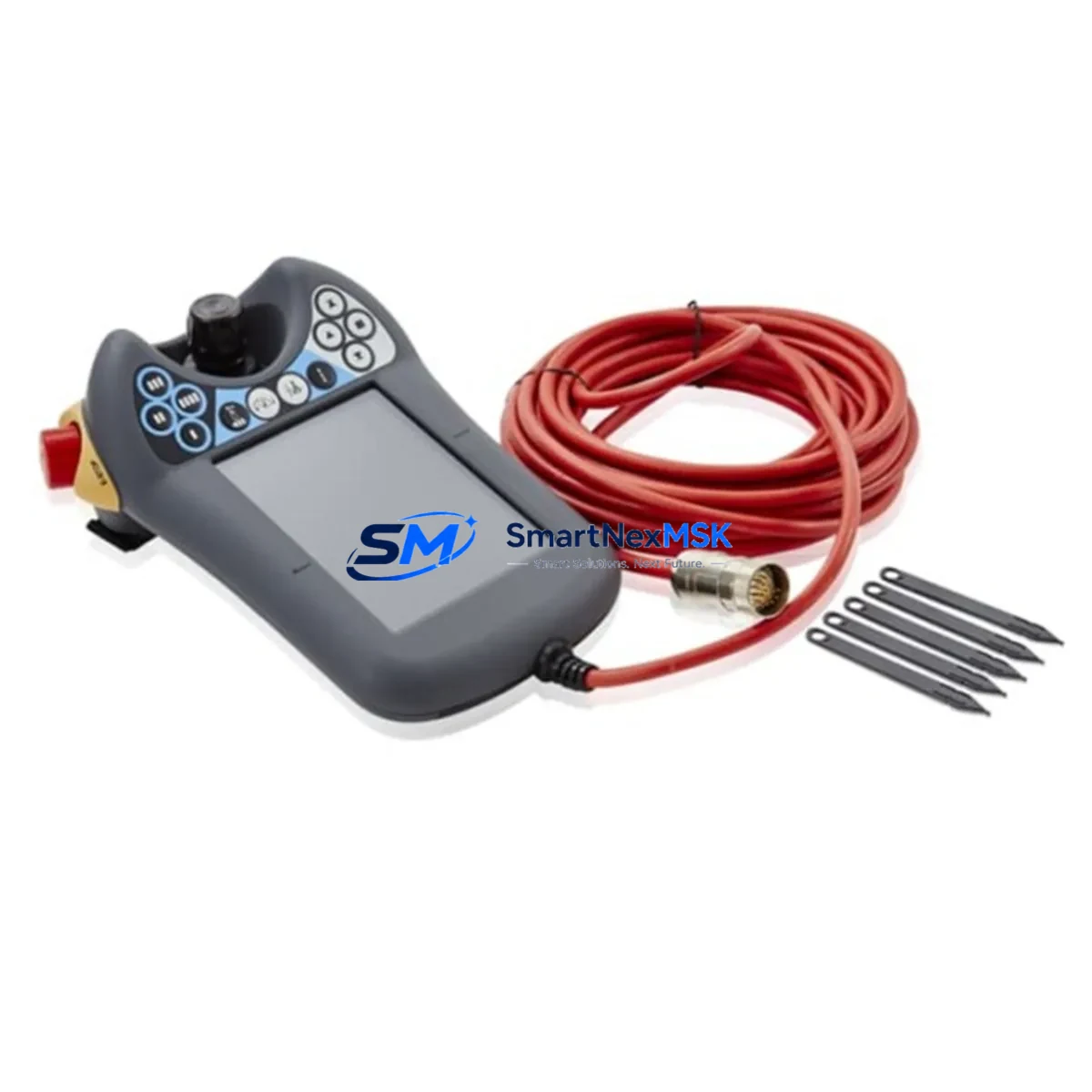

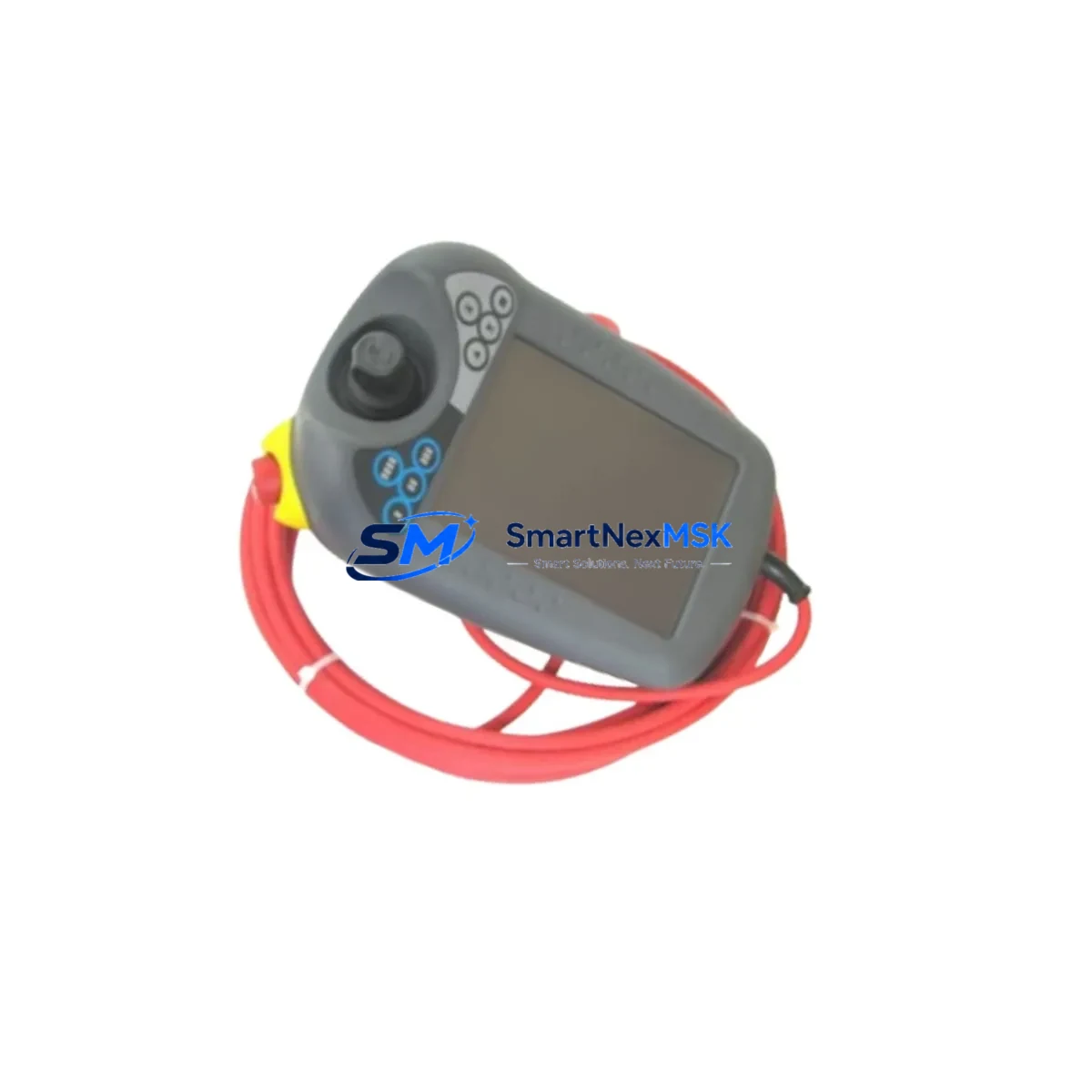

The ABB 3HAC028357-001, also known as the DSQC679 FlexPendant, is ABB’s primary operator interface for the IRC5 robot controller family. Engineered for continuous operation in demanding industrial environments, this teach pendant delivers reliable, safety-critical human-machine interaction across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port automation systems, and high-throughput discrete manufacturing cells.

In high-load, high-interference production environments, the integrity of the operator interface is a direct determinant of control system safety. The 3HAC028357-001 is built to maintain stable communication with the IRC5 controller even under conditions of severe electromagnetic interference, voltage fluctuation, and mechanical vibration. Its ruggedized housing resists ingress from dust, coolant mist, and airborne particulates common to heavy industrial control cabinets, reducing the risk of signal drift, display failure, and unintended robot motion that can result from degraded pendant hardware.

The pendant integrates a three-position enabling device — a critical safety interlock that ensures the robot can only be jogged or programmed when the operator maintains deliberate, conscious grip pressure. This hardware-level safety function is independent of software state, providing a reliable last line of defense against inadvertent axis movement during maintenance, commissioning, and fault recovery procedures. When paired with the IRC5 controller’s safety-rated I/O modules such as the DSQC643 safety I/O board and the DSQC652 digital I/O unit, the complete control loop meets the functional safety requirements demanded by continuous process industries.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust IRC5 control cabinet deployment extends well beyond the teach pendant itself. The 3HAC028357-001 operates as the primary operator node within a layered protection architecture. The DSQC661 axis computer board manages real-time motion control and communicates with the pendant over the internal Ethernet backbone, while the DSQC662 drive system interface coordinates power delivery to the servo drives — both components whose stability directly affects the reliability of pendant-commanded motion.

On the power conditioning side, the DSQC609 power supply unit provides regulated DC rails to the IRC5 controller backplane. Voltage transients and surge events on the incoming AC supply — common in heavy industrial facilities with large motor loads — can propagate into the controller if upstream protection is inadequate. Integrating a dedicated surge protection device and an isolation transformer upstream of the IRC5 panel significantly reduces the risk of power-related pendant communication faults and controller lockups.

For safety-critical interlock circuits, the DSQC643 safety I/O board handles hardwired emergency stop chains, safety gate signals, and light curtain inputs. When the 3HAC028357-001’s integrated E-Stop is activated, the signal propagates through this safety chain to the DSQC648 contactor interface, cutting drive power within the required response time. The DSQC658 fieldbus adapter enables the IRC5 to participate in plant-wide PROFIBUS or DeviceNet safety networks, ensuring that pendant-initiated stops are also communicated to upstream PLCs and DCS systems — preventing process continuation after a robot safety event.

In environments with high electromagnetic interference from variable frequency drives, welding equipment, or high-current bus bars, shielded pendant cables and proper cabinet grounding are essential. The 3HAC028357-001’s Ethernet-based communication is inherently more noise-immune than legacy serial protocols, but cable routing discipline — keeping pendant cables separated from power conductors — remains a best practice for eliminating communication anomalies and display glitches in the field.

Critical Industrial Safety Applications

Petrochemical and Refinery Automation: In petrochemical facilities, robot systems handle tasks such as valve inspection, pipe welding, and hazardous material transfer. The 3HAC028357-001’s IP54-rated enclosure and hardware enabling device make it suitable for use in areas adjacent to classified zones, where operator safety during manual intervention is paramount. The hardwired E-Stop ensures that a single operator action can halt robot motion independently of any software or network state.

Power Generation and Electrical Utilities: Maintenance robots in power plants operate near high-voltage equipment and within environments subject to strong electromagnetic fields. The FlexPendant’s EMC-hardened design and Ethernet communication reduce susceptibility to induced noise, maintaining reliable operator control during sensitive maintenance windows where an unexpected robot movement could have severe consequences.

Mining and Mineral Processing: Underground and surface mining operations expose control hardware to extreme dust loading, vibration, and temperature cycling. The ruggedized construction of the 3HAC028357-001 supports extended service intervals in these conditions, reducing the frequency of pendant replacements and the associated production downtime during spare part changeovers.

Water and Wastewater Treatment: Automated handling systems in water treatment plants operate continuously, often unattended. The teach pendant’s stable IRC5 communication ensures that when operators do intervene for maintenance or reprogramming, the interface responds predictably — critical in facilities where process interruption affects public infrastructure.

Metallurgy and Steel Production: Foundry and rolling mill environments combine high ambient temperatures, metal dust, and intense electromagnetic emissions from induction furnaces. The 3HAC028357-001’s thermal operating range and interference resistance support reliable operation in these conditions, and its compatibility with the full IRC5 ecosystem means that spare units can be swapped without controller reconfiguration, minimizing recovery time after a pendant failure.

Port and Logistics Automation: Automated crane and container handling systems in port environments require precise, safe manual override capability during fault recovery. The three-position enabling device on the 3HAC028357-001 ensures that jogging operations can only occur under deliberate operator control, preventing accidental load movement in areas with personnel present.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3HAC028357-001?
The 12-month warranty covers manufacturing defects, component failures, and functional faults under normal operating conditions. Units that fail to perform their specified functions — including touch screen response, enabling device operation, E-Stop function, and IRC5 communication — are eligible for replacement or repair at no additional cost within the warranty period.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC028357-001 unit undergoes full functional verification before dispatch. This includes power-on testing, touch screen calibration check, enabling device continuity verification, E-Stop circuit test, and IRC5 communication handshake confirmation. Units that do not pass all test criteria are not shipped.

Q3: Is the 3HAC028357-001 compatible with all IRC5 controller variants?
Yes. The DSQC679 FlexPendant is compatible with all IRC5 variants including the IRC5 Single Cabinet, IRC5 Dual Cabinet, IRC5 Panel Mounted Controller, and IRC5 Compact. It is not forward-compatible with the IRC7 platform, which uses a different pendant interface. If you are unsure of your controller variant, contact us with your controller serial number for confirmation before ordering.

Q4: Can you guarantee long-term supply and replacement support for this part?
We maintain standing inventory of the 3HAC028357-001 and key IRC5 spare parts to support customers with ongoing maintenance programs. For facilities operating multiple IRC5 robots, we recommend holding at least one spare pendant on-site to eliminate lead time risk during unplanned failures. Contact our team to discuss volume pricing and reserved stock arrangements for critical spare part programs.
