ABB 3HAC031683-004 Safety-Enhanced Teach Pendant Cable

ABB 3HAC031683-004 Safety-Enhanced Teach Pendant Cable: Reliable Control in Harsh Industrial Sites

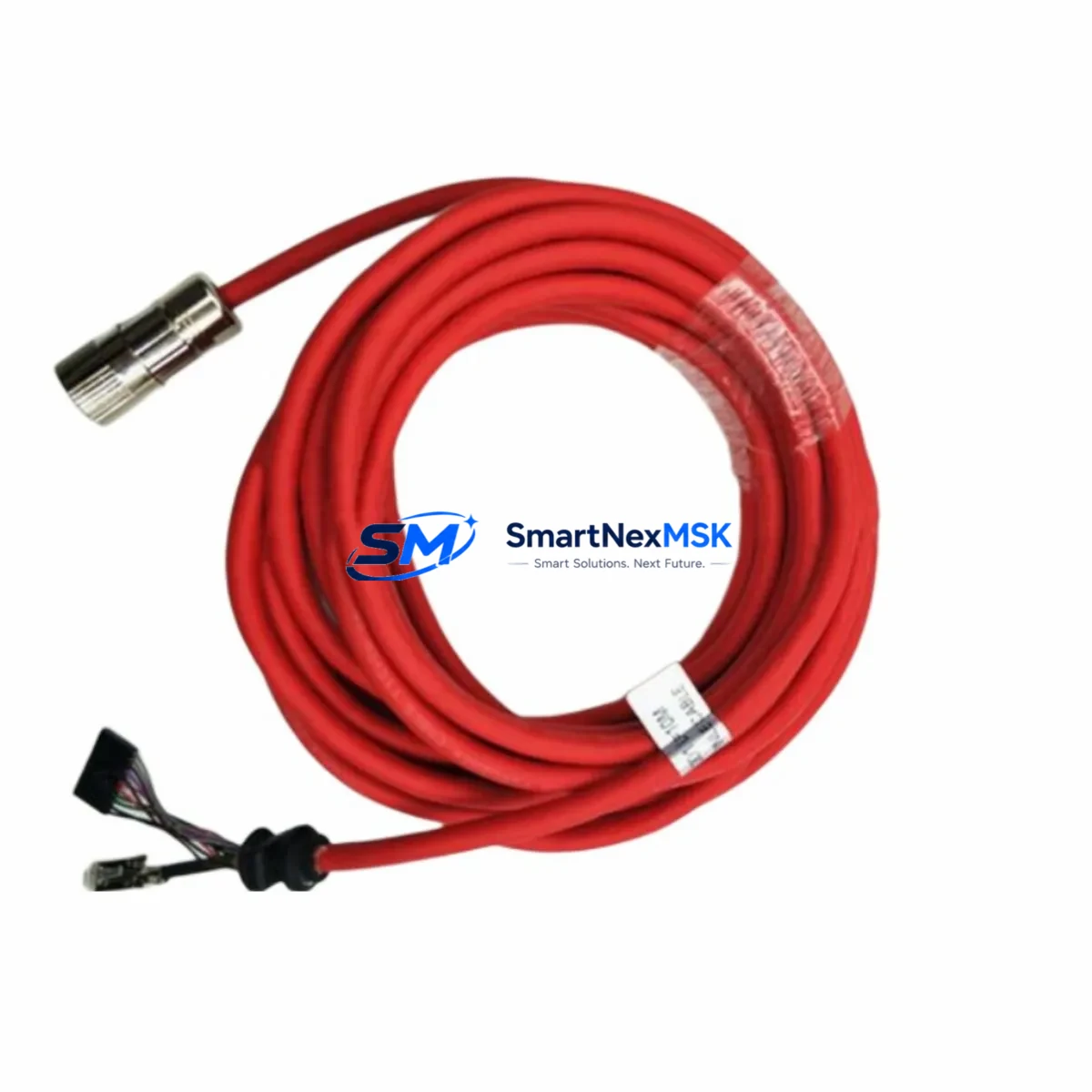

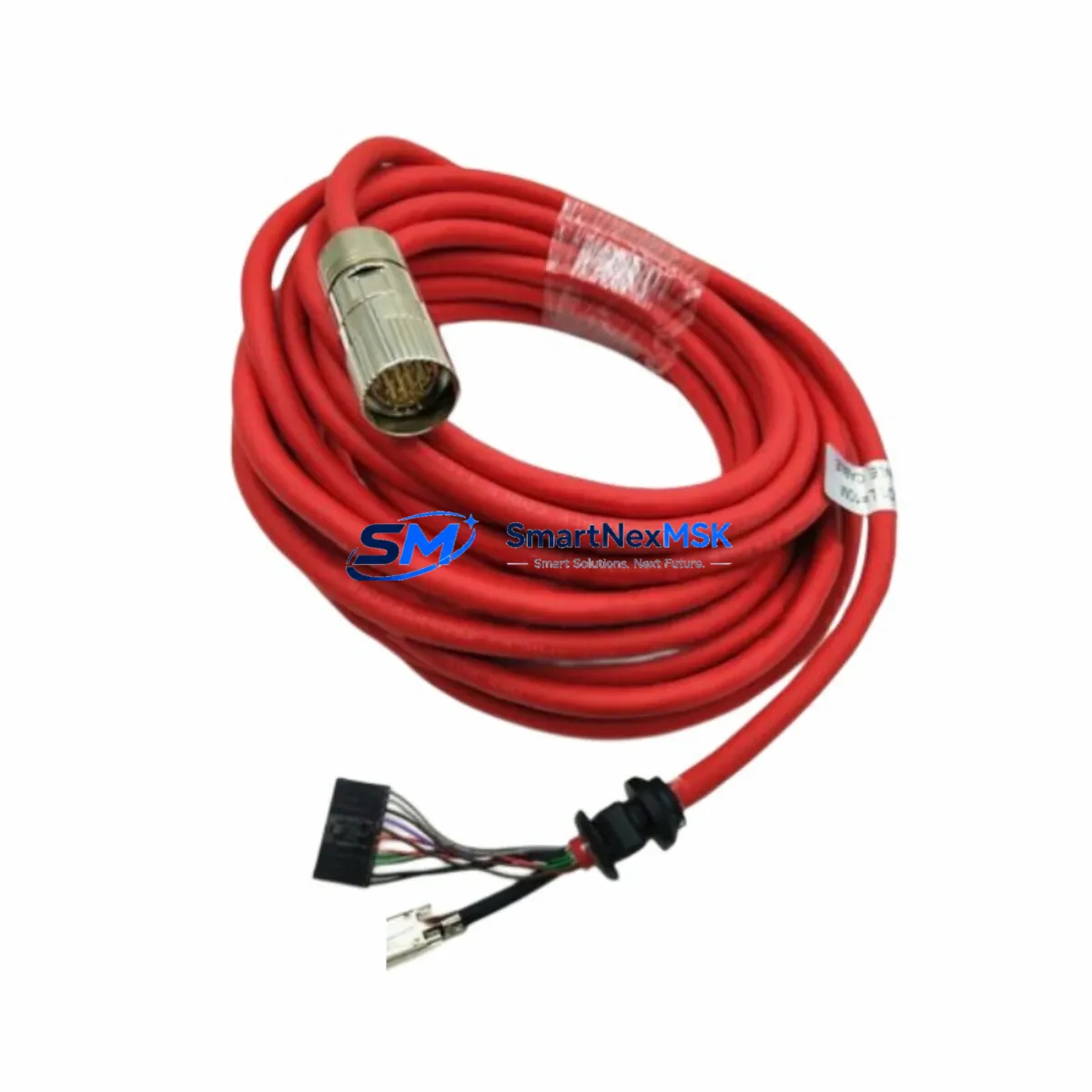

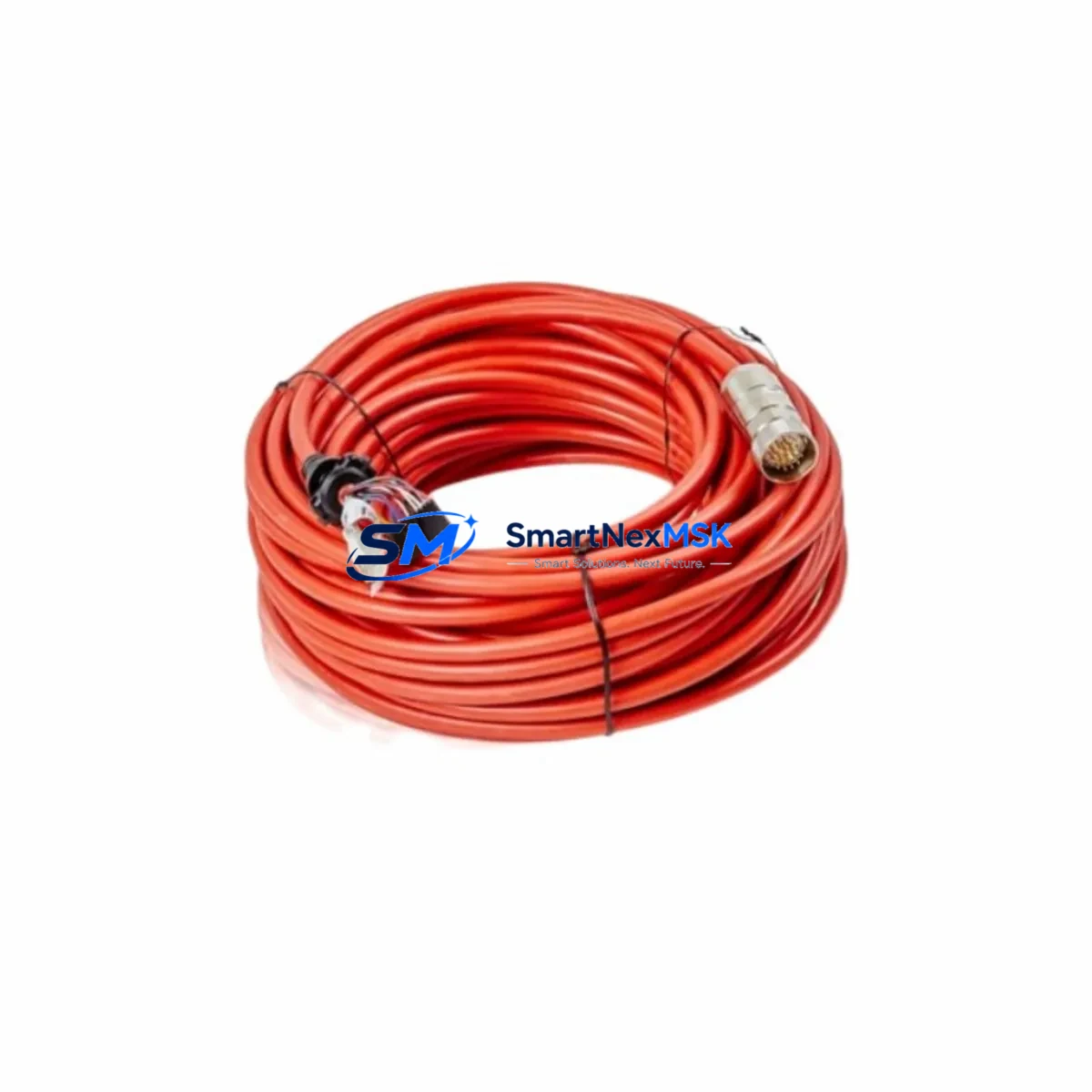

The ABB 3HAC031683-004 is a 30-meter ruggedized FlexPendant extension cable engineered for the ABB IRC5 robot controller platform. Designed to maintain uninterrupted operator control in high-load, high-interference, and continuous-production environments, this cable is a critical safety component in any robot cell where pendant accessibility, signal integrity, and control loop continuity are non-negotiable. Whether deployed in automotive body shops, metal fabrication lines, chemical processing facilities, or heavy-duty palletizing stations, the 3HAC031683-004 delivers the mechanical durability and electrical stability that industrial safety demands.

In demanding production environments, a degraded or failed teach pendant connection is not merely an inconvenience — it is a safety hazard. Loss of pendant communication can trigger uncontrolled robot motion, disable emergency stop circuits, and force unplanned line shutdowns. The ABB 3HAC031683-004 addresses these risks through its ruggedized outer jacket, reinforced connector housings, and shielded signal conductors that resist electromagnetic interference from nearby servo drives, variable frequency drives (VFDs), and high-current bus bars commonly found in the same control cabinet.

Safety Reliability Table

Control Cabinet Protection Strategy

The ABB 3HAC031683-004 does not operate in isolation — it is one node in a broader control cabinet safety architecture. In a properly configured IRC5 robot cell, the teach pendant cable interfaces directly with the ABB IRC5 Main Computer Unit (3HAC025338-001), which manages all motion control, I/O processing, and safety supervision. Signal quality at the pendant connector directly affects the reliability of operator commands transmitted to the main computer, making cable integrity a first-line safety concern.

Upstream of the main computer, the ABB DSQC661 (3HAC026254-001) Axis Computer coordinates servo drive commands for each robot axis. Any communication anomaly introduced by a degraded pendant cable — such as signal dropout or ground loop interference — can propagate through the axis computer and cause unexpected motion or fault-triggered stops. Pairing the 3HAC031683-004 with a verified ABB DSQC662 (3HAC026253-001) Drive Unit and a stable ABB DSQC627 (3HAC020466-001) Power Supply Unit ensures that both the control and power layers of the cabinet remain stable under continuous operation.

For installations where the robot cell includes safety-rated I/O — such as light curtains, area scanners, or two-hand control stations — the pendant cable’s E-Stop signal path must remain intact at all times. The ABB DSQC643 (3HAC025917-001) Safety I/O Board monitors these safety inputs and will initiate a Category 0 or Category 1 stop if the pendant circuit is interrupted. Using a genuine, tested 3HAC031683-004 cable eliminates the risk of intermittent E-Stop signal loss that can occur with substandard aftermarket cables.

In multi-robot cells or cells with extended cable runs, the ABB FlexPendant (3HAC028357-001) itself should be inspected alongside the extension cable during scheduled maintenance. The pendant’s internal connector and the extension cable’s mating connector are both wear items in high-cycle environments. Keeping a spare 3HAC031683-004 in the control room alongside a spare ABB DSQC609 (3HAC14178-1) I/O Unit and a backup ABB IRC5 Teach Pendant Cable 10M (3HAC031683-001) ensures rapid recovery from any pendant-related fault without extended downtime.

For fieldbus-integrated cells using ABB DSQC688 (3HAC035301-001) DeviceNet or PROFIBUS communication boards, maintaining clean signal paths from the pendant through to the fieldbus master is essential. A shielded, properly grounded 3HAC031683-004 cable reduces the risk of common-mode noise coupling into the communication bus, which can cause sporadic PLC-to-robot communication faults that are difficult to diagnose and costly in production time.

Critical Industrial Safety Applications

Automotive Manufacturing: In body-in-white welding lines and assembly stations, ABB IRC5 robots operate in dense, high-cycle environments surrounded by weld spatter, high-current welding cables, and servo noise. The 3HAC031683-004’s ruggedized jacket and shielded conductors protect pendant signal integrity during continuous 24/7 operation, ensuring operators can safely intervene, jog axes, or execute program changes without communication errors.

Petrochemical and Refinery Facilities: Robot-assisted inspection, valve actuation, and material handling in petrochemical plants demand cables that resist chemical exposure, temperature cycling, and the electromagnetic environment created by large motor drives and transformer banks. The PUR jacket of the 3HAC031683-004 provides resistance to hydraulic fluids, lubricants, and cleaning agents commonly present in these environments.

Metal Fabrication and Foundry Operations: High-temperature radiant heat, metal dust, and mechanical abrasion are constant threats to cable integrity in foundry and press-shop environments. The reinforced outer jacket and robust connector housings of the 3HAC031683-004 are rated for these conditions, reducing the frequency of cable replacement and the associated safety risk of working near hot or moving equipment during maintenance.

Mining and Mineral Processing: Remote and semi-autonomous robot cells in mining operations require long cable runs and reliable E-Stop functionality. The 30-meter length of the 3HAC031683-004 provides the reach needed for safe operator positioning away from hazardous zones, while the full-shield construction maintains signal quality over the extended run length.

Water Treatment and Utilities: In water treatment plants and utility substations where robots perform inspection or maintenance tasks, the IP54-rated connectors of the 3HAC031683-004 provide protection against water spray and dust ingress, supporting reliable operation in wet or dusty plant environments without requiring additional protective measures.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3HAC031683-004?
The 12-month warranty covers all manufacturing defects, connector retention failures, jacket delamination, and signal continuity failures under normal industrial operating conditions. If the cable fails to pass a continuity or insulation resistance test within the warranty period, we provide a direct replacement. Warranty claims are processed within 5 business days with advance replacement available for critical production applications.

Q2: What pre-shipment testing is performed on each cable?
Every 3HAC031683-004 unit undergoes a full pre-shipment inspection that includes: conductor continuity test across all signal pairs, insulation resistance test at 500V DC, connector retention force check, and visual inspection of jacket and connector housings. A test record is available upon request. This ensures that every cable shipped is ready for immediate installation without requiring incoming inspection on the customer’s end.

Q3: Is the 3HAC031683-004 compatible with all IRC5 controller variants?
Yes. The 3HAC031683-004 is compatible with all IRC5 variants including the IRC5 Single Cabinet, IRC5 Dual Cabinet, IRC5 Panel Mounted Controller, and IRC5 Compact. It is also compatible with all ABB FlexPendant generations used with the IRC5 platform. If you are unsure about compatibility with a specific robot model or controller revision, contact our technical team with your controller serial number for confirmation.

Q4: Can you guarantee long-term supply and replacement support?
Yes. We maintain standing inventory of the 3HAC031683-004 and its shorter-length variants to support both planned maintenance programs and emergency replacement needs. For customers with large robot fleets, we offer reserved stock arrangements to ensure availability during peak maintenance periods. Our supply chain is sourced directly from authorized ABB distribution channels, ensuring genuine parts with full traceability.
