ABB 3HAC037820-002 Retrofit-Ready Axis Gearbox for IRB7600 Systems

ABB 3HAC037820-002 Retrofit-Ready Axis Gearbox for IRB7600 Control Systems

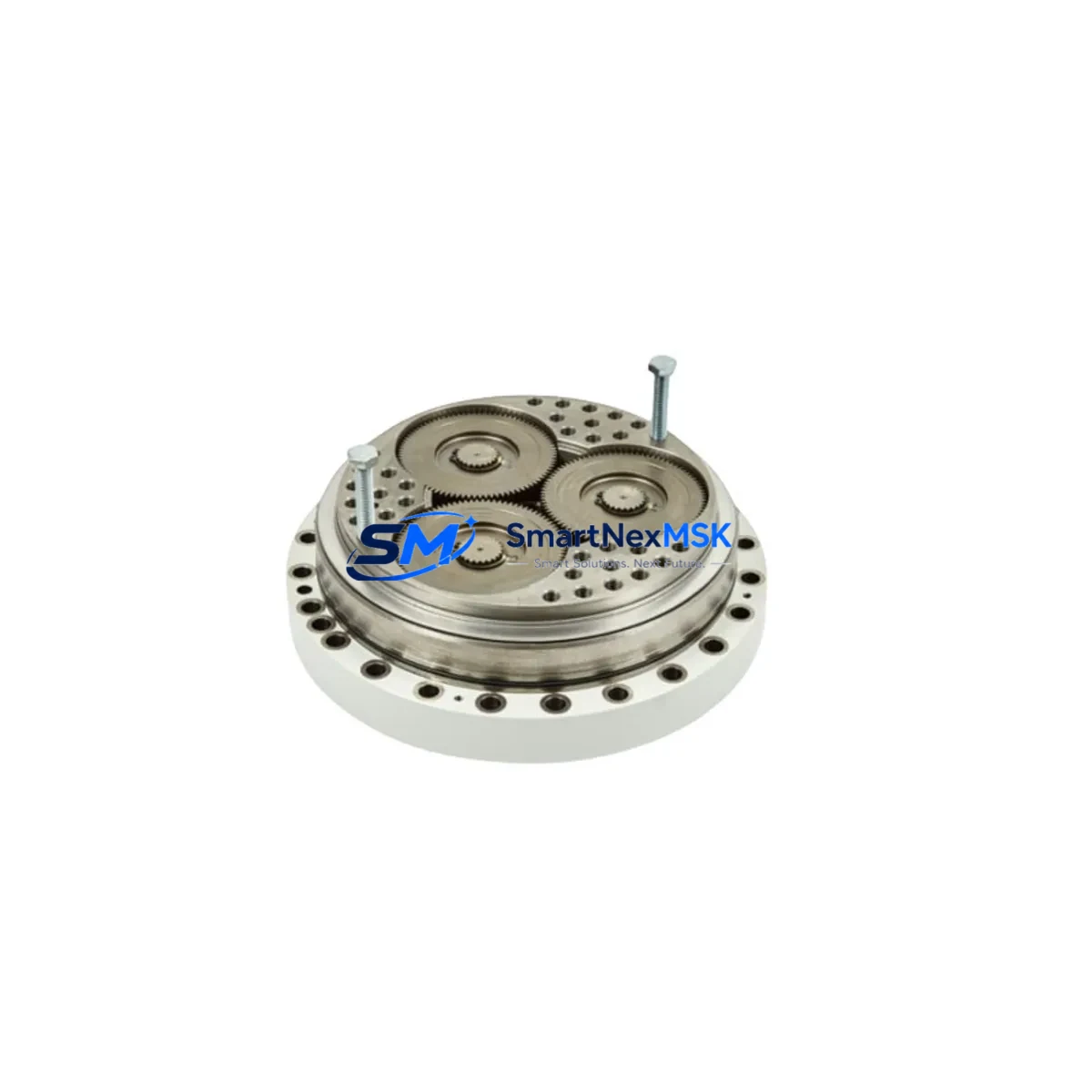

The ABB 3HAC037820-002 is a precision-engineered axis gearbox designed for the IRB7600 series of industrial robots, one of ABB’s most widely deployed heavy-payload robotic platforms in automotive, foundry, and heavy manufacturing environments. As the IRB7600 fleet ages and original gearbox assemblies approach end-of-service life, sourcing a verified drop-in replacement has become a critical priority for maintenance engineers and system integrators managing legacy robot cells. This unit is stocked, tested, and shipped with a 12-month warranty, making it a reliable solution for both emergency breakdown recovery and planned preventive maintenance overhauls.

The 3HAC037820-002 gearbox is engineered to interface directly with the IRB7600 axis drive train without requiring mechanical modification to the robot arm structure or the S4C+/IRC5 controller cabinet. Engineers undertaking a retrofit must verify the axis number assignment within the robot’s configuration parameters, confirm that the existing motor flange and coupling dimensions match the replacement unit, and validate torque ratings against the current application load profile. In multi-robot cells where the IRB7600 operates alongside an IRB6650S or IRB7600-500, maintaining consistent gearbox specifications across the line is essential for synchronized motion path accuracy.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRB7600 gearbox retrofit begins well before the maintenance window opens. The first step is a full review of the robot’s current axis load data, available through the IRC5 controller’s service information panel. Engineers should pull the accumulated load statistics for the affected axis and cross-reference them against ABB’s recommended service intervals to confirm whether a full gearbox replacement or a lubrication service is the appropriate intervention.

Once the 3HAC037820-002 replacement unit is confirmed, the retrofit team should prepare the following components and documentation in advance: the IRC5 drive module configuration backup (exported via RobotStudio), the current RAPID program archive, and the axis calibration reference data stored on the FlexPendant. If the robot cell uses a DeviceNet or PROFIBUS fieldbus network managed through an ABB DSQC 652 or DSQC 378B communication board, the network node address and baud rate settings must be documented before the controller is powered down, as these settings may need to be re-entered after a full system restart.

The physical installation requires removal of the robot arm section above the affected axis joint. Technicians should have the ABB JOKAB safety relay module or equivalent safety PLC output confirmed as de-energized before breaking any mechanical connections. The replacement gearbox should be pre-filled with the correct ABB gearbox oil grade as specified in the IRB7600 product manual — using an incorrect lubricant grade is a common cause of premature gearbox failure in retrofit scenarios. After mechanical assembly, the axis brake release tool (ABB 3HAC15571-1 or equivalent) is used to manually position the axis to the calibration mark before the fine calibration routine is executed.

For cells where the IRB7600 is integrated with an ABB CP600 HMI panel or a third-party SCADA system via OPC-UA, the HMI screen layouts referencing robot status signals should be verified post-restart to confirm that axis position feedback is correctly mapped. If the robot is part of a coordinated motion group with a positioner or track motion unit controlled by an additional IRC5 drive module, the coordinated motion parameters must be re-validated in RobotStudio before resuming production. I/O signal mapping between the robot controller and the PLC — typically managed through an ABB DSQC 651 I/O module or a Profinet adapter — should also be confirmed with a full I/O diagnostic scan before the first test cycle.

For older IRB7600 installations still running on S4C+ controllers, the retrofit path may also involve evaluating a controller upgrade to IRC5 as part of the same maintenance window. In such cases, the 3HAC037820-002 gearbox remains compatible with the upgraded controller, and the migration provides an opportunity to consolidate the robot’s RAPID programs, update safety function configurations, and improve network integration with modern factory automation infrastructure.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a gearbox on a production robot. The recommended approach is to schedule the replacement during a planned maintenance shutdown and to have the 3HAC037820-002 unit on-site and pre-inspected before the window begins. A pre-staged replacement — where the gearbox is unpacked, oil-filled, and mechanically verified against the installation drawing before the robot is taken offline — can reduce the actual robot-down time to under four hours for an experienced team.

Program logic protection is equally important. Before powering down the IRC5 controller, a full system backup should be created using RobotStudio’s backup function, capturing the RAPID modules, system parameters, I/O configuration, and safety configuration in a single archive. This backup should be stored on an external drive and verified for completeness. If the robot is running coordinated motion tasks with a positioner or conveyor tracking system, the coordinated motion base frame data must be included in the backup scope.

During the mechanical replacement, the robot’s brake system must remain engaged on all unaffected axes to prevent uncontrolled movement. After the new gearbox is installed and the axis is mechanically reassembled, the fine calibration procedure using the FlexPendant’s calibration routine restores the axis zero position reference. A slow-speed test cycle — typically at 10–25% of programmed speed — should be run through the full motion path before returning the robot to production speed. Any deviation in TCP (Tool Center Point) accuracy should be investigated and corrected before resuming normal operations, as gearbox replacement can introduce minor positional offsets that affect weld seam quality, pick-and-place accuracy, or press-fit operations.

Retrofit Support FAQ

Q: Is the 3HAC037820-002 a direct replacement for the original ABB IRB7600 axis gearbox?
A: Yes. The 3HAC037820-002 is designed as a direct OEM-equivalent replacement for the IRB7600 series axis gearbox. It matches the original mounting flange pattern, shaft dimensions, and gear ratio specifications, allowing installation without mechanical modification. Post-installation axis fine calibration is required.

Q: What commissioning steps are required after installing the replacement gearbox?
A: After mechanical installation and oil filling, the axis must be positioned to its calibration mark using the brake release tool. Fine calibration is then performed via the FlexPendant or RobotStudio. A full I/O diagnostic and slow-speed motion test should follow before returning the robot to production. If the robot is part of a coordinated motion group, coordinated motion validation is also required.

Q: Can this gearbox be used with both IRC5 and S4C+ controllers?
A: The 3HAC037820-002 gearbox is mechanically compatible with both IRC5 and S4C+ controlled IRB7600 robots. However, customers running S4C+ controllers should verify the firmware revision and axis configuration parameters with their ABB service documentation, as calibration procedures differ slightly between controller generations.

Q: What does the 12-month warranty cover, and how is the unit tested before shipment?
A: Each 3HAC037820-002 unit undergoes pre-shipment inspection covering dimensional verification, oil seal integrity, gear mesh backlash measurement, and surface condition assessment. The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions. Warranty claims are supported by our technical team at [email protected]. Units are shipped with full documentation and packing protection to prevent transit damage.
