ABB 3HAC039728-001 Retrofit-Ready Holder for IRC5 Control Systems: Compatible Modernization & Smooth Legacy Upgrade

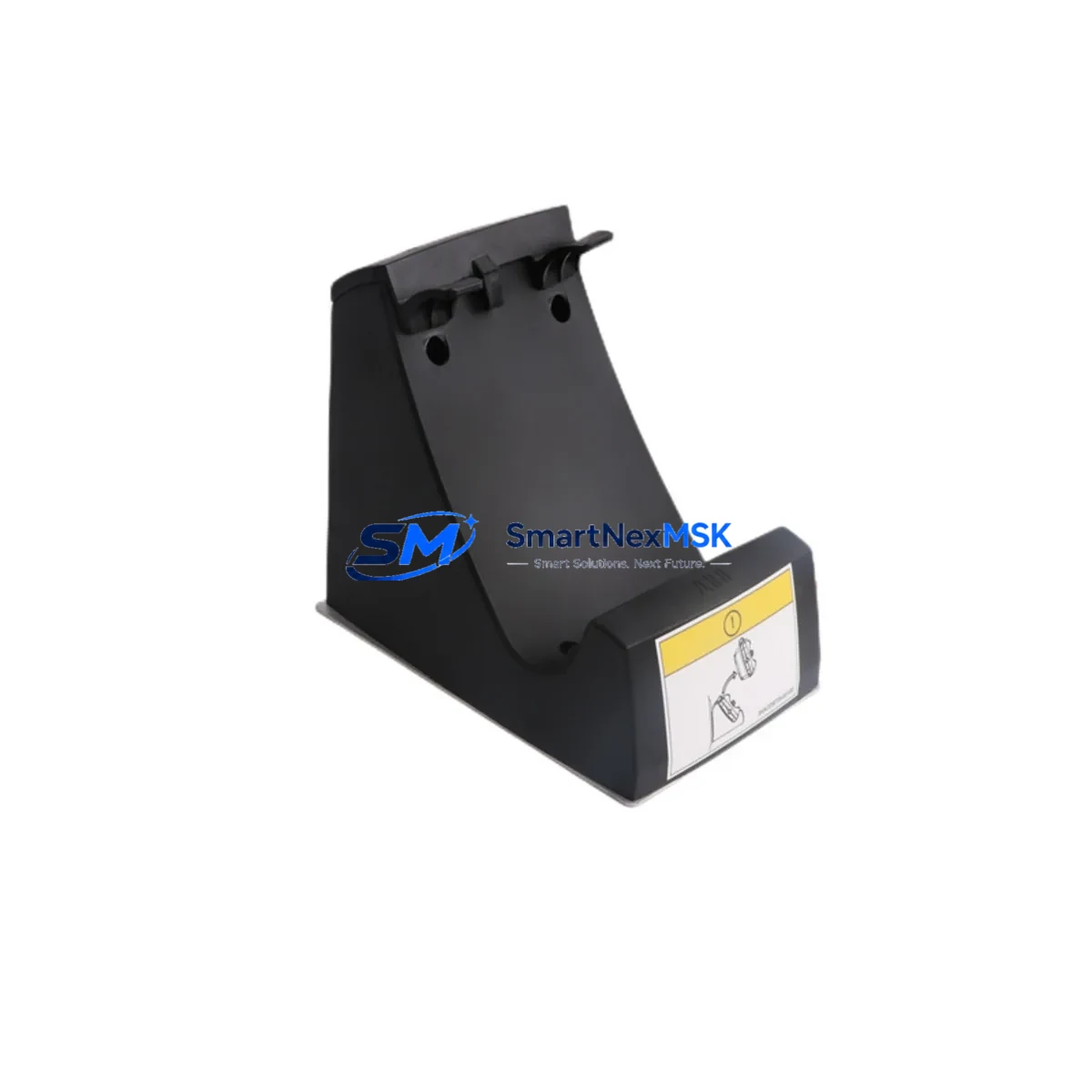

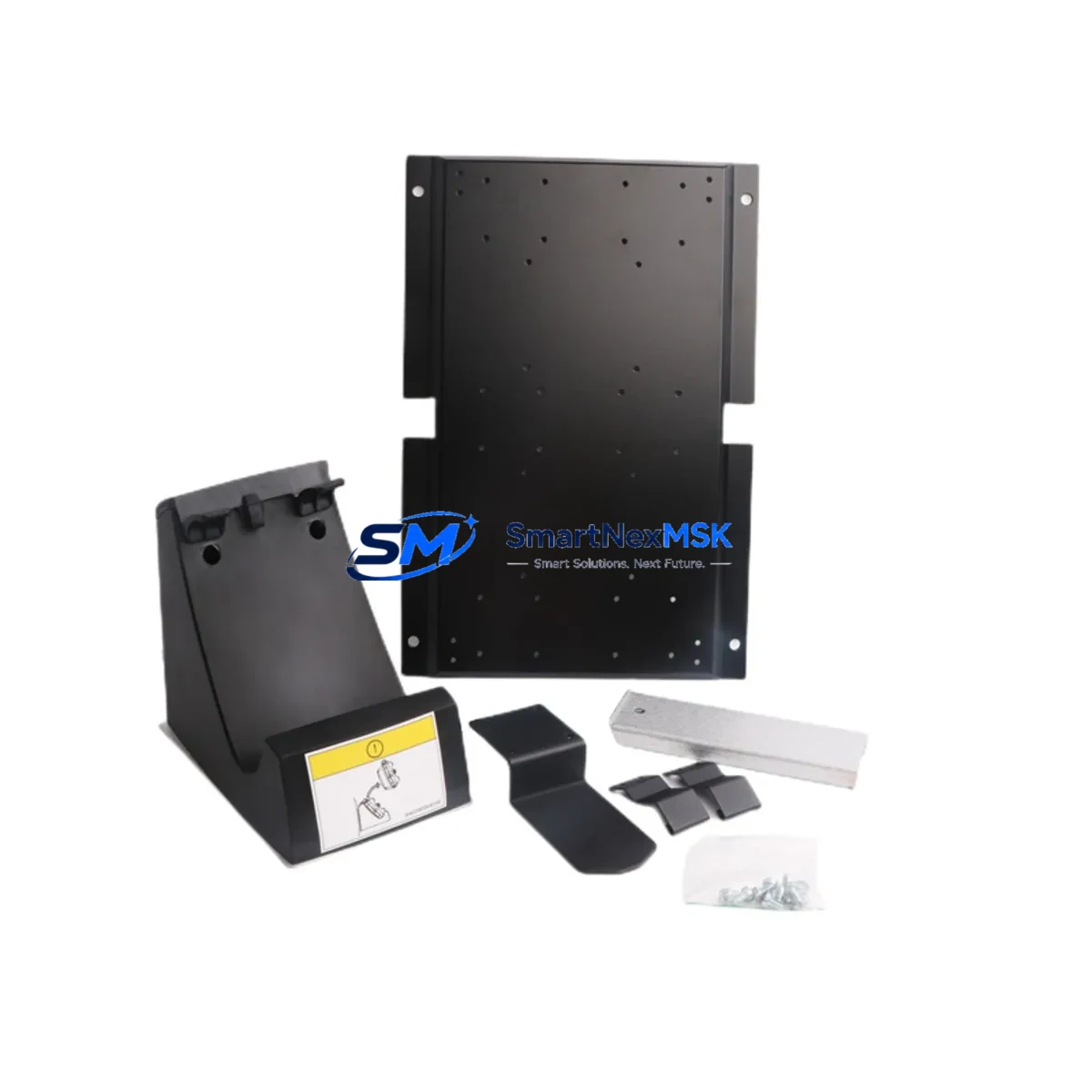

The ABB 3HAC039728-001 is a retrofit-ready FlexPendant teach pendant holder engineered for seamless integration into IRC5 robot controller cabinets. Whether you are replacing a worn or discontinued holder on an aging production line, upgrading a control cabinet during a scheduled maintenance window, or restoring a decommissioned IRC5 cell to full operational status, this component delivers verified mechanical and electrical compatibility without requiring modifications to the existing cabinet structure or pendant cabling.
Industrial automation systems built around the ABB IRC5 platform — including single-cabinet, dual-cabinet, and panel-mounted controller variants — rely on the FlexPendant as the primary human-machine interface for robot programming, jogging, and fault acknowledgment. The holder assembly (3HAC039728-001) secures the ABB FlexPendant 3HAC028357-001 during idle periods, protecting the pendant from mechanical shock and cable strain. When this holder degrades or fails, the risk of pendant damage, unplanned downtime, and safety non-compliance increases significantly. Sourcing a verified replacement is therefore a critical step in any IRC5 retrofit or refurbishment project.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | 3HAC039728-001 |
| Compatible Controller | ABB IRC5 (Single Cabinet, Dual Cabinet, Panel Mounted) |
| Compatible Pendant | ABB FlexPendant 3HAC028357-001 and compatible variants |
| Mounting Interface | Standard IRC5 cabinet door / side panel bracket mount |
| Communication Compatibility | No active communication — passive mechanical holder; no protocol dependency |
| Replacement Recommendation | Direct drop-in replacement for OEM 3HAC039728-001; no wiring changes required |
| Installation Requirement | Standard M4/M5 fasteners; no special tooling required |
| Commissioning Notes | Verify pendant cable routing after installation; confirm cable relief clamp engagement |
| Warranty | 12-Month Warranty — covers manufacturing defects and fitment issues |
Retrofit Planning for Existing Automation Systems
A successful IRC5 retrofit begins well before the replacement part arrives on-site. Engineers planning a control cabinet upgrade or legacy system refurbishment should audit the full pendant subsystem as part of their pre-shutdown checklist. This includes inspecting the ABB FlexPendant cable 3HAC031683-001 for insulation wear, verifying the condition of the IRC5 main computer DSQC1000 (3HAC036060-001) and its firmware revision, and confirming that the ABB DSQC679 teach pendant interface board is seated correctly in the controller backplane.
For lines running older IRC5 M2004 or M2008 generation controllers, the retrofit scope often extends beyond the holder itself. Teams frequently need to address the ABB DSQC663 axis computer, update the RobotWare software license to a compatible revision, and verify that the ABB IRC5 power supply unit 3HAC024488-001 can support any additional I/O modules added during the upgrade. If the retrofit includes expanding digital I/O capacity, the ABB DSQC652 digital I/O board is a common addition that must be addressed in the cabinet layout and address mapping before the system is returned to production.
Communication protocol migration is another key consideration. IRC5 systems communicating over DeviceNet, PROFIBUS, or EtherNet/IP may require updated fieldbus adapter modules — such as the ABB DSQC688 EtherNet/IP adapter — to maintain compatibility with upgraded PLCs or SCADA systems on the plant floor. Confirming that the HMI screens mapped to robot status signals remain functional after a controller firmware update is equally important, particularly in cells where the FlexPendant is used alongside a fixed operator panel.
The 3HAC039728-001 holder itself requires no electrical connections, making it one of the lowest-risk components to replace during a live retrofit window. However, its installation should be coordinated with the broader cabinet inspection to avoid a second unplanned shutdown.
Downtime Control During System Migration
Minimizing unplanned downtime during an IRC5 retrofit requires a structured migration plan that preserves the original robot program logic and maintains field control continuity throughout the transition. Before any hardware is removed, the full robot program — including RAPID modules, system parameters, I/O configuration, and safety zone definitions — should be backed up to a USB drive using the FlexPendant’s built-in backup function or via RobotStudio over an Ethernet connection to the IRC5 service port.
During the physical swap, the pendant holder replacement (3HAC039728-001) can typically be completed within a single shift without powering down the controller, provided the pendant is not actively in use and the cable is safely managed. For more extensive retrofits involving backplane components or axis computers, a controlled shutdown sequence should be followed: disable external axes, confirm all robot programs are in a safe hold state, and document the current I/O signal mapping before disconnecting any modules.
After hardware installation, the commissioning sequence should include a cold-start verification of the IRC5 controller, confirmation that the FlexPendant establishes communication with the main computer, a jog test across all robot axes at reduced speed, and a full I/O signal check against the pre-retrofit baseline. Any changes to module addresses or fieldbus node IDs must be reflected in the robot system parameters before production is resumed. All units supplied by SMARTNEXMSK are pre-tested prior to shipment to reduce on-site commissioning time and support a controlled, low-risk migration.
Retrofit Support FAQ
Q1: Is the 3HAC039728-001 a direct replacement for the original ABB part?
Yes. The 3HAC039728-001 is a verified drop-in replacement for the OEM ABB FlexPendant holder used in IRC5 controller cabinets. No modifications to the cabinet door, bracket, or pendant cable are required. The mounting hole pattern and fastener specification match the original factory installation.
Q2: What should I verify before installing the replacement holder?
Confirm that the existing bracket mounting points on the cabinet door are undamaged and that the pendant cable has sufficient slack to reach the holder position without tension. Inspect the cable relief clamp and replace it if worn. If the FlexPendant cable (3HAC031683-001) shows signs of insulation cracking or connector wear, replace it concurrently to avoid a second shutdown.
Q3: Has this unit been tested before shipment?
Yes. All components supplied by SMARTNEXMSK undergo pre-shipment functional inspection and fitment verification. Each unit is packaged to prevent transit damage. A 12-month warranty covers manufacturing defects and fitment non-conformance from the date of delivery.
Q4: Can you supply other IRC5 components needed for a full retrofit?
Yes. SMARTNEXMSK maintains stock of a wide range of IRC5 retrofit components including main computers, axis computers, power supply units, digital I/O boards, fieldbus adapters, and FlexPendant cables. Contact our team with your full BOM or system configuration for availability confirmation and lead time.
