ABB 3HNA007719-001 Spare for IRC5 Robot Automation: Precision Spare Parts Replacement for Downtime Control

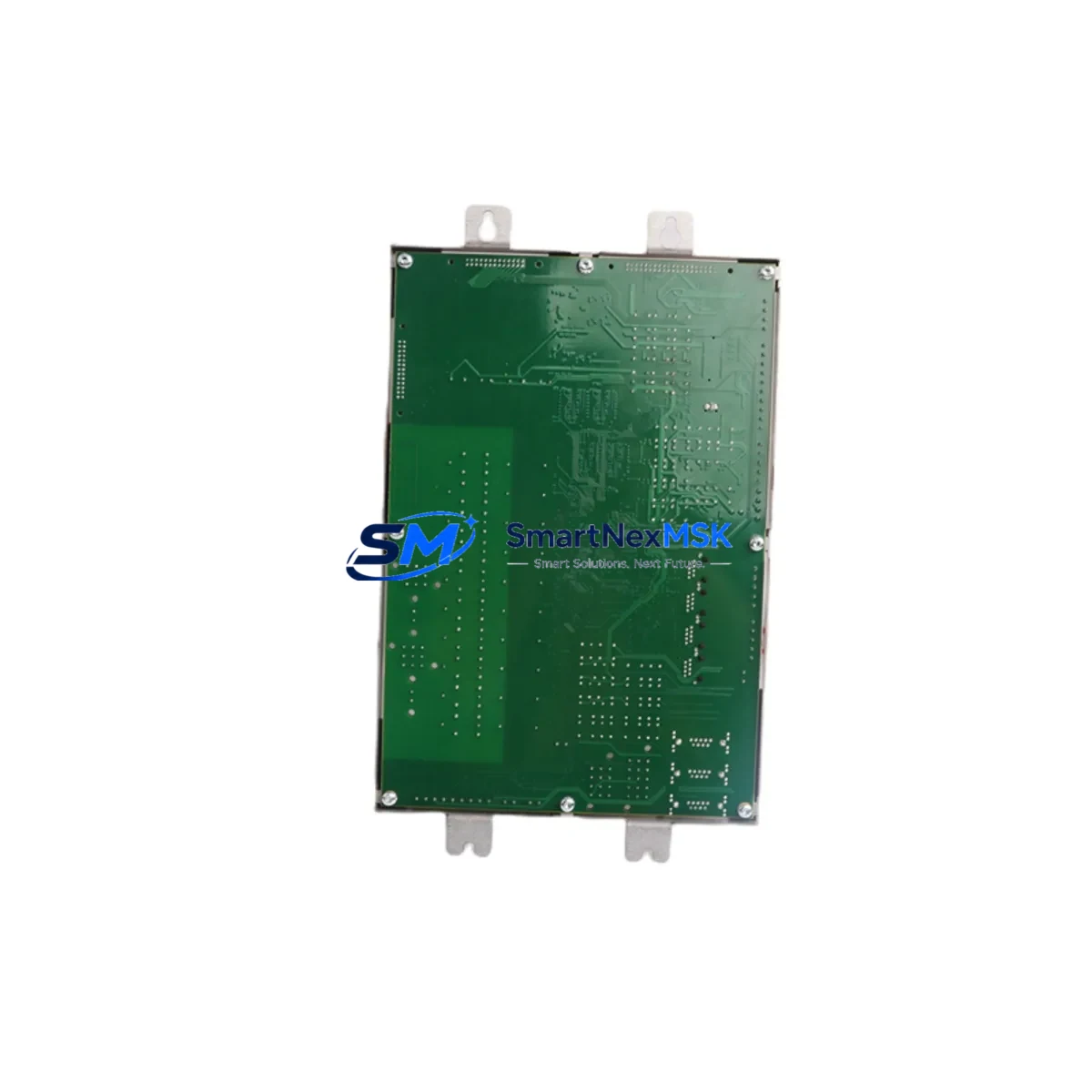

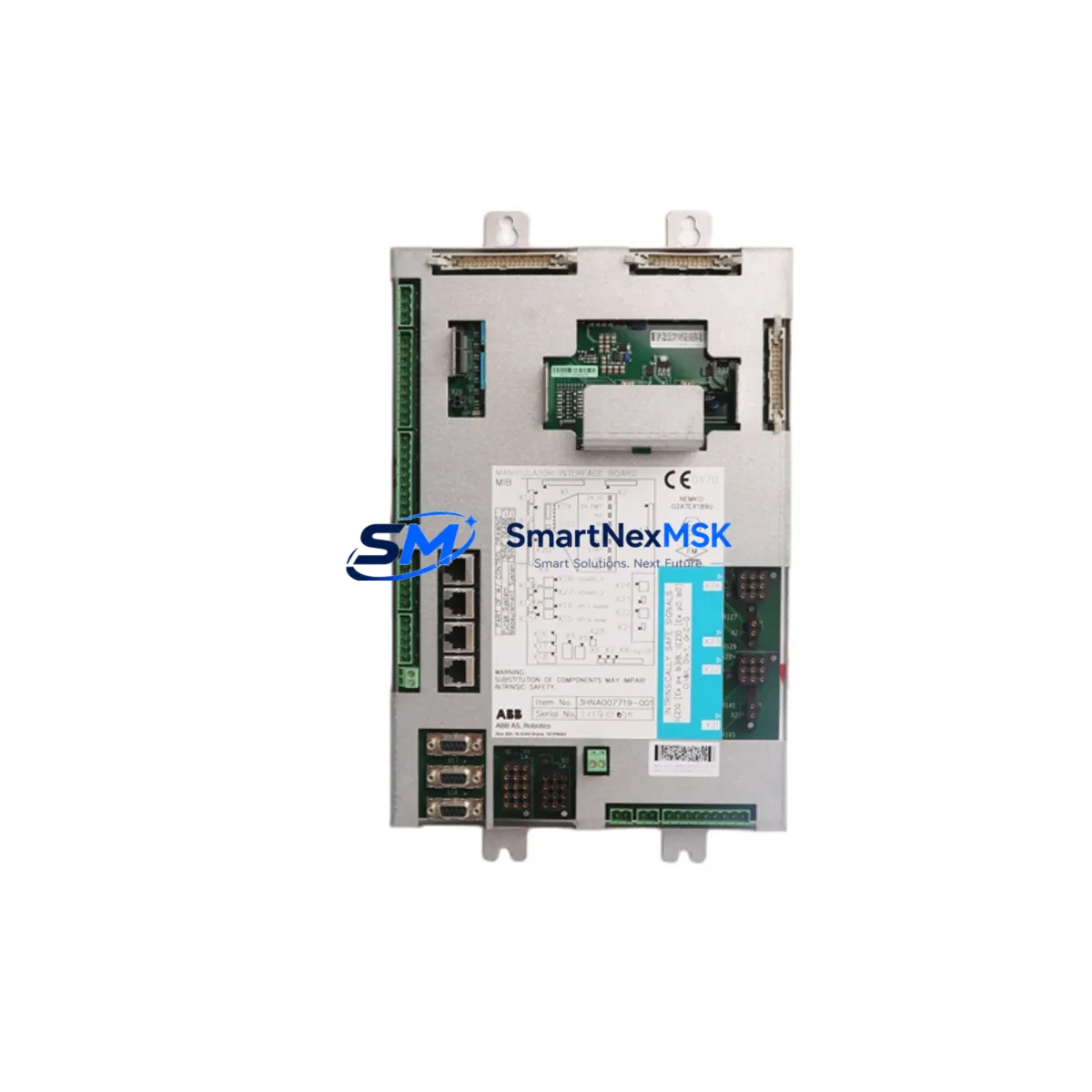

The ABB 3HNA007719-001 is an original Manipulator Interface Board designed for the ABB IRC5 robot controller platform — one of the most widely deployed industrial robotic control systems in automotive, foundry, metal fabrication, and general manufacturing environments. Also referenced under the alternate part number 3HNA006145-001, this board serves as the critical communication bridge between the IRC5 controller cabinet and the robot manipulator arm, handling real-time signal exchange, encoder feedback, and safety interlock logic.
When this board fails or degrades, the entire robotic cell is at risk of unplanned downtime. Maintaining a verified spare of the ABB 3HNA007719-001 in your on-site spare parts inventory is a fundamental practice for any maintenance team operating IRC5-based automation lines. SMARTNEXMSK supplies this board as a genuine original spare, fully tested prior to shipment, with a 12-month warranty and documented compatibility with the IRC5 controller family.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 3HNA007719-001 |
| Alternate SKU | 3HNA006145-001 |
| Description | Manipulator Interface Board |
| Brand | ABB |
| Series / Platform | IRC5 Robot Controller |
| Product Type | Robot Controller Spare Parts |
| Origin | Germany (DE) |
| Compatibility | ABB IRC5 Single Cabinet, Dual Cabinet, Panel Mounted Controller |
| Application | Manipulator-to-controller interface, encoder signal routing, safety interlock |
| Installation Environment | Industrial control cabinet, IP54 enclosure or better recommended |
| Operating Temperature | 0°C to +55°C (standard IRC5 cabinet specification) |
| Condition | Original, new or refurbished-to-spec; tested before shipment |
| Warranty | 12 Months from date of shipment |
| Lead Time | In stock — ships within 1–3 business days |
| Maintenance Recommendation | Inspect connectors and ribbon cables at each planned maintenance interval; replace if signal errors or E-stop faults are logged |
Maintenance Planning for Continuous Operation
Replacing the ABB 3HNA007719-001 Manipulator Interface Board is rarely an isolated task. Experienced maintenance engineers know that a board-level fault in the IRC5 controller is often accompanied by — or caused by — degradation in adjacent components. A thorough site inspection should include the following areas:
Begin with the IRC5 Main Computer Unit (DSQC 639 / DSQC 1000), which coordinates all axis control and program execution. A failing interface board can generate spurious errors that mask underlying CPU faults. Simultaneously, inspect the Drive Unit (DSQC 617 / DSQC 668) for overcurrent events or thermal shutdowns that may have stressed the manipulator interface circuitry.
Check the I/O Module (DSQC 651 / DSQC 652) for any digital input/output faults that may have been triggered by signal noise from a degraded interface board. The Safety Module (DSQC 400) should also be verified — safety interlock chains pass through the manipulator interface layer, and a board replacement is the right moment to confirm all E-stop and safeguard circuits are functioning correctly.
Inspect the Teach Pendant (FlexPendant) cable and connector for wear, as communication errors between the pendant and the controller are sometimes misdiagnosed as interface board failures. The SMB (Serial Measurement Board) mounted on the manipulator arm should be checked for encoder signal integrity — a degraded SMB can cause repeated faults that accelerate wear on the interface board.
Review the 24VDC power supply module within the IRC5 cabinet for voltage stability. Ripple or undervoltage conditions are a common root cause of interface board failures. The axis computer (DSQC 668) and its associated resolver signal cables between the cabinet and the manipulator should be inspected for insulation damage, especially in high-cycle or high-temperature environments.
Finally, verify the condition of the cabinet cooling fan assembly and internal air filters. Thermal stress is a leading cause of premature PCB failure in IRC5 cabinets. A complete maintenance event around the 3HNA007719-001 replacement should include a full cabinet inspection, connector re-seating, and a functional test cycle before returning the robot cell to production.
Site Replacement Workflow
Step 1 — Fault Isolation: Use the IRC5 FlexPendant or RobotStudio to retrieve active fault codes. Error codes in the 38xxx or 50xxx range often indicate manipulator interface communication failures. Document all active and historical faults before powering down.
Step 2 — Safe Shutdown: Execute a controlled program stop, engage the mechanical brake, and follow the IRC5 lockout/tagout procedure. Discharge the drive unit capacitors per ABB service documentation before opening the cabinet.
Step 3 — Board Removal: Photograph all cable and connector positions on the existing 3HNA007719-001 board before disconnection. Label each connector if not already marked. Remove the board using ESD-safe handling procedures.
Step 4 — Compatibility Verification: Confirm the replacement board’s part number (3HNA007719-001 or 3HNA006145-001) matches the controller’s hardware revision. Check the IRC5 system parameters for any board-specific configuration that may need to be restored.
Step 5 — Installation and Test: Install the replacement board, reconnect all cables in documented order, and perform a cold start. Run a full axis calibration and I/O check. Execute a slow-speed test cycle before returning to full production speed.
Step 6 — Documentation: Update the maintenance log with the replacement date, part number, and test results. Record the removed board’s serial number for warranty or failure analysis purposes.
This workflow minimizes downtime and ensures the IRC5 system returns to full operational status with verified compatibility — reducing the risk of repeat faults caused by incomplete replacement procedures.
Spare Parts Support FAQ
Q1: Is the ABB 3HNA007719-001 compatible with all IRC5 controller variants?
The 3HNA007719-001 Manipulator Interface Board is designed for the ABB IRC5 platform, including the Single Cabinet Controller, Dual Cabinet Controller, and Panel Mounted Controller variants. Compatibility with specific hardware revisions should be confirmed against the controller’s serial number and system software version. Our technical team can assist with compatibility verification prior to order.
Q2: What is the difference between 3HNA007719-001 and 3HNA006145-001?
These two part numbers refer to the same functional board across different production revisions or regional catalog designations. Both are used interchangeably in IRC5 maintenance documentation. We supply whichever revision is in stock and confirm functional equivalence before shipment.
Q3: How is the board tested before shipment?
Every unit undergoes a pre-shipment functional test covering signal continuity, connector integrity, and board-level power-on verification. Units that do not pass testing are not shipped. A test report is available upon request for critical applications.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or repair with priority handling to minimize your production downtime.
