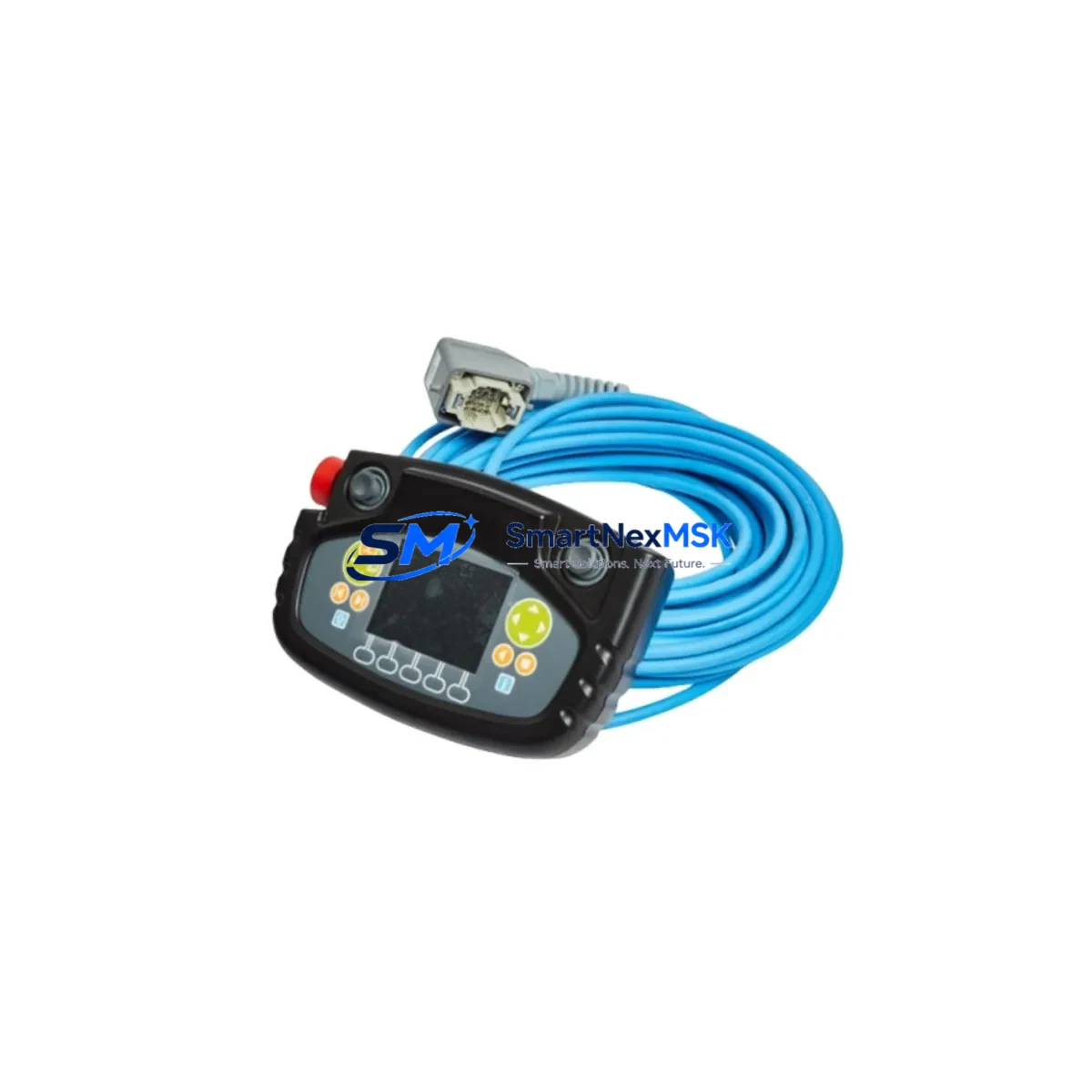

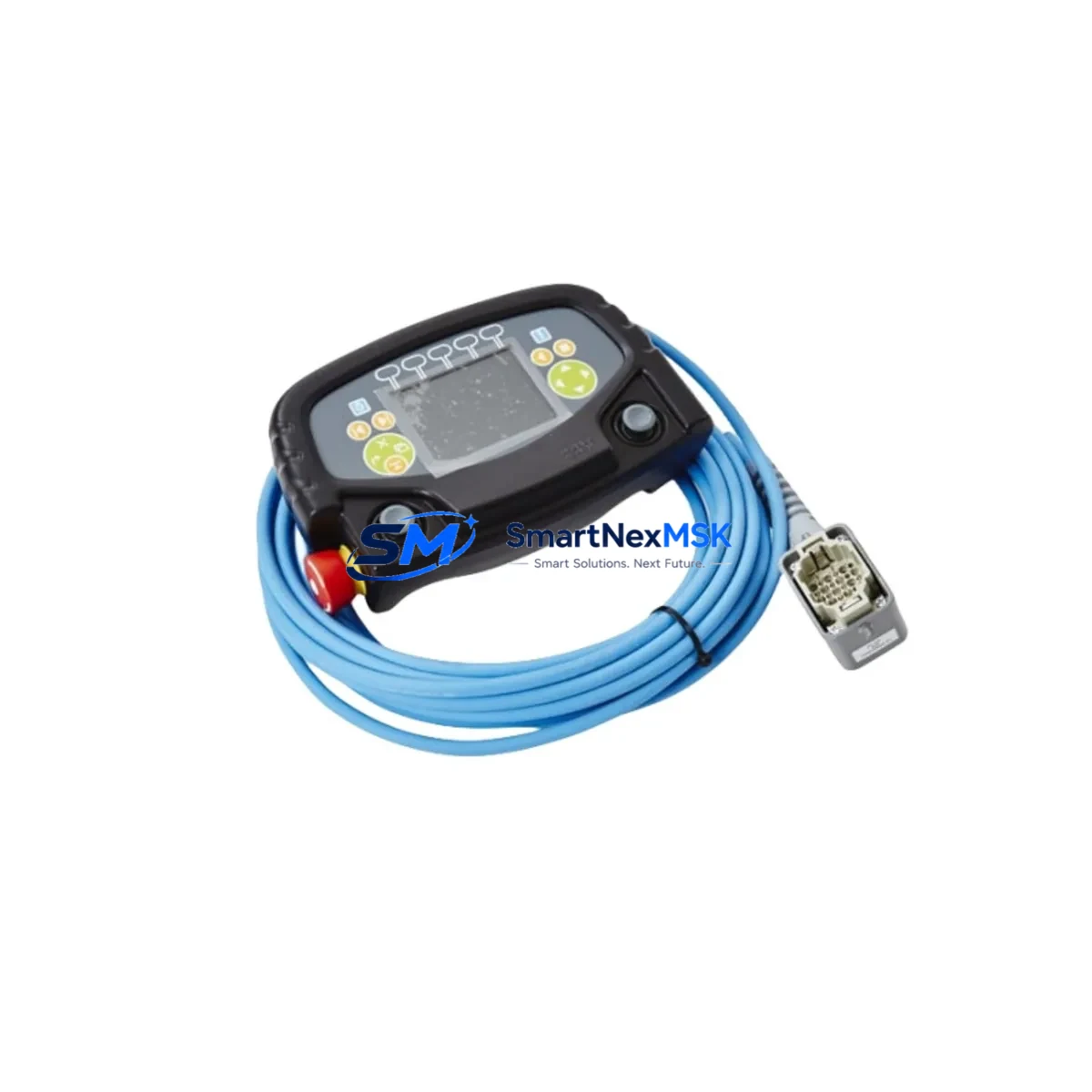

ABB 3HNA024941-001 Retrofit Teach Pendant for IRC5P Paint Control Systems
The ABB 3HNA024941-001 FlexPendant is a retrofit-ready teach pendant engineered for seamless integration into ABB IRC5P Paint robot controller systems. As legacy IRC5P Paint installations age and OEM support windows close, plant engineers and automation integrators increasingly rely on verified replacement units to sustain uptime, preserve existing program logic, and avoid the cost and disruption of full controller replacement. The 3HNA024941-001 addresses this need directly — it is a direct-fit, electrically compatible substitute for worn, damaged, or end-of-life teach pendants operating within IRC5P Paint environments.
Whether your facility runs a single IRC5P Paint cabinet or a multi-robot spray line coordinated through an ABB RobotWare Paint application, this FlexPendant restores full operator interface capability without requiring controller firmware changes or HMI screen remapping. The unit communicates over the standard IRC5 teach pendant bus, maintaining compatibility with existing RobotWare 5.x and select RobotWare 6.x installations. Before installation, engineers should confirm the RobotWare version running on the target IRC5P controller, as certain advanced paint process options may require a minimum software revision.
Procurement teams sourcing this unit as a spare or emergency replacement should note that the 3HNA024941-001 is interchangeable with earlier FlexPendant revisions used across the broader IRC5 platform — including standard IRC5 single-cabinet and IRC5 MultiMove configurations — provided the cable assembly and connector type match. The DSQC 679 teach pendant interface board inside the IRC5P controller governs pendant recognition; no additional configuration is required when swapping a like-for-like unit.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Controller | ABB IRC5P Paint (single cabinet & paint process variant) |
| Interface Standard | IRC5 FlexPendant bus (standard 12-pin connector) |
| RobotWare Compatibility | RobotWare 5.x; select RobotWare 6.x (verify build revision) |
| Replacement Scope | Drop-in for worn, damaged, or discontinued IRC5P teach pendants |
| Installation Requirement | No firmware change required; match cable assembly and connector type |
| Communication Protocol | Proprietary ABB FlexPendant protocol over IRC5 pendant bus |
| HMI Screen Remapping | Not required for like-for-like replacement |
| Commissioning Note | Verify DSQC 679 interface board recognition after swap |
| Origin | Germany (DE) |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful IRC5P Paint teach pendant retrofit begins well before the unit arrives on-site. Integrators should audit the existing control cabinet to document the IRC5P main computer module (typically a DSQC 1000 or DSQC 600 series), the axis computer boards, and the paint process I/O modules connected to the DeviceNet or EtherNet/IP backplane. The 3HNA024941-001 pendant connects to the controller’s teach pendant port on the front panel of the IRC5P cabinet; confirm the port is undamaged and the locking ring is functional before proceeding.
Power supply integrity is a prerequisite for reliable pendant operation. The IRC5P’s internal 24 VDC power distribution module — often a DSQC 661 or equivalent — must deliver stable voltage to the pendant interface. A degraded power supply can cause intermittent pendant disconnections that mimic a faulty pendant, so measure rail voltage under load before condemning the original unit. Similarly, inspect the teach pendant cable (3HNA023195-001 or equivalent) for jacket damage, bent pins, or connector wear, as cable faults are a common root cause of pendant communication errors in high-cycle paint environments.
For facilities migrating from an older S4C+ or S4Cplus paint controller to the IRC5P platform, the 3HNA024941-001 is part of a broader upgrade path that typically also involves replacing the robot controller backplane, updating the RAPID program structure, and reconfiguring paint process parameters within RobotWare Paint. During this migration, engineers commonly also source the IRC5P drive module, the SMB (Serial Measurement Board) for each robot axis, and updated I/O gateway modules to bridge legacy fieldbus segments. The FlexPendant is the operator’s primary interface throughout this transition, making a verified, in-stock unit essential to keeping the commissioning schedule on track.
HMI screen layouts configured in the original IRC5P installation are stored in the controller’s system parameters, not in the pendant hardware itself. This means that swapping the 3HNA024941-001 into an existing system preserves all custom operator screens, production counters, and alarm displays without any reprogramming. Integrators should nonetheless perform a full I/O check and a dry-run of the paint program after installation to confirm that all digital outputs — including gun trigger signals, atomizer speed references, and conveyor interlock inputs — respond correctly through the new pendant interface.
Downtime Control During System Migration
Minimizing unplanned downtime during a teach pendant replacement on an active IRC5P Paint line requires a structured hot-swap protocol. Begin by placing the robot in a safe, parked position using the existing pendant before disconnecting it — this preserves the current joint positions in the controller’s non-volatile memory and prevents unexpected motion when the new pendant is connected. The IRC5P controller does not require a full power cycle for pendant replacement; the unit can be swapped with the controller in motors-off state, reducing the interruption to under five minutes in most cases.
Back up the complete system configuration — including RAPID modules, system parameters, EIO configuration, and paint process data — to a USB drive or network share before beginning any hardware swap. The IRC5P’s FlexPendant provides a guided backup wizard accessible from the ABB menu; this step is non-negotiable in production environments where program recovery time directly impacts throughput. If the facility operates multiple IRC5P Paint robots on a coordinated line, stagger the pendant replacements across shifts to maintain partial line capacity throughout the maintenance window.
After connecting the 3HNA024941-001, verify that the controller recognizes the pendant within 30 seconds of connection — the ABB logo and startup screen should appear on the pendant display. If the pendant does not initialize, check the cable seating, inspect the DSQC 679 interface board for fault LEDs, and confirm that no active safety circuit is holding the system in a locked state. Once the pendant is online, run a full axis jog test in manual mode at reduced speed before returning the robot to automatic production mode. Document the swap in the site’s maintenance log, including the serial number of the replaced unit and the new 3HNA024941-001, to support the 12-month warranty claim process if required.
Retrofit Support FAQ
Q: Is the ABB 3HNA024941-001 a direct replacement for the original IRC5P Paint teach pendant?
A: Yes. The 3HNA024941-001 is a verified drop-in replacement for the standard FlexPendant used in ABB IRC5P Paint controller systems. It uses the same 12-pin connector, communicates over the standard IRC5 pendant bus, and requires no firmware modification on the controller side. Confirm your cable assembly part number matches before installation.
Q: Will my existing RAPID programs and HMI screens be preserved after the swap?
A: Yes. All RAPID modules, system parameters, and custom operator screens are stored in the IRC5P controller’s memory, not in the pendant. Replacing the 3HNA024941-001 does not alter any program logic or HMI configuration. We recommend performing a full system backup before the swap as a precaution.
Q: What pre-shipment testing is performed on the 3HNA024941-001?
A: Each unit undergoes power-on functional verification, display and touchscreen calibration check, and communication interface testing prior to shipment. Units are shipped in anti-static packaging with a test record. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.
Q: Can this pendant be used with ABB IRC5 standard (non-paint) controllers?
A: The 3HNA024941-001 is physically and electrically compatible with the broader IRC5 platform, including standard single-cabinet and MultiMove configurations, provided the RobotWare version and cable assembly are compatible. However, paint-specific process screens and options are only active when connected to an IRC5P controller running RobotWare Paint. Confirm compatibility with your specific RobotWare build before ordering for non-paint applications.
