ABB 3HNE00442-1 Retrofit-Ready FlexPendant for IRC5

ABB 3HNE00442-1 Retrofit-Ready FlexPendant for IRC5 Control Systems

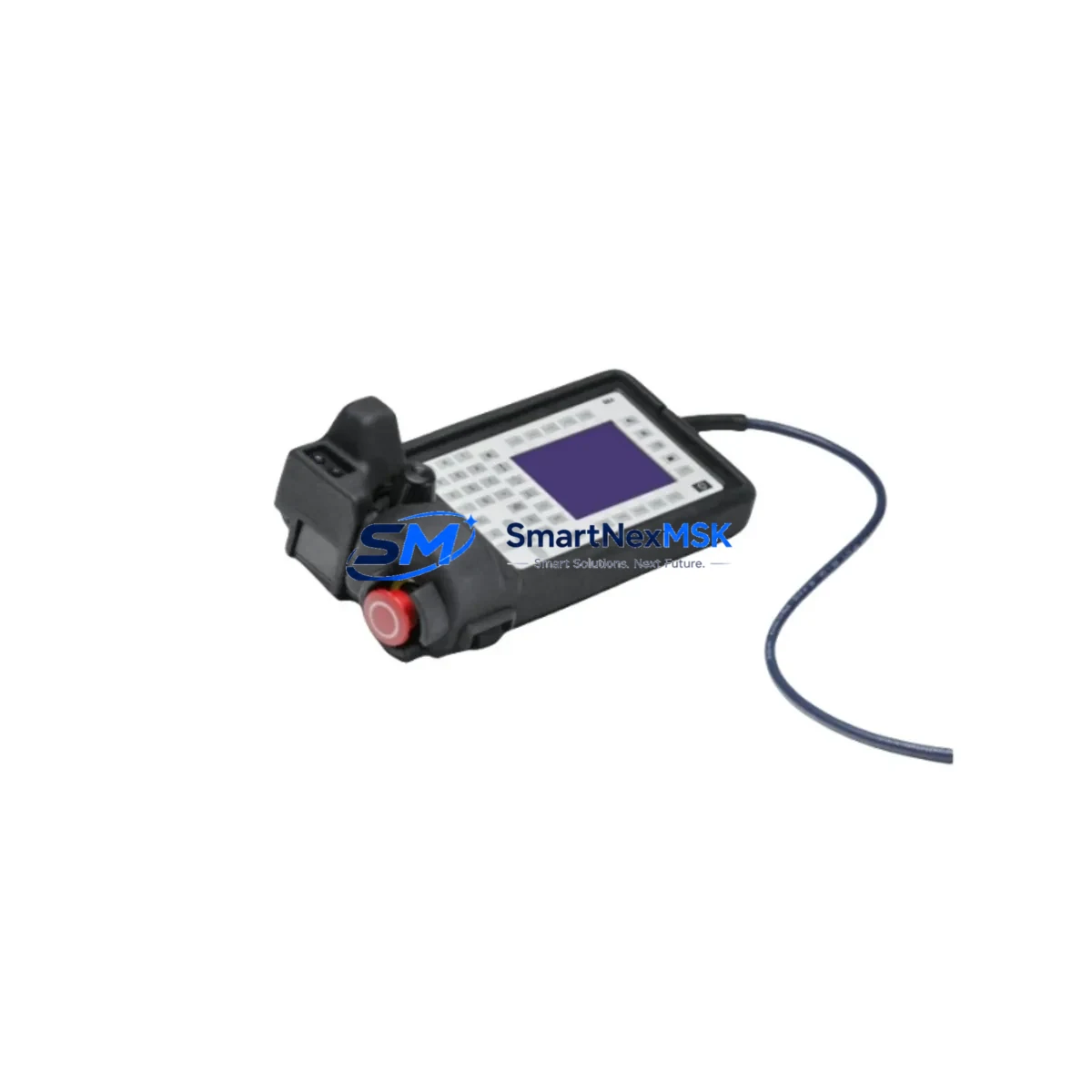

The ABB 3HNE00442-1 FlexPendant is the primary operator interface for ABB IRC5 robot controllers, delivering full teach, jog, program editing, and diagnostic functions through a ruggedized touchscreen pendant. As ABB’s IRC5 platform continues to serve as the backbone of robotic automation across automotive, metal fabrication, food processing, and electronics assembly lines, the demand for reliable retrofit-grade replacements of the 3HNE00442-1 has grown significantly. Whether you are replacing a damaged unit, upgrading from an earlier IRC5 pendant revision, or restoring a decommissioned robot cell to full production capability, the 3HNE00442-1 provides a direct drop-in solution with no controller firmware modification required in standard IRC5 configurations.

When planning a retrofit or replacement of the FlexPendant, engineers must verify several key parameters before installation. The IRC5 controller cabinet must be running a compatible RobotWare version — typically RobotWare 5.x or 6.x — to ensure full handshake with the pendant’s embedded software. The pendant connects via the IRC5 FlexPendant port using a proprietary connector; confirm that the cable assembly and strain relief bracket are intact, as a damaged cable is often the root cause of pendant communication faults rather than the pendant unit itself. The IRC5 main computer module (DSQC1000 or DSQC679, depending on cabinet generation) must be operational, as the FlexPendant draws its operating environment directly from the controller’s system software. If the IRC5 drive module or axis computer boards have been recently replaced, a system restart and pendant re-pairing sequence is recommended before resuming production.

In multi-robot or coordinated motion cells, the 3HNE00442-1 FlexPendant must be correctly assigned to the target mechanical unit within the IRC5 system parameters. Operators should verify that the teach mode selector switch on the IRC5 controller panel is correctly positioned, and that the enabling device (three-position enabling device on the pendant) is functioning within ISO 10218-1 safety requirements before any manual jogging operation. The emergency stop circuit integrated into the FlexPendant cable loop must also be validated as part of the safety relay chain — particularly in cells where the IRC5 safety module (DSQC643 or equivalent) governs the E-stop architecture.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 FlexPendant retrofit begins with a thorough audit of the existing control cabinet. Before removing the old pendant, engineers should create a full system backup using the IRC5 FlexPendant’s own backup function or via RobotStudio connected to the controller’s service port. This backup preserves all RAPID programs, system parameters, tool data, work object definitions, and I/O configurations — critical assets that would otherwise require manual reconstruction if lost during the swap.

The IRC5 controller’s power supply module (typically a 24 VDC DSQC609 or DSQC661 unit) should be inspected for output stability before connecting the new 3HNE00442-1. A degraded power supply can cause intermittent pendant disconnections that mimic a faulty pendant, leading to unnecessary part replacements. Similarly, the IRC5 axis computer (DSQC668 or DSQC1015) and the I/O boards (DSQC651 for digital I/O, DSQC355 for analog I/O) should be confirmed as fault-free via the controller’s event log before the retrofit proceeds.

For cells integrating ABB SafeMove or SafeMove2 safety supervision, the FlexPendant replacement must be followed by a safety configuration validation. The SafeMove module stores its configuration independently on the IRC5 safety computer, but the FlexPendant is the primary interface for acknowledging safety supervision states and resetting safety violations. Ensure the new pendant communicates correctly with the safety supervision system before releasing the cell to production.

In installations where the IRC5 communicates with external PROFIBUS DP, DeviceNet, or EtherNet/IP networks via communication boards such as the DSQC667 or DSQC688, the FlexPendant replacement does not affect the fieldbus configuration — these parameters reside in the controller’s system software. However, after the pendant swap, it is good practice to verify the I/O signal status screen on the new FlexPendant to confirm all digital and analog signals are reading correctly before resuming automatic operation. If the cell uses an ABB Panel Board (DSQC1030) or operator station, verify that the mode selector and external E-stop inputs are correctly reflected on the new pendant’s status display.

Downtime Control During System Migration

Minimizing downtime during a FlexPendant replacement on an IRC5 robot is achievable with disciplined pre-planning. The physical swap itself — disconnecting the old pendant, connecting the 3HNE00442-1, and powering up the controller — typically takes under 15 minutes for a trained technician. The critical time investment lies in pre-swap preparation and post-swap validation.

Before shutdown, document the current robot position (joint angles and Cartesian coordinates), active tool and work object, and any active I/O states. If the robot is part of a synchronized multi-robot cell using IRC5 MultiMove, note the coordinated motion task assignments. After the new pendant is connected and the controller boots, verify that the system date and time are correct (the IRC5 clock is battery-backed but should be confirmed), then restore from the pre-swap backup if any system parameters were inadvertently altered.

For production environments where even brief unplanned stops carry significant cost, it is advisable to keep a spare 3HNE00442-1 FlexPendant on-site as a hot-standby unit. Given that the pendant is a plug-and-play replacement within the IRC5 ecosystem, a spare unit can restore operator control within minutes of a pendant failure — far faster than waiting for emergency procurement. SMARTNEXMSK maintains ready stock of the 3HNE00442-1 to support exactly this kind of rapid-response spare parts strategy, with same-day dispatch available for confirmed orders.

All units supplied by SMARTNEXMSK undergo functional testing prior to shipment, including pendant boot verification, touchscreen calibration check, enabling device continuity test, and E-stop circuit validation. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q1: Is the ABB 3HNE00442-1 a direct drop-in replacement for my existing IRC5 FlexPendant?
Yes. The 3HNE00442-1 is designed as a direct replacement for IRC5 FlexPendant units across the IRC5 Single Cabinet, Compact, and Panel Mounted Controller variants. No controller firmware modification is required for standard IRC5 configurations running RobotWare 5.x or 6.x. We recommend verifying your RobotWare version and creating a system backup before installation.

Q2: What pre-installation checks should I perform before replacing the FlexPendant?
Verify the IRC5 power supply output (24 VDC), inspect the FlexPendant cable and connector for damage, confirm the IRC5 main computer and axis computer are fault-free via the event log, and create a full system backup. For SafeMove-equipped cells, plan for a post-swap safety configuration validation before returning to automatic mode.

Q3: Does the 3HNE00442-1 come with a warranty and pre-shipment testing?
Yes. Every unit supplied by SMARTNEXMSK is functionally tested before dispatch — covering boot verification, touchscreen response, enabling device continuity, and E-stop circuit integrity. A 12-month warranty is included, covering manufacturing defects and functional failures under normal industrial operating conditions.

Q4: Can SMARTNEXMSK support long-term supply of the 3HNE00442-1 for multi-site maintenance programs?
Yes. SMARTNEXMSK maintains ongoing inventory of the ABB 3HNE00442-1 and related IRC5 spare parts to support planned maintenance schedules, emergency replacements, and multi-site procurement programs. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time commitments for your facility.
