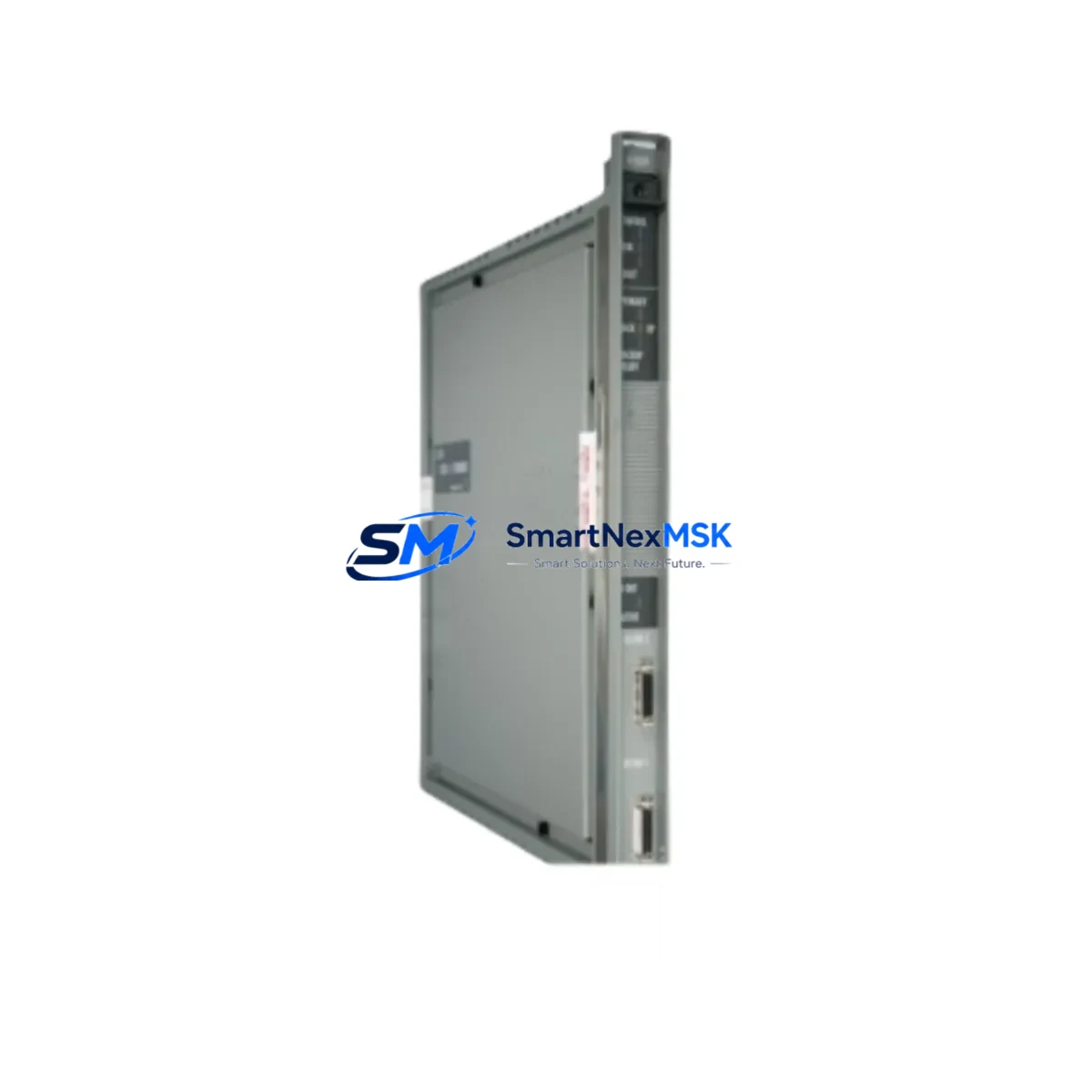

ABB 40PB3202A Safety-Enhanced Power Supply for Harsh Sites

ABB 40PB3202A Safety-Enhanced Power Supply for Harsh Industrial Sites

The ABB 40PB3202A is a ruggedized 24 VDC power supply module engineered for the ABB AC500 programmable logic controller platform. Designed to sustain continuous, uninterrupted power delivery in high-load, high-interference industrial environments, the 40PB3202A is the backbone of control cabinet power architecture in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous-process manufacturing lines. Its robust design directly addresses the most critical failure modes in field-deployed control systems: voltage sag, surge transients, EMI-induced signal drift, and thermal runaway — all of which can trigger unplanned shutdowns, safety interlock failures, or cascading process faults.

In safety-critical applications, power supply integrity is not optional — it is the foundation upon which every downstream control decision depends. The 40PB3202A delivers tightly regulated 24 VDC output with low ripple, ensuring that connected I/O modules such as the ABB DC532 digital input module and ABB AX522 analog I/O module receive stable reference voltage at all times. Voltage instability at the power rail is a leading cause of analog signal drift in 4–20 mA loops; the 40PB3202A’s regulated output eliminates this risk, protecting the integrity of process variable readings across the entire control loop.

The module integrates seamlessly within the AC500 backplane alongside the ABB PM591 and ABB PM592 CPU modules, providing the power headroom required for high-density I/O configurations without derating. In installations where redundant power is mandated by functional safety standards (IEC 61508 / IEC 62061), the 40PB3202A can be deployed in parallel with a secondary supply unit, with diode-ORing or active redundancy controllers ensuring bumpless switchover during primary supply failure. This architecture is particularly critical in safety instrumented systems (SIS) where power loss to a final control element — such as a solenoid valve or motor drive — must be prevented at all costs.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet in a heavy industrial environment is a system — not a collection of individual components. The 40PB3202A anchors the power distribution layer, but its protective value is fully realized only when paired with complementary protection and control hardware. In a typical AC500-based control cabinet, the power supply feeds the backplane bus, which in turn powers the ABB TB521 terminal base units and their associated I/O modules. Upstream of the 40PB3202A, a properly rated surge protection device (SPD) — such as an ABB-compatible Type 2 SPD on the 24 VDC bus — absorbs transient energy from lightning strikes or switching operations on the supply network, preventing damage to the module’s internal regulation circuitry.

On the communications side, the AC500 platform typically employs ABB CI590-CS31-HA or CI501-PNIO communication interface modules for PROFIBUS, PROFINET, or CS31 fieldbus connectivity. These modules are sensitive to power rail noise; the 40PB3202A’s low-ripple output directly reduces the risk of communication frame errors, CRC faults, and watchdog timeouts that can cause a PLC to enter safe-stop mode unexpectedly. In installations with long cable runs to remote I/O panels, the stable 24 VDC rail also ensures that ABB DC522 digital output modules driving solenoids, contactors, and pilot lights operate within their specified switching thresholds without nuisance trips.

For motor control and drive integration, the 40PB3202A provides the control-voltage supply for ABB ACS series drive control boards and safety relay modules such as the ABB JOKAB RT9 or equivalent safety relay, which monitor E-stop circuits and guard door interlocks. A stable 24 VDC supply is mandatory for these devices: voltage drops below 20 VDC can cause safety relays to drop out, triggering unintended machine stops or, worse, failing to de-energize a hazardous drive. The 40PB3202A’s tight output regulation — typically ±1% under full load — eliminates this failure mode. Paired with a 24 VDC UPS buffer module on the output rail, the system achieves ride-through capability during brief mains interruptions, maintaining control system availability during grid disturbances common in heavy industrial facilities.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 40PB3202A is deployed in safety instrumented systems controlling emergency shutdown (ESD) valves, flare ignition systems, and high-integrity pressure protection systems (HIPPS). The module’s wide input voltage tolerance accommodates the voltage fluctuations common on generator-backed power systems in remote processing facilities, while its thermal design sustains rated output at ambient temperatures up to 70 °C — a requirement in non-air-conditioned field junction boxes in tropical or desert climates.

In power generation and substation automation, the 40PB3202A supplies control power to protection relay panels and bay control units integrated with the AC500 platform. Substation environments impose severe EMI stress from high-voltage switching transients; the module’s EMC-hardened design ensures that protection relay logic remains unaffected by conducted and radiated interference. In mining and mineral processing operations, where conveyor systems, crushers, and ball mills impose heavy electrical loads with frequent motor starts, the 40PB3202A maintains stable control power through the resulting voltage dips, preventing spurious PLC resets that could disable conveyor interlocks or dust suppression systems.

In water and wastewater treatment facilities, the module powers AC500-based SCADA outstations controlling pump stations, dosing systems, and UV disinfection units. Continuous 24/7 operation with minimal maintenance access makes supply reliability paramount; the 40PB3202A’s MTBF rating and 12-month warranty provide the confidence required for unattended remote installations. In metallurgical and steel plant applications, the module operates in control cabinets adjacent to induction furnaces and arc furnaces, where electromagnetic interference levels are among the highest encountered in any industrial setting. Its compliance with EN 61000 immunity standards makes it one of the few power supply modules rated for these extreme conditions.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 40PB3202A?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to meet its rated output voltage, current, or protection specifications within the warranty period, we will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage beyond the rated input range, or physical damage in transit.

Q2: How is the 40PB3202A tested before shipment?
Every unit undergoes a 100% functional load test prior to dispatch. This includes output voltage verification at no-load and full-load conditions, overcurrent protection trip-point verification, and thermal stability check. Units that do not meet ABB’s original factory specifications are quarantined and not shipped. A test report is available upon request for critical safety applications.

Q3: Is the 40PB3202A compatible with all AC500 CPU and I/O modules?
Yes. The 40PB3202A is designed for direct backplane integration with the full ABB AC500 product family, including PM5xx and PM5xx-ETH CPU modules, all TB5xx terminal base units, and the complete range of DC5xx digital and AX5xx analog I/O modules. It is also compatible with third-party 24 VDC loads within its rated output current. For high-density configurations exceeding 10 A total load, a second 40PB3202A in parallel with active load sharing is recommended.

Q4: Can long-term supply and replacement support be guaranteed?
We maintain dedicated stock of the ABB 40PB3202A and its AC500 platform siblings to support long-term MRO (maintenance, repair, and operations) requirements. For facilities with multi-year maintenance contracts or critical spare parts programs, we offer reserved inventory agreements. Our supply chain covers both new-production and certified-refurbished units, ensuring continuity of supply even for legacy AC500 installations that may no longer be in active ABB production.
